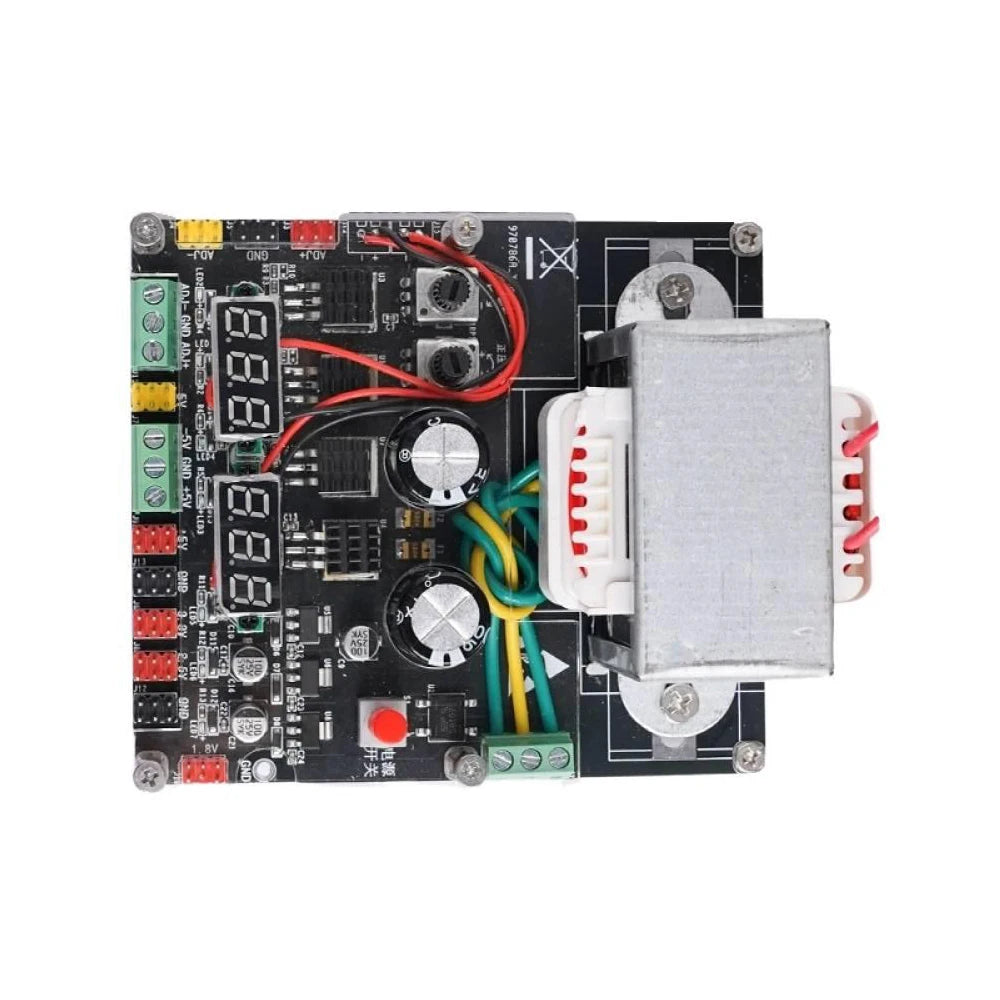

Multi-Channel Linear DC Regulated Power Supply Module — AC220V Input, 10W
This compact yet powerful multi-channel linear DC regulated power supply module converts AC220V mains input into multiple precise, low-noise DC output voltages. Ideal for engineers, hobbyists, and professionals who need a reliable bench-top or embedded power source for digital and analog circuits, microcontrollers, communication equipment, and industrial control instruments.
Key Features
- Multiple Output Voltages: ±12V, ±5V, 3.3V, 2.5V, and 1.8V — all from a single module
- Adjustable Output: ADJ adjustable voltage rail for custom voltage requirements
- Low Noise & Low Ripple: Linear regulation architecture ensures clean, stable power for sensitive analog and high-speed digital circuits
- Digital Display: Built-in digital readout for at-a-glance voltage monitoring
- Power Indicator Light: Visual confirmation that the module is live and operating
- Built-in Over-Temperature Protection: Integrated thermal protection circuitry guards the module during extended operation
- Versatile Applications: DAC/ADC converters, precision op-amps, MCUs, communication hardware, industrial instrumentation
Technical Specifications
| Input Voltage | AC 220V |
| Output Voltages | ±12V, ±5V, 3.3V, 2.5V, 1.8V + ADJ adjustable |
| Max Output Current (ADJ/±5V) | ±500mA (MAX); recommended <±200mA for ADJ, <±300mA for ±5V |
| Max Output Current (3.3V/2.5V/1.8V) | 500mA (MAX); recommended <300mA |
| Total Output Power | 10W (MAX) |
| Protection | Built-in over-temperature protection |
| Operating Temperature | 0°C – 70°C |
| EU LVD Compliance | Low Voltage: Below 50Vac or 75Vdc |
Important Safety & Usage Notes
- Mains Voltage — Observe Safety: The input is AC 220V. Always follow safe electrical practices. Switch off the power when the module is not in use.
- No Reverse Connection or Overcurrent Protection on Output: Double-check all external wiring polarity before powering up.
- 10W Total Power Limit: Do not exceed 10W combined output. Exceeding this limit risks transformer damage.
- Indicator Light Off? A load short circuit may be the cause. Power off immediately and inspect your circuit before restarting.
- Heat Management: LDO heating increases with higher current draw and larger input/output voltage differentials. At higher loads, attach an appropriate heat sink to maintain safe operating temperatures.
What's in the Box
- 1× Multi-Channel Linear DC Regulated Power Supply Module
Made in Mainland China.
For guidance on electrical safety standards relevant to power supply modules, visit the U.S. Consumer Product Safety Commission — Electrical Safety.
