Multi-Biometric Access Control – Face, Fingerprint, RFID & Palm
Multi-Biometric Access Control – Face, Fingerprint, RFID & Palm

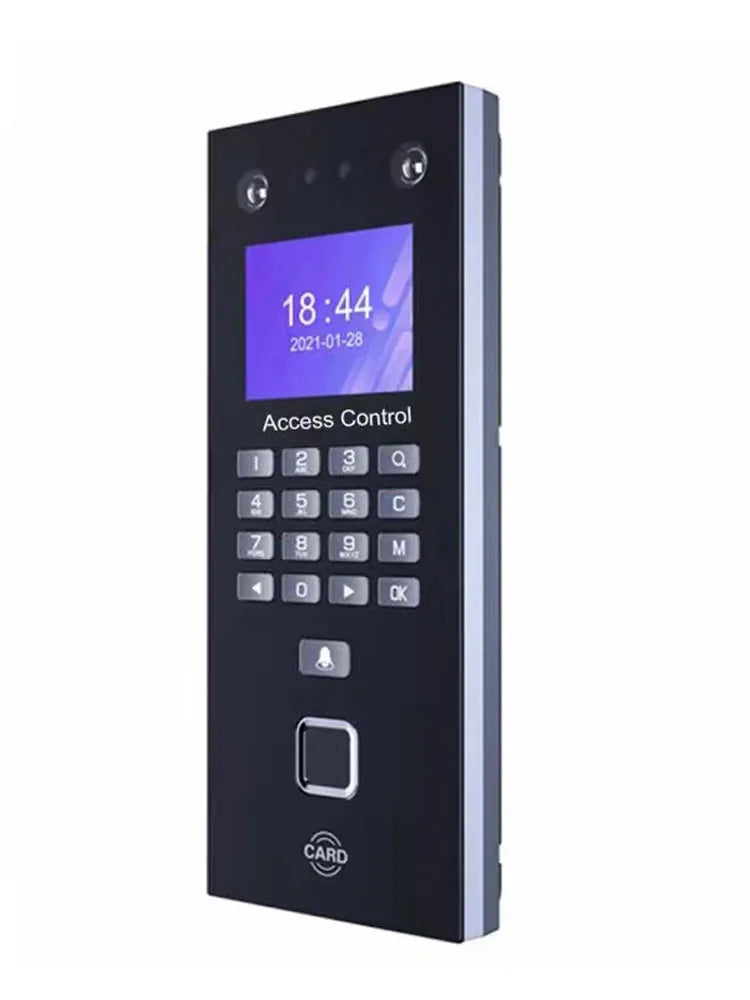

All-in-One Multi-Biometric Access Control System (Rface 602)
Secure your office, factory, or facility with the Asia-Teco Rface 602 — a compact, feature-rich biometric access control and time-attendance terminal that supports five unlocking methods in a single sleek unit. Whether you need face recognition, fingerprint scanning, palm print verification, RFID card access, or keypad PIN entry, this system has you covered.
5 Unlocking Methods in One Device

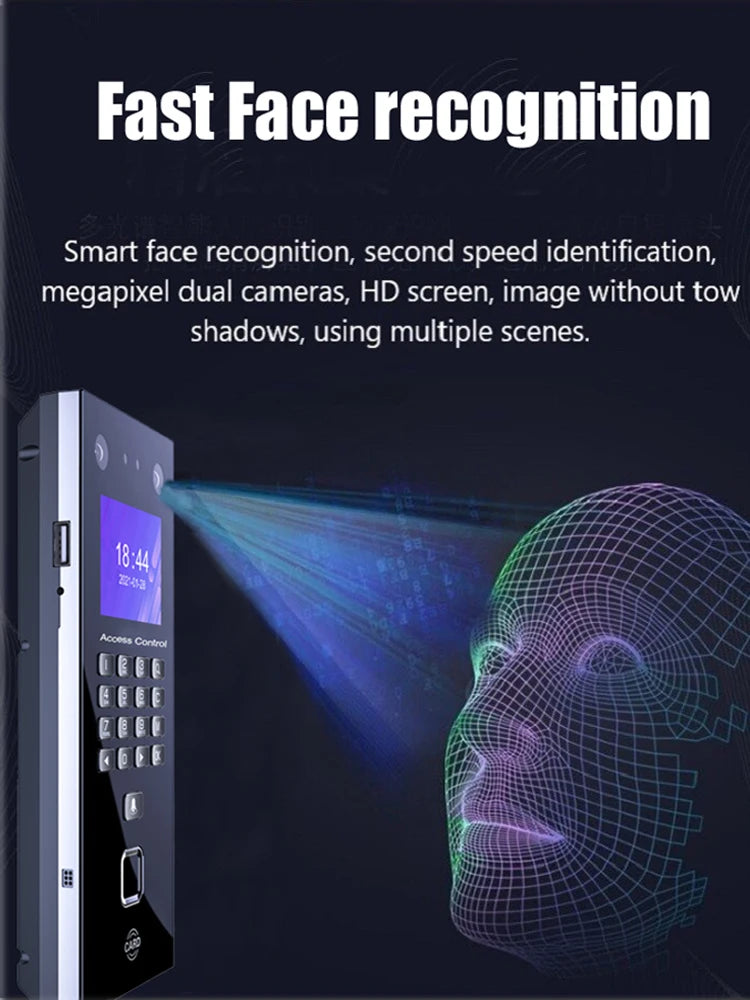

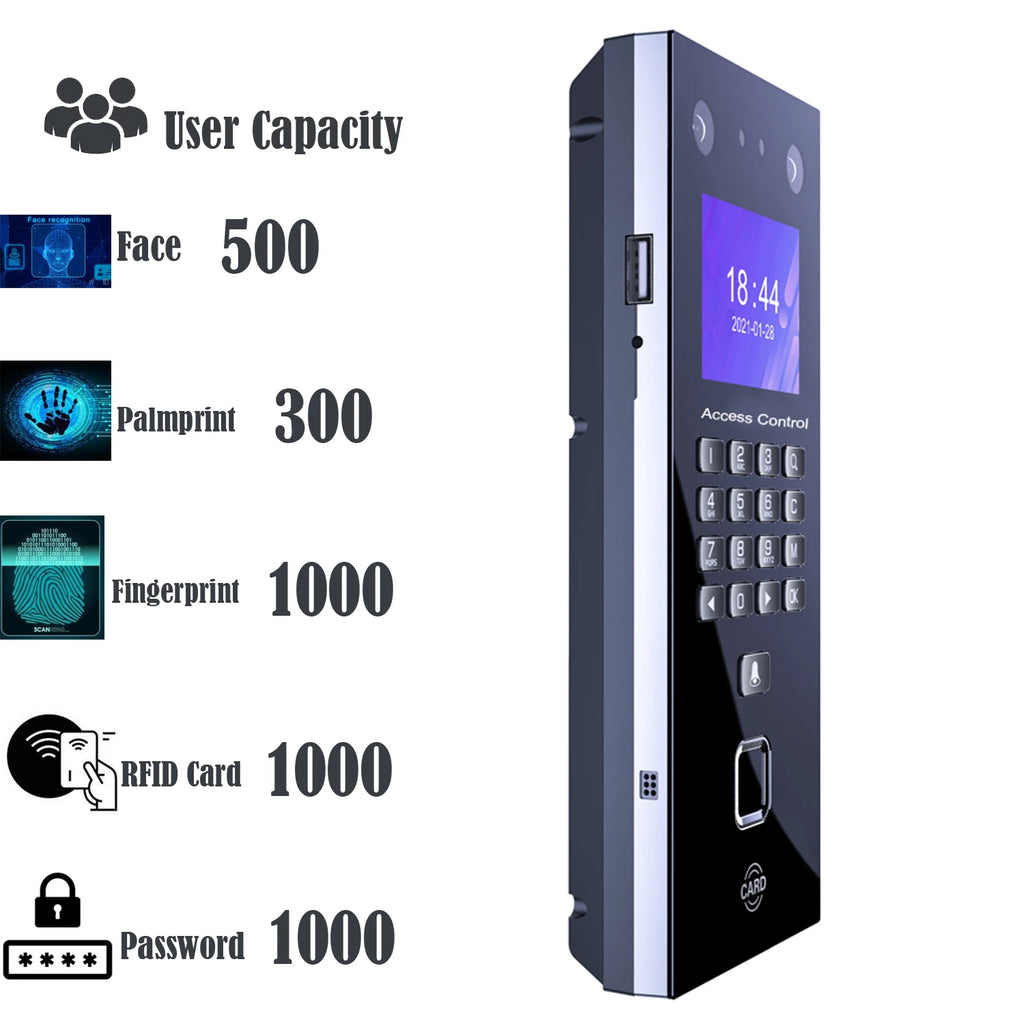

- Face Recognition – Up to 500 registered faces
- Fingerprint Scanning – Up to 1,000 fingerprints
- Palm Print Verification – Up to 300 palm prints
- RFID Card Access – Up to 1,000 cards (125 kHz)
- Keypad PIN Entry – Up to 1,000 passwords
Key Features
- Large Storage Capacity: Stores up to 100,000 access records for comprehensive audit trails
- 2.4-Inch LCD Screen: Clear, easy-to-read display for on-device configuration and user feedback
- Advanced Biometric Algorithm: Fast, precise matching for high-throughput entry points
- Dual-Purpose Operation: Use as an access controller, a time-attendance terminal, or both simultaneously
- Flexible Communication: USB and optional TCP/IP networking; supports USB flash drive data export (high-config version)
- Wiegand Output: WG26/34 compatible for integration with existing security infrastructure
- Door Magnetic Support: Supports door magnetic sensor and adjustable time-delay settings
- Fail-Secure Mode: Maintains door-locked state on power loss for maximum security
- Touch Keypad: Intuitive touch-key interface for easy on-device enrollment, user deletion, and parameter setup
- Multiple Alarm Functions: Tamper alarm, door-open alarm, forced door-open alarm, alarm linkage output, and group authority control by time period
- Sleek Black Finish: Professional, low-profile design that fits modern office and industrial environments
Technical Specifications
| Feature | Detail |
|---|---|
| Brand | Asia-Teco |
| Model | Rface 602 |
| Face Capacity | 500 users |
| Fingerprint Capacity | 1,000 users |
| Palm Print Capacity | 300 users |
| RFID Card Capacity | 1,000 cards (125 kHz) |
| Password Capacity | 1,000 PINs |
| Record Capacity | 100,000 logs |
| Display | 2.4-inch LCD |
| Communication | USB; TCP/IP (optional) |
| Wiegand | WG26/34 output |
| Security Mode | Fail Secure |
| Color | Black |
| Country of Origin | Made in China |
Ideal For
Offices, factories, warehouses, schools, clinics, co-working spaces, server rooms, and any facility requiring reliable, multi-method access control and attendance tracking.
Learn More About Access Control Standards
For best practices on physical security and access control in the workplace, visit the OSHA Workplace Safety Guidelines.
Frequently Asked Questions
Q: Can the Rface 602 biometric access control system work as both an access controller and a time-attendance terminal?
A: Yes. The Rface 602 is a dual-purpose device. You can configure it to control door access, record employee attendance, or perform both functions simultaneously. You can even set it to log attendance only without triggering the door lock — giving you maximum flexibility for your workflow.
Q: What communication methods does this multi-biometric access control system support?
A: The standard unit supports USB connectivity and USB flash drive data export. An optional TCP/IP network module is available for software-based management, allowing all settings and records to be handled remotely through compatible access control software.
Q: How many users can be enrolled in this biometric access control system?
A: The system supports up to 500 face users, 1,000 fingerprint users, 300 palm print users, 1,000 RFID card users, and 1,000 PIN/password users, with a total record storage of 100,000 entries — making it well-suited for small-to-medium businesses and facilities.
Q: Is the Rface 602 compatible with existing security systems?
A: Yes. The device features Wiegand WG26/34 output, which allows it to integrate seamlessly with a wide range of third-party access control panels, door controllers, and security systems that support the Wiegand protocol.
