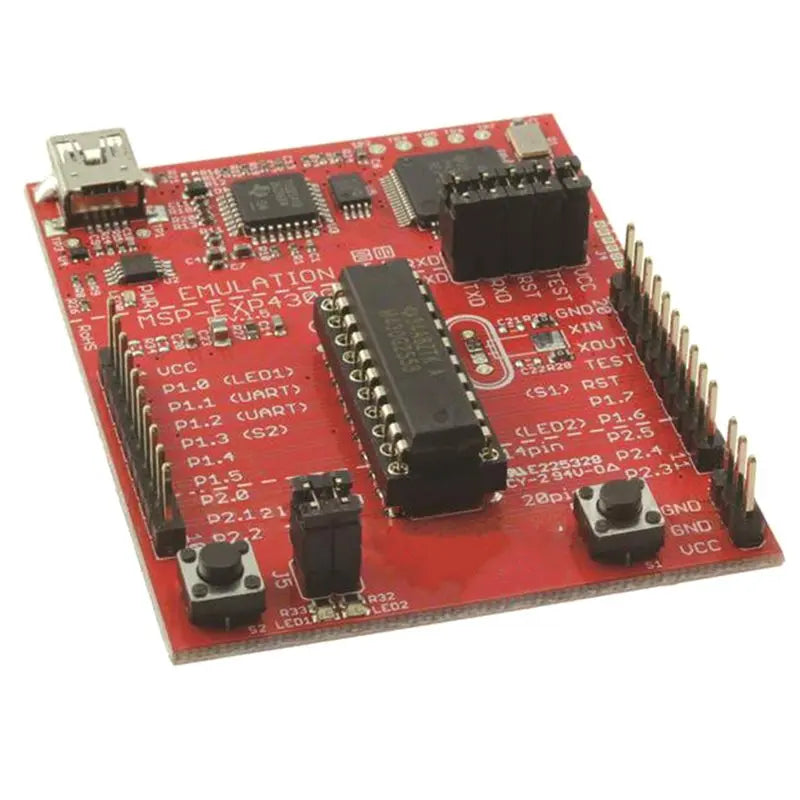

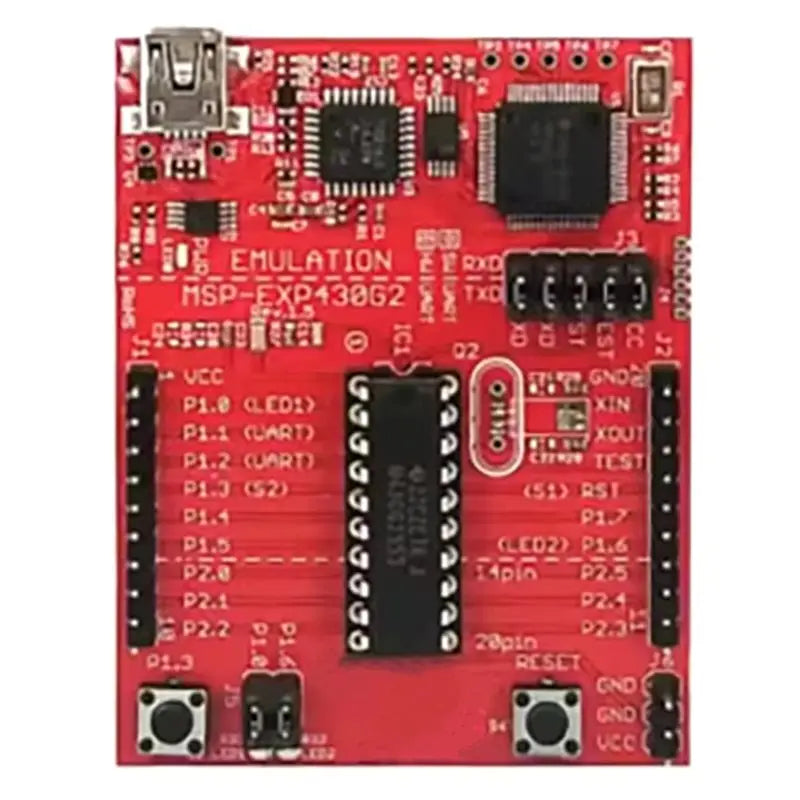

MSP430 LaunchPad Development Board (MSP-EXP430G2) – Rapid Prototyping Kit
Jumpstart your embedded systems projects with the MSP-EXP430G2 LaunchPad Development Board, powered by Texas Instruments' MSP430G2553 microcontroller. Whether you're a student, hobbyist, or professional engineer, this compact and affordable development kit gives you everything you need to build, test, and iterate firmware prototypes quickly and efficiently.
Made in Mainland China.
Key Features
- MSP430G2553 MCU Included: The most memory-rich device in the compatible Value Line family — 16KB Flash, 512 bytes RAM, up to 16 MHz CPU speed.
- 10-bit ADC & Capacitive-Touch I/Os: Enables precise analog readings and touch-sensitive interface development right out of the box.
- Universal Serial Communication Interface (USCI): Supports SPI, I²C, and UART communication for seamless peripheral integration.
- 20-Pin BoosterPack™ Headers: Instantly expand functionality — add wireless connectivity, graphical displays, environmental sensors, and more using TI or third-party BoosterPack plug-in modules.
- Integrated DIP Target Socket: Supports up to 20 pins, allowing Value Line MSP430 devices to be swapped in and out for flexible hardware experimentation.
- Free IDE Support: Compatible with TI's Eclipse-based Code Composer Studio™ (CCS), IAR Embedded Workbench™, and the community-driven Energia open-source code editor — no extra software costs.
Technical Specifications
| MCU | MSP430G2553 |
| Flash Memory | 16 KB |
| RAM | 512 Bytes |
| CPU Speed | Up to 16 MHz |
| ADC | 10-bit |
| Pin Headers | 20-pin BoosterPack™ compatible |
| Color | Red |
| Material | Plastic PCB |
| Country of Origin | Mainland China |

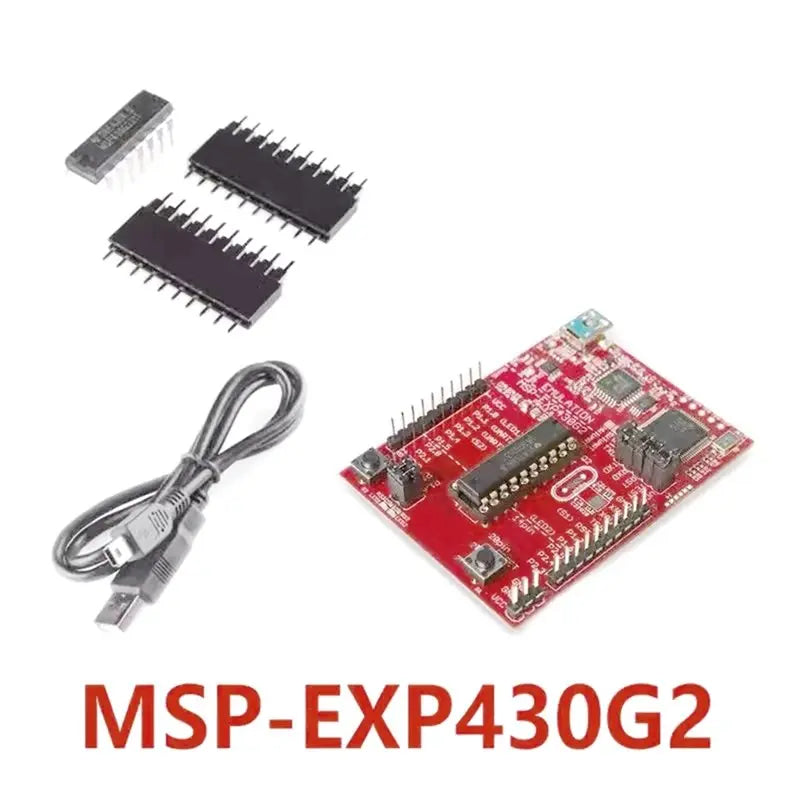

What's in the Box
- 1× MSP-EXP430G2 Development Board (with MSP430G2553 MCU pre-installed)
Note: Other components and accessories not included. Slight color variation may occur due to screen settings. Measurement tolerance: ±1–3 cm.
Ideal For
- Embedded systems coursework and university projects
- IoT and smart device prototyping
- Firmware development and evaluation
- Learning low-power microcontroller programming
- BoosterPack expansion and sensor integration experiments
For more information on embedded systems standards and microcontroller safety best practices, visit NIST Electronics Resources.
Frequently Asked Questions
Q: What microcontroller comes pre-installed on the MSP-EXP430G2 LaunchPad development board?
A: The board ships with the MSP430G2553 MCU by default. This is the most memory-rich device in the compatible Value Line range, offering 16KB of Flash, 512 bytes of RAM, and up to 16 MHz CPU speed — making it well-suited for a wide variety of prototyping and educational projects.
Q: Which software IDEs are compatible with the MSP430 LaunchPad development board?
A: The MSP-EXP430G2 LaunchPad is compatible with several free development environments including Texas Instruments' Code Composer Studio™ (CCS), IAR Embedded Workbench™, and the open-source Energia code editor. All tools are freely available, making it an accessible choice for beginners and experienced developers alike.
Q: Can I expand the MSP430 LaunchPad with additional modules?
A: Yes! The board features 20-pin BoosterPack™ plug-in module headers that are compatible with a wide ecosystem of expansion modules from TI and third-party developers. You can add wireless connectivity, displays, environmental sensors, and more — or design your own custom BoosterPack module.
Q: Is the MSP-EXP430G2 board suitable for beginners in embedded programming?
A: Absolutely. The MSP430 LaunchPad is specifically designed to lower the barrier to entry for embedded development. Its free IDE support, open-source Energia environment (similar to Arduino), and extensive TI documentation make it one of the most beginner-friendly development kits available.
