MPPT Solar Charge Controller WiFi Bluetooth 12V–60V 40A
MPPT Solar Charge Controller WiFi Bluetooth 12V–60V 40A
Smart MPPT Solar Charge Controller with WiFi & Bluetooth – 12V to 60V, 40A/60A
Take full command of your solar energy system with this advanced MPPT Solar Charge Controller. Featuring built-in WiFi and Bluetooth connectivity, real-time app monitoring, and support for a wide range of battery types and voltages, this controller is the ideal centerpiece for off-grid, RV, marine, and home solar installations. Made in Mainland China.
Why Choose This MPPT Solar Charge Controller?
- Up to 98% Conversion Efficiency: True MPPT technology extracts up to 30% more energy from your solar panels compared to traditional PWM controllers, ensuring your batteries charge faster and more completely.

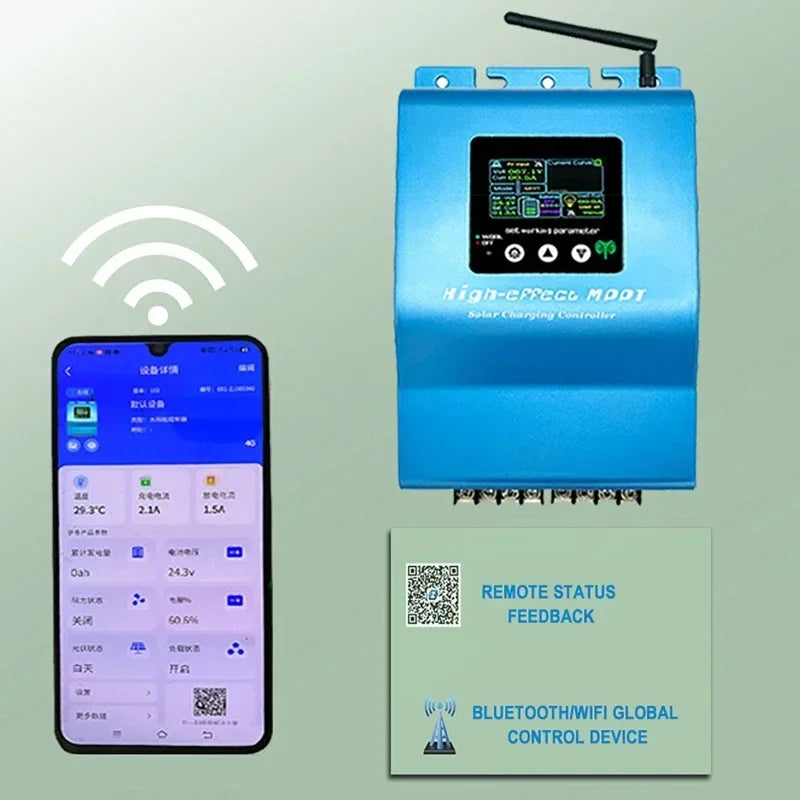

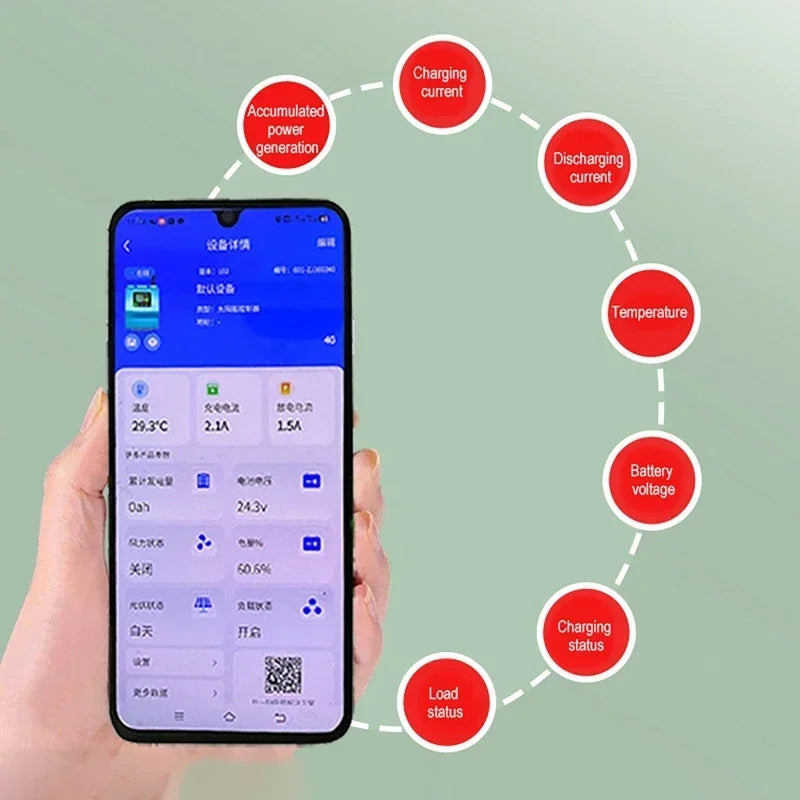

- Smart App Control (WiFi & Bluetooth): Monitor and manage your entire solar system remotely via the ZhiJinPower app (available for Android and iOS). View real-time data including charging current, discharge current, battery voltage, temperature, and cumulative power generation — all from your smartphone or PC.
- Wide Voltage Compatibility (12V–60V Auto-Detect): Automatically identifies your battery system voltage — compatible with 12V, 24V, 36V, 48V, and 60V battery banks, eliminating manual configuration.
- Multi-Battery Type Support: Works seamlessly with sealed lead-acid, lithium, LiFePO4, and solid-state batteries, making it a versatile upgrade for virtually any solar setup.
- Unique 0V Battery Repair Function: When a battery is completely discharged to 0V, the built-in repair mode can recover and restart the battery automatically (0V start must be enabled/locked to use).
- Comprehensive Built-In Protections: Overheat, overcurrent, short-circuit, and open-circuit protection keep your equipment safe. The controller automatically recovers once the fault condition is cleared — no manual reset needed.

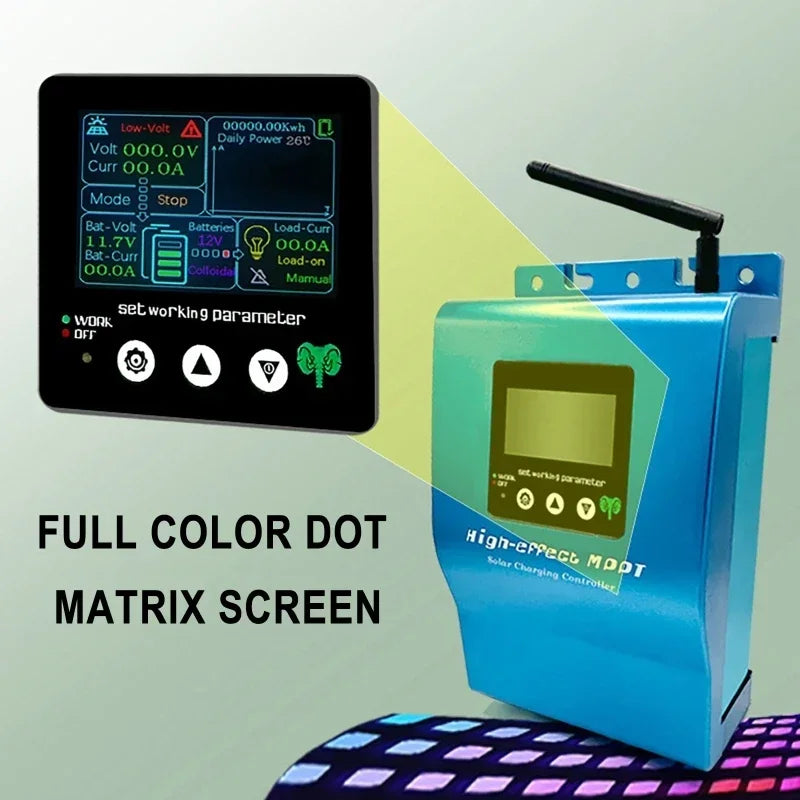

- Color Dot-Matrix Display: A vivid color screen displays all key data in Chinese and English, including daily power generation totals, making at-a-glance monitoring easy and intuitive.
Technical Specifications
| Rated Charging Current | 20A / 40A (selectable) |
| Rated Discharge Current | 10A |
| Supported Battery Voltages | 12V / 24V / 36V / 48V / 60V (auto-detect) |
| PV Input Voltage (12V battery) | 20V – 80V |
| PV Input Voltage (24V battery) | 37V – 105V |
| PV Input Voltage (36V battery) | 50V – 160V |
| PV Input Voltage (48V battery) | 72V – 160V |
| PV Input Voltage (60V battery) | 90V – 160V |
| Standby Current | <30mA |
| Working Temperature | -10°C to 60°C |
| Dimensions | 370 × 305 × 38mm |
| Color | Blue |
| Material | Colloid |
| Connectivity | WiFi, Bluetooth |
| Certification | CE |
App Download
Search "ZhiJinPower" in your mobile app store, or use the links below:
- Android: Download for Android
- Apple iOS: Download for iOS
What's in the Box
- 1 × MPPT Solar Panel Battery Charge Controller
- 1 × User Manual (English)
Learn More About Solar Energy
For general guidance on solar energy systems and how MPPT controllers improve energy harvesting, visit the U.S. Department of Energy – Solar Energy Technologies page.
Frequently Asked Questions
Q: What battery types are compatible with this MPPT solar charge controller?
A: This controller supports sealed lead-acid, lithium-ion, LiFePO4 (lithium iron phosphate), and solid-state batteries across system voltages of 12V, 24V, 36V, 48V, and 60V. The controller automatically detects the correct voltage, so no manual setting is required.
Q: How do I monitor my solar system with the app?
A: Download the ZhiJinPower app on your Android or iOS device. Once connected via WiFi or Bluetooth, you can view real-time charging current, discharge current, battery voltage, temperature, and cumulative power generation. A PC web interface is also available using the same login credentials.
Q: What does the 0V battery repair function do?
A: If your battery has been fully depleted to 0 volts, the controller's built-in repair mode can attempt to recover and restart the battery from that state. Please note that this feature must be explicitly enabled (locked) in the controller settings before it will activate.
Q: What is the advantage of MPPT over traditional PWM controllers?
A: MPPT (Maximum Power Point Tracking) technology continuously finds and locks onto the optimal operating point of your solar panels, delivering up to 30% more charging efficiency and a conversion rate of up to 98%, compared to standard PWM controllers. This means faster charge times and more energy harvested — especially under variable weather conditions.
Q: What protections does this controller have built in?
A: The controller includes overheat protection, overcurrent protection, short-circuit protection, and open-circuit protection. When any fault condition is resolved, the controller recovers automatically without requiring manual intervention or risking damage to connected equipment.
