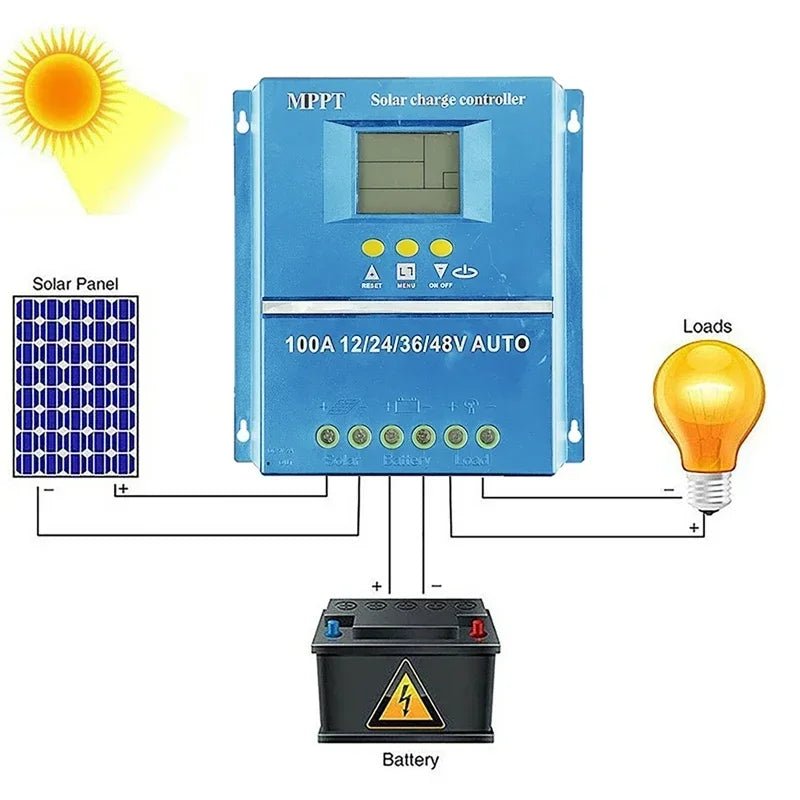

Dreamburgh MPPT Solar Charge Controller — 60A / 80A / 100A | 12V, 24V, 36V & 48V Auto
Maximize every watt your solar panels produce with the Dreamburgh MPPT Solar Charge Controller. Available in 60A, 80A, and 100A ratings, this CE-certified controller automatically identifies your battery bank voltage (12V, 24V, 36V, or 48V) and applies advanced Maximum Power Point Tracking (MPPT) pulse-width modulation charging to keep lead-acid and lithium batteries charged efficiently — even in low-light conditions.

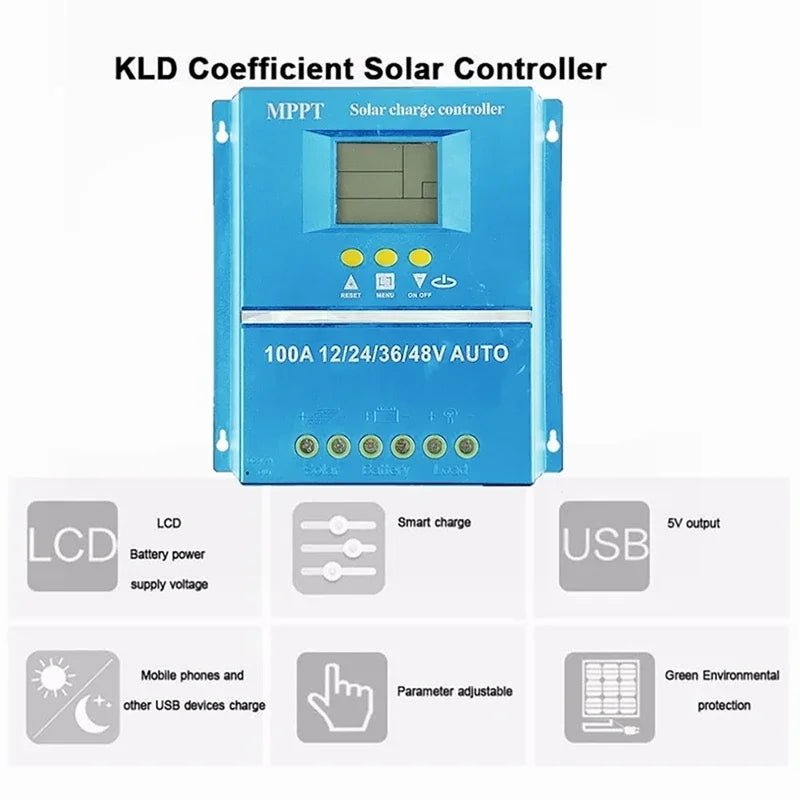

Key Features
- Backlit LCD Display: Clear, intuitive readout of real-time system data — easy to read day or night.
- One-Key Parameter Adjustment: Easily configure dive voltage, boost charging voltage, light control, and time delay directly from the front panel.

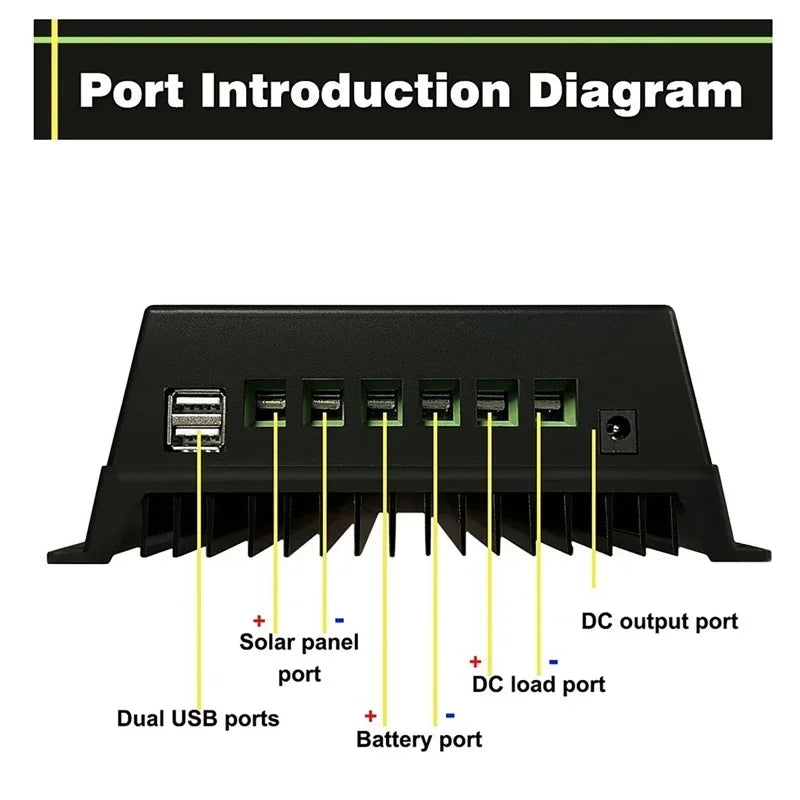

- Wide-Gauge Wiring Port: Accommodates up to 16 mm² wires with 7 mm spacing, improving insulation reliability and minimizing resistive losses.
- Dual USB Charging Ports: Power smartphones, tablets, gaming devices, and more directly from your solar system.
- Heavy-Duty Heat Sink: Thickened, uniformly finned heat sink enables stable operation up to 60 °C — ideal for rooftop, RV, and off-grid installations.
- Comprehensive Protection Suite: Overcharge protection, over-discharge protection, DC output protection, low-voltage and high-voltage protection, and reverse-polarity protection all built in.
- CE Certified: Meets European safety and electromagnetic compatibility standards.
Technical Specifications
| Rated Charging Current | 60A / 80A / 100A (selectable) |
| System Voltage | 12V / 24V / 36V / 48V (auto-detect) |

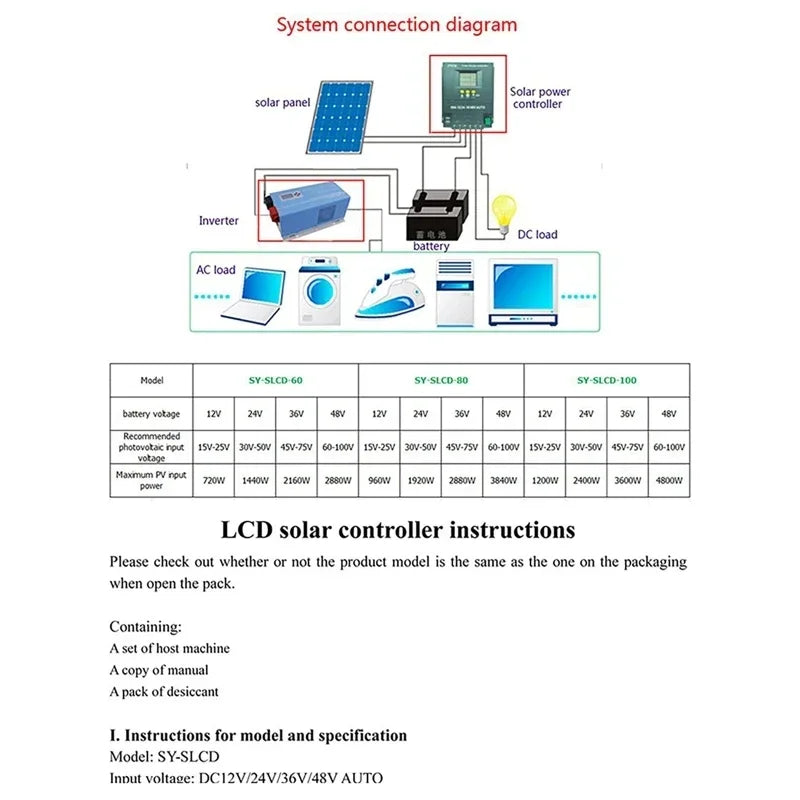

| PV Input Voltage Range | 15–25V (12V system) | 30–50V (24V) | 45–75V (36V) | 60–100V (48V) |
| Charging Method | MPPT Pulse Width Modulation |
| Compatible Battery Types | Lead-Acid, Lithium |
| Display | Backlit LCD |
| Cooling | Heat Sink Self-Cooling |
| Operating Temperature | Up to 60 °C |

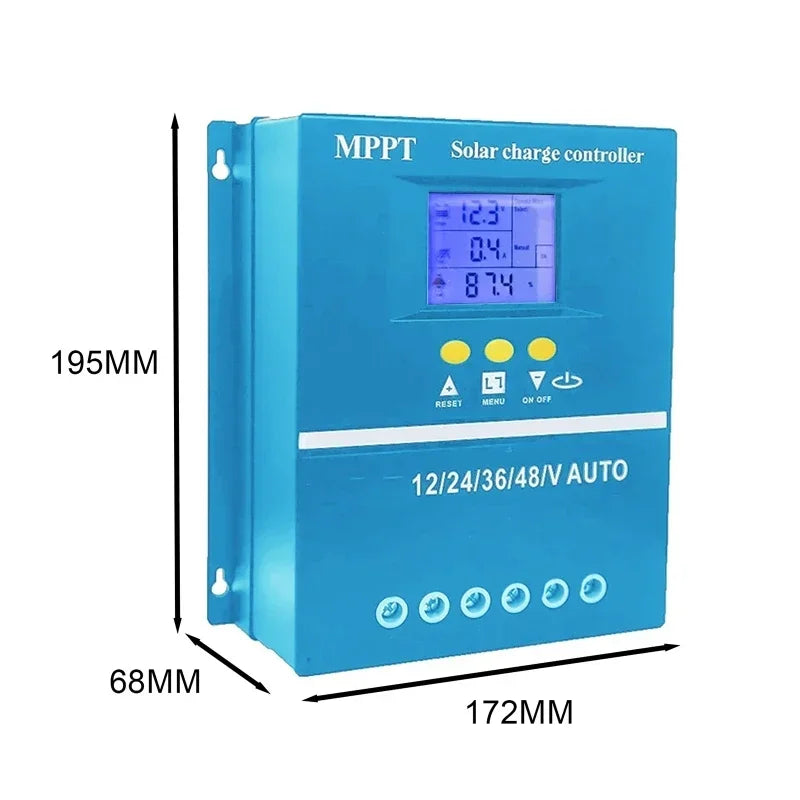

| Dimensions | 195 × 172 × 68 mm |
| Color | Blue |
| Certification | CE |
What's in the Box
- 1 × MPPT Solar Charge Controller
Made in Mainland China.
For more information on solar energy systems and best practices, visit the U.S. Department of Energy — Homeowner's Guide to Going Solar.
Frequently Asked Questions
Q: What is the difference between MPPT and PWM solar charge controllers?
A: A PWM (Pulse Width Modulation) controller connects the solar panel directly to the battery, which means the panel must operate at the battery's voltage. An MPPT (Maximum Power Point Tracking) controller like this one constantly finds the optimal operating point of the solar panel and converts excess voltage into additional charging current, delivering up to 30% more energy into the battery — especially valuable in cold weather or when the panel voltage is significantly higher than the battery voltage.
Q: Is this MPPT controller compatible with lithium (LiFePO4) batteries?
A: Yes. The Dreamburgh MPPT Solar Charge Controller supports both lead-acid and lithium battery chemistries. Charging parameters such as boost and float voltages can be adjusted via the front-panel button to match your specific battery manufacturer's recommendations.
Q: How does the auto voltage detection work?
A: On first connection, the controller reads the battery bank voltage and automatically configures itself for 12V, 24V, 36V, or 48V operation — no manual voltage selection required. Always connect the battery before connecting the solar panels to ensure accurate auto-detection.
Q: What wire size should I use with this controller?
A: The wide-gauge wiring terminals accept cables up to 16 mm² (approximately 6 AWG). For a 100A installation, using the largest permitted wire gauge is strongly recommended to minimize voltage drop and heat buildup in the wiring.
