MPPT Solar Charge Controller 30A/60A 12V/24V LCD Bluetooth WiFi
MPPT Solar Charge Controller 30A/60A 12V/24V LCD Bluetooth WiFi
Dreamburgh MPPT Solar Charge Controller — Smart Energy Storage Made Easy
Take full command of your solar power system with the Dreamburgh 30A/60A MPPT Solar Charge Controller. Designed for 12V and 24V systems, this compact yet powerful controller features a crisp HD LCD display, built-in Bluetooth and WiFi connectivity, and a companion app for real-time remote monitoring — giving you effortless, intelligent energy management at home, in your cabin, or off-grid.
Made in Mainland China.
Key Features

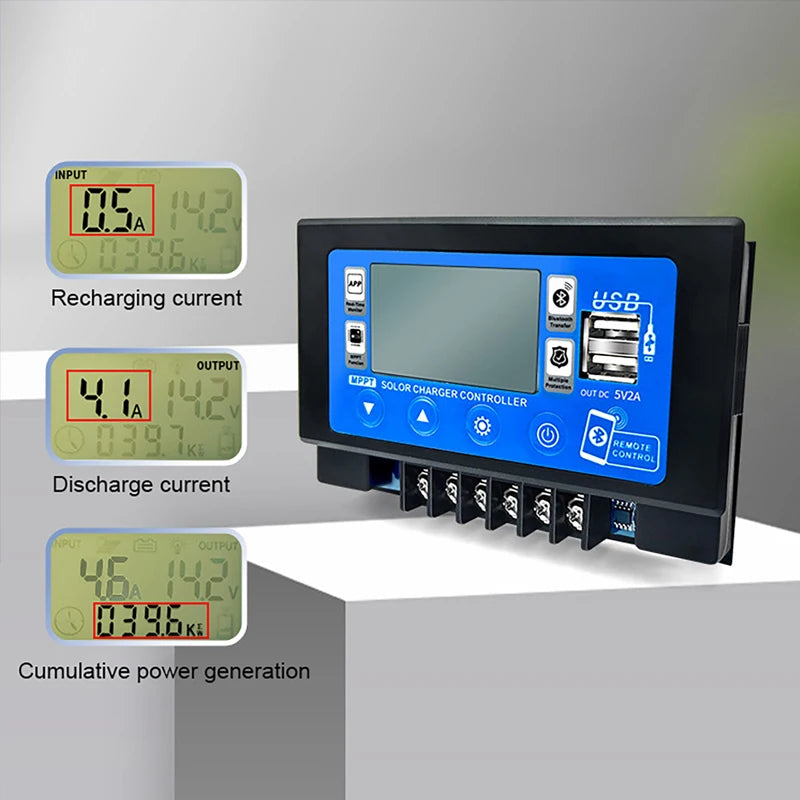

- HD LCD Display: Large, high-definition screen for clear at-a-glance readings of voltage, current, and charge status — improving human-computer interaction efficiency.
- Bluetooth & WiFi App Control: Monitor and configure your system remotely via the ZhiJinPower app (available for Android and iOS). View real-time data and adjust settings from virtually anywhere.
- True MPPT Charging: Continuous, uninterrupted two-way maximum power point tracking ensures your batteries are charged at peak efficiency regardless of conditions.
- Dual USB Output (5V/2A): Charge smartphones, tablets, cameras, and other USB devices directly from your solar system — no inverter needed.

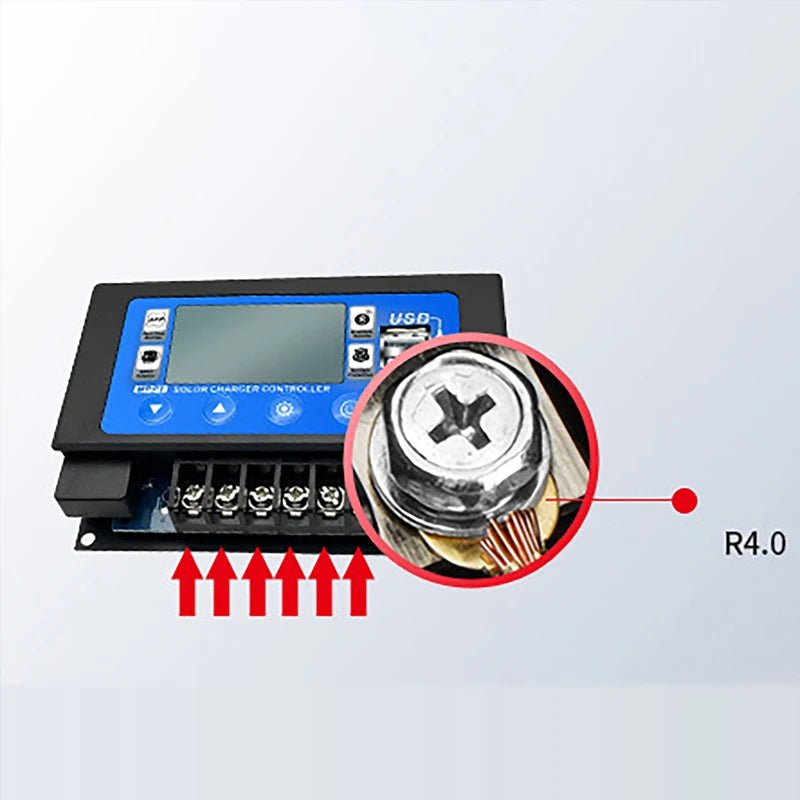

- Large-Area Wiring Port: Supports thick, high-current wires via wire lugs. Simply open the bottom cover, connect wiring, and tighten screws for a secure, professional installation.
- Metal Heat-Dissipation Back Plate: Thickened aluminum backing keeps the unit cool even in high-ambient-temperature environments, extending operational life.

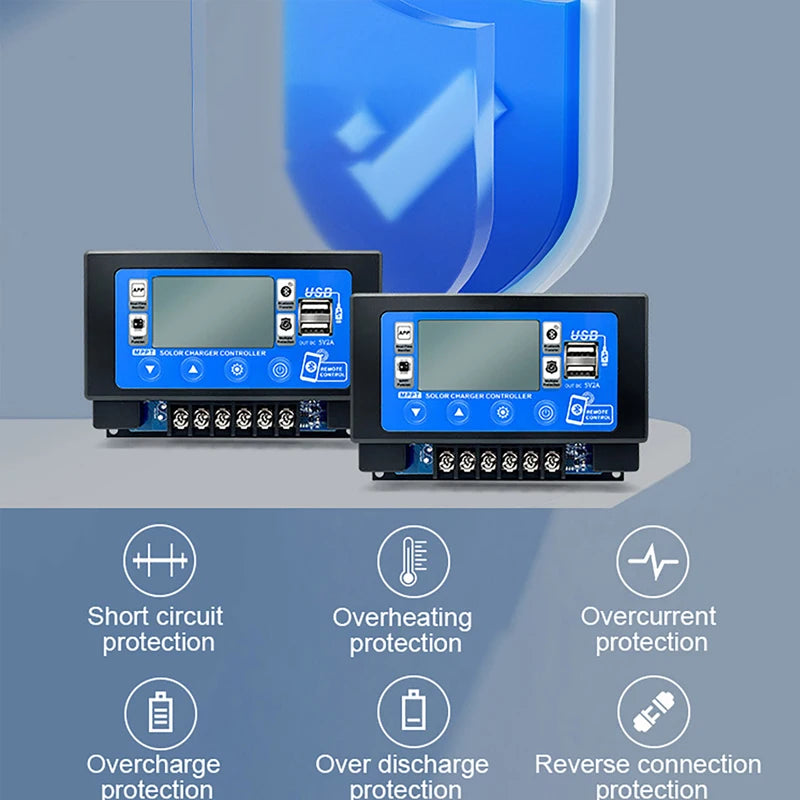

- Multi-Stage Intelligent Protection: Built-in overheating, overcurrent, short-circuit, and open-circuit safeguards. The controller automatically recovers once a fault is cleared — no manual reset required.
- Wide Battery Compatibility: Works with sealed lead-acid, lithium-ion, lithium iron phosphate (LiFePO4), and solid-state batteries.
- Snap-On Embedded Design: Compact snap-in form factor (13.3 × 7 × 3.5 cm) fits neatly into energy storage enclosures and panels.
Technical Specifications
| Brand | Dreamburgh |
| Rated Voltage | 12V / 24V |
| Rated Charging Current | 30A / 60A |
| USB Output | 5V / 2A Max |
| Standby Current | <10mA |
| Working Temperature | -10°C to +60°C (14°F to 140°F) |
| Display | HD LCD |
| Connectivity | Bluetooth (ZJXX) + WiFi |
| Material | Iron + Colloid with Metal Heat-Sink Back Plate |
| Dimensions | 13.3 × 7 × 3.5 cm (approx. 5.2 × 2.8 × 1.4 in) |
| Country of Origin | Mainland China |
App Setup Guide
Download the ZhiJinPower app from your mobile store:
- Android: Search "ZhiJinPower" in the Google Play Store.
- iOS (iPhone/iPad): Search "ZhiJinPower" in the Apple App Store.
Bluetooth Connection Tips:
- Connect the controller to a 12V or 24V battery first, then power it on.
- Open the ZhiJinPower app and grant all required permissions (location, Bluetooth, storage).
- Tap the ⊕ icon in the top-right corner to scan for the Bluetooth device named ZJXX.
- Keep your phone within 5 metres for a reliable Bluetooth connection.
- Connect only one controller to one phone at a time to avoid interference.
- iPhone users: If Bluetooth fails to connect, re-download the app, enable all permissions, and try again.
What's in the Box
- 1 × Dreamburgh MPPT Solar Charge Controller
Learn More About Solar Energy
For authoritative information on solar energy technology, efficiency standards, and renewable energy best practices, visit the U.S. Department of Energy – Solar Energy Technologies Office.
Frequently Asked Questions
Q: What is the difference between a 30A and 60A MPPT solar charge controller?
A: The amperage rating indicates the maximum current the controller can handle from your solar panels. A 30A controller is suited for smaller solar arrays (typically up to ~400W at 12V), while the 60A controller supports larger arrays (up to ~800W at 12V). Choose based on the total wattage of your solar panel setup.
Q: Is this MPPT solar controller compatible with lithium batteries?
A: Yes! The Dreamburgh MPPT Solar Charge Controller is compatible with sealed lead-acid, lithium-ion, lithium iron phosphate (LiFePO4), and solid-state batteries. Simply configure the correct battery type in the ZhiJinPower app for optimized charging profiles.
Q: How do I connect this solar charge controller to the WiFi and Bluetooth app?
A: Download the ZhiJinPower app (Android or iOS), connect the controller to your battery first, then open the app and tap the ⊕ button to search for the Bluetooth device "ZJXX." For WiFi/PC monitoring, log in at the provided client PC entry link using the same credentials as your mobile app account. Keep Bluetooth devices within 5 metres for best performance.
Q: Can I use the dual USB ports while the solar controller is in operation?
A: Absolutely. The built-in dual USB output (5V/2A) allows you to charge smartphones, tablets, cameras, and other USB-powered devices directly from your battery bank — even while the controller is actively managing solar charging. This is ideal for off-grid and camping setups.
Q: Does this controller work in hot climates or high-temperature environments?
A: Yes. The controller is rated for operating temperatures up to +60°C (140°F). Its thickened metal heat-dissipation back plate efficiently manages thermal load, keeping internal components at safe operating temperatures even in demanding conditions.
