MPPT Solar Charge Controller 12V 24V WiFi Bluetooth LCD 100A
MPPT Solar Charge Controller 12V 24V WiFi Bluetooth LCD 100A

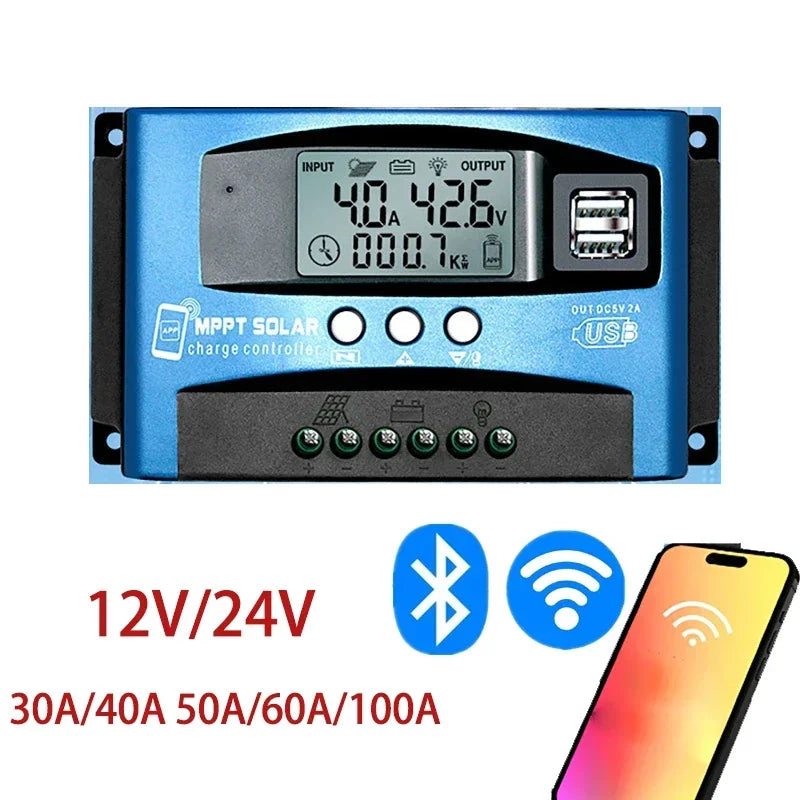

Dreamburgh MPPT Solar Charge Controller – WiFi & Bluetooth, 12V/24V, Up to 100A
Take full command of your solar energy system with the Dreamburgh MPPT Solar Charge Controller. Supporting 12V and 24V systems with rated charging currents of 30A, 40A, 50A, 60A, and 100A, this smart controller pairs an industrial-grade processor with built-in WiFi and Bluetooth connectivity — giving you real-time monitoring and remote parameter adjustment right from your smartphone.
Whether you're running a home solar setup, an off-grid cabin, an RV, or a boat, this controller efficiently manages charging for both lead-acid and lithium battery banks, keeping your system running at peak performance.
Key Features
- Industrial-Grade Master Chip – 16-bit AD sampling for precise real-time readings of temperature, charging current, and discharge current — power generation stats at a glance.
- Automatic MPPT Tracking – Continuous bidirectional maximum power point tracking for high charging efficiency, even as sunlight conditions change throughout the day.

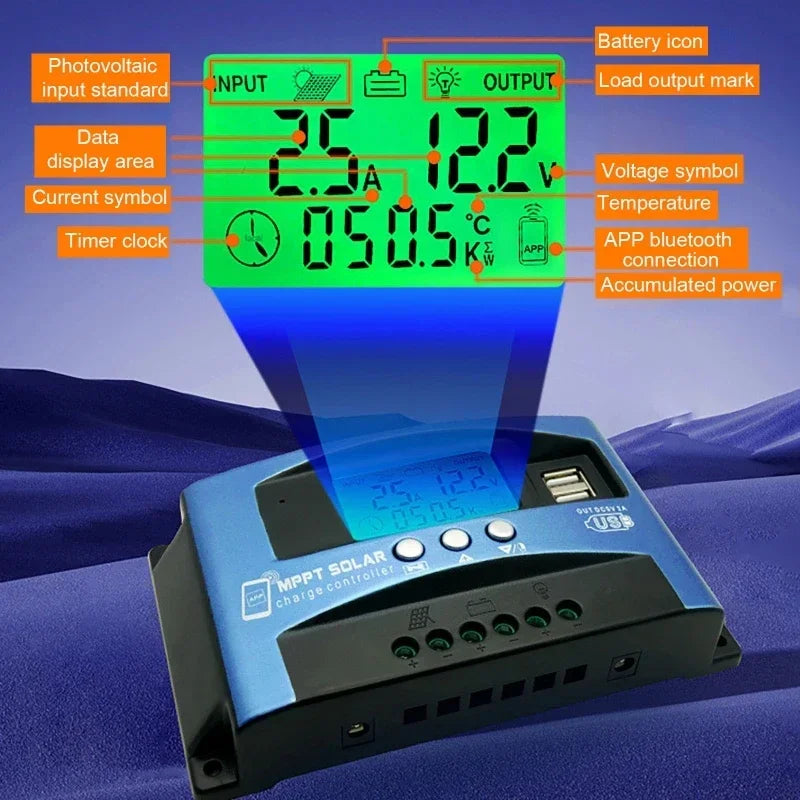

- Large-Screen LCD Display – Clearly displays all system parameters. Ultra-wide adjustable charge and discharge settings let you fine-tune the controller to match virtually any battery type.
- Three-Phase Charge Management – Complete bulk, absorption, and float charge cycle management for extended battery longevity.
- Comprehensive Built-In Protections – Overheating, overcurrent, short circuit, open circuit, and reverse connection protection. When a fault clears, the controller self-recovers automatically — no damage to connected devices.
- Bidirectional MOS Anti-Backflow Circuit – High-power charging mode with ultra-low heat generation for efficient, stable operation.
- R5.0 DC Plugs – Standardized R5.0 DC solar input and lamp output plugs for easy, secure connections.

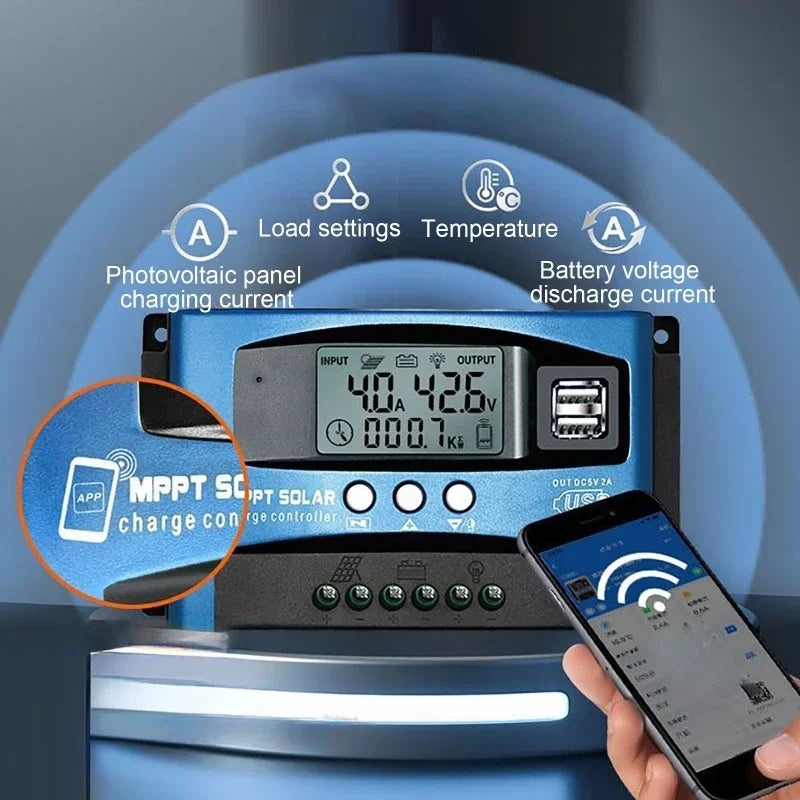

- WiFi & Bluetooth Remote Control – Remotely customize battery parameters and load timing schedules directly from your smartphone app.

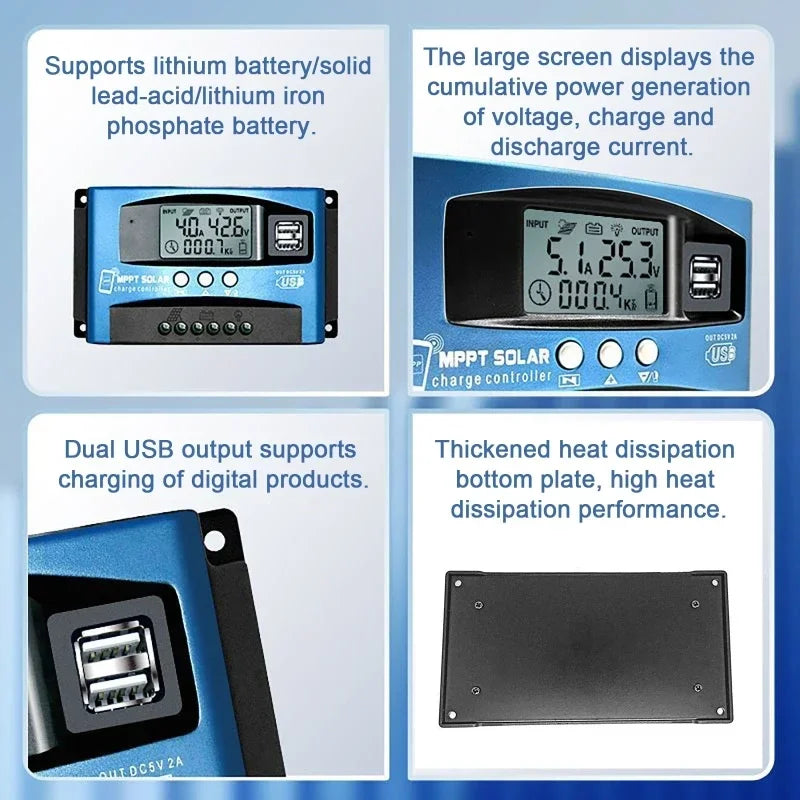

- Dual USB Output (5V/2A) – Charge USB devices directly from your solar system.
- CE Certified – Meets relevant safety and performance standards.
Specifications
| Brand | Dreamburgh |
| Rated Charging Current | 30A / 40A / 50A / 60A / 100A |
| System Voltage | 12V / 24V |
| USB Output | 5V / 2A (Dual USB) |
| Standby Current | <10mA |
| Working Temperature | -10°C to 60°C |
| Material | Aluminum + Colloid |
| Dimensions | 170 × 95 × 45 mm |
| Color | Black + Blue |
| Connectivity | WiFi + Bluetooth |
| Certification | CE |
| Country of Origin | Made in China |
What's in the Box
- 1 × Solar Panel Battery Charge Controller
- 1 × User Manual (English)
Learn More About Solar Energy
For information on how solar energy systems work and their benefits, visit the U.S. Department of Energy – Homeowner's Guide to Going Solar.
Frequently Asked Questions
Q: What battery types are compatible with this MPPT solar charge controller?
A: This MPPT solar charge controller is compatible with both lead-acid (sealed, gel, flooded) and lithium battery types. You can manually configure the charging parameters via the LCD display or the smartphone app over WiFi or Bluetooth to match your specific battery's requirements.
Q: What is the difference between MPPT and PWM solar charge controllers?
A: MPPT (Maximum Power Point Tracking) controllers are significantly more efficient than PWM (Pulse Width Modulation) controllers — especially when the solar panel voltage is higher than the battery voltage. MPPT technology continuously tracks and adjusts to extract the maximum available power from your solar panels, which can translate to 20–30% more energy harvested compared to a PWM controller in many conditions.
Q: How do I connect to this controller via the smartphone app?
A: This controller supports both Bluetooth and WiFi connectivity. Download the compatible app (referenced in the included User Manual), pair your smartphone via Bluetooth for close-range control, or connect via WiFi for remote monitoring and adjustment of battery parameters and load timing schedules from anywhere with an internet connection.
Q: Does this solar charge controller work for off-grid systems like RVs, boats, or cabins?
A: Yes — the Dreamburgh MPPT Solar Charge Controller is well-suited for off-grid applications including RVs, marine vessels, tiny homes, cabins, and remote power setups. Its 12V/24V dual voltage compatibility and wide current range (30A–100A) make it adaptable to a variety of system sizes.
Q: What protections are built into this controller?
A: The controller includes built-in protection against overheating, overcurrent, short circuit, open circuit, and reverse polarity connection. If any fault condition is detected, the unit activates protection mode and automatically recovers once the fault is resolved — safeguarding your batteries and connected equipment.
