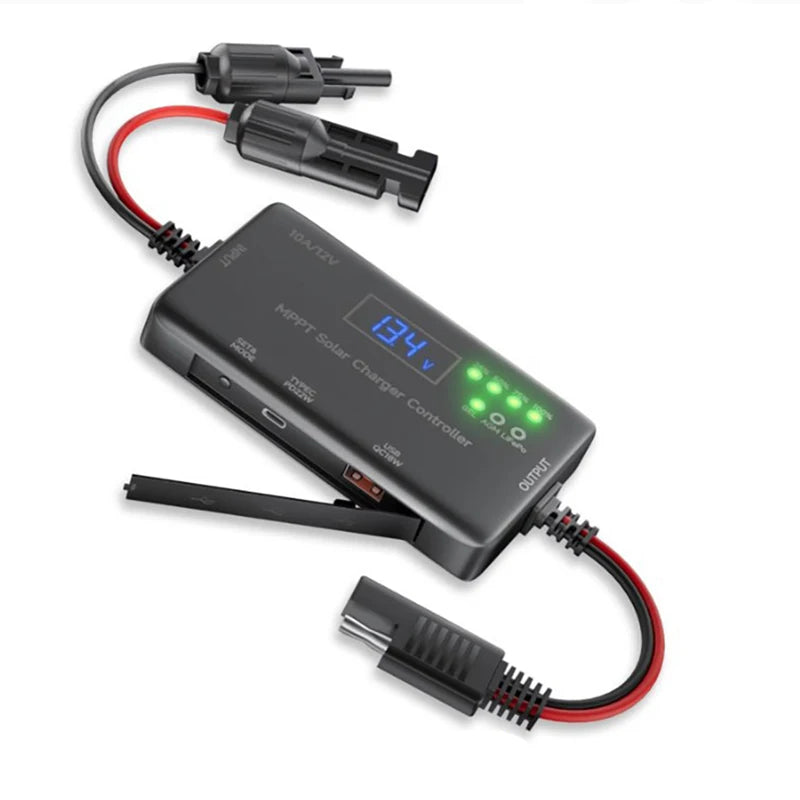

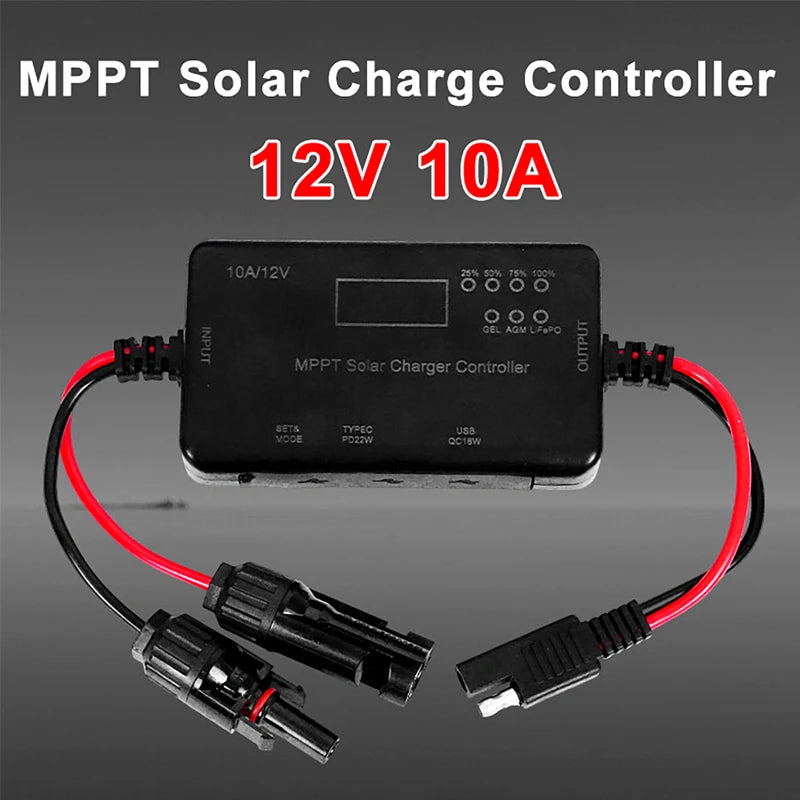

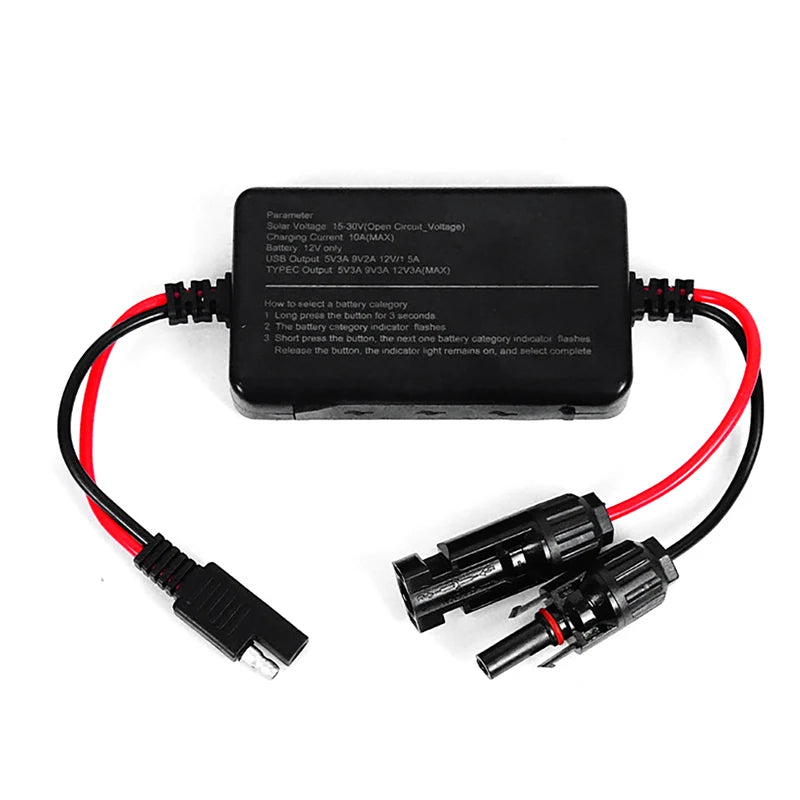

MPPT Solar Charge Controller 10A 12V – USB & Type-C

Dreamburgh MPPT Solar Charge Controller 10A 12V

Maximize every ray of sunlight with the Dreamburgh MPPT Solar Charge Controller. Engineered for 12V solar systems, this compact controller delivers up to 96% MPPT tracking efficiency, squeezing the most energy out of your solar panel while keeping your batteries safe and topped up. Whether you're powering a cabin, a vehicle, a folding battery pack, or an off-grid energy storage system, this controller makes solar charging effortless.

Why Choose This MPPT Controller?

• Wide Battery Compatibility: Works with 12V lead-acid, 12V gel, and 12.8V lithium iron phosphate (LiFePO4) batteries. Memory function retains your battery type selection even after a power cycle.

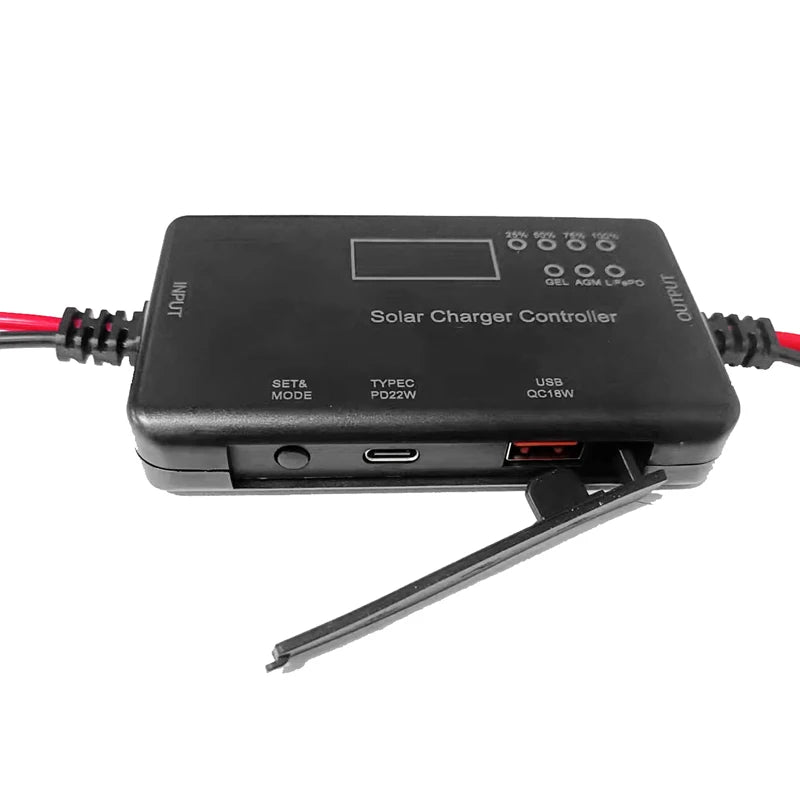

• Fast USB & Type-C Charging: Built-in USB port supports Quick Charge up to 18W; Type-C port supports Power Delivery up to 20W — charge phones, tablets, and more directly from solar or battery power.

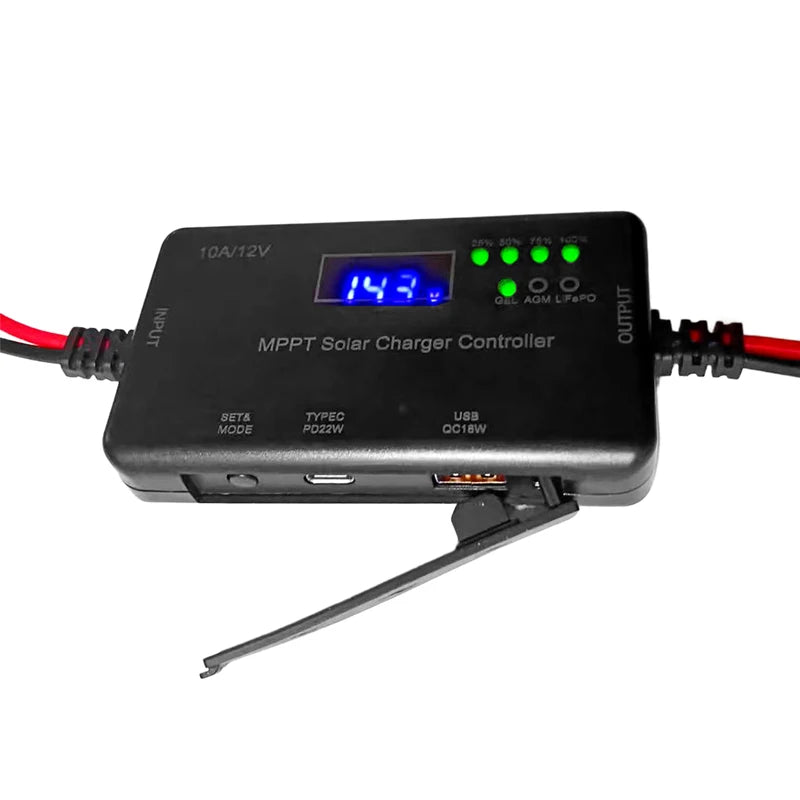

• Smart LCD Display: Clearly shows battery voltage, charging current, battery capacity, and battery type. Auto-dims at night to conserve energy.
• Comprehensive Protection Suite: Overcharge, overcurrent, solar reverse-charging, battery polarity reverse-connection, over-temperature, and output short-circuit protections keep your system and batteries safe.
• 96% MPPT Tracking Efficiency: Advanced Maximum Power Point Tracking algorithm continuously finds the optimal operating point of your solar panel for peak energy harvest.
• Compact & Durable: Slim 104 × 51 × 20 mm profile in a rugged black housing — easy to mount in tight spaces.

Technical Specifications

Ideal Applications

• Solar energy storage systems
• Solar-powered folding battery pack charging
• Solar-powered vehicle auxiliary power supply
• Off-grid cabins, RVs, and camping setups
• Lead-acid and LiFePO4 battery maintenance charging

What's in the Box

• 1 × Dreamburgh MPPT Solar Photovoltaic Controller (10A, 12V)

Made in Mainland China.

For more information on solar energy systems and best practices, visit the U.S. Department of Energy – Homeowner's Guide to Going Solar.

Note: Due to manual measurements, please allow ±1–3 cm dimensional tolerance. Colors may vary slightly between screens and product photos.

Frequently Asked Questions

Q: What battery types are compatible with this MPPT solar charge controller?

A: This controller supports 12V lead-acid batteries, 12V gel batteries, and 12.8V lithium iron phosphate (LiFePO4 / LiPO4) batteries. It features a memory function that remembers your selected battery type even after the unit is powered off and restarted.

Q: Can I charge my phone or tablet directly from this solar charge controller?

A: Yes! The controller includes a built-in USB port (Quick Charge, up to 18W) and a Type-C port (Power Delivery, up to 20W). Both ports can draw power from either the connected solar panel or the battery bank, so you can charge devices even when sunlight is limited.

Q: What is MPPT and why does it matter for solar charging?

A: MPPT stands for Maximum Power Point Tracking. Unlike simpler PWM controllers, an MPPT controller continuously adjusts its operating point to extract the maximum available power from your solar panel — this unit achieves 96% tracking efficiency. This means faster battery charging and better overall performance, especially in partial shading or variable weather conditions.

Q: What solar panel size (wattage) should I pair with this 10A 12V controller?

A: For a 12V system with a 10A maximum charging current, a solar panel in the range of 80W–130W is typically ideal. The controller's maximum open-circuit voltage (VOC) is 30V, so ensure your panel's VOC stays below that threshold for safe and efficient operation.
