Dreamburgh 100A MPPT Solar Charge Controller | Bluetooth WiFi 12–60V
Dreamburgh 100A MPPT Solar Charge Controller | Bluetooth WiFi 12–60V
Dreamburgh 100A MPPT Solar Charge Controller — Smart Bluetooth & WiFi Monitoring
Take full command of your solar energy system with the Dreamburgh 100A MPPT Solar Charge Controller. Whether you're powering an off-grid cabin, RV, boat, or backup power setup, this smart controller delivers maximum power point tracking (MPPT) efficiency across a wide voltage range of 12V, 24V, 36V, 48V, and 60V — all in one versatile unit.
Why Choose This MPPT Solar Charge Controller?
- MPPT Tracking Technology: Autofocus MPPT charging continuously finds and holds the optimal power point from your solar panels, squeezing every watt of available energy into your battery bank.

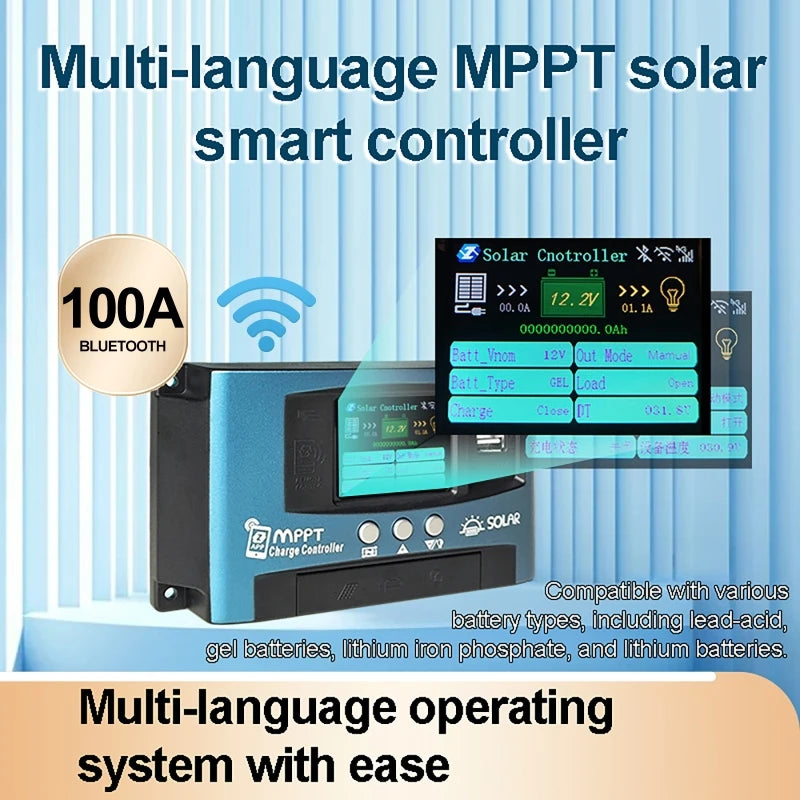

- Vivid Color Display: An intuitive color screen shows real-time charging and discharging parameters at a glance — no guesswork required.

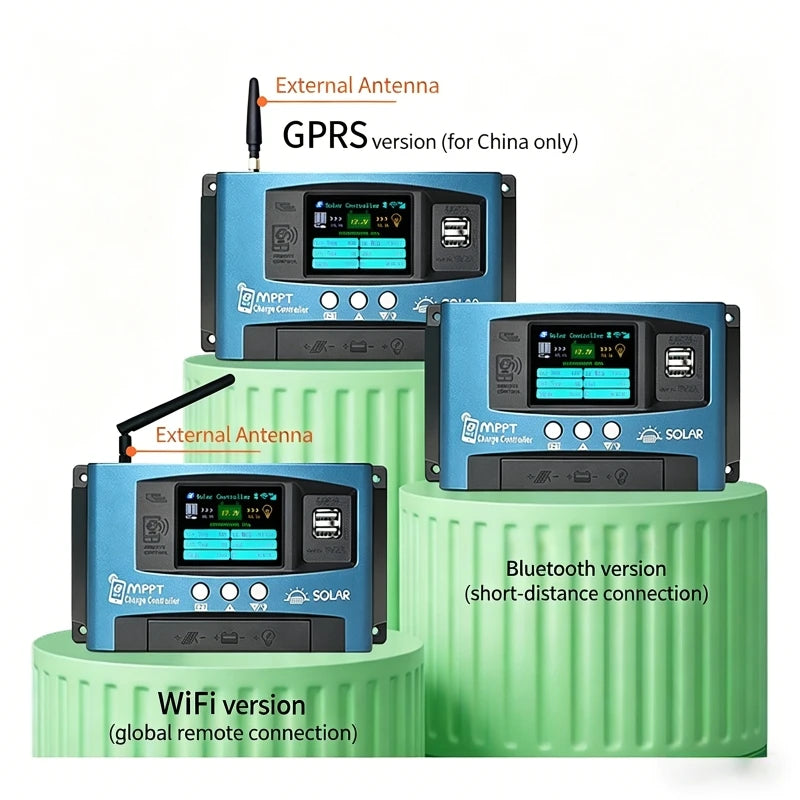

- Bluetooth, WiFi & GPRS Remote Control: Monitor and manage your system from anywhere using the free ZhiJinPower app (available for Android and iOS) or via the PC web portal. Full remote visibility gives you peace of mind even when you're away from your installation.
- Universal Battery Compatibility: Works seamlessly with sealed lead-acid, gel, open (flooded), lithium iron phosphate (LiFePO₄), and lithium batteries — 12V through 60V.
- Multi-Language Interface: Supports Chinese, English, Spanish, Italian, Malay, German, French, and Japanese — truly a global solution.
- 0V Smart Start & Auto Battery Repair: Revives deeply discharged batteries and automatically initiates charging even at 0V, extending battery service life.
- External Temperature Sensing: Supports external battery and device temperature detection for optimized, safe charging in any environment.
- Built-In Multi-Layer Protection: Overheat, overcurrent, short circuit, open circuit, and reverse connection protection are all built in. After a fault clears, the controller recovers automatically — no damage to your equipment.
- Serial Port for Custom Integration: RS-485 / serial port design allows connection to external monitoring devices and supports custom development.
- USB Output: Onboard 5V/2A USB port charges phones and small devices directly from your solar setup.
- CE Certified: Meets CE compliance standards for safety and reliability.
App Setup
Search "ZhiJinPower" in your mobile app store, or use the links below:
- Android: Download for Android
- Apple iOS: Download for iOS
- PC Web Portal: Login credentials are the same as the mobile app.
Full Specifications
| Brand | Dreamburgh |
| Material | Colloid + Aluminum |
| Rated Charge Current | 100A / 60A / 30A (model variants) |
| Rated Discharge Current | 30A / 30A / 10A (model variants) |
| Output Voltage | 12V – 60V (auto-detect) |
| Standby Current | <20mA |
| USB Output | 5V / 2A Max |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 170 × 95 × 45 mm |
| Color | Blue |
| Certification | CE |
| Country of Origin | Made in China |
What's in the Box?
- 1 × MPPT Solar Charge Controller (100A)
Learn More About Solar Energy
For an overview of how solar energy systems work and best practices for safe installation, visit the U.S. Department of Energy — Solar Energy Technologies resource page.
Frequently Asked Questions
Q: What battery types are compatible with this MPPT solar charge controller?
A: This controller is compatible with sealed lead-acid, gel, open (flooded), lithium iron phosphate (LiFePO₄), and standard lithium batteries across voltage systems from 12V up to 60V. It automatically detects the battery voltage upon connection.
Q: How do I connect to the controller remotely via my smartphone?
A: Download the free ZhiJinPower app from the Google Play Store or Apple App Store. The controller supports Bluetooth for local monitoring and WiFi/GPRS for remote monitoring. Once paired, you can view real-time charging data, adjust settings, and receive status alerts from anywhere.
Q: Is this solar charge controller suitable for an off-grid or RV solar system?
A: Absolutely. With its wide voltage range (12V–60V), high 100A rated charge current, and multi-battery compatibility, this MPPT controller is an excellent fit for off-grid home systems, RVs, boats, caravans, and backup power installations.
Q: What protections are built into this controller?
A: The controller includes built-in overheat protection, overcurrent protection, short circuit protection, open circuit protection, and reverse connection protection. If a fault condition occurs and is then cleared, the controller automatically recovers without requiring manual reset or risking equipment damage.
