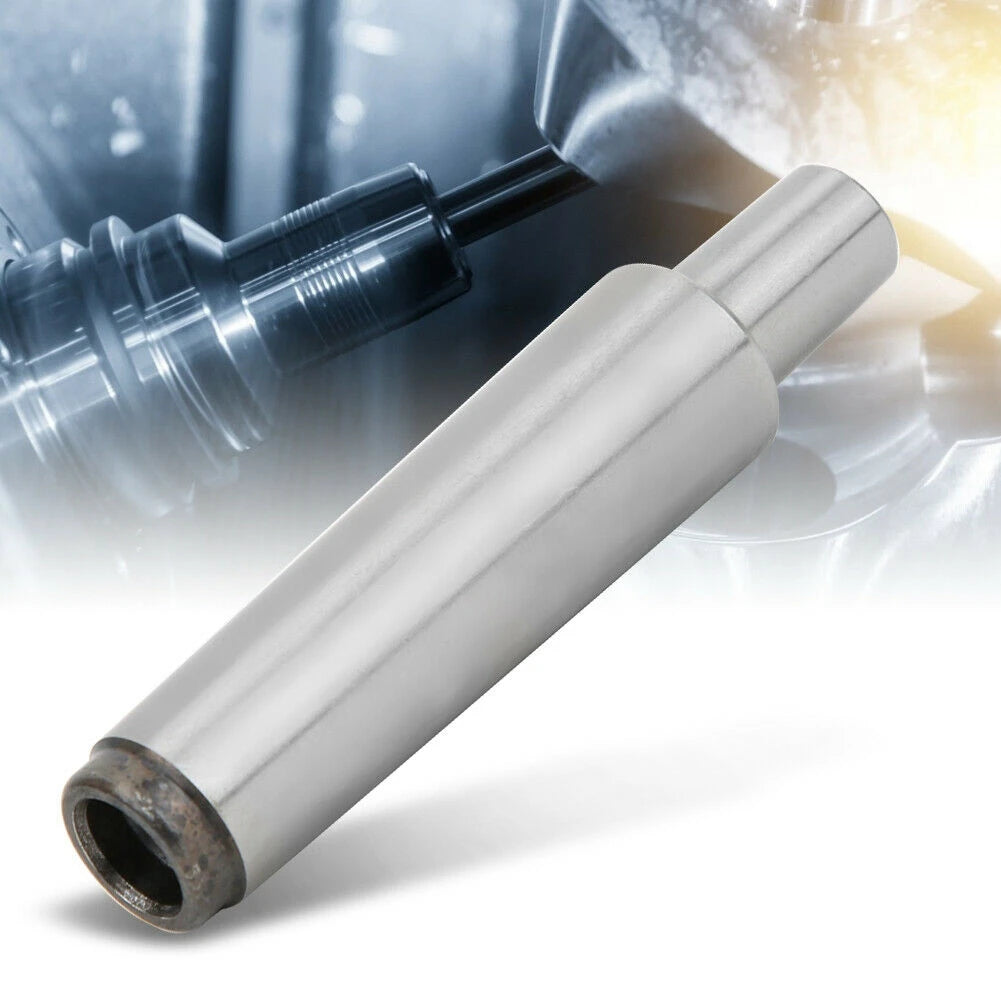

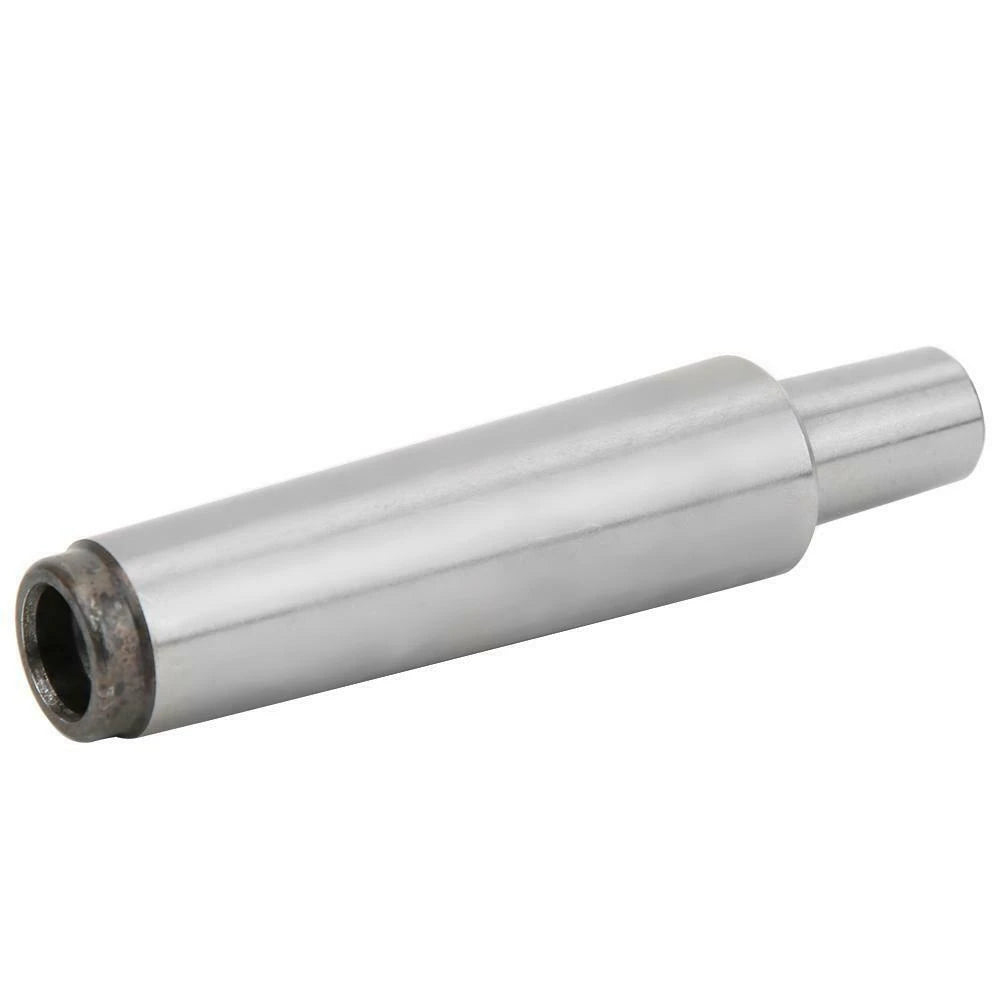

Morse Taper Drill Chuck Arbor Adapter – Model MTB3-B16
Upgrade your machine tool setup with this precision-engineered Morse Taper Drill Chuck Arbor Adapter (MTB3-B16). Designed to seamlessly connect a taper-hole drill chuck to drilling machines, milling machines, and lathes, this adapter delivers exceptional concentricity and long-lasting performance. Made in Mainland China from hardened steel with a sleek silver finish, it's built for both professional machinists and serious hobbyists.
Key Features
- Versatile Compatibility: Adapts to a wide variety of drilling machines, milling machines, and lathes for maximum workshop flexibility.

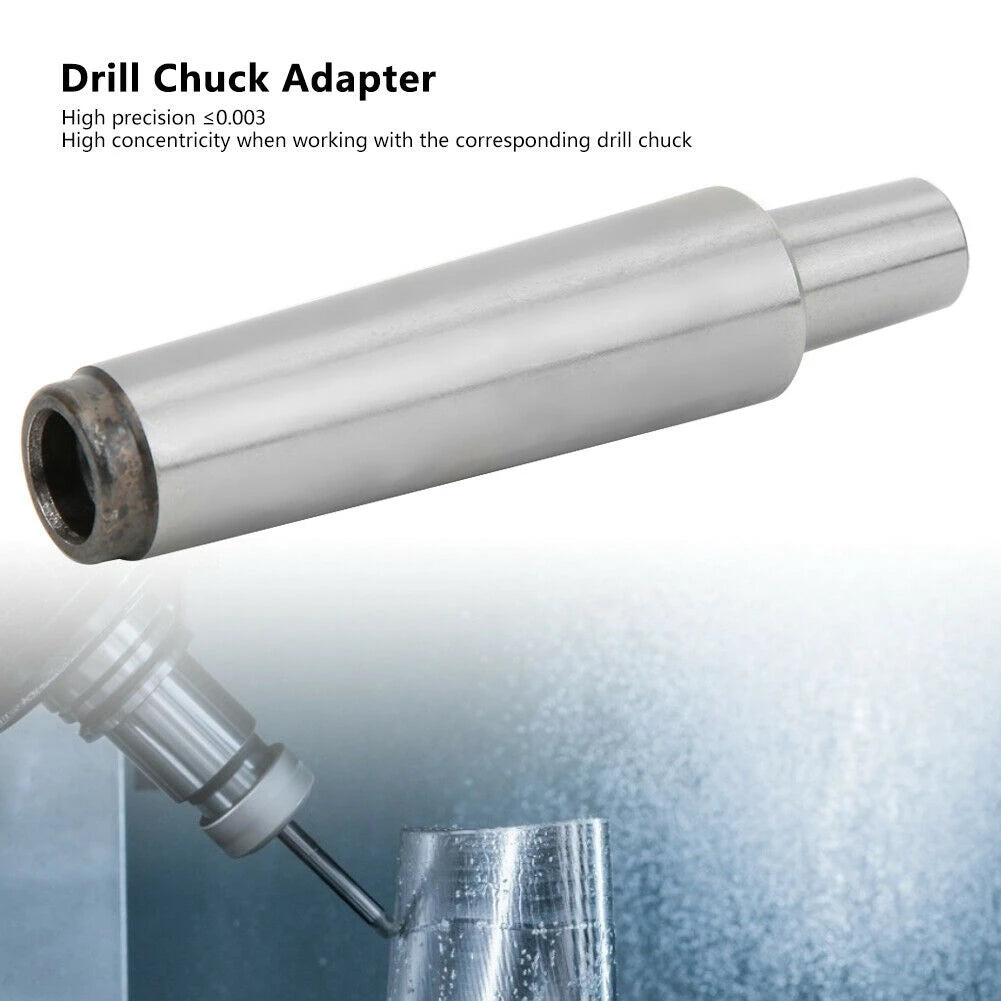

- High Concentricity: Engineered for accuracy ≤ 0.003 mm, ensuring precise, consistent results on every job.
- Easy Tool Changes: Flat tang design allows for quick and convenient removal from the machine tool spindle.
- Wear-Resistant Steel: Manufactured from hardened steel (HRC-55) that resists corrosion and wear, extending service life significantly.
- Professional Design: Clean, attractive finish with a compact, easy-to-handle form factor.
Specifications
| Model | MTB3-B16 |
| Item Type | Morse Taper Drill Chuck Arbor Adapter |
| Taper Type | MT3 (Morse Taper #3) |
| Chuck Fitting | B16 |
| Material | Hardened Steel |
| Hardness | HRC-55 |
| Accuracy | ≤ 0.003 mm |
| Color | Silver |
| Origin | Made in Mainland China |
What's in the Box
- 1 × Morse Taper Drill Chuck Arbor (MTB3-B16)
Note: Only the item listed above is included. Color may vary slightly due to lighting and monitor settings. Measurement tolerance: ±1–3 mm.
Workplace Safety Tip
Always follow proper tool-mounting procedures and wear appropriate personal protective equipment when operating machine tools. For general machining safety guidelines, visit the OSHA Machine Guarding resource page.
Frequently Asked Questions
Q: What machines is the MTB3-B16 Morse Taper Chuck Arbor compatible with?
A: The MTB3-B16 chuck arbor adapter is compatible with a wide range of machine tools that feature a Morse Taper #3 (MT3) spindle, including drill presses, milling machines, and lathes. It connects a B16-mount drill chuck to the MT3 spindle for secure, concentric tool holding.
Q: What does "B16" mean in the model name MTB3-B16?
A: "B16" refers to the JT (Jacobs Taper) chuck fitting size — specifically a B16 mount — which dictates the size of the drill chuck that attaches to the arbor. "MT3" indicates the Morse Taper #3 shank that fits into the machine spindle. Together, MTB3-B16 describes an arbor with an MT3 spindle end and a B16 chuck end.
Q: How do I remove the Morse Taper arbor from the machine spindle?
A: The flat tang (flat position) at the end of the arbor is specifically designed for easy removal. Insert a drift key or wedge into the spindle slot and tap it gently to release the taper arbor from the spindle without damaging either component.
Q: Is this drill chuck arbor rust-resistant?
A: Yes. The arbor is manufactured from hardened steel (HRC-55) which offers strong resistance to corrosion and everyday wear, ensuring a long service life in workshop environments.
