Mini Stepper Motor Driver Module DC 5V-12V | 2 & 4-Phase
Mini Stepper Motor Driver Module DC 5V-12V | 2 & 4-Phase
Mini Stepper Motor Speed Controller — Precise, Compact & Multi-Function

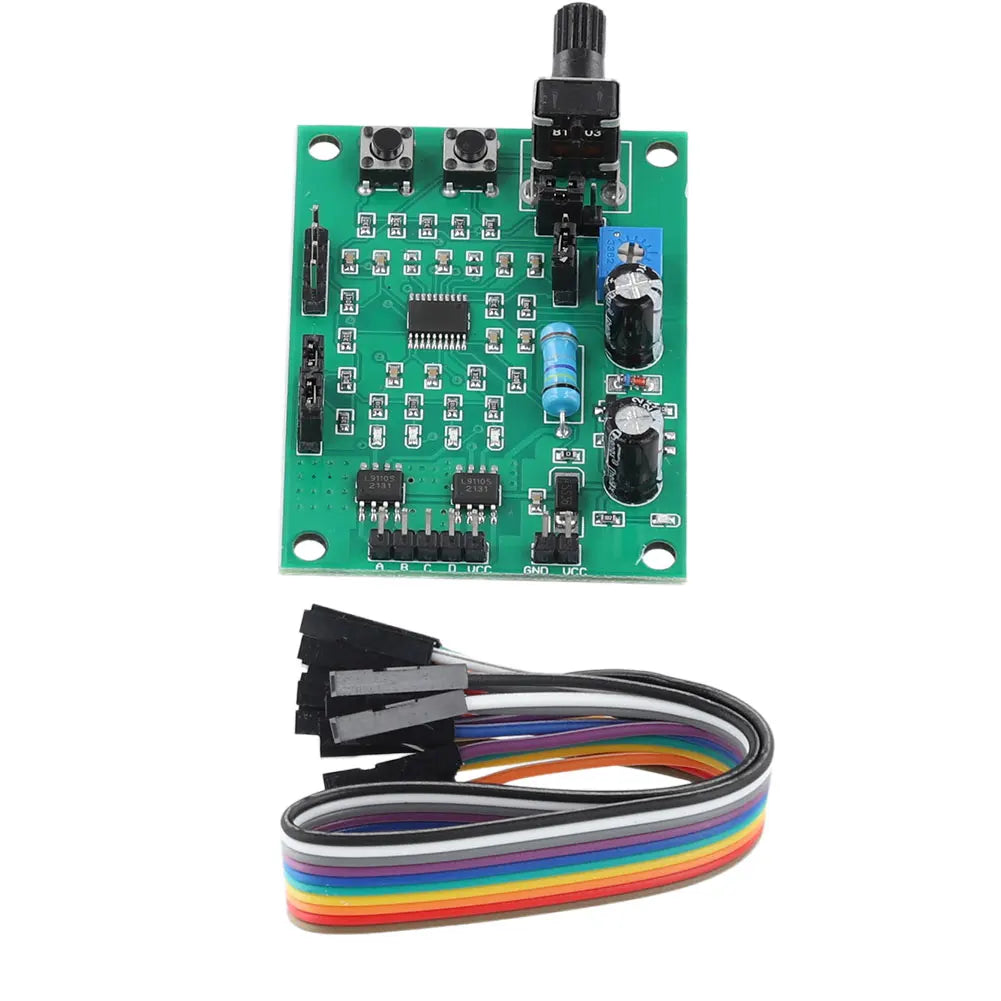

Take full control of your DIY electronics projects with this versatile Mini Stepper Motor Driver Module. Compatible with both 2-phase 4-wire and 4-phase 5-wire stepper motors, this compact driver board operates across a wide voltage range of DC 5V–12V, making it an ideal solution for hobbyists, engineers, and makers alike.
Key Features
- Precise Motion Control: Delivers accurate current and step control for reliable positioning and smooth, repeatable movement in your stepper motor applications.
- Energy-Efficient Design: Highly optimized circuit architecture ensures high-quality current output while keeping power consumption and heat generation to a minimum.
- Built-In Protection: Equipped with overcurrent protection, overheating protection, short circuit protection, and power reverse connection protection to safeguard both the module and connected components.
- Easy to Integrate: Features a straightforward interface with clearly labeled markings and indicator lights, allowing quick connectivity and simplified debugging with other electronic systems.
- Ultra-Compact Form Factor: At just 60 × 44 × 13 mm (approx. 2.34 × 1.72 × 0.51 in), this board fits seamlessly into tight spaces without sacrificing performance or durability.
- Broad Compatibility: Works with a wide range of stepper motor configurations — perfect for robotics, CNC projects, automation systems, camera sliders, 3D printers, and more.
Technical Specifications
| Compatible Motor Types | 2-Phase 4-Wire, 4-Phase 5-Wire Stepper Motors |
| Input Voltage Range | DC 5V – 12V |
| Rated Current | ≤ 800 mA |
| Board Dimensions | 60 × 44 × 13 mm / 2.34 × 1.72 × 0.51 in |
| Overcurrent Protection | Yes |
| Overheating Protection | Yes |
| Short Circuit Protection | Yes |
| Power Reverse Connection Protection | Yes |
| Board Color | Green |
| Country of Origin | Made in China |
What's in the Box?
- 1 × Mini Stepper Motor Speed Controller Driver Module
Important Notes
Due to variations in monitor settings and lighting conditions, the actual product color may differ slightly from images shown. Please allow ±1–2 cm measurement deviation due to manual measurement.
For more information on electronics safety standards and best practices for DIY electronic projects, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of stepper motors is this driver module compatible with?
A: This mini stepper motor driver module supports both 2-phase 4-wire and 4-phase 5-wire stepper motors, making it highly versatile for a wide range of DIY electronics, robotics, CNC, and automation projects.
Q: What is the operating voltage range for this stepper motor speed controller?
A: The module operates on a DC input voltage of 5V to 12V, with a rated current of up to 800 mA, making it suitable for use with common power supplies and microcontroller-based systems such as Arduino or Raspberry Pi setups.
Q: Does the stepper motor driver board include protection features?
A: Yes — the board includes multiple built-in protection mechanisms including overcurrent protection, overheating protection, short circuit protection, and power reverse connection protection to help keep your components safe during operation.
Q: Is this module suitable for beginners?
A: Absolutely. The board is designed with clearly labeled markings and indicator lights to simplify wiring, connectivity, and debugging — making it a great choice for both beginners and experienced electronics enthusiasts working on DIY projects.
