Mini RFID Fingerprint Access Control Reader IP66 Waterproof Metal

Upgrade your entry security with this compact, heavy-duty Mini Metal RFID & Fingerprint Access Control Reader by Asia-Teco. Engineered for doors, elevators, gates, and frames where space is limited, this embedded standalone unit combines 125KHz proximity card reading with semiconductor fingerprint identification — giving you two reliable, keyless entry methods in one sleek zinc-alloy housing.

Made in Mainland China.

Why Choose This Access Control Reader?

• Dual Authentication: Supports up to 100 fingerprints and 3,000 proximity cards (125KHz EM format) for flexible multi-user management.

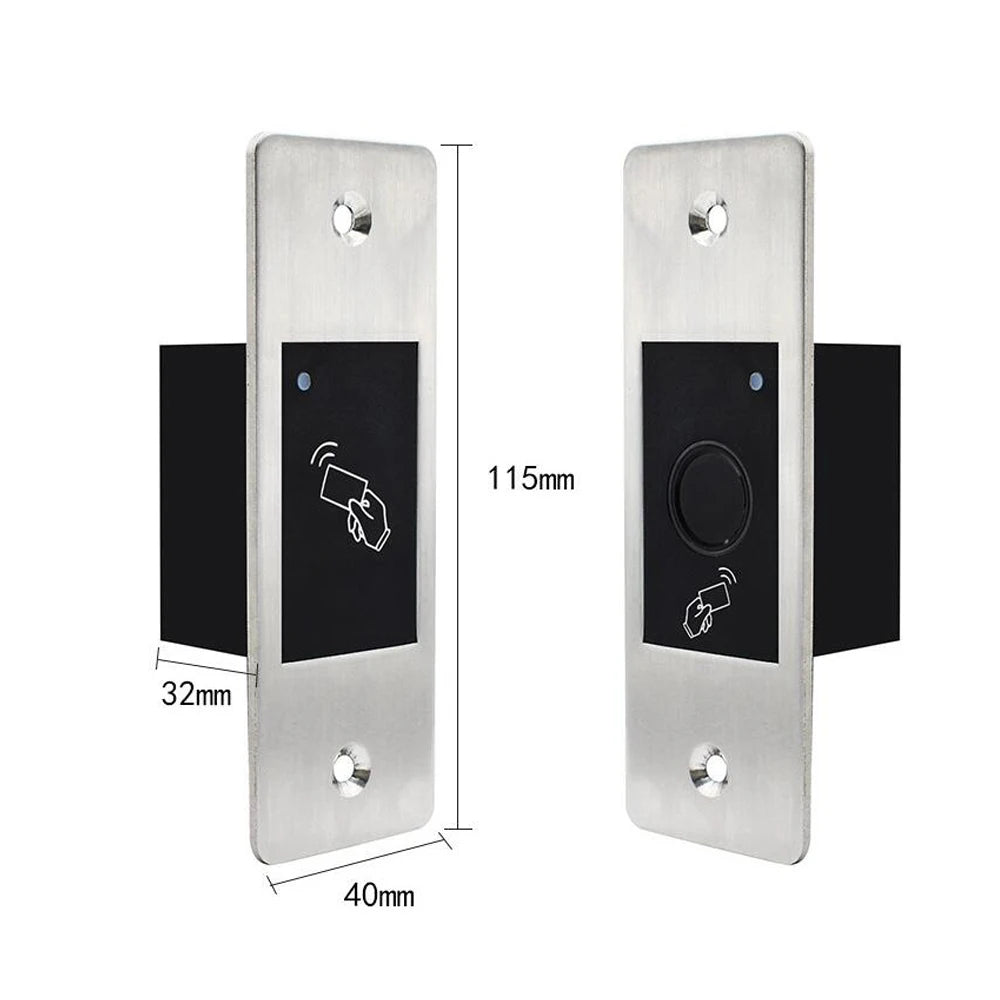

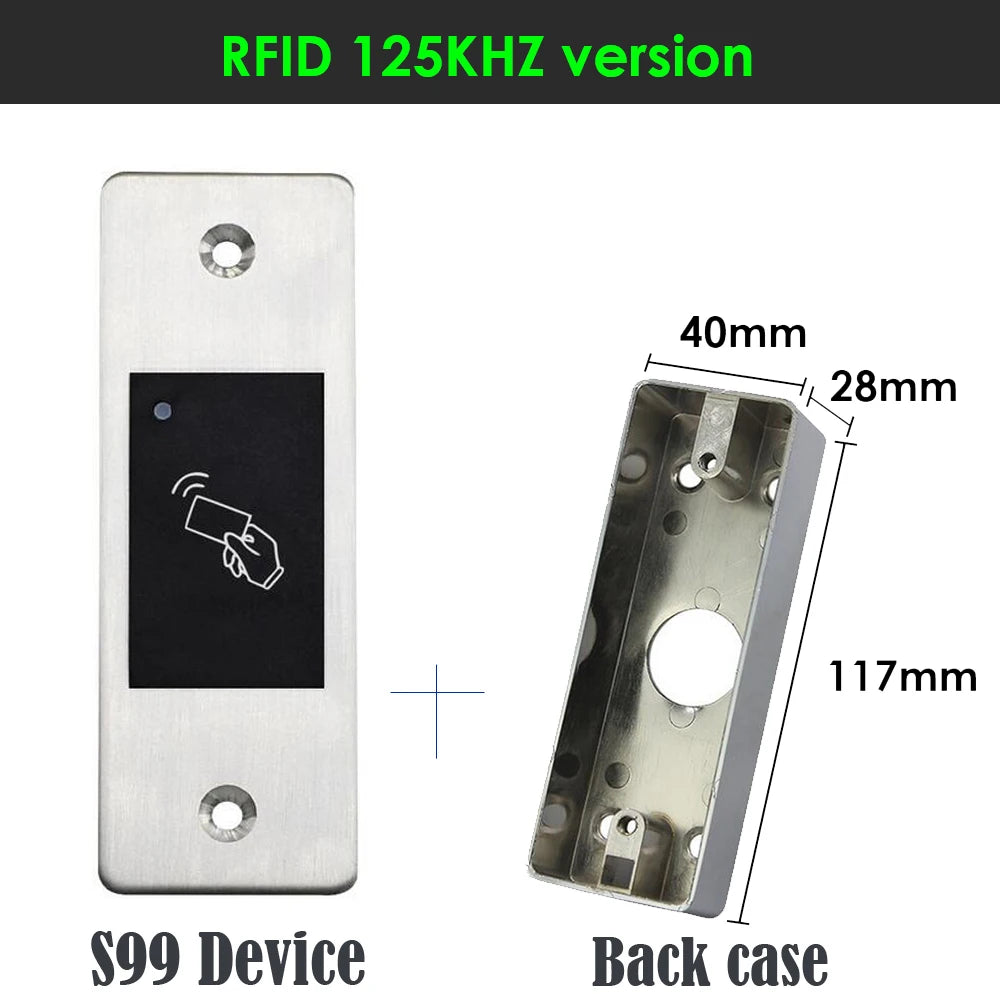

• Embedded Mini Design: Compact form factor (115 × 40 × 30 mm) fits neatly into door frames, elevator panels, and tight installations where standard readers won't fit.

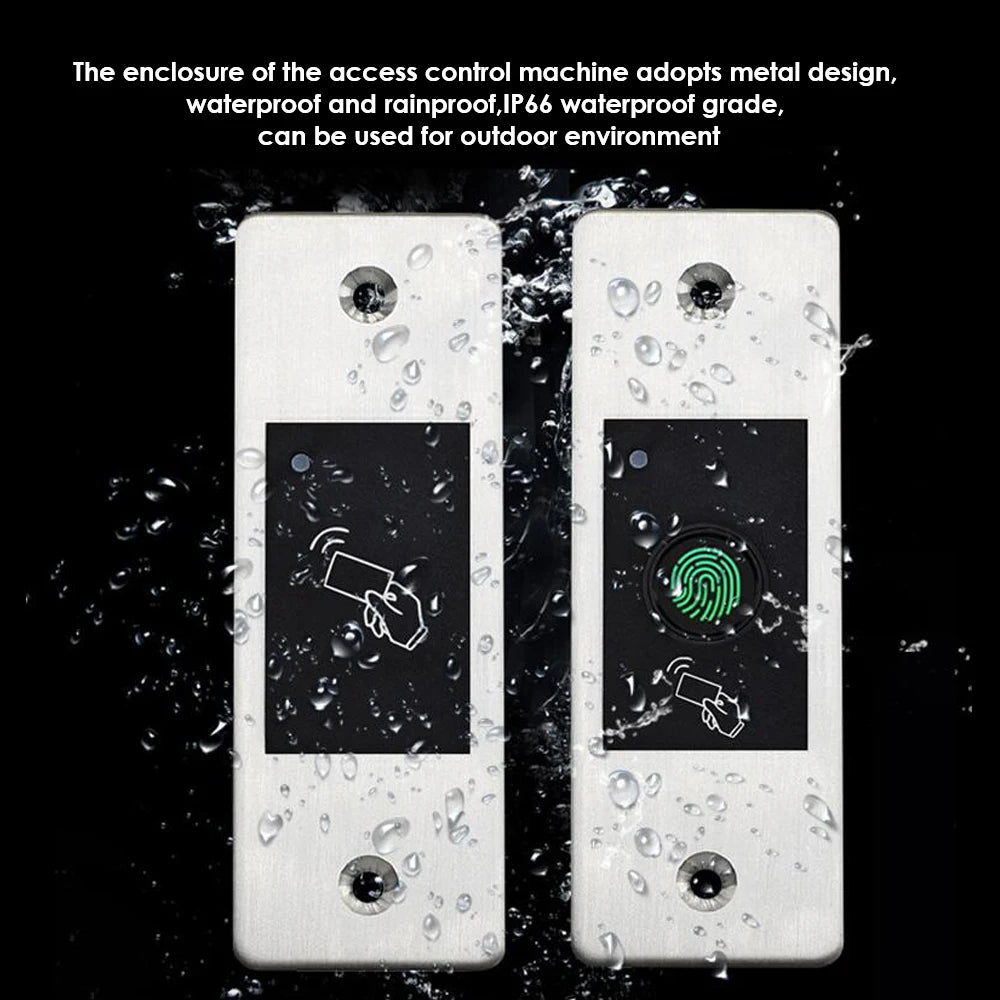

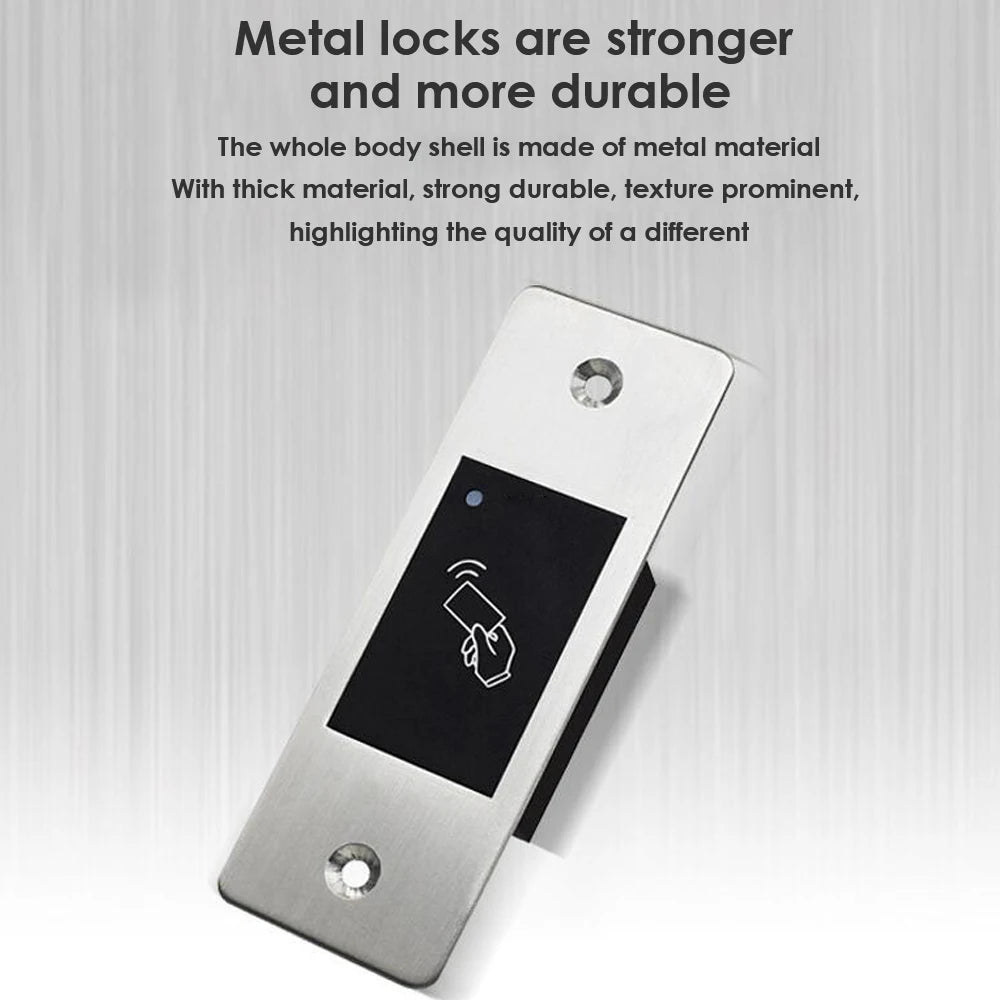

• IP66 Weatherproof & Durable: Rugged zinc-alloy metal case rated to IP66 — protected against powerful water jets and dust ingress, ideal for both indoor and outdoor use.
• Wide Voltage Range: Operates on DC 9–18V (RFID model) / DC 9–24V (fingerprint model), compatible with most standard access control power supplies.
• Fail-Secure Mode: Locks remain engaged on power loss for added security.
• Latch Mode: Holds door or gate open as needed for high-traffic periods.
• Tri-Color LED Status Display: Instantly communicates access granted, denied, or system status at a glance.
• Relay Output: Single relay (NO / NC / Common) with up to 2A lock output load, plus exit button wiring support.
• Broad Operating Range: Functions reliably in temperatures from -25°C to 60°C (-13°F to 140°F) and humidity from 20%RH to 98%RH.
• Semiconductor Fingerprint Sensor: Living-finger detection technology for accurate, reliable identification every time.

Key Specifications

Perfect For

• Elevator and lift access panels
• Office and commercial door frame installations
• Residential gate and garage entry systems
• Indoor and outdoor access points requiring weather resistance

For general guidance on electronic security and access control standards, visit the National Institute of Standards and Technology (NIST) Cybersecurity Resources.

Frequently Asked Questions

Q: What types of cards does this RFID access control reader support?

A: This reader is compatible with 125KHz EM proximity cards, which are widely available and commonly used in commercial and residential access control systems. It can store up to 3,000 card credentials.

Q: Can this reader be used outdoors?

A: Yes. The unit features an IP66-rated zinc-alloy metal housing, making it protected against dust ingress and powerful water jets. It also operates across a wide temperature range of -25°C to 60°C, making it suitable for most outdoor environments.

Q: How do I enroll fingerprints and cards into the system?

A: Fingerprint and card enrollment is performed directly on the device using its built-in management interface. The reader supports up to 100 fingerprints and 3,000 cards, and uses semiconductor living-finger detection to ensure only genuine fingerprints are accepted.

Q: What happens if there is a power outage?

A: This reader operates in Fail-Secure mode, meaning the locking mechanism remains engaged (locked) in the event of a power failure, maintaining the security of the controlled entry point at all times.

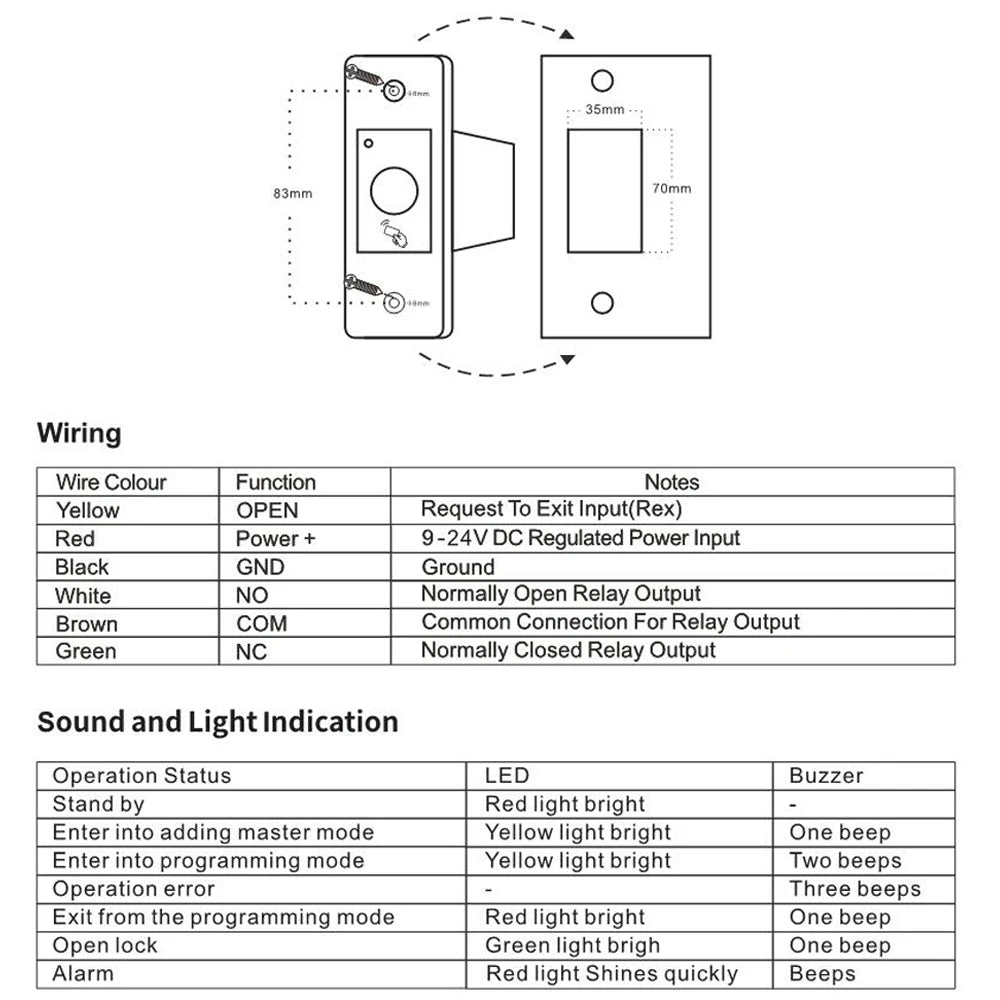

Q: What is the wiring output configuration?

A: The reader provides a single relay output with Normally Open (NO), Normally Closed (NC), and Common terminals, supporting up to a 2A lock output load. It also includes an exit button wiring connection for easy integration with standard access control systems.
