Mini Linear Slide Table 15mm Stepper Motor 123mm Stroke 9-15V
Mini Linear Slide Table 15mm Stepper Motor 123mm Stroke 9-15V

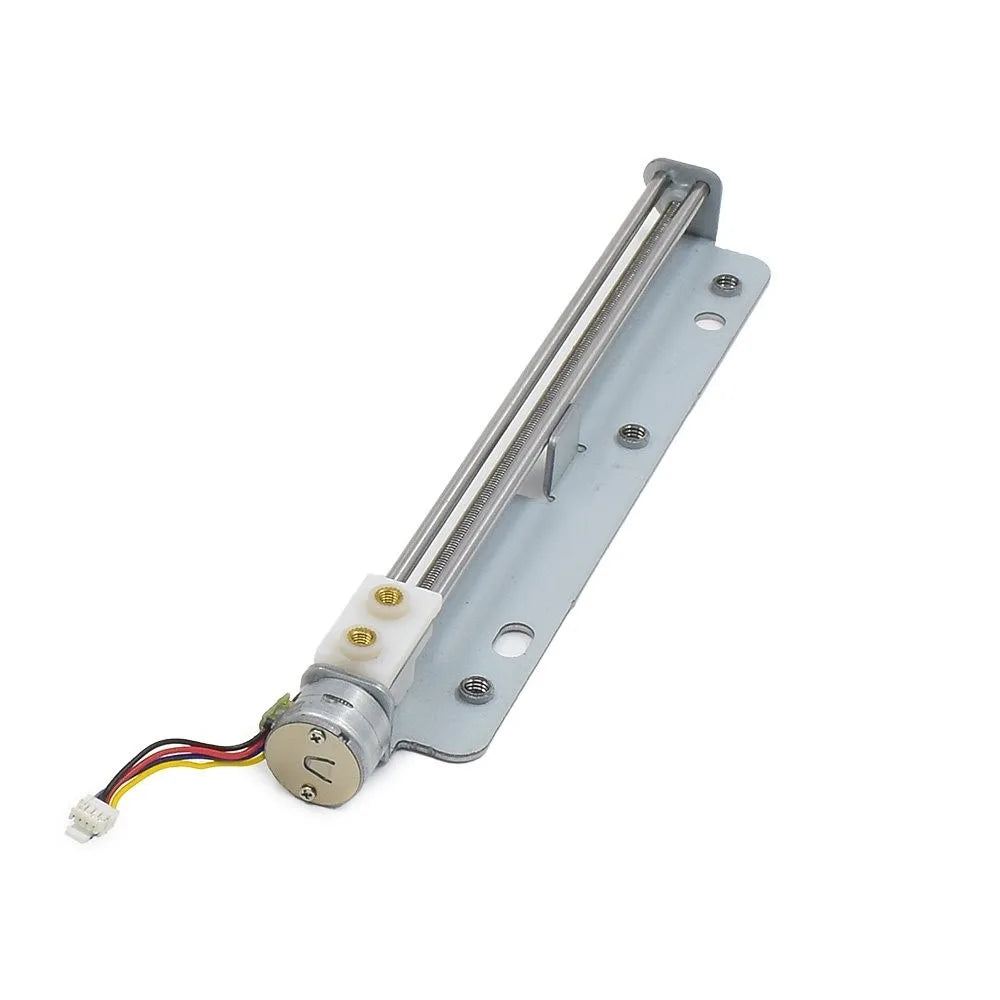

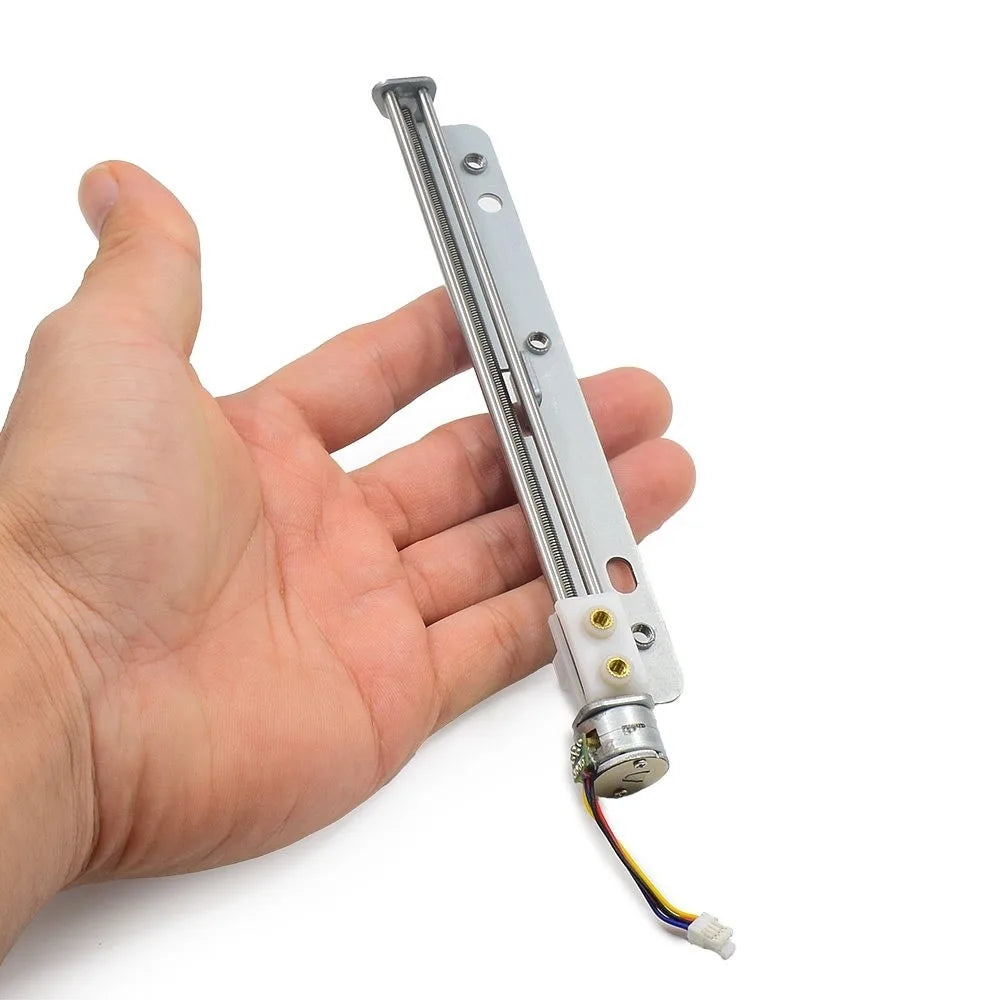

Mini Linear Slide Table with 15mm 2-Phase 4-Wire Stepper Motor
Bring precision and compact linear motion to your next project with this Mini Linear Slide Table. Featuring a 2-phase, 4-wire stepper motor with a 123mm slider stroke, this unit is ideal for DIY automation builds, CNC setups, camera sliders, lab equipment, and robotics applications where accurate, repeatable linear positioning is essential.
Key Specifications
- Motor Type: 2-Phase, 4-Wire Stepper Motor
- Drive Voltage: 9–15V / 100–650mA (higher voltage = greater torque and more heat)
- Motor Diameter: 15mm
- Screw Rod Length: 143mm
- Slider Stroke: 123mm
- Screw Rod Diameter: 3.5mm
- Shaft Diameter: 3mm
- Screw Pitch: 0.6mm
- Pitch Angle: 18°
- Phase Resistance: 15 Ohms
- Overall Dimensions: 105 × 15 × 18mm
- Wire Color Code: Black A+ | Blue A− | Yellow B+ | Red B−
Why Choose This Linear Slide Module?
- ✅ Long 123mm Travel Stroke — perfect for applications requiring extended linear movement in a compact form factor
- ✅ Compact 15mm Motor Body — fits into tight spaces on custom rigs, 3D printers, and micro-automation equipment
- ✅ Fine Screw Pitch (0.6mm) — enables highly precise, incremental movement per step
- ✅ Wide Voltage Range (9–15V) — flexible compatibility with various microcontroller and driver setups
- ✅ Standard 4-Wire Interface — works with most common stepper motor driver boards (A4988, DRV8825, ULN2003, etc.)
Important Usage Notes
⚠️ This is a stepper motor — it will NOT rotate if connected directly to a DC power source. A compatible stepper motor driver board and control board (such as an Arduino or Raspberry Pi) are required for operation. Driver and control board are not included.
What's in the Box?
- 1× Mini Linear Slide Table with Stepper Motor
Made in Mainland China.
For general guidance on safe use of low-voltage electronic components, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this mini linear slide table stepper motor work directly with an Arduino?
A: Yes — with the appropriate stepper motor driver board (such as an A4988 or DRV8825), you can control this 2-phase 4-wire stepper motor directly from an Arduino or similar microcontroller. The driver board is not included and must be purchased separately.
Q: What is the maximum travel distance (stroke) of this linear slide table?
A: The slider stroke on this mini linear slide table is 123mm, with a total screw rod length of 143mm. The fine 0.6mm pitch screw enables highly precise incremental positioning over that full travel range.
Q: What voltage should I use for the best performance?
A: The motor operates between 9V and 15V at 100–650mA. Higher voltages produce greater force but also generate more heat. For most standard applications, starting in the lower-to-mid voltage range (9–12V) is recommended and will keep operating temperatures manageable.
Q: What are the wire color assignments for this stepper motor?
A: The 4-wire color code is: Black = A+, Blue = A−, Yellow = B+, Red = B−. Match these to the corresponding terminals on your stepper driver board for correct phasing.
