Mini Embedded 3-Port Gigabit Ethernet Switch Module (5–12V)
Upgrade your embedded systems, IoT projects, or custom network builds with this compact 3-Port Gigabit Ethernet Switch Module. Supporting speeds up to 1000 Mbps and powered by a wide-range DC 5–12V input, this module (Model LX-301 / SWF501) is engineered for seamless integration into enclosures, industrial devices, routers, and DIY electronics where space is at a premium.
Key Features
- Gigabit Performance: 1000 Mbps backplane bandwidth with store-and-forward switching for reliable, high-speed data transfer.
- 3 x 10/100/1000M Ports: Four-pin 2.5mm pin-type connectors for clean embedded integration — no bulky RJ45 jacks required.
- Wide Voltage Input: Operates on DC 5V–12V / 1A via a 2P terminal (2.5mm pitch), compatible with common embedded power supplies.
- All-Port Uplink: Every port can function as an UP-LINK port, giving you full cascading flexibility.
- Star Topology & CSMA/CD: IEEE 802.3 / 802.3u / 802.3X compliant — supports 10Base-T, 100Base-TX, and Gigabit Ethernet with flow control.
- LED Status Indicators: 1 red power LED + 4 green Link/Act LEDs for at-a-glance network status monitoring.
- Ultra-Compact Form Factor: Measures just 61 × 50 × 16 mm — ideal for tight enclosures and custom builds.
- Wide Operating Temperature: -20°C to 40°C operating range; -40°C to 70°C storage range for demanding environments.
Full Specifications
| Model | LX-301 / SWF501 |
| Standards | IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3X (Flow Control) |
| Access Method | CSMA/CD |
| Forwarding Rate | 1000 Mbps |
| Backplane Bandwidth | 1 Gbps |
| Topology | Star |
| Ports | 3 × 10/100/1000M — 4-pin 2.5mm pitch |
| Forwarding Mode | Store and Forward |
| Network Media | 10Base-T: UTP Cat3 or above (≤100m) / 100Base-TX: UTP Cat5 (≤100m) |
| Power Input | DC 5–12V / 1A, 2P pin terminal (2.5mm spacing) |
| Operating Temperature | -20°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Humidity | 5%–95% (non-condensing) |

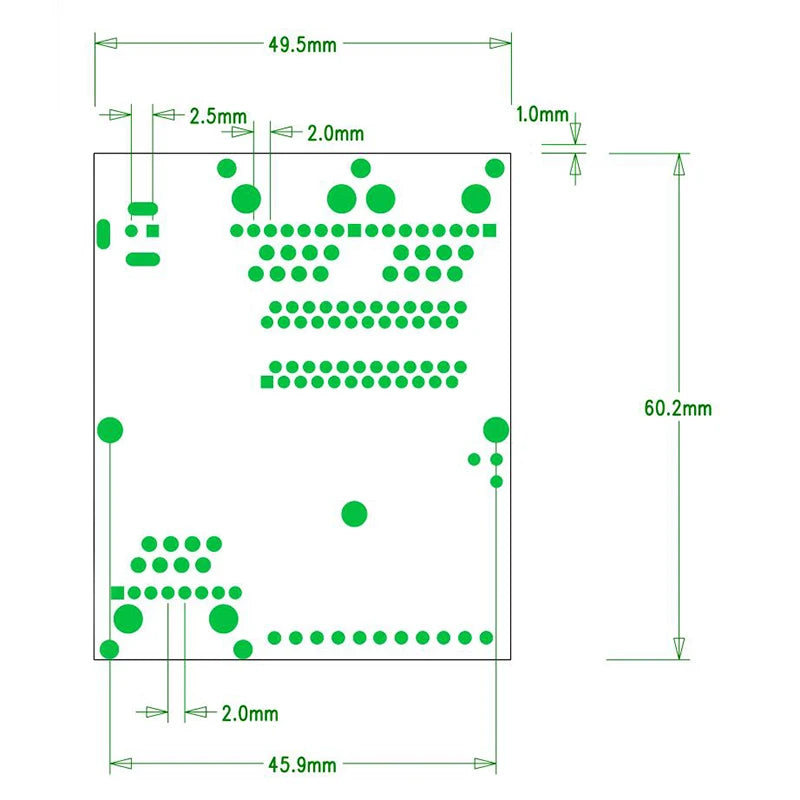

| Dimensions (W×H×D) | 61 × 50 × 16 mm |
| LEDs | 1× Power (Red), 4× Link/Act (Green) |
| Country of Origin | Made in China |
Perfect For
- IoT gateway and embedded system builds
- Custom router or firewall appliances
- Industrial automation controllers
- Raspberry Pi, mini-PC, and SBC network expansion
- DIY NAS, media server, or home lab projects
For more information on Ethernet networking standards, visit the NIST Communications Technology Laboratory.
Frequently Asked Questions
Q: What voltage does this 3-port Gigabit Ethernet switch module require?
A: The module accepts a wide DC input range of 5V to 12V at 1A, delivered via a 2-pin terminal with 2.5mm spacing. This makes it compatible with most common embedded and single-board computer power supplies.
Q: Can I use this switch module with standard RJ45 cables?
A: The module itself uses 4-pin 2.5mm pitch connectors designed for direct PCB or embedded integration rather than standard RJ45 jacks. You can wire RJ45 breakout adapters to the pin headers for use with Cat5/Cat5e/Cat6 patch cables in your custom build.
Q: Does this Gigabit Ethernet module support auto-negotiation and full-duplex?
A: Yes. The module is IEEE 802.3 / 802.3u / 802.3X compliant, supporting 10/100/1000 Mbps auto-negotiation and full-duplex operation with flow control on all three ports.
Q: What is the maximum throughput (backplane bandwidth) of this switch module?
A: The backplane bandwidth is 1 Gbps, with a forwarding rate of 1000 Mbps using store-and-forward switching — suitable for high-speed data transfer in compact embedded network designs.
