Mini Electronic Cabinet Lock – Compact, Low-Power & Secure

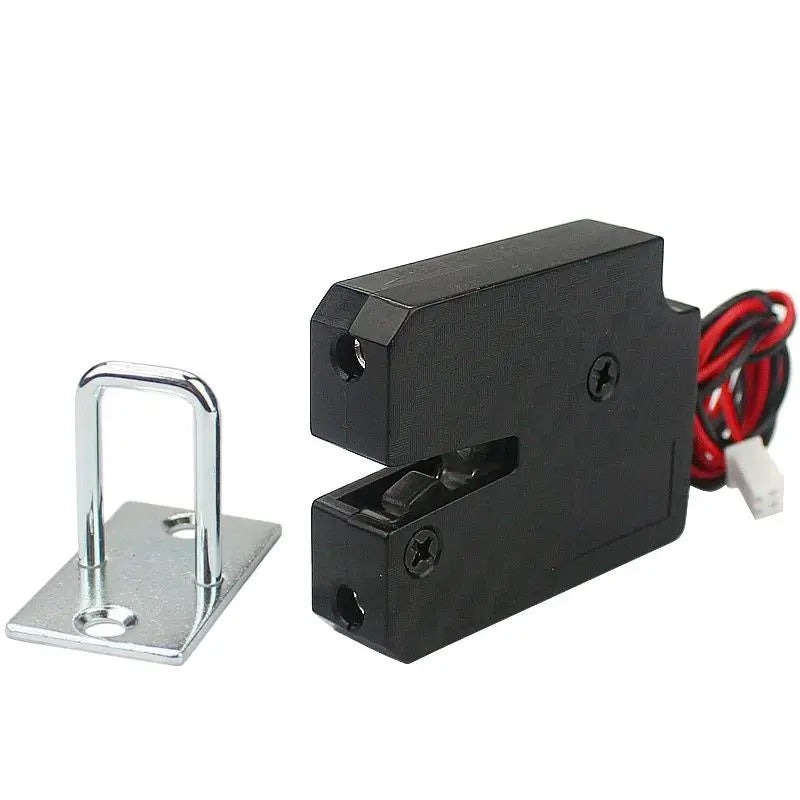

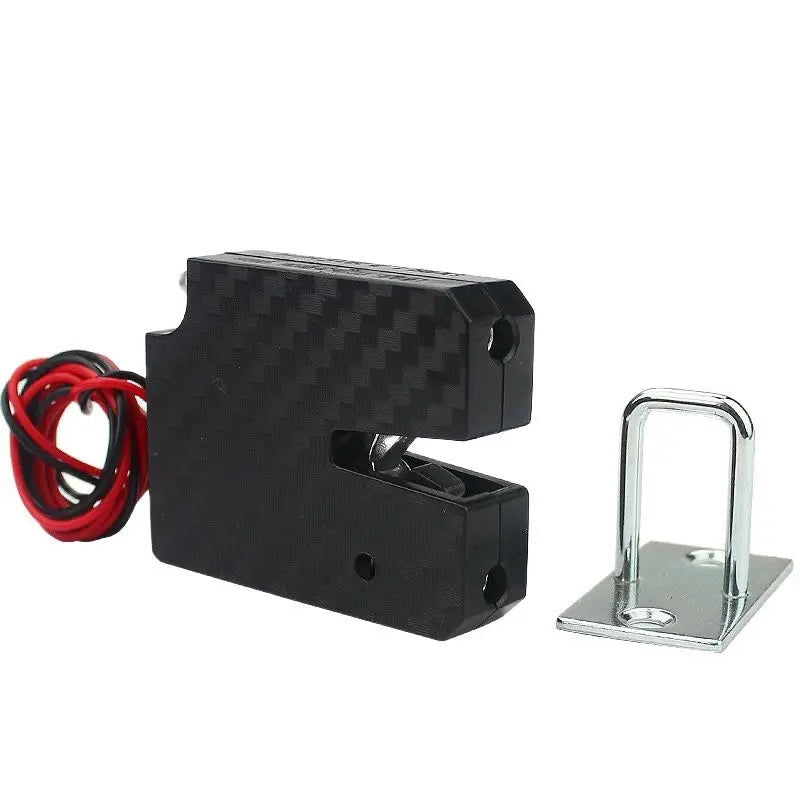

The XG-07E Mini Electronic Cabinet Lock is a compact, easy-to-install electric lock designed for drawers, mailboxes, lockers, express delivery cabinets, vending machines, and lightweight furniture doors. Built with a durable ABS plastic shell and powered by graphene titanium wire actuation, this intelligent lock delivers reliable security in a tiny 52 × 40 × 12 mm footprint.
Made in Mainland China.
Key Features
- Low Power Consumption: Operates on DC 3V (AA batteries compatible) — energy-efficient and cost-effective.
- IPX4 Waterproof Rating: Splash-resistant design suitable for indoor and semi-outdoor environments.
- High Shackle Strength: Lock hook withstands up to 50 kg of traction force with no permanent deformation — shockproof and tamper-resistant.
- Fast Unlock Response: Power-on unlock time under 1 second for seamless, instant access.
- Auto-Locking Mode: Independent work mode — door locks when power is cut; power-on triggers unlock. No keys required.
- Self-Ejecting Design: Suitable for doors weighing 0.5–2 kg; the latch releases automatically on unlock signal.
- Long Mechanical Life: Rated for approximately 100,000 operating cycles under design load conditions.
- Wide Temperature Range: Functions reliably from -20°C to 60°C (-4°F to 140°F).
- Compact & Lightweight: Measures just 52 × 40 × 12 mm and weighs only 30 g — fits into tight spaces with ease.
Specifications
| Model | XG-07E |
| Main Material | ABS Plastic |
| Operating Voltage | DC 3V (AA Battery) / DC 12V 1A |
| Waterproof Rating | IPX4 |
| Power-On Unlock Time | <1 second |
| Shackle Strength | 50 kg (no permanent deformation) |
| Mechanical Life | ~100,000 cycles |
| Door Weight Compatibility | 0.5 – 2 kg |
| Ambient Temperature | -20°C ~ 60°C |
| Dimensions | 52 × 40 × 12 mm |
| Weight | 30 g |
Applications
This mini electronic lock is ideal for a wide range of uses:
- Mailboxes & delivery lockers
- Drawer & cabinet locks
- Vending machines
- Supermarket storage lockers
- Furniture doors (lightweight)
- Smart home integration projects
Package Contents

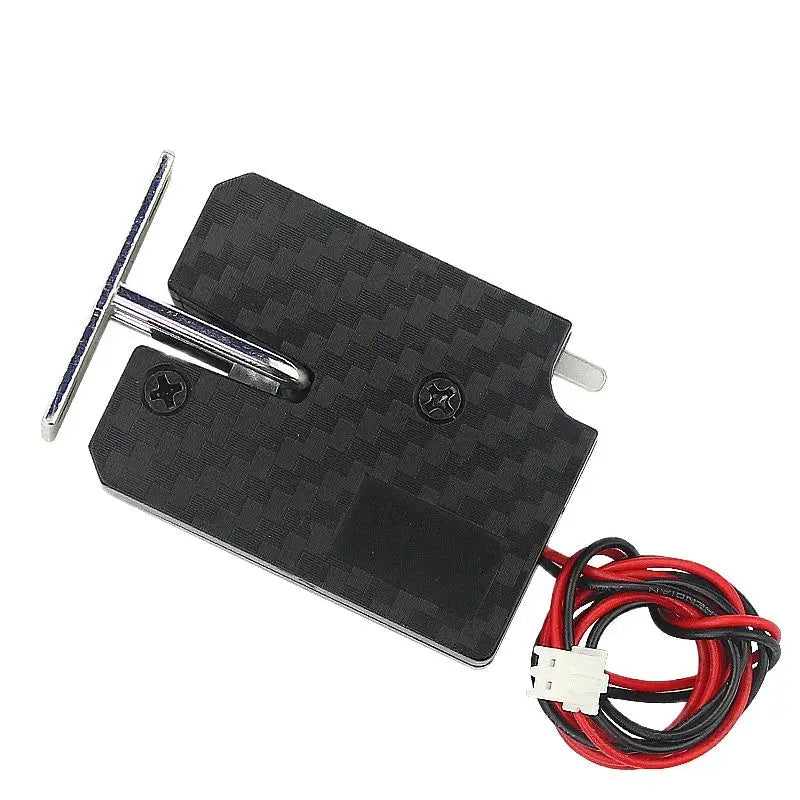

- 1 × Electric Lock with Buckle
For guidance on electrical safety standards for consumer hardware products, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage does this mini electronic cabinet lock require?
A: The XG-07E electronic lock operates at DC 3V (compatible with standard AA batteries) and can also be driven at DC 12V 1A. It automatically reduces current draw after the unlock cycle completes, making it highly energy-efficient.
Q: How does the auto-locking mechanism work on this electric drawer lock?
A: This lock operates in independent mode — the door latches closed when power is off, and applying power (for under 1 second) triggers the unlock. This makes it ideal for smart locker systems, vending machines, and automated cabinet applications where keyless entry is needed.
Q: Is this electronic lock waterproof?
A: Yes. The lock carries an IPX4 waterproof rating, meaning it is protected against water splashes from any direction. This makes it suitable for mailboxes, outdoor delivery cabinets, and other environments where occasional moisture exposure is possible.
Q: What type of doors or drawers is this lock compatible with?
A: The XG-07E is designed for lightweight doors and panels weighing between 0.5 kg and 2 kg. It is well-suited for mailbox doors, locker panels, furniture drawers, vending machine compartments, and similar lightweight enclosures.
