Mini Electric Bolt Lock with 315MHz Remote Exit Buttons | LIHTNE

LIHTNE DR-2 Mini Electric Bolt Lock – Wireless Remote Drawer & Cabinet Security

Take control of your drawer, cabinet, or enclosure security with the LIHTNE DR-2 Mini Electric Bolt Lock. This compact yet powerful electric bolt lock pairs a DC12V wireless receiver/controller with two 315MHz remote handle exit buttons, giving you effortless keyless access at the push of a button. Whether you're securing a desk drawer, display case, mailbox, or small access panel, this all-in-one kit delivers reliable, programmable locking performance right out of the box.

Made in Mainland China.

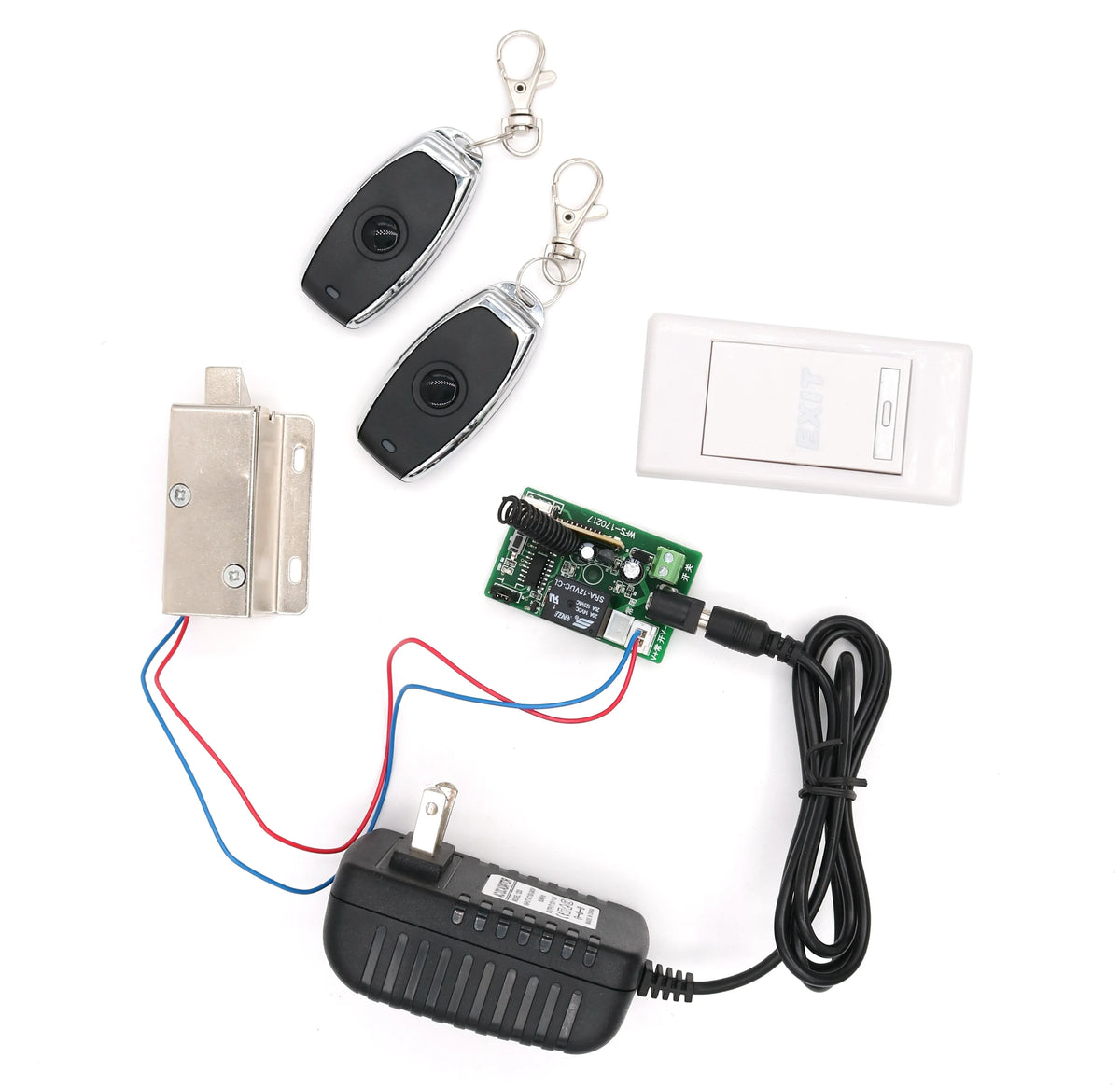

What's in the Box

• 1× Mini Electric Bolt Lock (Model DR-2)
• 1× 315MHz Wireless Controller/Receiver
• 2× Remote Handle Exit Buttons (315MHz)
• 1× Power Supply Adapter

Key Features

• Wireless 315MHz Technology – Learning-type encoding for easy pairing with included remote handles
• Adjustable Delay Timer – Set the unlock delay from 0 to 60 seconds to suit your application
• Dual Output Modes – Supports both Fail-Secure and Fail-Safe configurations for flexible installation
• High Receiver Sensitivity – -95 dB sensitivity ensures a strong, reliable wireless signal
• Wide Operating Temperature – Performs in conditions from -30°C to 70°C (-22°F to 158°F)
• Compact Mini Form Factor – Discreet bolt lock design fits in tight spaces without sacrificing strength
• Simple Power-to-Unlock Mechanism – Activates instantly upon receiving signal (power-on duration under 15 seconds)

Full Specifications

Controller / Receiver

• Input Voltage: DC 12V
• Operating Current: 10mA
• Delay Time: 0–60 seconds (adjustable)
• Output Mode: Fail-Secure / Fail-Safe
• Receiver Sensitivity: -95 dB
• Receiving Frequency: 315 MHz
• Encoding Type: Learning Code
• Operating Temperature: -30°C to 70°C

Mini Electric Bolt Lock

• Input Voltage: DC 12V
• Operating Current: 800mA
• Unlock Mode: Power-to-Unlock (power-on time must be less than 15 seconds)
• Model Number: DR-2

Ideal Applications

• Desk & office drawer security
• Display cabinets & retail showcases
• Mailboxes & secure drop boxes
• Small access panels & enclosures
• Home automation and smart-lock DIY projects

For general guidance on electronic device and electrical safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: How do I pair the 315MHz remote handle exit buttons to the controller?

A: The LIHTNE DR-2 controller uses a learning-type encoding system. Simply press the programming/learn button on the controller, then press the button on your remote handle exit button. The controller will memorize the signal, and the pair will be ready to use within seconds. Repeat for the second remote handle.

Q: What is the difference between Fail-Safe and Fail-Secure modes on this electric bolt lock?

A: In Fail-Safe mode, the lock unlocks automatically when power is lost — ideal for emergency egress applications. In Fail-Secure mode, the lock remains locked when power is cut, keeping the secured area protected even during a power outage. The LIHTNE DR-2 controller supports both modes, so you can configure it to match your specific security needs.

Q: What voltage and power supply does this mini electric bolt lock require?

A: Both the controller and the mini electric bolt lock operate on DC 12V. A compatible power supply adapter is included in the package, so no additional power supply is needed for standard installations.

Q: Can I adjust the unlock delay on the DR-2 controller?

A: Yes. The delay time is fully adjustable from 0 to 60 seconds, allowing you to customize how long the bolt remains unlocked after a remote signal is received — giving you precise control over access timing for your application.
