Mini Biometric Fingerprint & RFID Card Door Access Control System
Upgrade your entryway security with this compact, feature-packed standalone door access controller. The Asia-Teco D1-J combines biometric fingerprint scanning, 125KHz RFID card reading, and PIN keypad entry into one sleek, wall-mountable unit — giving you three flexible ways to control who enters your space. Whether it's an office, server room, warehouse, or residential entry, this mini controller delivers fast, reliable access management without the need for a separate panel.
Key Features
- Triple Access Modes: Authenticate via fingerprint, 125KHz EM RFID card, or 4–6 digit PIN — use any one method or combine them for added security.
- Large User Capacity: Stores up to 1,000 fingerprints, 1,000 RFID cards, and 1,000 PIN codes — ideal for small to medium-sized businesses or multi-tenant properties.
- Lightning-Fast Identification: Biometric verification completes in under 1 second, keeping entry smooth and efficient for high-traffic areas.
- Advanced Optical Sensor: Anti-glare, anti-residual fingerprint optics with a dark background deliver accurate reads even with worn or slightly dirty fingertips.
- Wiegand WG26 Output: Operates as a standalone controller or integrates seamlessly as a Wiegand WG26 reader with an existing access control panel.

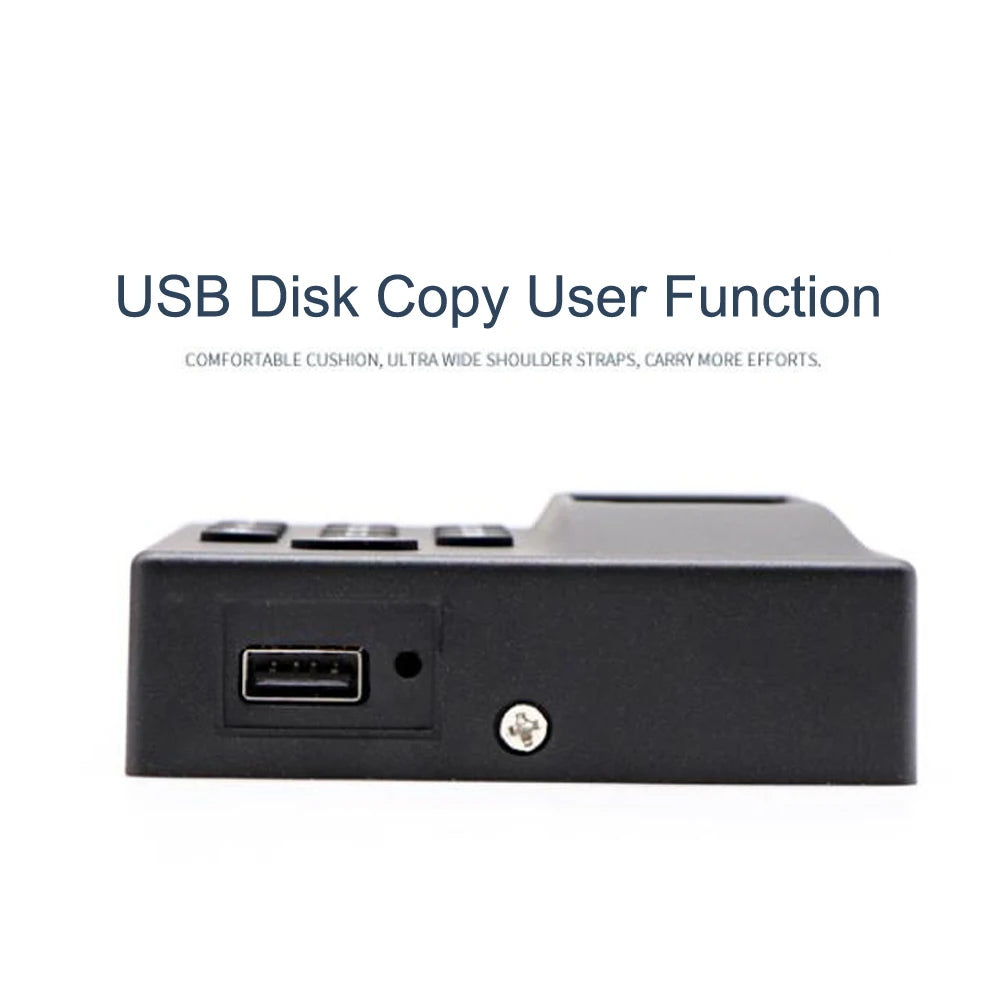

- USB (U-Disk) Function: Built-in USB port allows convenient user data management and firmware updates via a USB drive.
- Multi-Admin Support: Supports up to 1,000 administrator accounts for scalable, multi-level access management.
- Built-In Door Bell: Integrated doorbell function adds convenience for visitor notification.
- Fail-Safe Security Mode: Defaults to a safe state in the event of a power interruption.
- Tamper Alert Buzzer: Audible buzzer provides instant feedback for granted/denied access and alerts to forced-entry attempts.

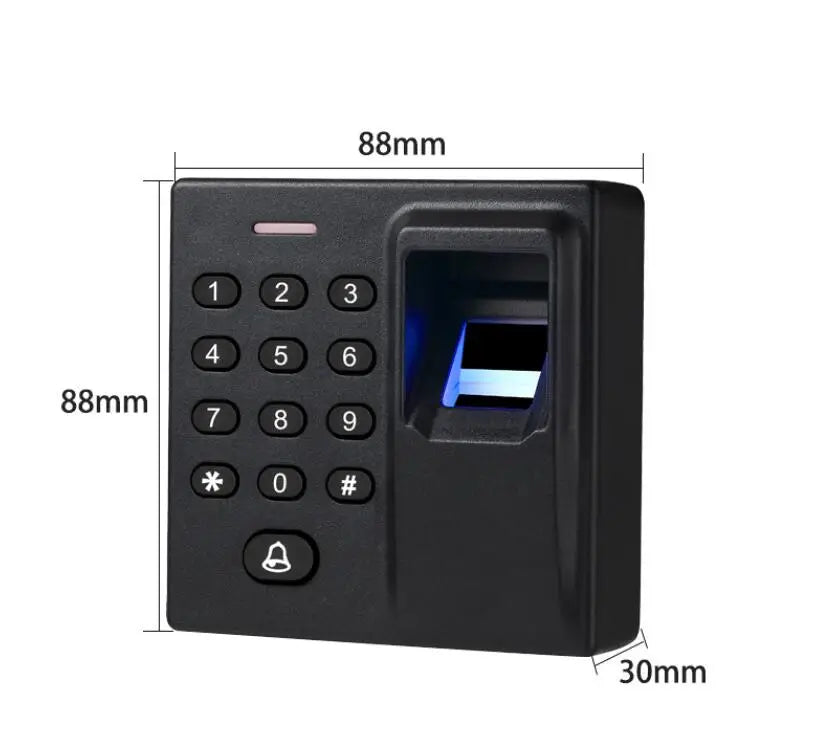

- Compact Design: Measures just 88mm × 88mm × 30mm — fits standard single-gang wall boxes for a clean, professional installation.
Technical Specifications
| Model | Asia-Teco D1-J |
| Access Modes | Fingerprint / RFID Card / PIN |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 (125KHz EM) |
| Password Capacity | 1,000 (4–6 digits) |
| Identification Speed | < 1 second |
| Card Frequency | 125KHz RFID |
| Wiegand Output | WG26 |
| Power Supply | +12V DC |
| Operating Temperature | -25°C to 45°C |
| Dimensions | 88mm × 88mm × 30mm |
| Color | Black |
| Security Mode | Fail Safe |
| Country of Origin | Made in Mainland China |
Who Is This For?
This controller is an excellent fit for offices, retail stockrooms, data centers, apartment buildings, gyms, schools, or any property where you need to restrict and log door access without complex wiring or expensive installation. Its standalone operation means setup is straightforward — just power it up and enroll your users.
For more information on best practices for electronic access control security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can this fingerprint access controller work without being connected to a separate access control panel?
A: Yes! The Asia-Teco D1-J is a fully standalone door access controller, meaning it can operate completely independently — no external panel required. Simply power it with a 12V DC supply, enroll users, and connect it to your electric lock. It also supports Wiegand WG26 output if you want to integrate it into a larger access control system.
Q: How many users can be enrolled on this biometric keypad controller?
A: The controller supports up to 1,000 fingerprints, 1,000 RFID cards (125KHz EM type), and 1,000 PIN codes — giving you a total capacity that suits small to medium-sized facilities. It also supports up to 1,000 administrator accounts for multi-level management.
Q: What type of RFID cards are compatible with this access control keypad?
A: This unit is compatible with standard 125KHz EM RFID cards and key fobs. It does not support 13.56MHz MIFARE or NFC cards, so be sure your existing cards match the 125KHz EM format before purchasing.
Q: Is this door access controller suitable for outdoor installation?
A: The unit operates within a temperature range of -25°C to 45°C, which accommodates a wide range of environments. However, the product data does not specify an IP weatherproofing rating, so for outdoor installations we recommend mounting it in a sheltered or covered location to protect it from direct exposure to rain and moisture.
Q: What happens to door access if the power goes out?
A: This controller uses a Fail-Safe security mode. In a Fail-Safe configuration, the lock defaults to an unlocked (open) state when power is lost, which prioritizes safe egress. Please ensure your installation and lock hardware align with your local safety and building code requirements.
