Milwaukee M18 18V Li-ion Battery PCB Protection Circuit Board
Milwaukee M18 18V Li-ion Battery PCB Protection Circuit Board
Milwaukee M18 18V Li-ion Battery Protection Circuit Board (PCB)
Keep your Milwaukee M18 power tool batteries running safely and efficiently with this high-quality PCB charging protection circuit board. Designed as a direct replacement or repair component for Milwaukee 18V 3Ah, 4Ah, 5Ah, and 6Ah Li-ion battery packs, this board features built-in IC technology that actively monitors and safeguards your battery cells during every charge and discharge cycle.
Key Features
- Smart IC Monitoring: Built-in IC continuously detects battery cell voltage and current, and logs usage cycles for intelligent battery management.
- Multi-Layer Protection: Provides overheat, overvoltage, undervoltage, overcurrent, and overcharge protection to extend battery life and ensure safe operation.
- Low-Voltage Shutdown: Compatible across the entire Milwaukee M18 series, automatically shutting down at low voltage to prevent cell damage.
- Durable & Shock-Resistant: Stable PCB construction engineered to withstand vibrations from torque wrenches, impact drills, angle grinders, and more.
- Wide Compatibility: Fits Milwaukee 18V 3Ah, 4Ah, 5Ah, and 6Ah Li-ion battery packs — ideal for both DIY repairs and professional rebuilds.
Product Specifications
- Material: PCB (Printed Circuit Board)
- Color: Blue

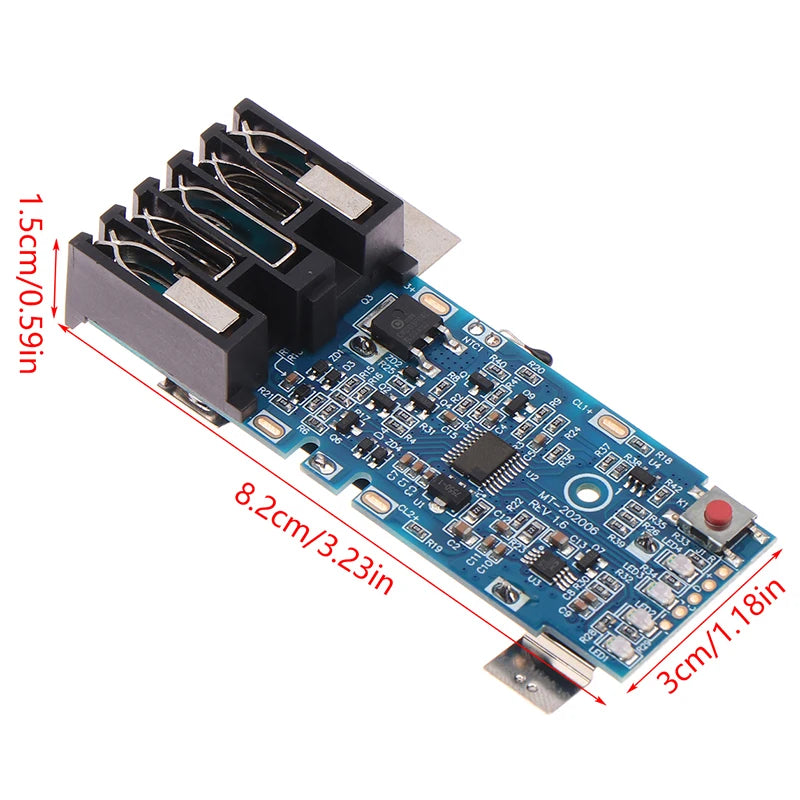

- Dimensions: 8.2 × 3 × 1.5 cm
- Compatibility: Milwaukee M18 18V 3Ah / 4Ah / 5Ah / 6Ah Li-ion Battery
- Package Includes: 1 × PCB Charging Protection Circuit Board
- Country of Origin: Made in China
Assembly & Installation Notes
If using new battery cells:
- Use 18650 power lithium battery cells only.
- Groups of 5, 10, or 15 batteries must be balanced using resistors and capacitors to equalize voltages before assembly.
If repairing an existing battery pack:
- Test the voltage of each individual cell before installation.
- If voltages differ between cells, charge each cell individually to the same voltage level before reassembling.
Note: Due to manual measurement, please allow a tolerance of 1–3 mm. Actual product color may vary slightly from images due to monitor display differences. PCB design may change due to supply chain or processing technology updates.
Why Choose This PCB Board?
Whether you're a DIY enthusiast or a professional repair technician, this Milwaukee M18 compatible protection circuit board is an affordable, reliable solution for restoring your battery packs to full working condition. Avoid the high cost of brand-new battery replacements and extend the life of your existing Milwaukee tools.
For guidance on safe lithium-ion battery handling and best practices, refer to the U.S. Consumer Product Safety Commission's Lithium-Ion Battery Safety Information.
Frequently Asked Questions
Q: Which Milwaukee M18 battery packs is this PCB protection circuit board compatible with?
A: This PCB charging protection circuit board is compatible with Milwaukee M18 18V lithium-ion battery packs in 3Ah, 4Ah, 5Ah, and 6Ah capacities. It is designed to work with tools across the full Milwaukee M18 series, including torque wrenches, impact drills, and angle grinders.
Q: Do I need any special skills or tools to install this circuit board?
A: Basic electronics knowledge and soldering experience are recommended for installation. Before assembly, ensure all battery cells are balanced to the same voltage. If you are repairing an old battery pack, test each cell individually and equalize them before installing the PCB.
Q: What protections does this PCB circuit board provide?
A: This board provides five key layers of protection: overheat protection, overvoltage protection, undervoltage protection, overcurrent protection, and overcharge protection. It also features automatic low-voltage shutdown to prevent irreversible damage to your lithium-ion cells.
Q: What are the dimensions of this PCB board?
A: The PCB measures approximately 8.2 × 3 × 1.5 cm. Please allow a manual measurement tolerance of 1–3 mm.
