Asia-Teco Micro Access Control System – Single Door, 1000 Users

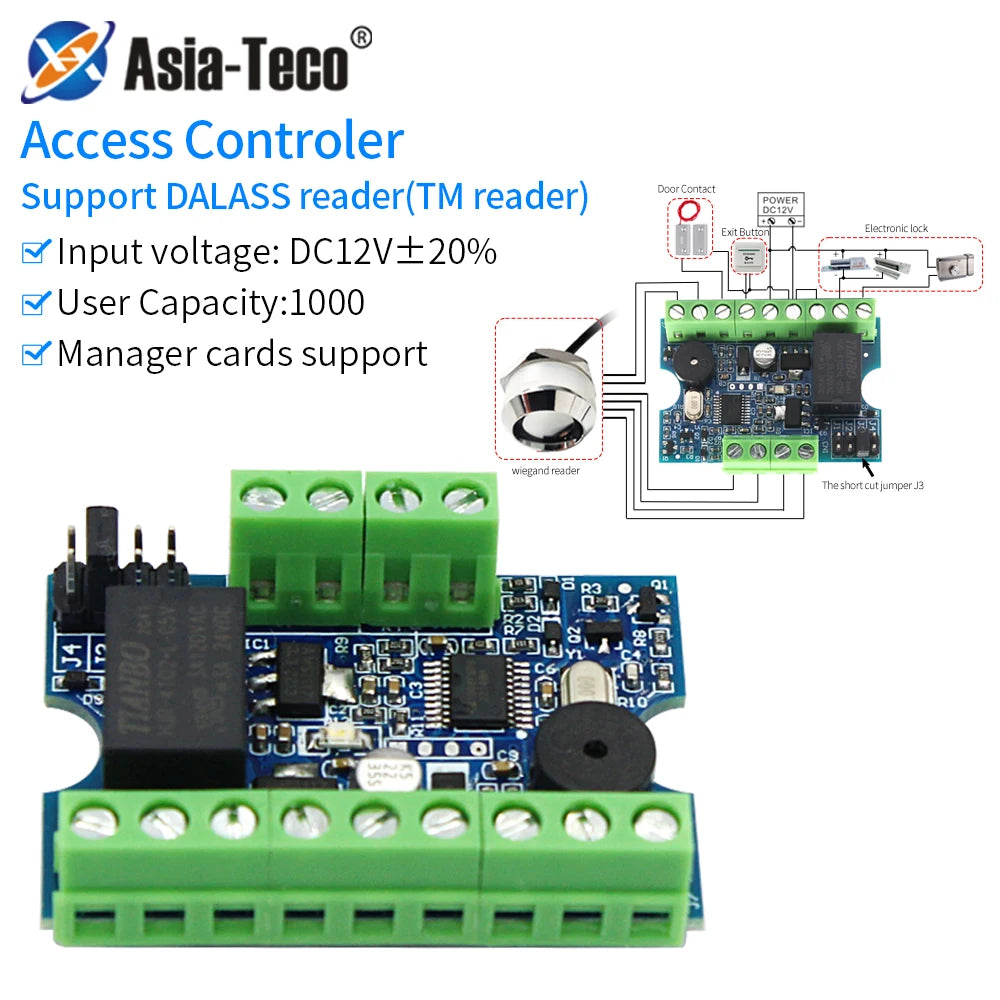

Take full command of your entryways with the Asia-Teco TM-DALAS Micro Access Control Kit — a compact, standalone door access solution engineered for homes, offices, server rooms, and small businesses. Supporting up to 1,000 authorized users, this mini controller module seamlessly connects to external Wiegand 26–44 RFID readers or Touch Memory (DS1990A) readers, giving you flexible reader compatibility in an ultra-compact PCBA (48 × 32 × 14 mm).
Why Choose This Access Control System?
- Dual Reader Compatibility: Works with standard Wiegand 26–44 card readers (up to 100 m range) and DS1990A Touch Memory readers (up to 15 m range).
- Up to 1,000 Users: Manage a large user base with ease — ideal for offices, warehouses, and multi-tenant buildings.
- Two Manager Cards Included: Quickly add or remove user credentials without any software or PC required.
- Universal Lock Compatibility: Relay output (≤ 3 A) works with electric strikes, magnetic locks, and most standard electronic locks.
- Adjustable Unlock Time: Set door unlock duration anywhere from 1 to 128 seconds to match your security workflow.
- Fail-Safe Mode with Signal: Ensures door status is always in a known, safe state during power interruptions.
- Wide Operating Range: Rated for temperatures from –35 °C to 60 °C and up to 90% humidity (RoH) — suitable for indoor and sheltered outdoor installations.
- CE, FCC & RoHS Certified: Meets international safety and environmental compliance standards.
- Easy Installation: Compact module design with straightforward wiring — no special tools or expertise required.
Technical Specifications
| Model | TM-DALAS |
| Input Voltage | DC 12V ± 20% |
| Quiescent Current | ≤ 17 mA |
| Electric Lock Output Current | ≤ 3 A (Relay Output) |
| User Capacity | 1,000 Users |
| Manager Cards | 2 Cards |
| Wiegand Protocol | Wiegand 26–44 |
| Touch Memory Reader | DS1990A |
| Wiegand Reader Range | ≤ 100 m |
| Touch Memory Reader Range | ≤ 15 m |
| Unlock Time | 1 – 128 seconds (adjustable) |
| Security Mode | Fail Safe with Signal |
| Operating Temperature | –35 °C to 60 °C |
| Max Humidity | ≤ 90% (RoH) |

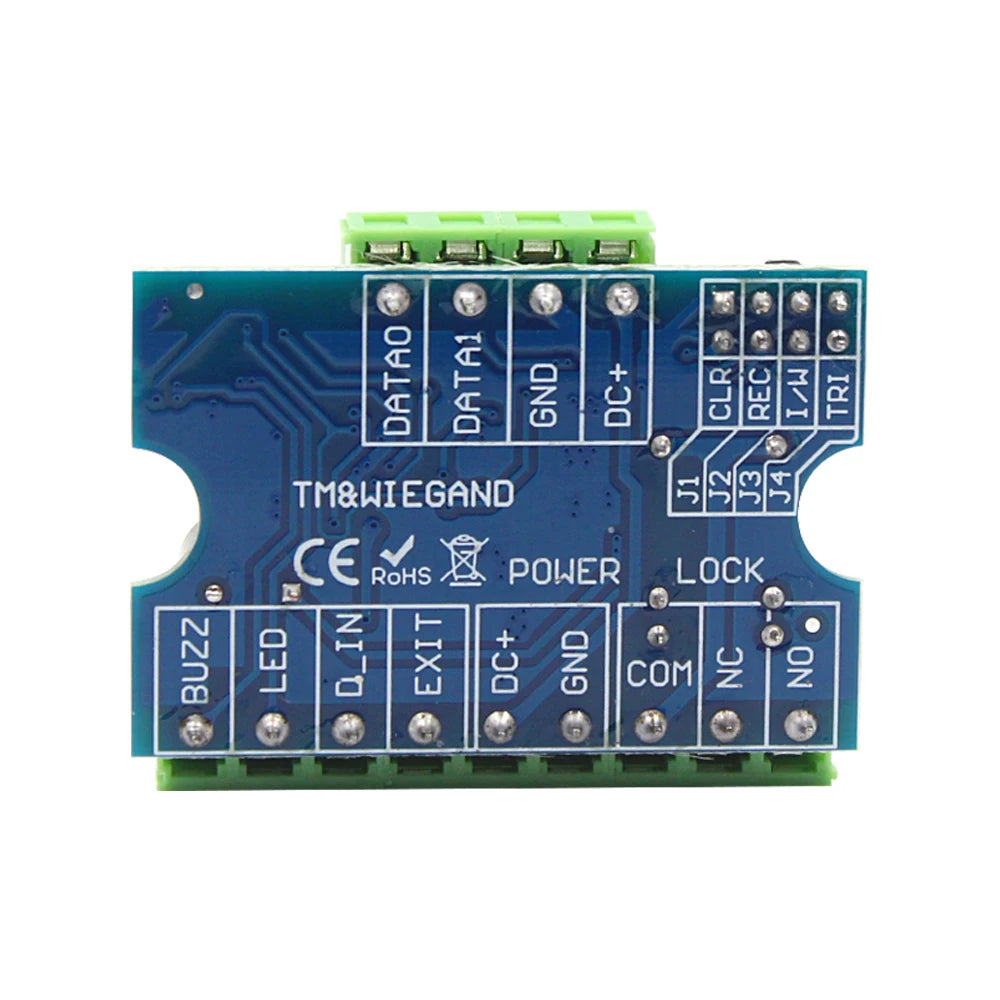

| PCBA Dimensions | 48 × 32 × 14 mm |
| Certifications | CE, FCC, RoHS |
| Country of Origin | Made in China |
Ideal Applications
- Office and commercial entry doors
- Server rooms and data closets
- Residential gates and garage doors
- Warehouses, storage units, and restricted areas
- Small business and retail back-of-house access
For general guidance on electronic security standards and safe installation practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can this micro access control module work with any RFID card reader?
A: Yes — the TM-DALAS module is compatible with any standard Wiegand 26–44 RFID card reader (operating up to 100 m away) as well as DS1990A Touch Memory readers (up to 15 m). This broad compatibility makes it easy to pair with most aftermarket readers.
Q: How do I add or remove users from the system?
A: User management is handled entirely via the two included manager cards — no PC, software, or app is required. Simply use a manager card to enroll new user cards or delete existing ones directly at the controller, making the process fast and straightforward.
Q: What types of electronic locks are compatible with this access control kit?
A: The relay output (≤ 3 A) is designed to work with a wide range of electronic locks, including magnetic locks (maglocks), electric strike locks, and electric bolt locks. It also supports an exit button connection for added convenience.
Q: Is this access control system suitable for outdoor use?
A: The controller module is rated for temperatures from –35 °C to 60 °C and humidity up to 90%, making it suitable for sheltered outdoor enclosures. For fully exposed outdoor environments, we recommend housing the module in a weatherproof enclosure for maximum longevity.
