MF47 Analog Multimeter DIY Kit – AC/DC Voltage & Capacitance
MF47 Analog Multimeter DIY Kit – AC/DC Voltage & Capacitance
MF47 Analog Multimeter DIY Assembly Kit – Learn Electronics Hands-On
Build your own fully functional analog multimeter with this comprehensive MF47 DIY Assembly Kit. Designed for students, hobbyists, electronics enthusiasts, and educators, this kit combines practical hands-on assembly with real-world measurement capability. Solder the components yourself, follow the included circuit diagrams, and walk away with both a working instrument and a deeper understanding of electronics fundamentals.
Made in Mainland China.
Key Features
- Multifunctional Measurement: Measures DC current, AC/DC voltage, and DC resistance with an enhanced 9KΩ/V AC voltage sensitivity for versatile use across a wide range of applications.
- Extended Capabilities: Supports DC capacitance testing, battery voltage measurement (1.2V–3.6V), and TV line voltage measurement for advanced diagnostics and educational exercises.
- Dual Anti-Misoperation Protection: Built-in safeguards help ensure accurate and secure measurements even during practice sessions.
- Complete Educational Package: Includes detailed circuit diagrams, step-by-step assembly instructions, and teaching materials — everything you need for structured, hands-on electronics learning.
- Compact & Portable Design: Lightweight build with dimensions of 165 × 112 × 49 mm makes it easy to use in the classroom, workshop, or out in the field.
Specifications
| Model | MF47 Analog Multimeter Kit |
| Color | Blue / Black |
| Dimensions | 165 × 112 × 49 mm |
| Operating Mode | Auto Range |
| Measurement Types | DC Current, AC/DC Voltage, DC Resistance, DC Capacitance, Battery Voltage, TV Line Voltage |
| AC Voltage Sensitivity | 9KΩ/V |
| Battery | Not included |
| Origin | Mainland China |
What's in the Box

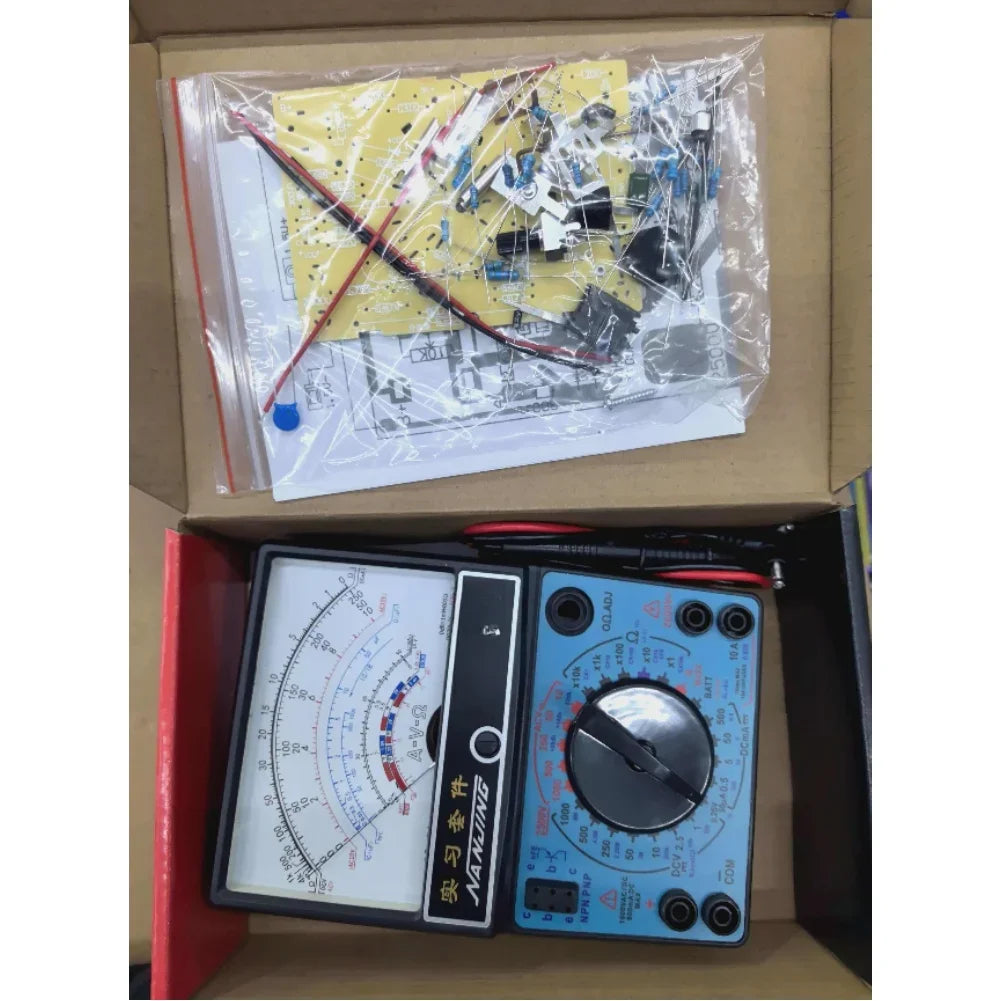

- 1 × MF47 Analog Multimeter DIY Kit (unassembled, includes all components, circuit diagram, and assembly instructions)
Important Notes
- Product color may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow for minor manual measurement deviation in the data.
- Battery is not included — purchase separately before use.
For general electrical safety guidance and best practices when working with DIY electronics, visit OSHA's Electrical Safety Resource.
Frequently Asked Questions
Q: Is the MF47 Analog Multimeter Kit suitable for beginners and students?
A: Absolutely. The MF47 DIY kit is specifically designed as a teaching and practice tool. It comes with a full circuit diagram, step-by-step assembly instructions, and educational materials, making it an ideal hands-on project for beginners, electronics students, and anyone learning about analog measurement instruments.
Q: What types of measurements can the assembled MF47 analog multimeter perform?
A: Once assembled, the MF47 multimeter can measure DC current, both AC and DC voltage, DC resistance, DC capacitance, battery power levels (1.2V–3.6V), and TV line voltage — making it a versatile tool for a wide range of electronic diagnostics and educational experiments.
Q: Does the kit come with all necessary components for assembly?
A: Yes, the kit includes all electronic components required for assembly, along with a circuit diagram and instructions. Note that a battery (required for operation) is not included and must be purchased separately.
