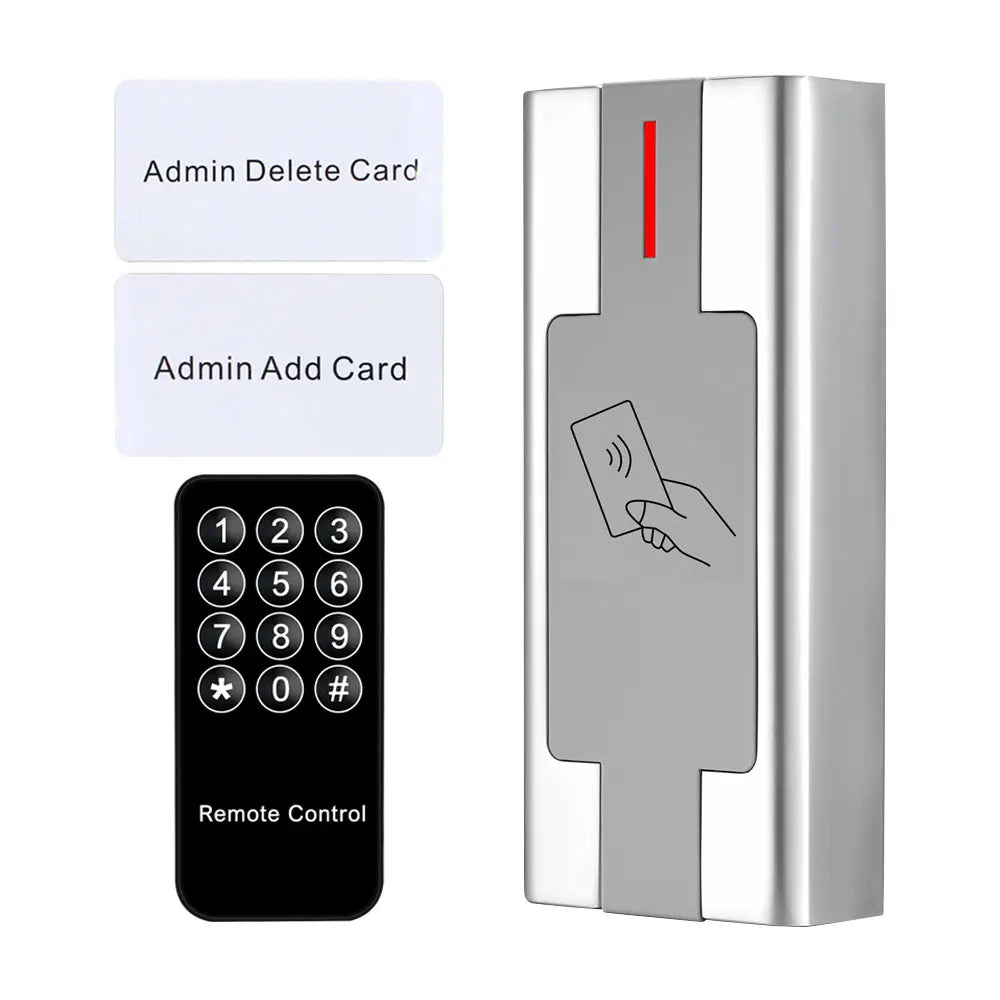

Asia-Teco Metal Waterproof RFID Access Control Keypad with Wiegand Card Reader
Take command of your door entry security with the Asia-Teco Standalone RFID Access Control Keypad — a heavy-duty, zinc alloy keypad built for demanding indoor and outdoor environments. Whether you're securing a commercial facility, warehouse, office, or residential gate, this robust unit combines a Wiegand-compatible card reader with PIN keypad functionality to deliver versatile, reliable access management for up to 3,000 users.
Made in China.
Key Features & Advantages
- Ultra-Durable Zinc Alloy Construction: Anti-vandal and anti-impact design rated for heavy-use environments — built to last.
- IP67 Weatherproof Rated: Fully sealed against dust and water intrusion, making it ideal for outdoor installations in rain, humidity, and extreme temperatures (-40°C to 60°C / -40°F to 140°F).
- Flexible Card Compatibility: Supports EM (125 kHz), Mifare M1 (13.56 MHz), or both EM & Mifare card types (select your model at checkout).
- Large User Capacity: Store credentials for up to 3,000 registered users plus 10 visitor/guest users.
- Wiegand Input & Output: Supports Mifare Wiegand 26–44 bit, 56-bit, and 58-bit; EM Wiegand 26-bit — compatible with most access control panels.
- Standalone or Card Reader Mode: Functions as a self-contained standalone controller or as a card reader connected to an external access control panel.
- Data Upload & Download: Easily upload and download card user data for streamlined management.
- Pulse Mode & Toggle Mode: Flexible relay output modes to match your electronic lock or barrier configuration.
- Wide Voltage Input: Operates on DC 10–24V for compatibility with a wide range of power supplies.
- Long Read Range: Reads cards from 30–80 mm for smooth, contactless access.
Technical Specifications
| Brand | Asia-Teco |

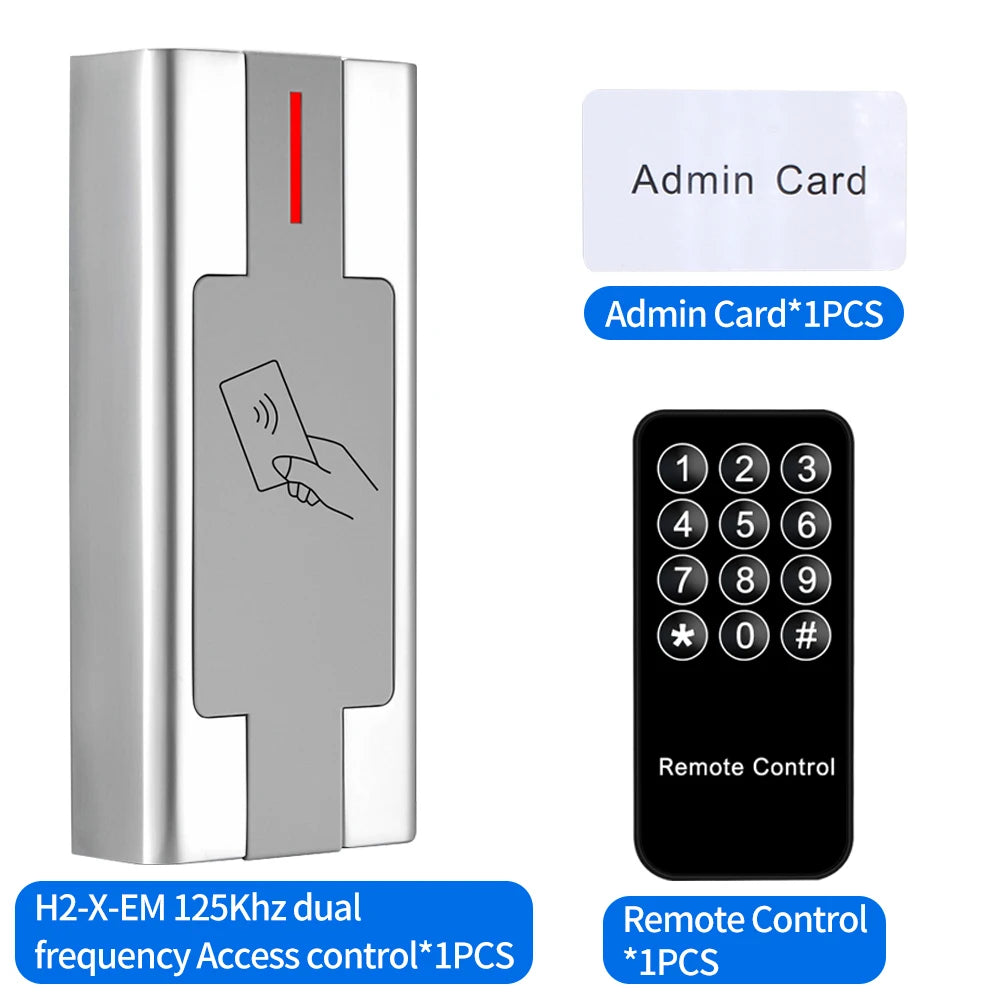

| Model Numbers | H2-X-EM / H2-X-MF / H2-X-EM+MF |
| Material | Zinc Alloy |
| Card Frequency | 125 kHz (EM) / 13.56 MHz (Mifare) |
| Card Types Supported | EM, Mifare, or EM & Mifare (optional) |
| User Capacity | 3,000 registered + 10 guest users |
| Read Range | 30–80 mm |
| Operating Voltage | DC 10–24V |
| Active Current | ≤150 mA |
| Working Current | ≤80 mA |
| Idle Current | ≤45 mA |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Security Mode | Fail Safe |
| Wiegand Output | 26-bit, 26–44 bit, 56-bit, 58-bit |
| Country of Origin | Mainland China |
Ideal Applications
- Office building and commercial facility entry control
- Warehouse and industrial gate access
- Residential community and apartment building entry
- Parking lot and garage access barriers
- Schools, gyms, and government facilities
Learn More About Access Control Standards
For guidance on electronic security systems and best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer product safety information.
Frequently Asked Questions
Q: What is the difference between the EM and Mifare card reader models?
A: The EM model (H2-X-EM) reads 125 kHz proximity cards, while the Mifare model (H2-X-MF) reads 13.56 MHz smart cards. The combined model (H2-X-EM+MF) supports both card types, making it the most versatile option if your facility uses a mix of card technologies.
Q: Is this RFID keypad truly waterproof for outdoor installation?
A: Yes. The keypad carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand temporary water immersion. It is engineered for outdoor use and operates reliably across temperatures from -40°C to 60°C, making it suitable for harsh weather conditions.
Q: Does this access control keypad work with an existing access control panel?
A: Absolutely. The unit supports Wiegand input and output (26-bit, 26–44 bit, 56-bit, and 58-bit), making it compatible with the majority of third-party access control panels. It can also be used as a fully standalone controller without an external panel.
Q: How many users can be stored on this standalone keypad?
A: The keypad can store credentials for up to 3,000 registered card users and an additional 10 visitor/guest users, making it well-suited for medium to large access control deployments.
Q: What voltage does this RFID access control keypad require?
A: The unit operates on DC 10–24V, providing broad compatibility with standard power supplies commonly used in access control and security installations.
