Metal Access Control Panel DC12V 5A – 1/2/4 Door Entry System

LUCKING DOOR Metal Access Control Panel Box with DC12V 5A Power Supply

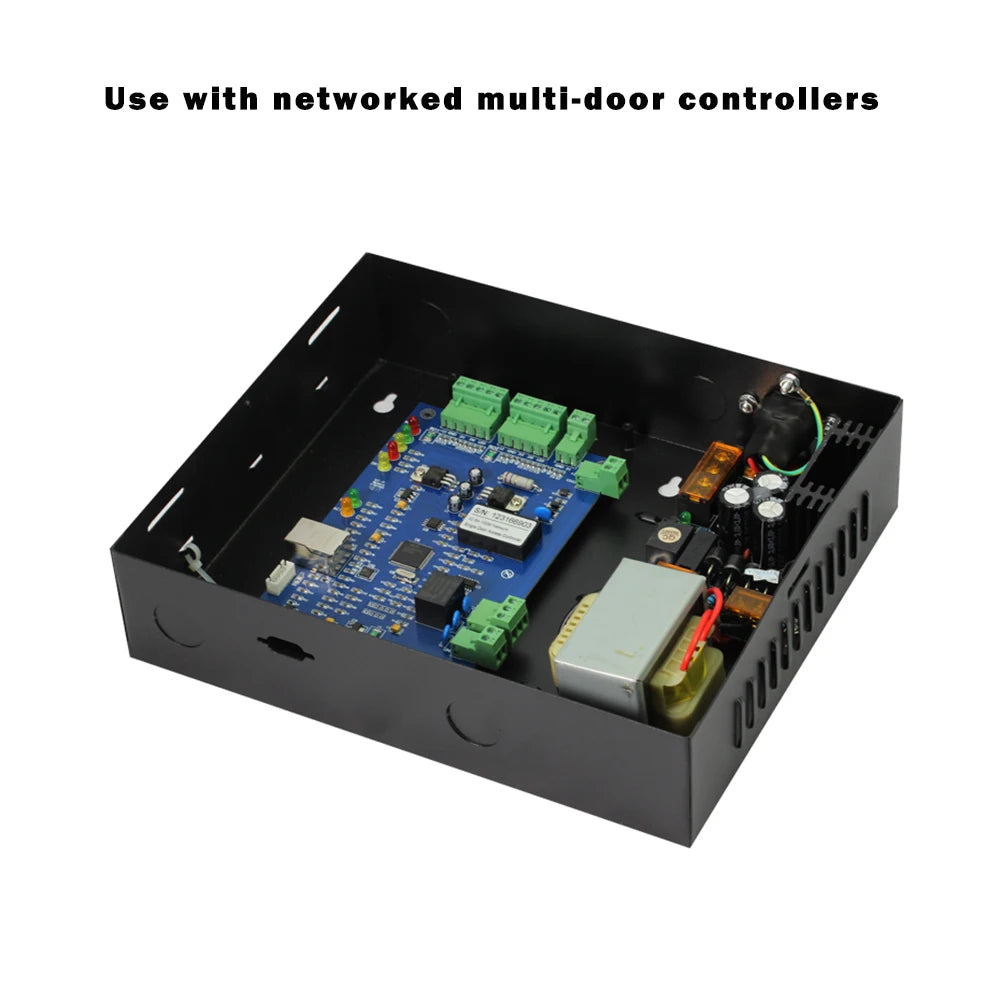

Take full command of your office or building's entry points with the LUCKING DOOR Metal Access Control Panel Board Box (Model LK0023). Designed for scalable 1, 2, or 4-door configurations, this robust TCP/IP-enabled controller delivers enterprise-grade access management in a compact, metal-housed package — complete with a built-in DC12V 5A power supply for a clean, all-in-one installation.

Why Choose This Access Control Panel?

• Flexible Door Coverage: Control 1, 2, or 4 doors from a single panel — ideal for small offices, server rooms, warehouses, and multi-entry facilities.
• TCP/IP Connectivity: Seamlessly integrates with your existing network for remote monitoring and management via software (Access & SQL database compatible).
• High User Capacity: Supports up to 20,000 users and stores 100,000 offline event buffers, ensuring comprehensive audit trails even without a live network connection.
• Wiegand 26-Bit Input: Compatible with all major card reader protocols including HID, EM, and M1 — works with the card readers you already own.
• Unlimited Controllers: Scale your system across an entire campus — unlimited controllers supported via computer serial port or 485 hub (256 ports).
• Adjustable Door Open Time: Set door unlock duration from 1 to 600 seconds to suit any workflow.
• Advanced Security Modes: Includes Fail-Safe security mode, anti-passback, anti-tailgate, multi-card door open, first-card unlock, emergency lock, and intimidation alarm.
• Fire & Alarm Linkage: Built-in alarm for prolonged door-open, unauthorized entry attempts, and system alerts — expandable via optional expansion card.
• Long Reader Range: Supports card readers up to 100 meters from the controller (default 80m).
• Low Power Draw: PCB power consumption under 100mA — energy efficient and reliable 24/7 operation.

Full Specifications

Advanced Features at a Glance

• ✔ Anti-passback & anti-tailgate enforcement
• ✔ Multi-card door open capability
• ✔ First-card unlock function
• ✔ Emergency lock override
• ✔ Time-scheduled extended unlock
• ✔ Electronic card support
• ✔ Remote control module ready
• ✔ Internal & external validation unlock
• ✔ Fire and alarm system linkage

Ideal Applications

This access control panel is perfect for offices, corporate buildings, schools, gyms, data centers, retail back-offices, and any facility requiring structured, auditable entry management for multiple doors.

For more information on physical security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC) and OSHA Workplace Security Guidelines.

Frequently Asked Questions

Q: Can this access control panel manage 4 doors simultaneously?

A: Yes — the LUCKING DOOR LK0023 panel supports 1, 2, or 4-door configurations from a single controller, with 2 or 4 card readers connected via Wiegand 26-bit protocol. It is a highly scalable solution for growing facilities.

Q: Does this panel work with my existing card readers?

A: Absolutely. The panel uses the standard Wiegand 26-bit input format, making it compatible with the vast majority of card readers on the market, including those using HID, EM, and M1 protocols. Readers can be installed up to 100 meters from the controller.

Q: What happens if the network connection goes down?

A: The system operates in offline mode and can store up to 100,000 event buffers locally, so access events are recorded and preserved even during network outages. Once connectivity is restored, data syncs back to the software.

Q: Is the included power supply sufficient to run the full system?

A: The included DC12V 5A power supply is designed to power the control panel and its components. The power input accepts DC 12V at 4–7A, and the PCB itself consumes less than 100mA, leaving ample headroom for connected readers and locks.
