MDS Three-Phase Rectifier Bridge Module | 150A / 160A / 200A / 250A | 1600V – 2400V

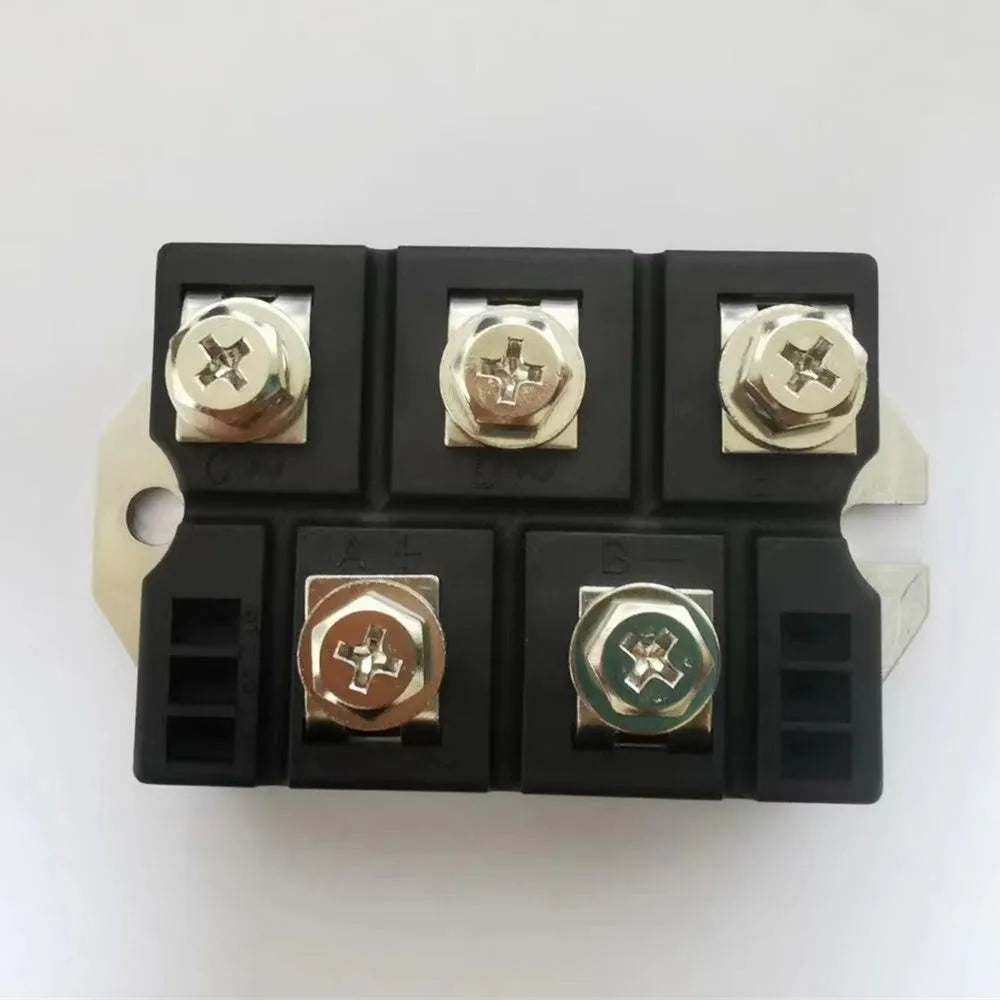

The MDS series three-phase rectifier bridge module is a high-performance power electronics component designed for demanding industrial applications including electromagnetic furnaces, motor drives, industrial power supplies, and heavy-duty electrical equipment. Available in multiple current and voltage ratings — 150A, 160A, 200A, and 250A forward current with voltage options spanning 1600V, 2000V, 2200V, and 2400V — this module delivers reliable, stable rectification in a compact and rugged form factor.
Manufactured to exacting standards, each module is built new and features a rectifier diode configuration suited for three-phase AC-to-DC conversion. The customizable design means it can be configured to meet specific project requirements, making it ideal for OEM integrators and industrial maintenance professionals alike.
Made in Mainland China.
Key Features
- Multiple Current Ratings: Choose from 150A, 160A, 200A, or 250A nominal current to match your application needs.
- Wide Voltage Range: Available in 1600V, 2000V, 2200V, and 2400V versions for flexible integration.
- Three-Phase Rectification: Efficient AC-to-DC conversion for industrial power systems and electromagnetic furnace applications.
- Rectifier Diode Type: Robust diode construction for high-reliability operation under sustained load.
- New Condition: Factory-fresh units, free from high-concern chemicals.
- Customizable: Custom configurations available — contact us for bulk or special-order requirements.
- Compact Module Design: Easy mounting and integration into existing electrical panels and assemblies.
Important Selection Guide
1. Choosing the Correct Current Rating
The marked current on the power module is the average on-state value, not the actual long-term effective operating current. Always leave sufficient margin based on your actual working environment:
- Resistive Load: Apply a 2× to 2.5× margin — Actual Current (A) × 2 to 2.5 = Module Nominal Current (A)
- Inductive Load: Apply a 6× to 7× margin — Actual Current (A) × 6 to 7 = Module Nominal Current (A)

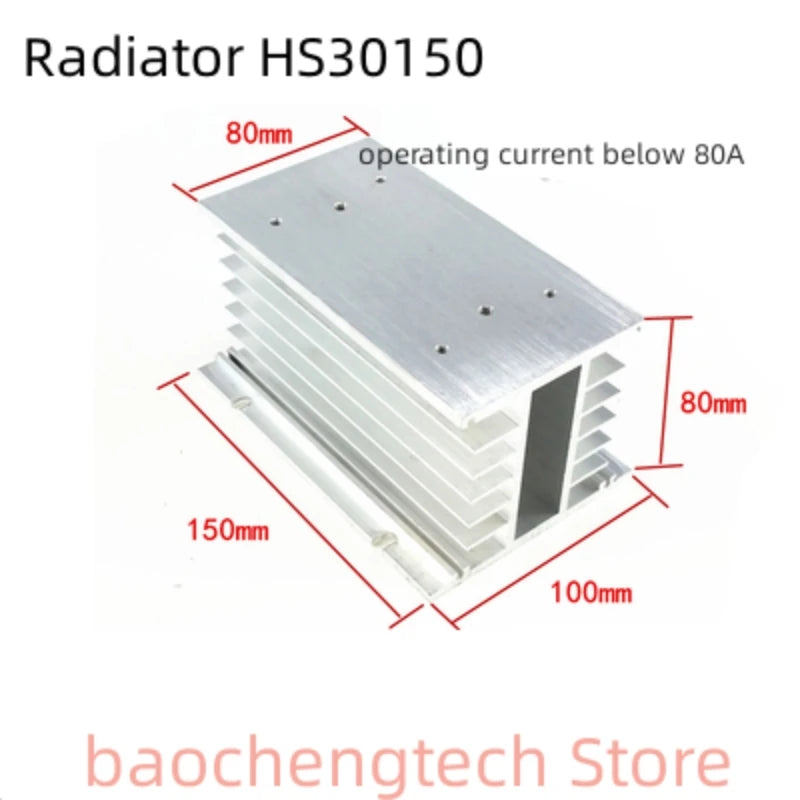

2. Heat Sink Configuration
When the actual working current exceeds 5A, a suitable heat sink must be installed to ensure safe and reliable operation. Failure to provide adequate thermal management may reduce component lifespan and performance.
3. Availability & Bulk Orders
Standard models are available in stock and ready to ship. For bulk orders, please contact customer service with your required quantity to confirm lead times and delivery schedules.
Specifications
| Module Type | Three-Phase Rectifier Bridge (Rectifier Diode) |
| Nominal Current Options | 150A, 160A, 200A, 250A |
| Max. Forward Current | 250A |
| Max. Forward Voltage | 2200V |
| Max. Reverse Voltage | 1600V – 2400V (model dependent) |
| Input Voltage | 220V |
| Condition | New |
| Customizable | Yes |
| Country of Origin | Mainland China |
Typical Applications
- Electromagnetic furnaces & induction heating systems
- Industrial motor drives and variable frequency drives (VFDs)
- Welding machines and power converters
- Three-phase AC-to-DC industrial power supplies
- UPS systems and battery chargers
For further guidance on power electronics safety and component standards, refer to OSHA's Electrical Safety Standards and the NIST Electronics Technology resources.
Frequently Asked Questions
Q: What is the difference between the MDS 150A, 160A, 200A, and 250A rectifier bridge modules?
A: The primary difference is the nominal on-state average current rating. The 150A model is suited for lower-demand applications, while the 250A model handles higher sustained current loads. All variants share the same three-phase rectifier bridge topology and are available across the same voltage range (1600V–2400V). Always apply the appropriate derating margin based on your load type (resistive or inductive) when selecting the correct module.
Q: Do I need a heat sink for these rectifier bridge modules?
A: Yes. Whenever the actual operating current exceeds 5A, a compatible heat sink is required. The module generates heat during operation, and without adequate thermal management, performance and longevity can be compromised. Choose a heat sink with sufficient thermal dissipation capacity for your specific current and ambient temperature conditions.
Q: Can I use this three-phase rectifier bridge module with an electromagnetic furnace?
A: Yes, the MDS series is specifically suited for use in electromagnetic furnace applications and other induction heating systems. These systems typically involve inductive loads, so remember to apply the 6× to 7× current margin when selecting the appropriate module rating for your furnace's actual operating current.
Q: Are bulk orders or custom configurations available?
A: Absolutely. Standard stock models are available for immediate dispatch. For bulk orders or custom voltage/current specifications, please contact our customer service team with your required quantity and configuration details to confirm availability and lead times.
