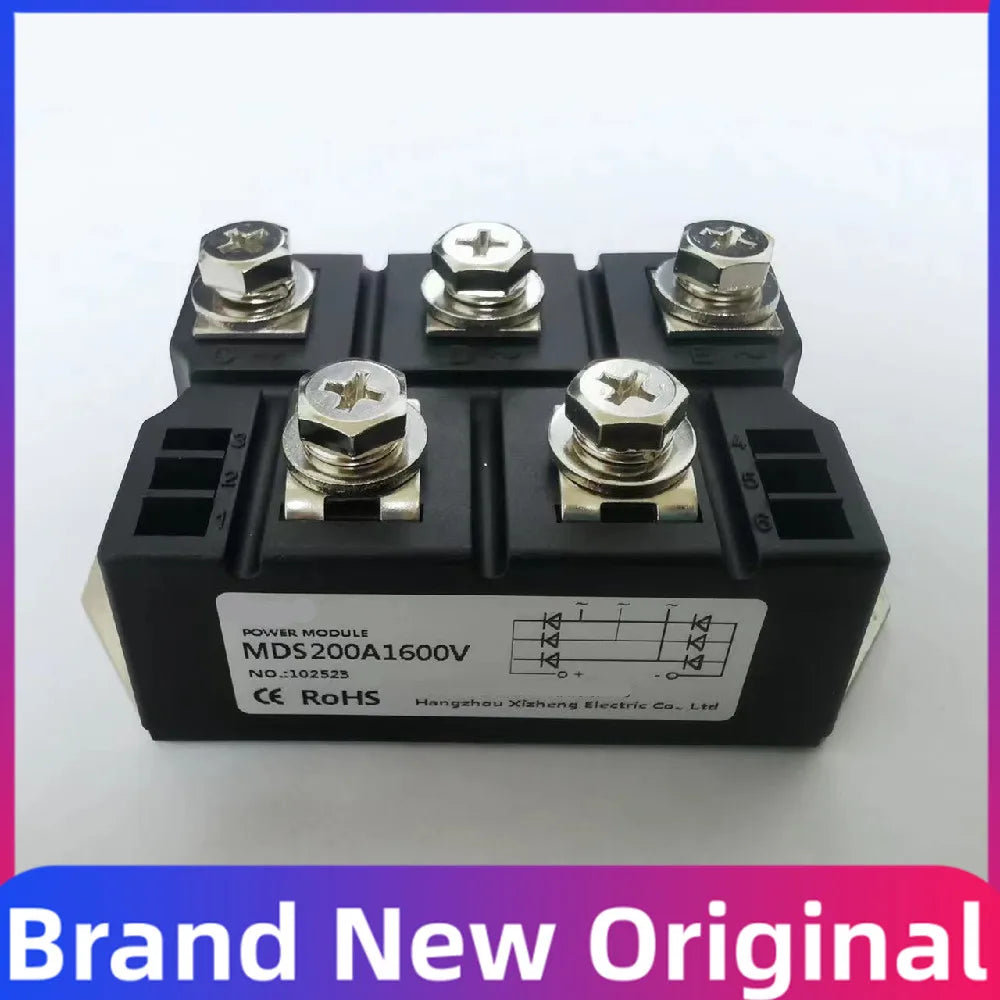

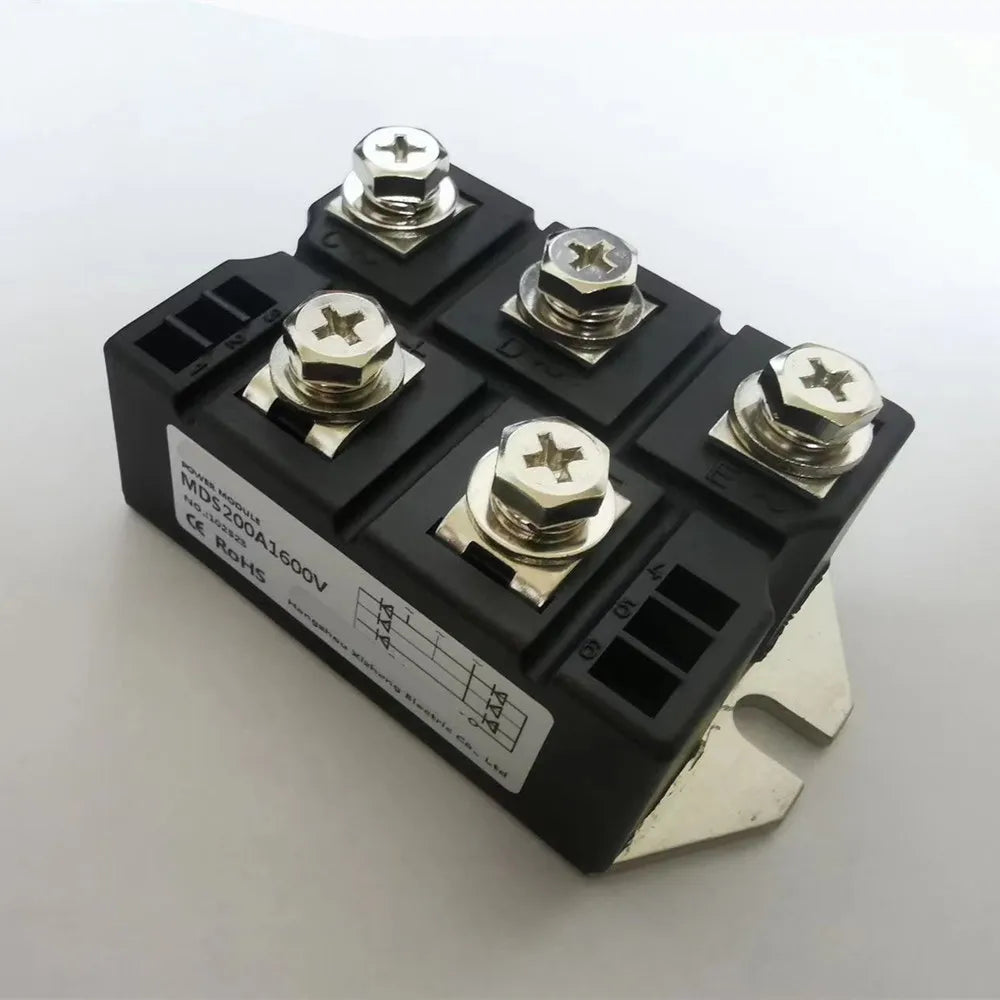

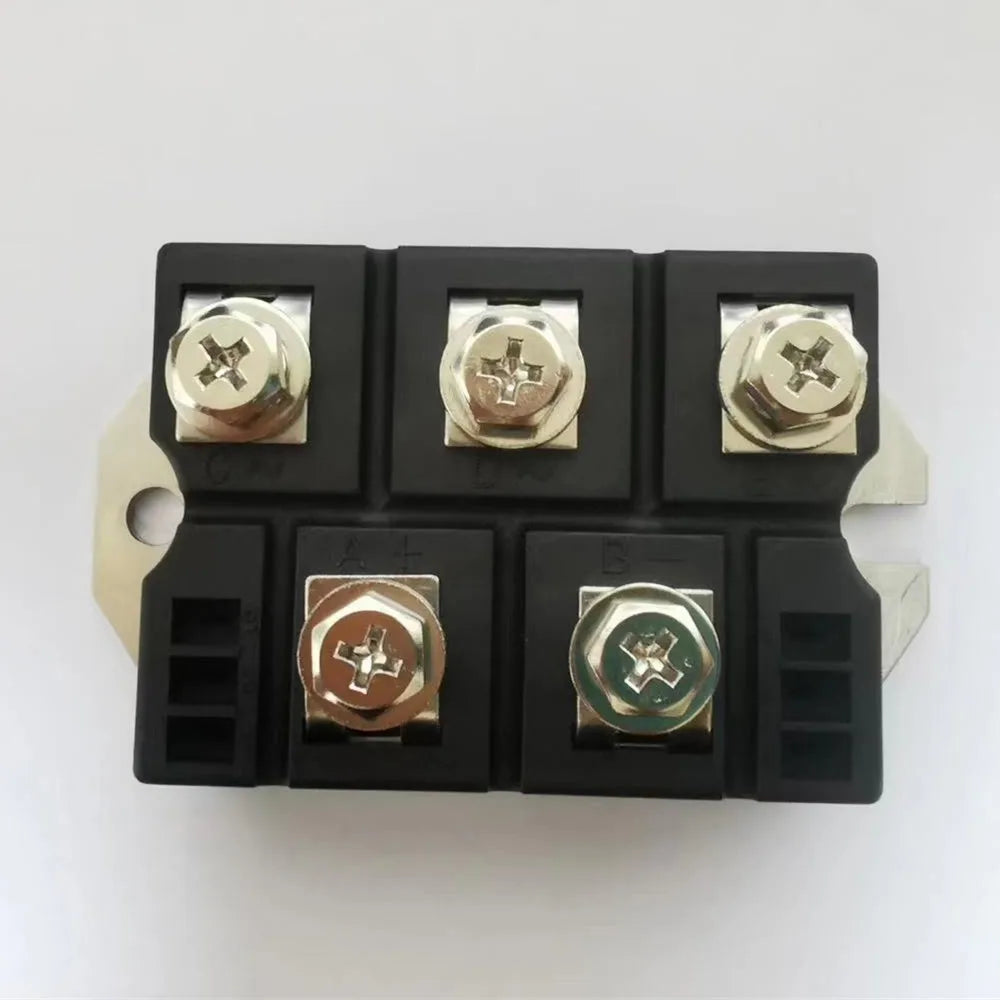

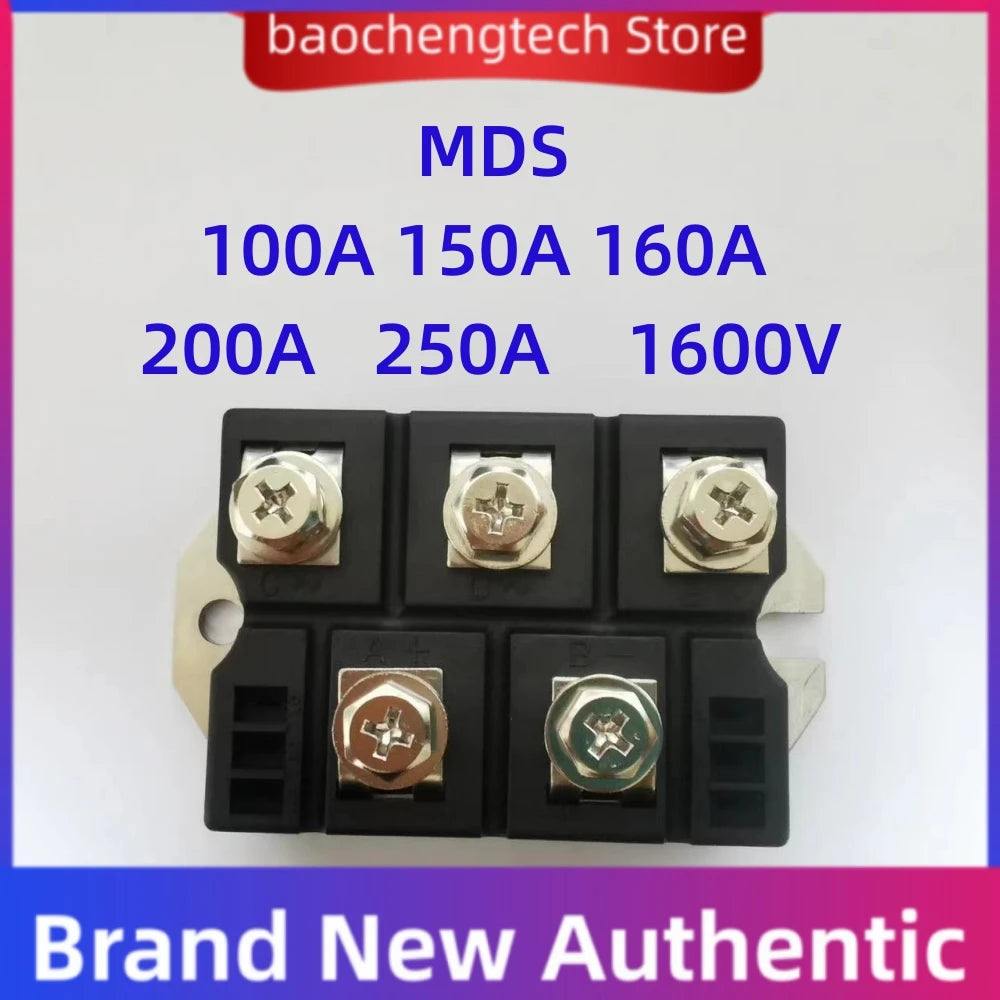

MDS Three-Phase Rectifier Bridge Module | 100A / 150A / 160A / 200A / 250A | 1600V

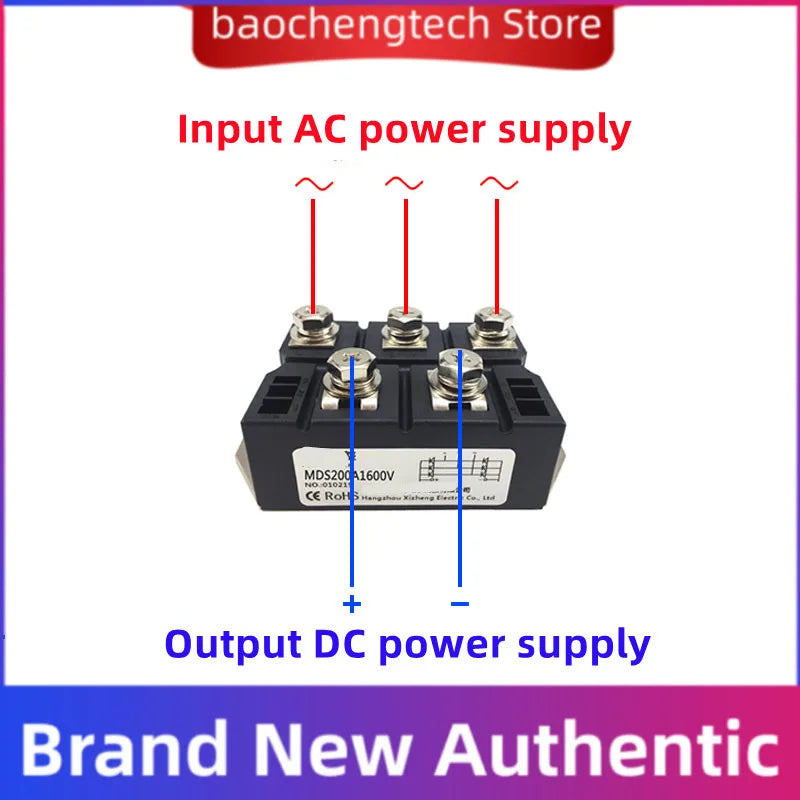

Upgrade your commercial electromagnetic stove or industrial power system with this heavy-duty MDS Three-Phase Rectifier Bridge Module. Available in five current ratings — 100A, 150A, 160A, 200A, and 250A — and rated at a robust 1600V max forward/reverse voltage, this rectifier diode module delivers stable, efficient AC-to-DC conversion for demanding commercial and industrial applications.
Made in Mainland China.
Key Specifications
- Type: Three-Phase Rectifier Bridge Module (Rectifier Diode)
- Available Current Ratings: 100A, 150A, 160A, 200A, 250A
- Max Forward Current: Up to 250A
- Max Forward Voltage: 1600V
- Max Reverse Voltage: 1600V
- Input Voltage: 220V
- Condition: Brand New
- Customization: Available
- Primary Application: Commercial electromagnetic stoves and industrial power equipment
Product Highlights
- ✅ Wide current range selection — choose the rating that fits your exact application
- ✅ High 1600V voltage rating for demanding three-phase industrial environments
- ✅ Compact module design for easy integration into existing systems
- ✅ New condition — reliable from day one
- ✅ Regular models available in stock; bulk orders accommodated upon request
Important Selection Guidelines
1. Choosing the Right Current Rating
The current value marked on the module represents the average on-state value, not the long-term effective operating current. Always leave sufficient margin based on your actual working environment:
- Resistive Load: Actual current (A) × 2 to 2.5 = Required module nominal current (A)
- Inductive Load: Actual current (A) × 6 to 7 = Required module nominal current (A)
2. Heat Sink Configuration
When the actual working current exceeds 5A, a suitable heat sink must be installed to ensure safe and stable operation. Failure to do so may result in overheating and reduced component lifespan.
3. Stock & Bulk Orders
Standard models are in stock and ready to ship. For bulk or custom quantity orders, please contact our customer service team to confirm availability and lead times before placing your order.
Safety & Electrical Standards
For general guidance on electrical component safety in industrial environments, refer to the OSHA Electrical Safety Standards. Proper installation by a qualified electrician is strongly recommended.
Frequently Asked Questions
Q: What current rating should I choose for my commercial electromagnetic stove?
A: Select a module with a nominal current rating that provides sufficient margin above your stove's actual operating current. For inductive loads like electromagnetic stoves, multiply the actual operating current by 6–7 to determine the appropriate module nominal current. For example, if your stove draws 30A, select a module rated at 200A or higher for safe, long-term operation.
Q: Do I need a heat sink with this three-phase rectifier bridge module?
A: Yes. If your actual working current exceeds 5A — which is virtually guaranteed in commercial electromagnetic stove applications — a properly sized heat sink is mandatory. Without adequate thermal management, the module may overheat, reducing performance and longevity.
Q: Is this MDS rectifier bridge module compatible with 220V three-phase input?
A: Yes, this module is designed for 220V input and is rated at up to 1600V max forward/reverse voltage, making it well-suited for commercial three-phase electrical systems. Always verify your local supply voltage and system requirements before installation.
Q: Can I order a custom quantity or a specific current rating in bulk?
A: Absolutely. Standard current ratings (100A, 150A, 160A, 200A, 250A) are available in stock for direct purchase. For bulk or large-quantity orders, please reach out to our customer service team to confirm stock levels and arrange a delivery timeline.
