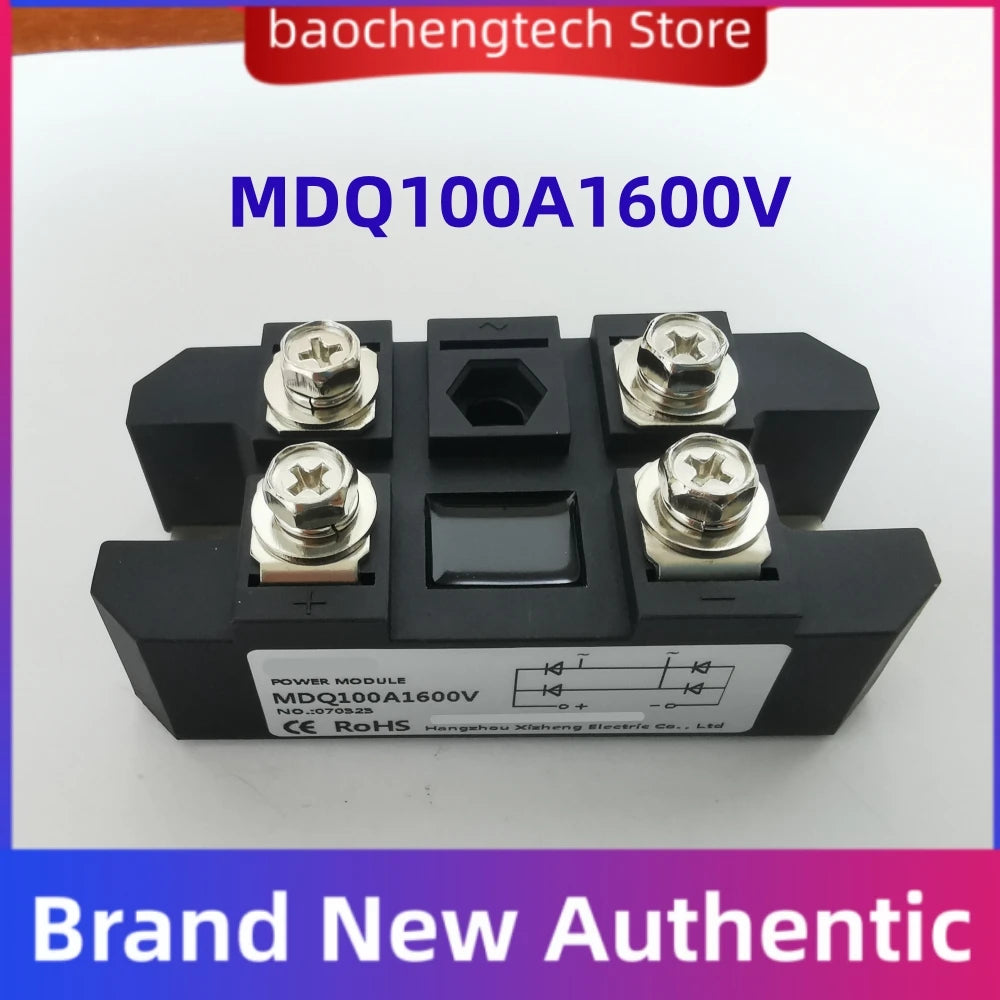

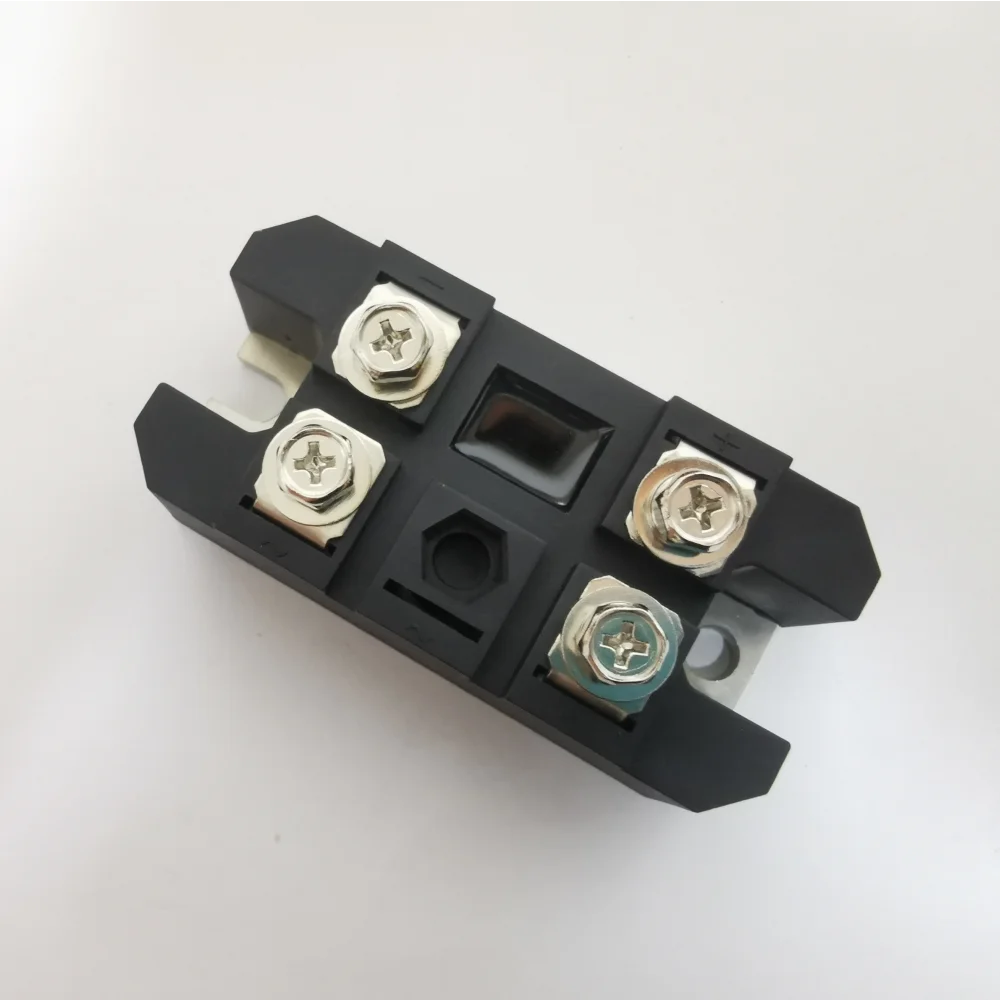

MDQ100A-16 Single-Phase Rectifier Bridge Module — 100A, 600V–1800V
The MDQ100A-16 is a robust single-phase rectifier bridge module designed to convert alternating current (AC) to direct current (DC) with high efficiency and reliability. Rated at 100 Amps and available across a wide voltage range (600V, 800V, 1000V, 1200V, 1400V, 1600V, and 1800V), this module is engineered for demanding industrial and electronic power supply applications.
Made in Mainland China.
Key Features
- Model: MDQ100A-16 (MDQ100A1600V)
- Current Rating: 100A (average on-state current)
- Voltage Options: 600V / 800V / 1000V / 1200V / 1400V / 1600V / 1800V
- Type: Single-Phase Rectifier Bridge (AC to DC)
- Configuration: Full-bridge rectifier module
- Wide compatibility for resistive and inductive load applications
- Compact module form factor for easy integration into power circuits
Selection & Usage Guidelines
1. Choosing the Correct Current Rating
The current marked on the module is the average on-state value, not the continuous RMS operating current. Always leave adequate margin based on your actual working environment:
- Resistive Loads: Apply a 2×–2.5× margin — Actual Current (A) × 2 to 2.5 = Module Nominal Current (A)
- Inductive Loads: Apply a 6×–7× margin — Actual Current (A) × 6 to 7 = Module Nominal Current (A)
2. Heat Sink Requirements
When the actual operating current exceeds 5A, a suitable heat sink must be installed to ensure safe and stable long-term operation. Failure to use an appropriate heat sink may result in overheating and reduced module lifespan.
3. Stock & Bulk Orders
Standard models are available in stock for immediate dispatch. For bulk or large-quantity orders, please contact customer service to confirm quantities and lead times before placing your order.

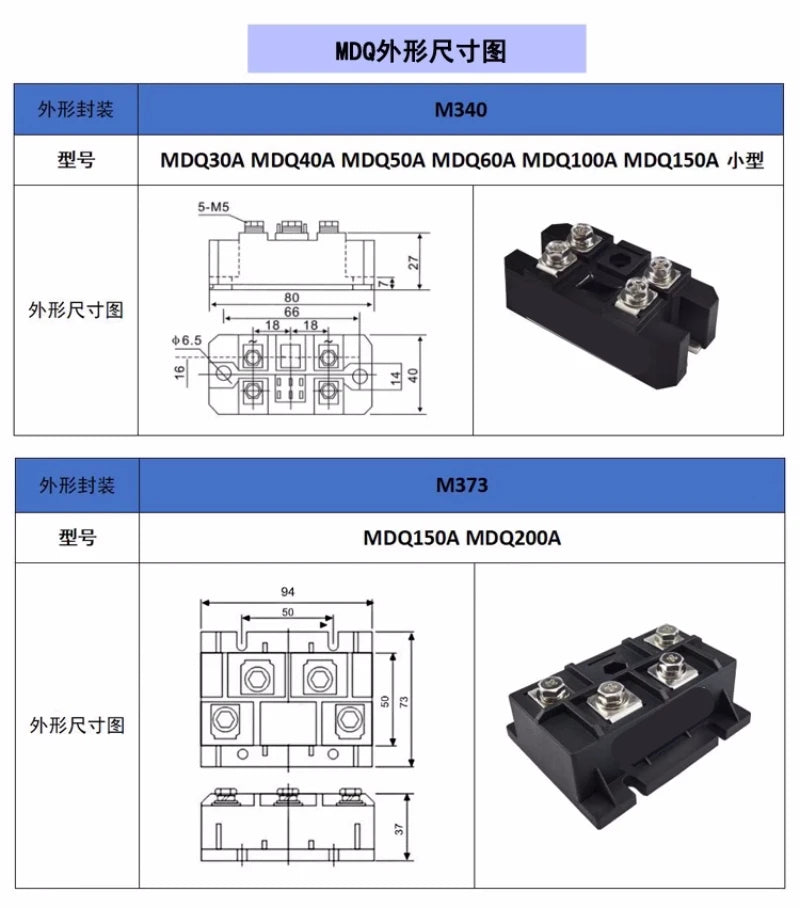

Technical Specifications
| Parameter | Value |
|---|---|
| Model | MDQ100A-16 |
| Current Rating | 100A |
| Voltage Range | 600V – 1800V |
| Circuit Type | Single-Phase Full-Bridge Rectifier |
| Conversion | AC to DC |
| Origin | Mainland China |
Applications
- Industrial power supplies and motor drives
- Welding equipment and battery chargers
- Variable frequency drives (VFDs)
- DC power conversion systems
- Electronic control panels and automation equipment
For further guidance on rectifier bridge modules and safe electrical component usage, refer to the OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What does the 100A rating on the MDQ100A-16 rectifier bridge module mean?
A: The 100A rating refers to the average on-state current, not the continuous RMS value during long-term operation. For real-world applications, always apply the recommended derating margin: 2×–2.5× for resistive loads and 6×–7× for inductive loads, to ensure stable and safe performance.
Q: Do I need a heat sink with the MDQ100A 1600V rectifier module?
A: Yes. Whenever your actual operating current exceeds 5A, a properly rated heat sink is required. Running the module without adequate heat dissipation at higher currents can cause thermal stress and shorten the component's service life.
Q: What voltage ratings are available for the MDQ100A single-phase rectifier bridge?
A: The MDQ100A series is available in multiple voltage ratings: 600V, 800V, 1000V, 1200V, 1400V, 1600V, and 1800V — allowing you to select the right module for your specific AC-DC conversion requirements.
Q: Is the MDQ100A-16 suitable for inductive loads such as motors?
A: Yes, but inductive loads require a much higher derating margin. For motor or inductive load applications, select a module with a nominal current rating of 6 to 7 times your actual operating current to accommodate inrush and reactive current demands safely.
