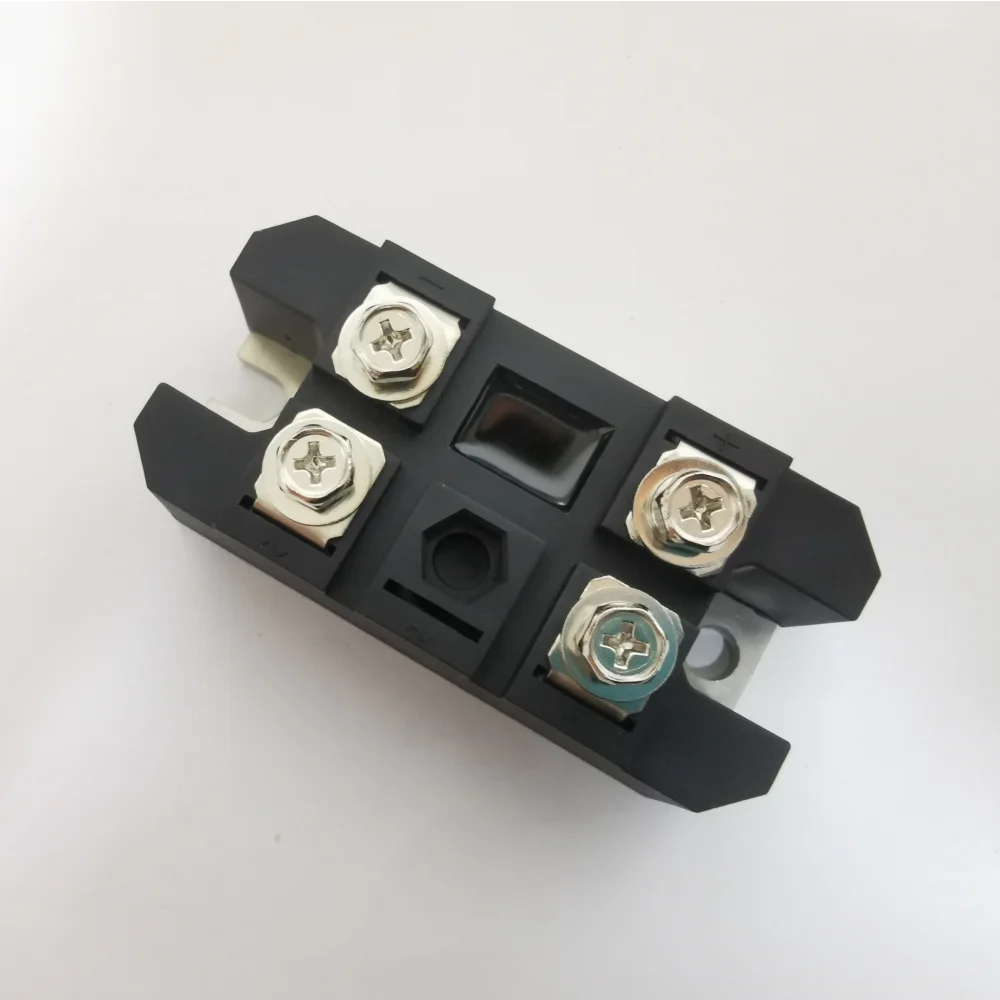

MDQ100A / MDQ150A Single-Phase Rectifier Bridge Module — 1600V AC-DC
Convert AC to DC efficiently with the MDQ Single-Phase Rectifier Bridge Module, available in 100A and 150A ratings at 1600V. Designed for industrial power conversion applications, this compact module delivers reliable, high-current rectification in a robust package. Whether you're building motor drives, battery chargers, welding equipment, or power supply units, this module offers a dependable AC-to-DC solution.
Made in Mainland China.
Key Specifications
- Available Ratings: MDQ100A1600V (100A) & MDQ150A1600V (150A)
- Max. Forward Current: 100A / 150A
- Max. Forward Voltage: 1600V
- Max. Reverse Voltage: 1600V
- Input Voltage: 220V AC
- Type: Rectifier Diode / Single-Phase Bridge
- Configuration: AC-DC Module
- Condition: Brand New
- Customization: Available for bulk/custom orders
Important Selection & Usage Notes
1. Choosing the Right Current Rating
The rated current of this power module reflects the average on-state current, not the continuous RMS operating value. Always leave adequate margin based on your actual working environment:
- Resistive Load: Apply a 2–2.5× margin — Actual Current (A) × 2 to 2.5 = Module Nominal Current (A)
- Inductive Load: Apply a 6–7× margin — Actual Current (A) × 6 to 7 = Module Nominal Current (A)
2. Heat Sink Requirement
When the operating current of the device exceeds 5A, fitting a suitable heat sink is strongly recommended to maintain safe thermal performance and maximize the lifespan of the module.
3. Stock & Bulk Orders
Standard models are typically in stock and ready to ship. For bulk or large-quantity orders, please contact customer service with your required quantity to confirm lead times and delivery schedules.
Why Choose This Rectifier Bridge Module?
- ✅ High-current capacity — handles demanding industrial loads
- ✅ High reverse voltage rating (1600V) for added safety margin
- ✅ Compact module form factor — easy integration into existing systems
- ✅ Suitable for resistive and inductive loads with proper derating
- ✅ Available in multiple current ratings for design flexibility
Typical Applications
- Industrial motor drives and servo systems
- Battery charging systems
- Welding machine power supplies
- DC power supply units
- Electroplating and electrolysis equipment
- UPS and inverter systems
