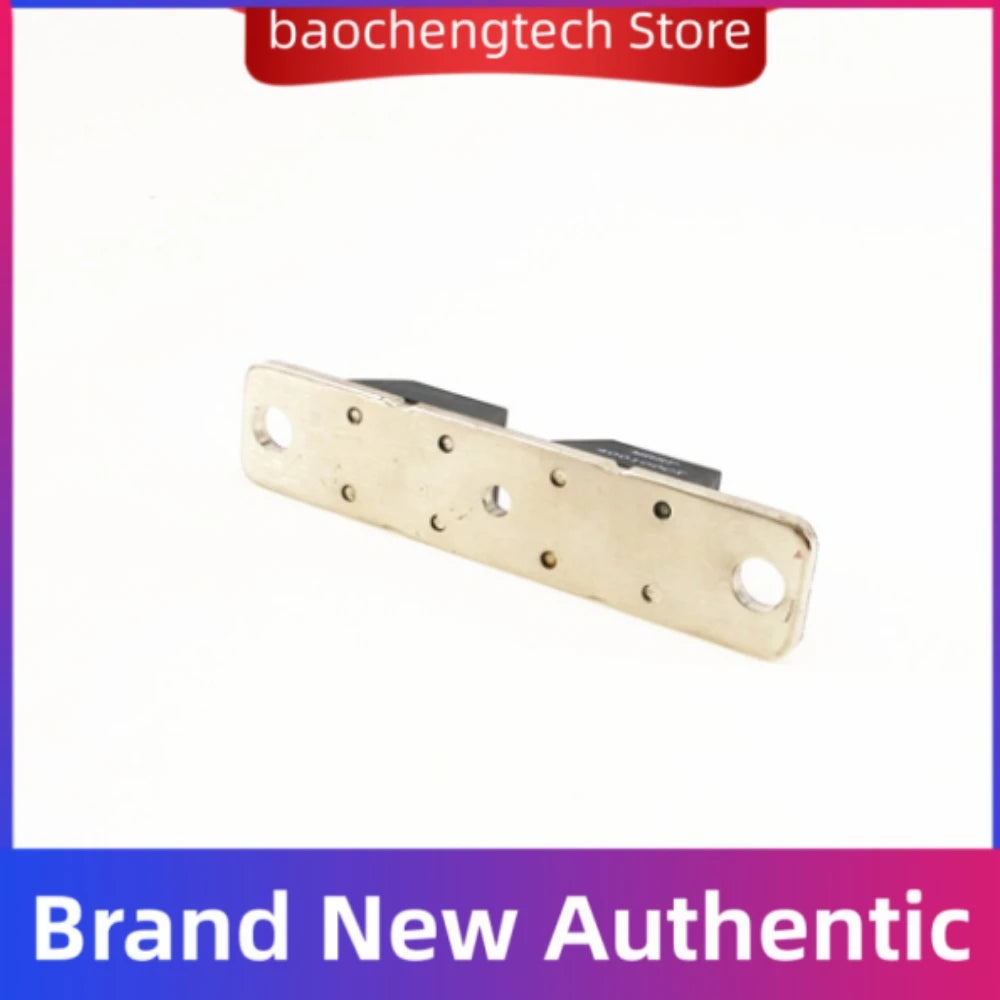

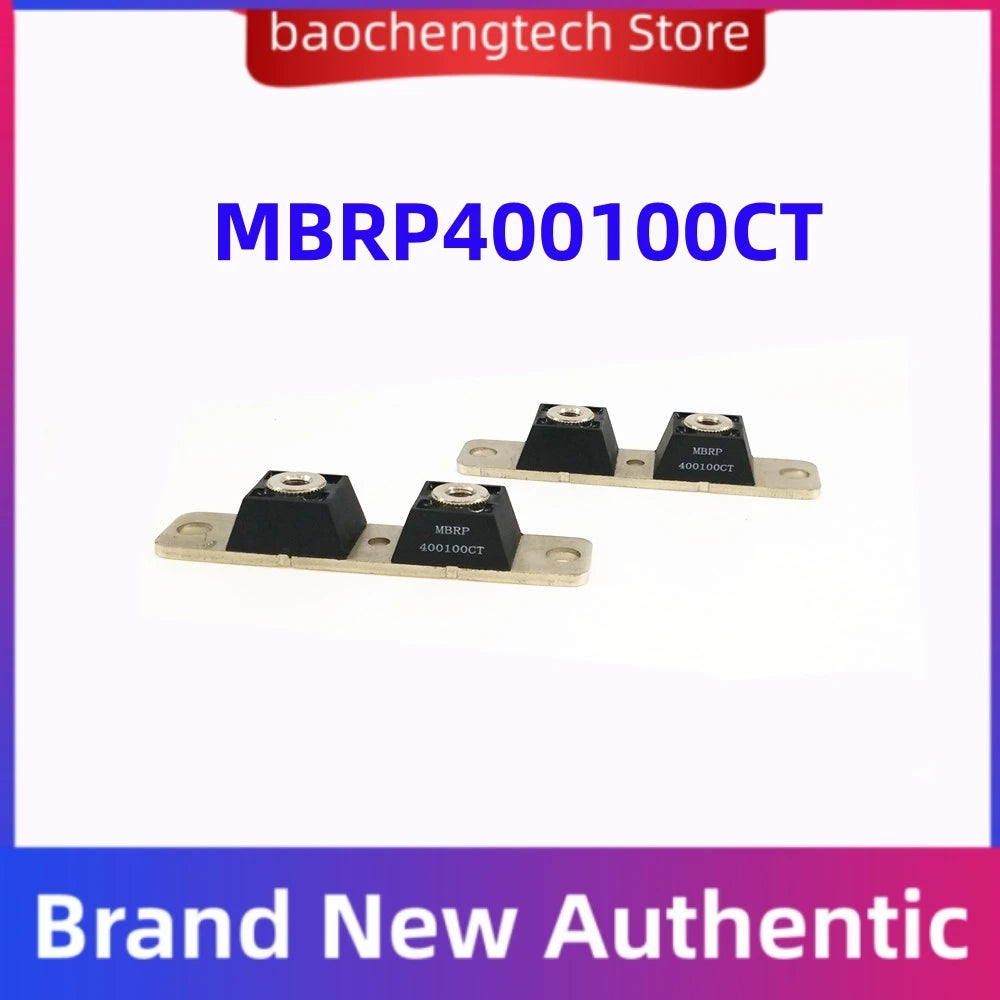

MBRP400100CT 400A 100V Fast Recovery Rectifier Diode Module
MBRP400100CT 400A 100V Fast Recovery Rectifier Diode Module
MBRP400100CT 400A 100V Fast Recovery Rectifier Diode Module
The MBRP400100CT is a high-performance 400A 100V fast recovery Schottky diode rectifier module designed for demanding industrial applications including welding machines, electroplating equipment, and high-current power conversion systems. Built to handle heavy-duty loads, this rectifier module delivers efficient, reliable power management in a compact, robust package.
Key Specifications
- Model: MBRP400100CT
- Type: Fast Recovery Schottky Rectifier Diode Module
- Rated Current: 400A (average on-state current)
- Rated Voltage: 100V
- Condition: New
- Customizable: Yes — bulk and custom orders available
- High-Concern Chemicals: None
- Made in Mainland China
Product Highlights
- 🔧 Industrial-Grade Performance: Engineered for high-current rectification in welding machines, electroplating (electrofacing), and similar power electronics applications.
- ⚡ Fast Recovery Technology: Minimizes switching losses and ensures stable operation at high frequencies.
- 🛡️ Robust & Reliable: Designed with sufficient thermal and electrical margins for long-term, continuous operation.
- 📦 Stock Available: Regular models are in stock and ready to ship. Bulk orders are welcome — contact customer service to confirm quantities and lead times.
⚠️ Important Selection & Installation Notes
1. Module Selection Guidelines
The rated current of this power module represents the average on-state value, not the long-term RMS operating current. Always apply sufficient derating based on your actual working environment:
- Resistive Load: Apply a 2–2.5× margin → Actual Current (A) × 2 to 2.5 = Module Nominal Current (A)
- Inductive Load: Apply a 6–7× margin → Actual Current (A) × 6 to 7 = Module Nominal Current (A)
2. Heat Sink Configuration
When the actual working current exceeds 5A, a properly rated heat sink must be installed to ensure safe and optimal thermal performance. Failure to do so may result in reduced module lifespan or thermal shutdown.
3. Ordering & Availability
Standard models are available from stock and can be purchased directly. For bulk or large-quantity orders, please contact customer service with your required quantity to confirm delivery schedules and lead times.
Common Applications
- Welding machines (MIG, TIG, arc welders)
- Electroplating and electrofacing equipment
- Industrial power supplies
- High-current DC converters and rectifiers
- Motor drives and battery chargers
For general guidance on electrical safety and best practices when working with high-current power electronics, refer to OSHA's Electrical Safety Standards.
Frequently Asked Questions
Q: What is the MBRP400100CT rectifier diode module used for?
A: The MBRP400100CT is a 400A 100V fast recovery Schottky rectifier diode module primarily used in welding machines, electroplating systems, industrial power supplies, and other high-current DC rectification applications.
Q: Do I need a heat sink with the MBRP400100CT module?
A: Yes. When operating at actual currents above 5A, a suitable heat sink must be installed to dissipate heat effectively and ensure long-term, reliable module performance.
Q: How do I select the correct current rating for my application?
A: Always apply a derating margin. For resistive loads, multiply your actual current by 2–2.5x. For inductive loads, multiply by 6–7x to determine the appropriate module nominal current rating.
Q: Are bulk orders available for the MBRP400100CT?
A: Yes. Standard stock is available for immediate purchase. For bulk or large-quantity orders, please contact customer service to confirm availability and delivery timelines.
Q: Is this module customizable?
A: Yes, customization options are available. Please reach out to customer service to discuss your specific requirements.
