Manual Tile Cutter with Laser Positioning | Ceramic & Porcelain

Professional Manual Tile Cutter with Infrared Laser Positioning

Take your tiling projects to the next level with this heavy-duty manual tile cutter from SucceBuy. Engineered for both professional contractors and serious DIYers, this steel-frame tile cutter combines laser-guided accuracy, a smooth ball-bearing sliding head, and a precision alloy cutter wheel to deliver clean, accurate cuts on ceramic and porcelain tiles every time. Available in multiple sizes — 31.5" (800 mm), 35" (900 mm), 39.4" (1000 mm), and 47" (1200 mm) — to suit any project scale.

Made in Mainland China.

Key Features

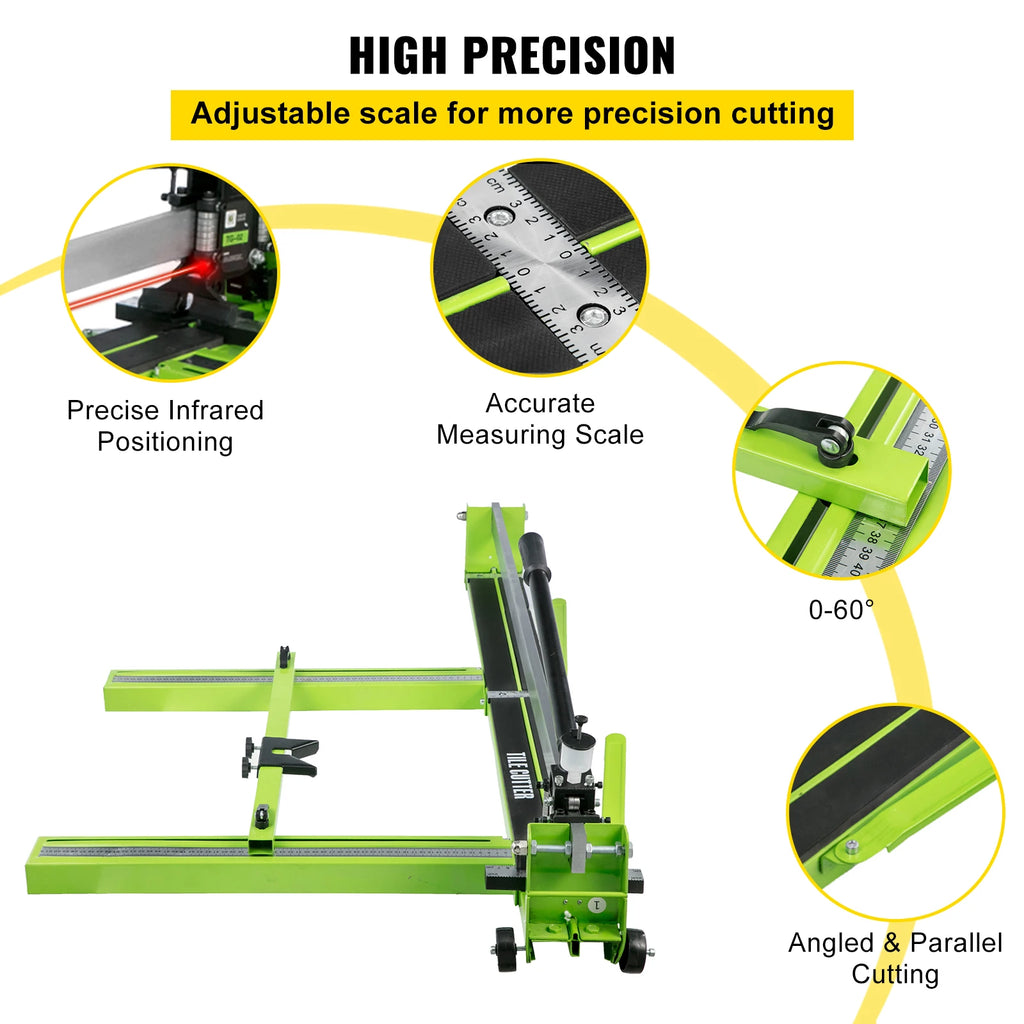

• Accurate Laser (Infrared) Positioning: Advanced laser infrared positioning technology ensures your cut line is exactly where you need it. Three aluminum rulers enable continuous cutting in a variety of sizes, improving both efficiency and accuracy.
• Smooth Sliding Mechanism: Up to 27 high-quality ball bearings paired with an integrated oil reservoir keep the sliding head gliding smoothly and stably — no vibrations, no skipping, just consistent results.
• Robust All-Steel Construction: The heavy-duty all-steel frame provides exceptional strength and long-term durability, making it ideal for intensive tiling jobs. The solid rail enhances cutting accuracy throughout the project.
• Precision Alloy Cutter Wheel: A super-hard alloy cutter wheel delivers clean, precise score-and-snap cuts. An extra replacement cutter wheel is included for added convenience.
• Versatile Tile Compatibility: Handles ceramic and porcelain tiles with thicknesses ranging from 0.24" to 0.59" (6–15 mm) and maximum cutting lengths up to 47" (1200 mm).
• Ergonomic & Portable Design: Anti-skid rubber handle for comfortable operation, a top carry handle for easy lifting, and two transport wheels for effortless job-site mobility.
• Adjustable Angle Cutting: Upgraded aluminum rulers and adjustable angle cutting capability give you full control over complex tile layouts.

Specifications (47" / 1200 mm Model)

• Material: Steel
• Max. Cutting Length: 47" / 1200 mm
• Cutting Thickness Range: 0.24"–0.59" / 6–15 mm
• Bearing Amount: 27
• Bottom Plate Width: 4" / 100 mm
• Net Weight: 49.2 lbs / 22.3 kg
• Item Dimensions: 56.4" x 24" x 9.2" / 143.4 x 61 x 23.5 cm
• Certification: CE

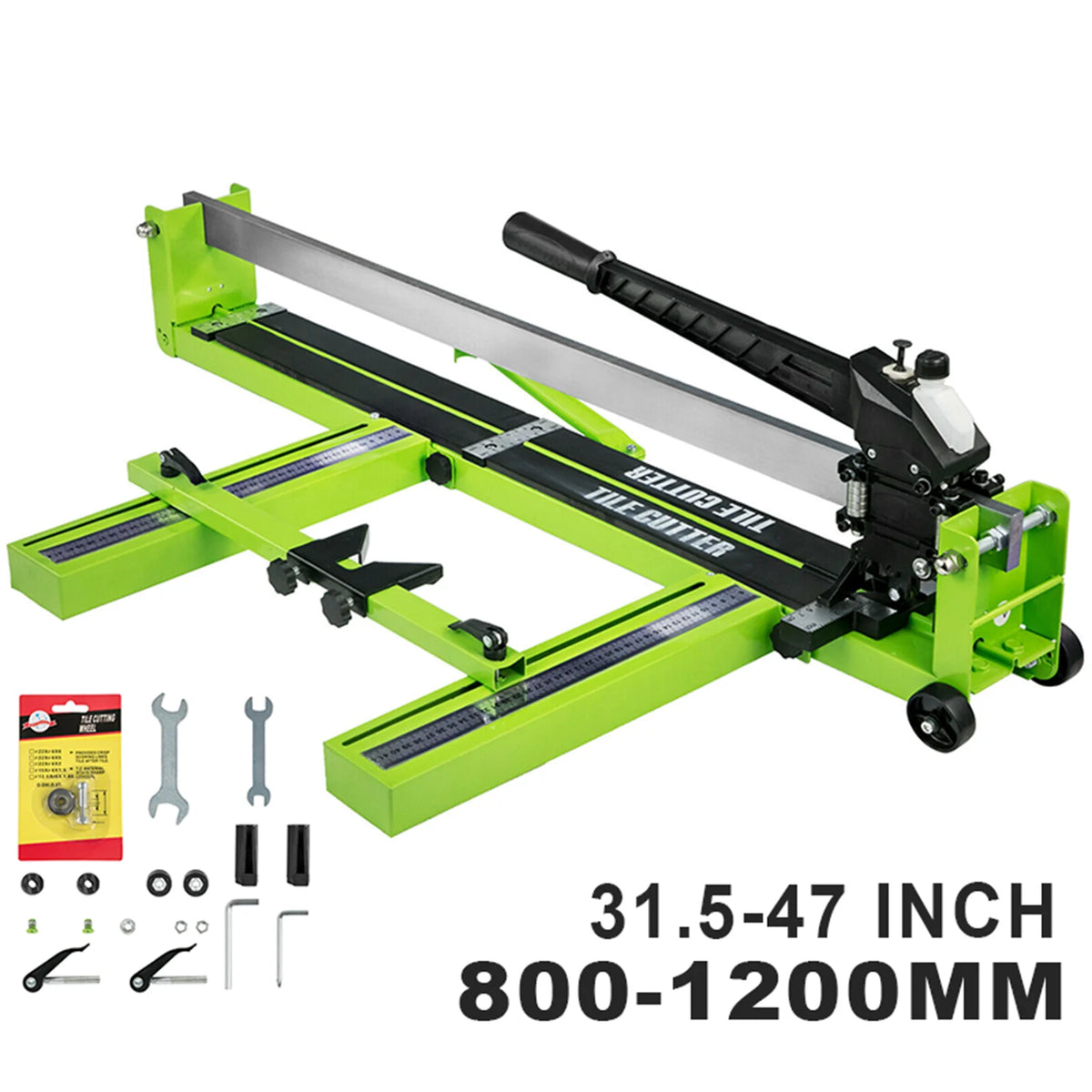

Available Size Variants

• 31.5" / 800 mm — 23 bearings, single track guide rail
• 35" / 900 mm — 27 bearings, double track guide rail (Model TG-02)
• 39.4" / 1000 mm — 23 bearings, single track guide rail with infrared laser
• 47" / 1200 mm — 27 bearings, double track guide rail

What's in the Box

• 1 x Manual Tile Cutter
• 1 x Set of Accessories (including extra cutter wheel)

Safety & Tool Resources

When operating cutting tools, always follow proper safety procedures. For general hand and power tool safety guidelines, visit the OSHA Hand & Power Tools Safety page.

Frequently Asked Questions

Q: What types of tiles can this manual tile cutter handle?

A: This manual tile cutter is designed for ceramic and porcelain tiles, as well as standard polished stone floor tiles. It handles tile thicknesses from 0.24" to 0.59" (6–15 mm) and cutting widths up to 47" (1200 mm) depending on the model size selected.

Q: How does the laser infrared positioning work on this tile cutter?

A: The built-in infrared laser projects a precise cut-line guide onto the tile surface, allowing you to align your score mark accurately before cutting. This eliminates guesswork and helps reduce wasted tiles, especially useful for diagonal or angled cuts.

Q: Do I need electricity to operate this tile cutter?

A: No — this is a fully manual tile cutter. The only powered component is the laser positioning guide. The scoring and snapping mechanism is entirely hand-operated, making it quiet, portable, and easy to use on any job site without a power outlet.

Q: Is assembly required, and is the cutter wheel replaceable?

A: Minimal assembly is typically required. The cutter includes an extra alloy cutter wheel, so when your primary wheel eventually wears down, you can swap it out quickly and get back to work without delay.
