Manual Reset Circuit Breaker – Alloy Inline Fuse Block Holder
Keep your electrical systems protected with this heavy-duty Manual Reset Circuit Breaker and Inline Fuse Block Holder. Built from durable alloy material with a Bakelite housing, this compact mini breaker is engineered to guard your trolling motor, audio systems, and other low-voltage circuits against overcurrent and short-circuit conditions — saving you the time and cost of constantly replacing blown fuses.
Key Features
- Alloy Construction: Tough, corrosion-resistant alloy body for long-lasting durability in demanding environments.

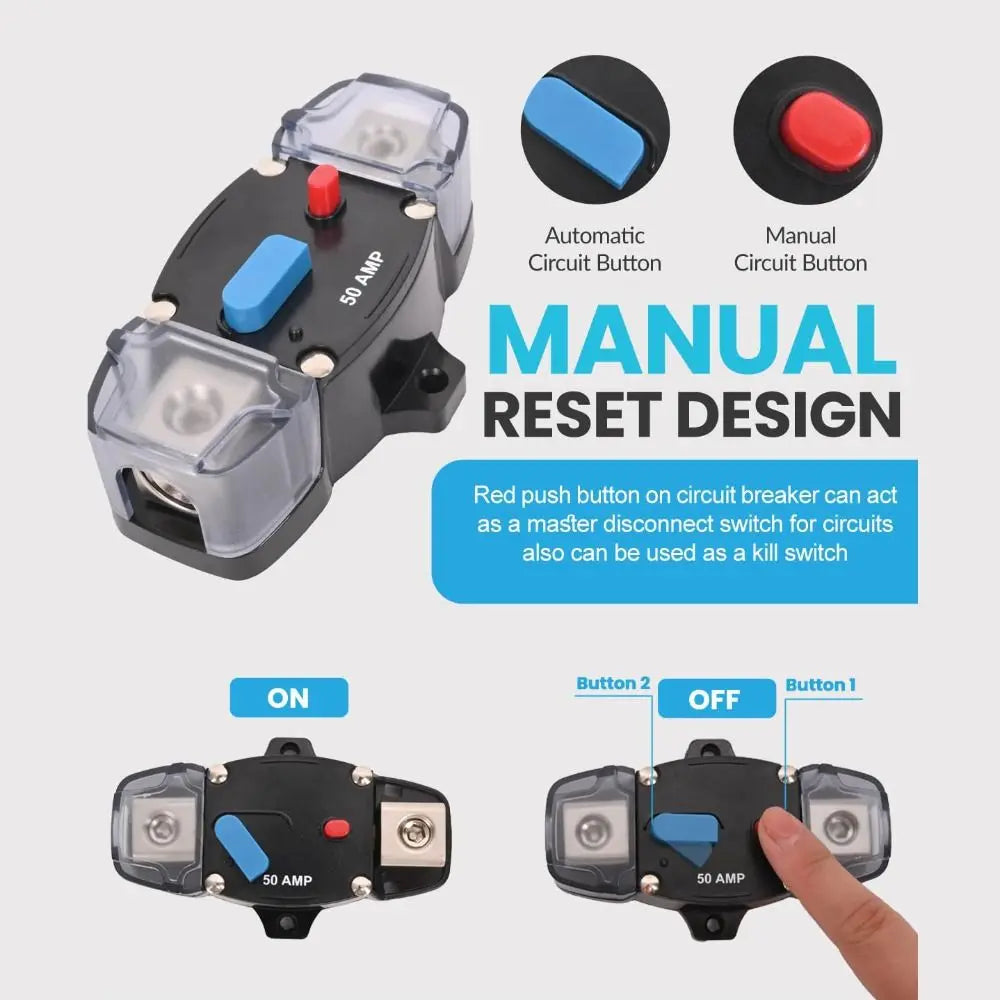

- Manual Reset Button: The integrated red reset button doubles as a main disconnect switch or kill switch — no fuse replacement needed after a trip.
- High-Sensitivity Protection: Built-in high-current wiring board with high sensitivity triggers quickly to guard your equipment from electrical damage.
- Waterproof Housing: High-tech waterproof enclosure with a protective rubber bolt cover keeps moisture and debris out.
- Low Voltage Rated: Designed for circuits below 50V AC or 75V DC — ideal for marine, automotive, and audio applications.
- Compact Mini Size: Measures just 11 × 7.0 × 4.0 cm (4.33 × 2.76 × 1.57 in), fitting easily into tight spaces.
- No Fuse Replacements: Resettable design eliminates the ongoing cost and inconvenience of disposable fuses.
Specifications
- Material: Alloy / Bakelite
- Dimensions: 11 × 7.0 × 4.0 cm (4.33 × 2.76 × 1.57 in)
- Weight: 207 g
- Voltage Rating: Below 50V AC / 75V DC
- Battery Included: No
- Package Includes: 1 × Manual Reset Circuit Breaker (screws not included)
- Country of Origin: Made in China
What's in the Box?
- 1 × Manual Reset Circuit Breaker with Inline Fuse Block Holder
Please Note: Product photos may not reflect actual size — refer to the dimensions listed above. Allow 1–2 cm (0.39–0.79 in) variance due to manual measurement. Colors may vary slightly between different monitor displays.
For more information on electrical safety standards and circuit protection guidelines, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is a manual reset circuit breaker and how does it work?
A: A manual reset circuit breaker automatically interrupts electrical current when an overcurrent or short circuit is detected, protecting your equipment. Unlike a traditional fuse, it doesn't need to be replaced — simply press the red reset button once the cause of the trip is resolved to restore normal operation.
Q: What applications is this inline fuse block holder suitable for?
A: This breaker is well-suited for low-voltage circuits below 50V AC or 75V DC, making it ideal for trolling motors, marine electronics, automotive wiring, car audio systems, and other 12V or 24V DC setups requiring reliable overcurrent protection.
Q: Is this circuit breaker waterproof?
A: Yes. The breaker features a high-tech waterproof housing and a protective rubber bolt cover, making it suitable for use in wet or outdoor environments such as boats, vehicles, and outdoor audio installations.
Q: Do I need special tools or additional hardware to install this breaker?
A: The installation is straightforward and does not require any specialized tools. Please note that mounting screws are not included in the package, so you will need to source appropriate screws separately based on your installation surface.
