Magnetic Pogo Pin Connector 4-Pin 2.5mm Pitch 2A 36V – 5 Pairs
Magnetic Pogo Pin Connector 4-Pin 2.5mm Pitch 2A 36V – 5 Pairs
Magnetic Pogo Pin Connector – 4-Pin, 2.5 mm Pitch | 5 Pairs (10 Pieces)
Keep your DC charging and power connections secure and reliable with these Spring-Loaded Magnetic Pogo Pin Connectors. Designed for through-hole PCB soldering, this 5-pair kit features a 4-pin layout with 2 integrated magnets for a self-aligning, effortless mating experience every time. Ideal for robotics, IoT devices, wearables, charging docks, and custom electronics projects.
Key Features
- Spring-loaded probe design ensures consistent, low-resistance contact even with slight misalignment
- Built-in magnets (2 per connector) provide automatic alignment and a secure hold without latches or clips
- 4-pin configuration supports multi-signal and DC power simultaneously
- 2.5 mm pitch – compact footprint perfect for space-constrained PCB layouts
- Rated 2A / 36V DC Max – suitable for a wide range of low-voltage DC charging and power applications
- Through-hole PCB solder mount for a mechanically strong, reliable installation

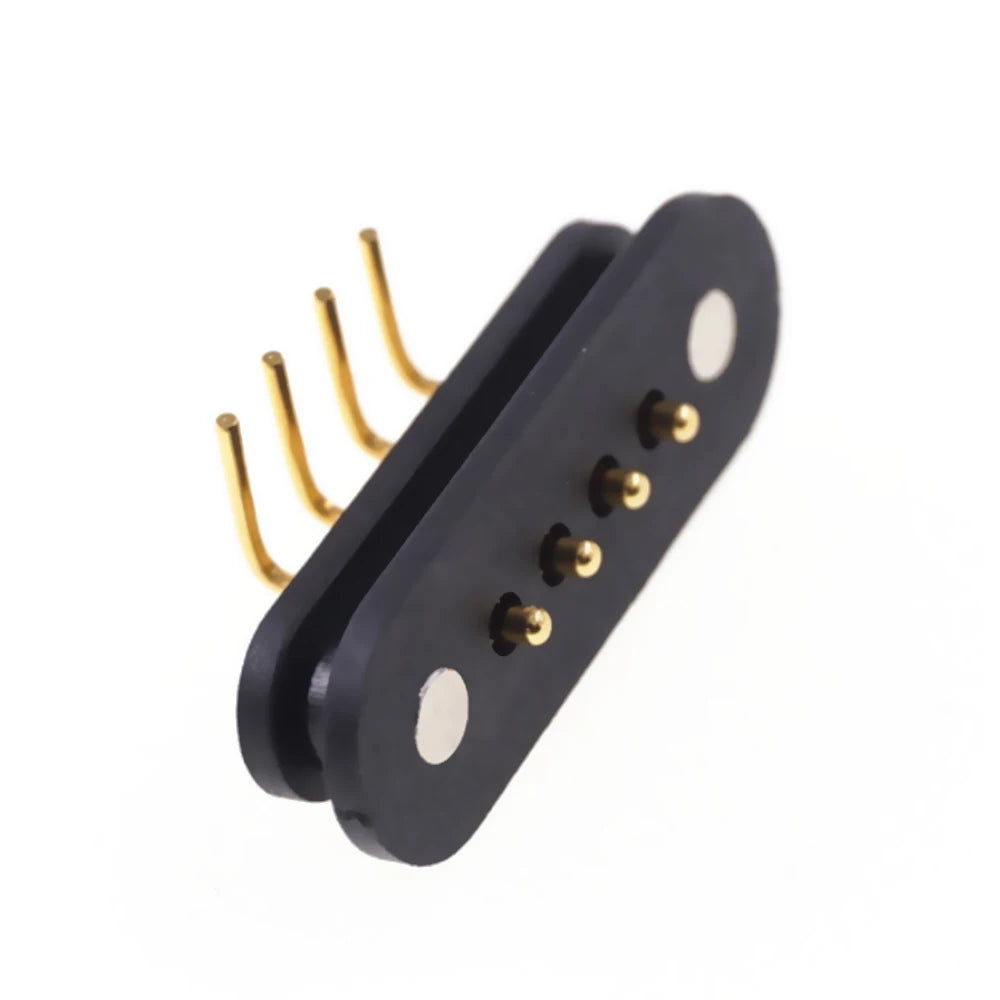

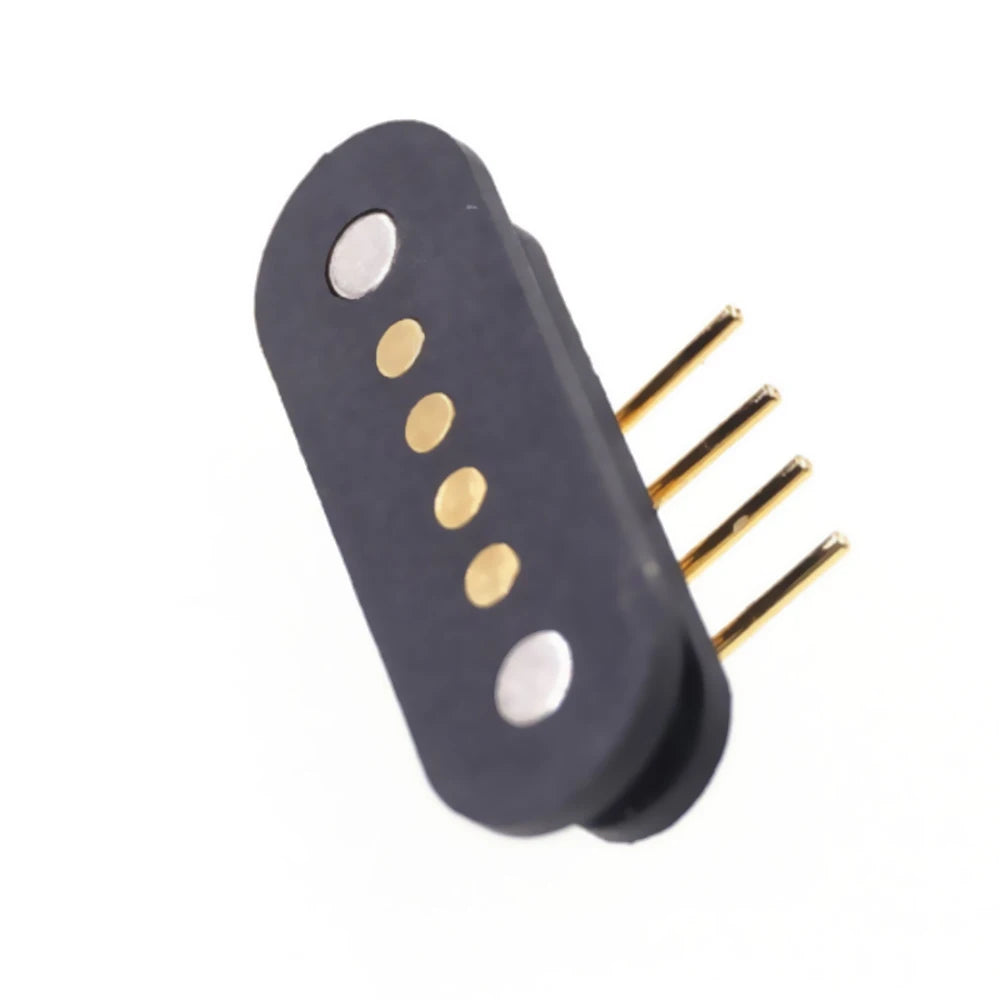

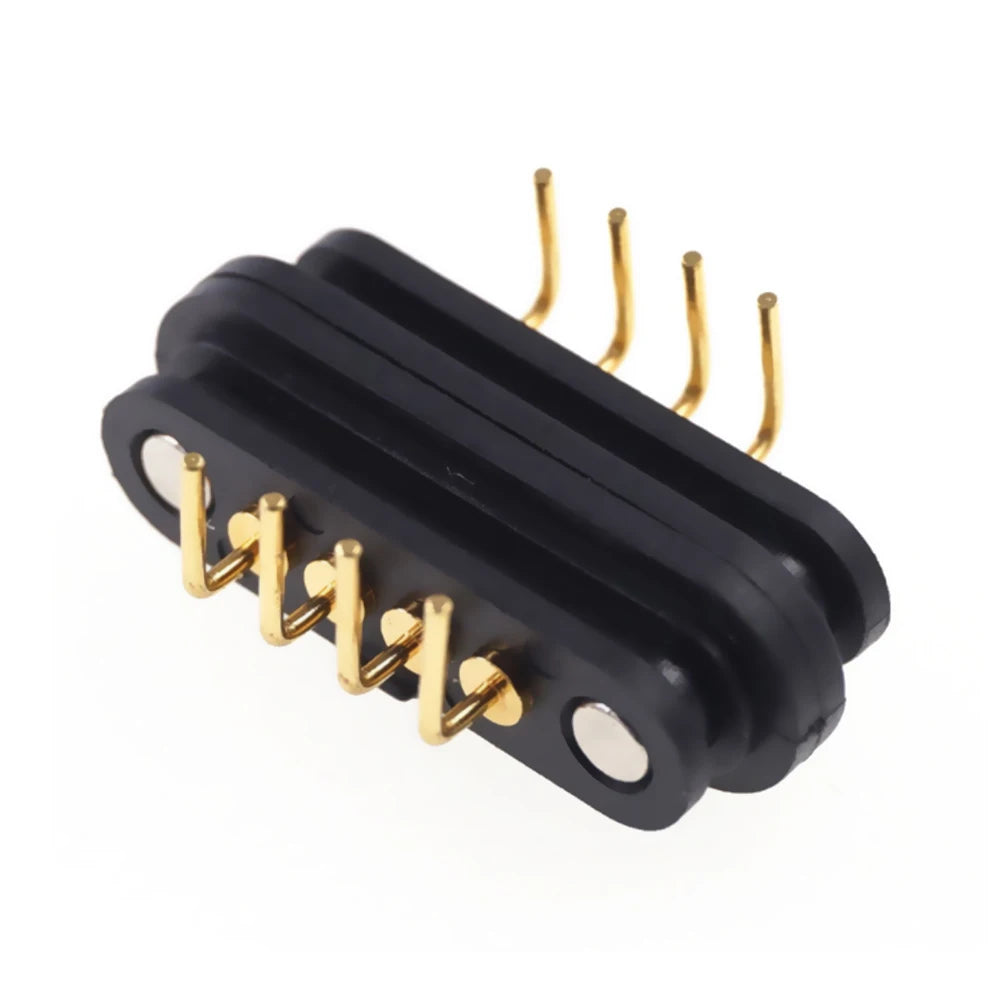

- Angled male & female pair for flexible board-to-board or dock-to-device orientations
- Quantity: 5 Pairs (10 pieces total)
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 4 Pin + 2 Magnets |
| Pitch | 2.5 mm |
| Max Voltage | 36V DC |
| Max Current | 2A |
| Mount Type | Through-Hole PCB Solder |
| Connector Type | Angled Male & Female |
| Quantity | 5 Pairs (10 PCS) |
| Country of Origin | Made in China |
Common Applications
- Wireless charging docks & cradles
- Robotics and automation systems
- Wearable electronics and smart devices
- IoT sensor modules and PCB assemblies
- Custom power and data connectors
- Prototype and maker projects
Why Choose Magnetic Pogo Pin Connectors?
Unlike traditional fixed connectors, spring-loaded pogo pins maintain reliable contact under vibration and repeated insertion cycles. The integrated magnets eliminate fumbling — just bring the two halves close and they snap into perfect alignment automatically. This makes them especially popular in applications that require frequent docking and undocking without connector wear.
For more information on safe low-voltage electrical connector standards, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the maximum DC voltage and current these pogo pin connectors can handle?
A: These magnetic pogo pin connectors are rated for a maximum of 36V DC and 2A continuous current. They are designed for low-voltage DC power and charging applications and should not be used beyond these rated limits.
Q: Are these connectors suitable for through-hole PCB soldering?
A: Yes. Both the male and female angled connectors use a through-hole PCB solder mount, providing a mechanically robust and electrically stable connection to your circuit board.
Q: How do the magnets help with alignment?
A: Each connector pair includes 2 integrated magnets that automatically draw the male and female halves into precise alignment. This self-aligning feature reduces installation time and prevents mismatched connections, making them ideal for dock-style charging and data-transfer applications.
Q: How many connectors are included in this listing?
A: This listing includes 5 pairs (10 pieces total) — 5 male and 5 female connectors — giving you enough for multiple projects or prototype iterations.
