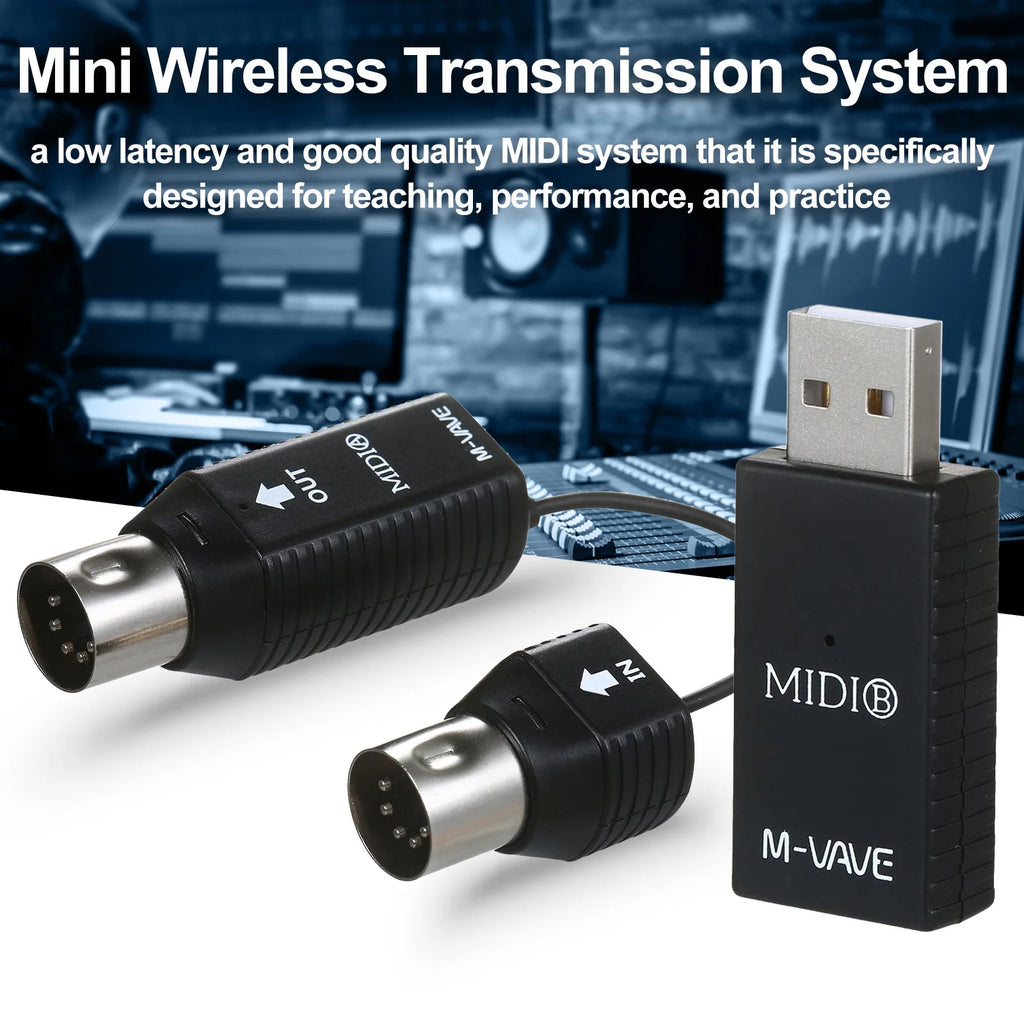

M-VAVE MS1 Mini Wireless MIDI Transmission System
Cut the cables and take your music to the next level. The M-VAVE MS1 is a compact, plug-and-play wireless MIDI adapter that delivers a fast, stable, and truly wire-free connection between your MIDI-equipped instruments and devices. Whether you're performing live on stage, teaching in a studio, or practicing at home, the MS1 keeps you connected without the hassle of tangled MIDI cables.
Why You'll Love the M-VAVE MS1

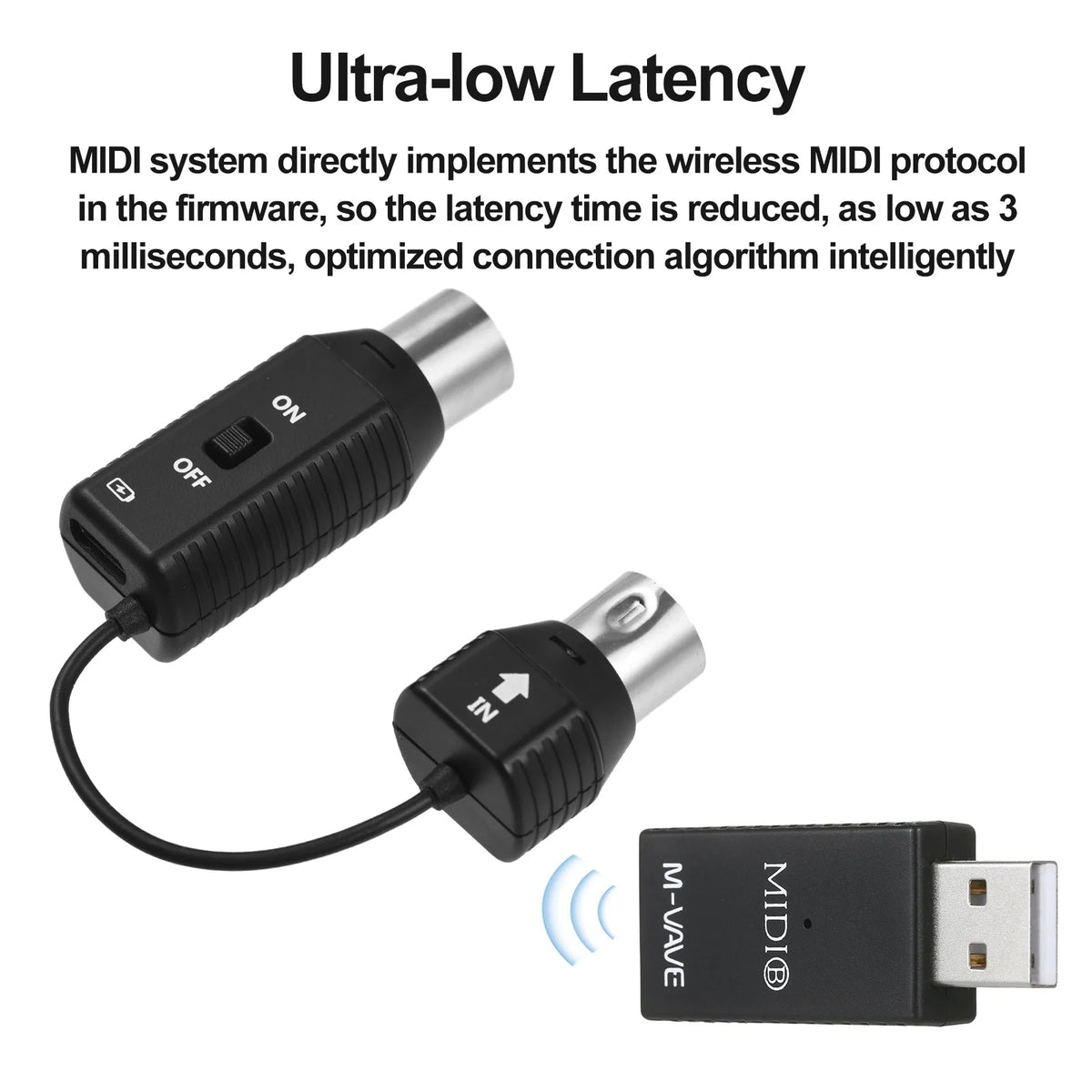

- Ultra-Low Latency: The MS1 implements the wireless MIDI protocol directly in firmware, achieving latency as low as 3 milliseconds — virtually indistinguishable from a wired connection.

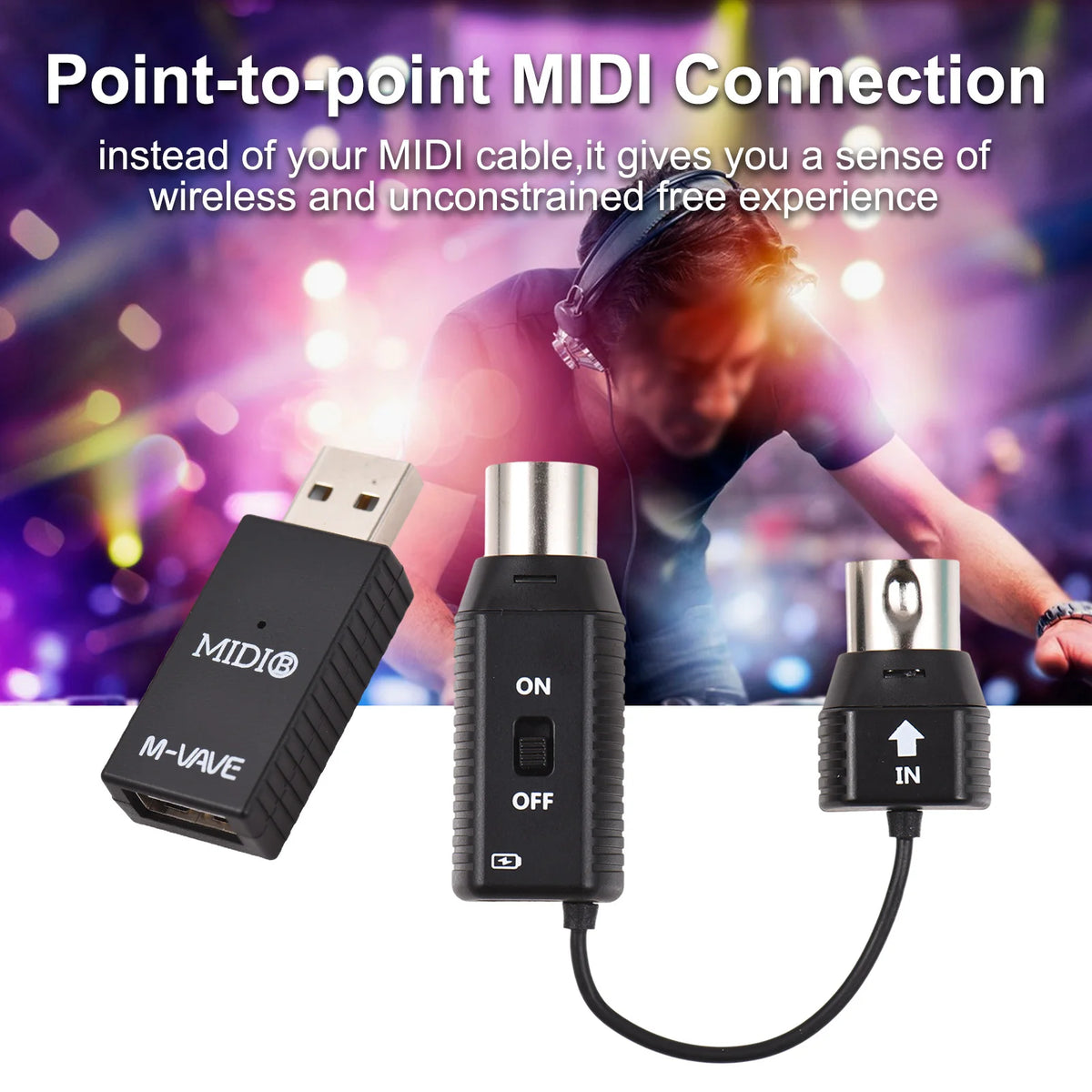

- Point-to-Point Wireless Freedom: Replaces your standard MIDI cable with a seamless wireless link, giving you full freedom of movement on stage or in the studio.
- 2.4 GHz Stable Connection: Built on a proprietary 2.4 GHz protocol optimized for live performance, ensuring a safe, interference-resistant, and stable wireless link up to 10 meters (≈33 ft).
- Long Battery Life: MIDI-A features a built-in 240 mAh rechargeable lithium battery offering up to 48 hours of continuous use on a single charge via USB.
- Universal Curved Cable Design: The unique curved cable design accommodates even rare vertical MIDI interfaces, making this adapter compatible with a wide range of instruments and devices.
- Firmware Upgradable: Keep your system current by upgrading the firmware via the included data cable and companion software.
- Compact & Lightweight: Weighing just 43g total, the MS1 is built for portability — drop it in your gig bag and forget it's there.
Technical Specifications
| Operating Band | 2.4 GHz |
| Latency | As low as 3 ms |
| Wireless Range | ≤ 10 m (≈33 ft) |
| Battery (MIDI-A) | 240 mAh built-in lithium, USB rechargeable |
| Battery Life | Up to 48 hours |
| Material | ABS |

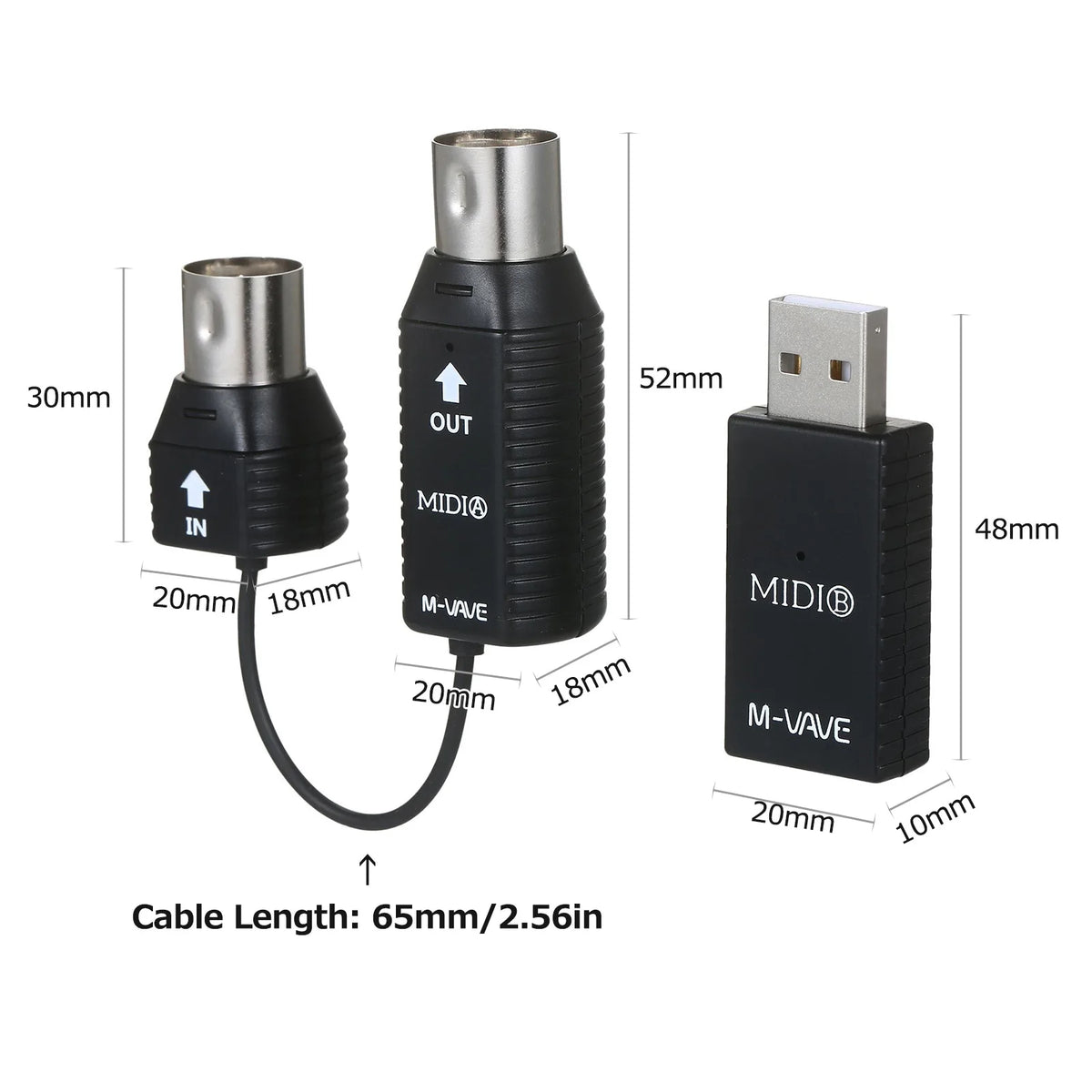

| MIDI-A OUT Size | 52 × 20 × 18 mm / 2.05 × 0.79 × 0.71 in |
| MIDI-A IN Size | 30 × 20 × 18 mm / 1.18 × 0.79 × 0.71 in |
| MIDI-B Size | 48 × 20 × 10 mm / 1.89 × 0.79 × 0.39 in |
| Item Weight | 43 g / 1.52 oz |
| Package Weight | 69 g / 2.46 oz |
| Package Size | 11.5 × 6.5 × 2.5 cm / 4.53 × 2.56 × 0.98 in |
What's in the Box
- 1 × MIDI-A Transmitter/Receiver
- 1 × MIDI-B Receiver/Transmitter
- 1 × USB Charging Cable
- 1 × User Manual (English)
Made in Mainland China.
For more information on MIDI standards and how wireless MIDI technology works, visit the National Institute of Standards and Technology (NIST) for technical and standards references.
Frequently Asked Questions
Q: Is the M-VAVE MS1 wireless MIDI adapter compatible with all MIDI instruments?
A: Yes — the M-VAVE MS1 is designed to work with any device that has a standard 5-pin DIN MIDI interface, including keyboards, synthesizers, drum machines, and MIDI controllers. Its unique curved cable design even supports rare vertical MIDI ports, making it one of the most universally compatible wireless MIDI adapters available.
Q: How long does the M-VAVE MS1 battery last, and how do I charge it?
A: The MIDI-A unit features a built-in 240 mAh rechargeable lithium battery that delivers up to 48 hours of continuous use. Charging is simple — just connect it to any USB power source or PC using the included USB cable. The MIDI-B unit draws power directly from the connected device or USB adapter, so no battery management is needed for that unit.
Q: What is the wireless range and latency of the MS1?
A: The M-VAVE MS1 operates on the 2.4 GHz band and provides a stable wireless connection up to 10 meters (approximately 33 feet). Its firmware-level wireless MIDI protocol reduces latency to as low as 3 milliseconds, making it suitable for live performance, studio recording, and real-time teaching applications.
Q: Can the M-VAVE MS1 firmware be updated?
A: Yes. The MS1 supports firmware upgrades via the included data cable and the companion software. This ensures your wireless MIDI system stays up to date with the latest performance improvements and compatibility enhancements.
