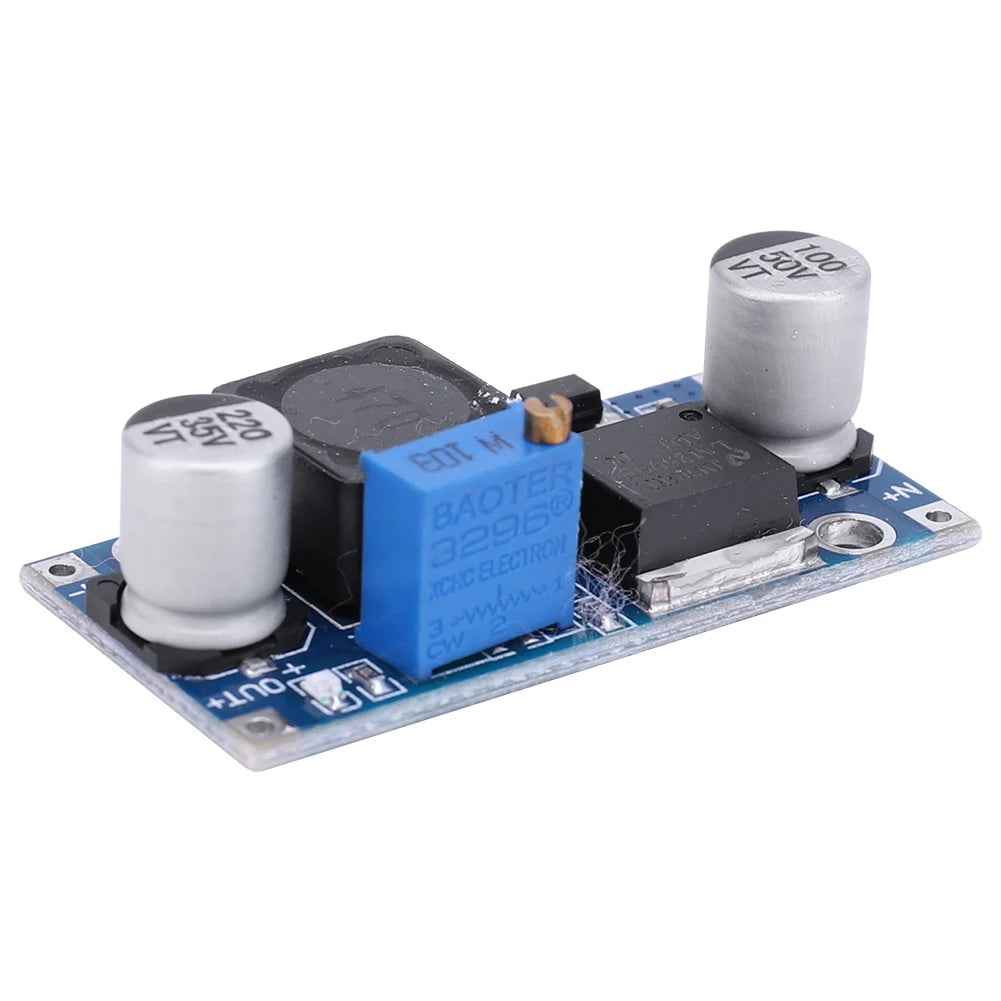

LM2596S DC-DC Buck Power Supply Module — 3A, 3.2V–46V Input
The LM2596S Step-Down Power Converter Module is a compact, high-efficiency voltage regulator designed for electronics projects, DIY builds, robotics, and embedded systems. With an adjustable output voltage, wide input range, and up to 92% conversion efficiency, this buck module is a reliable solution for stepping down DC voltage without wasting energy as heat.
Key Features
- Adjustable Output Voltage: Output range of 1.25V–35V, configurable for a wide variety of applications.
- High Conversion Efficiency: Up to 92% efficiency reduces energy loss and heat generation during operation.
- Low Output Ripple: Less than 30mV ripple ensures stable, clean DC output — ideal for sensitive electronics.
- Wide Input Voltage Range: Accepts 3.2V to 46V DC input, compatible with a broad range of power sources.
- Strong Heat Dissipation: Dense through-hole PCB design enhances thermal management for demanding, high-power tasks.
- Electromagnetic Compatibility: High-Q, high-frequency bypass capacitors at both input and output improve EMC performance.
Technical Specifications
| Model | LM2596S DC-DC Buck Module |
| Input Voltage | 3.2V – 46V DC |
| Output Voltage | 1.25V – 35V DC (adjustable) |
| Output Current | 3A (maximum) |
| Conversion Efficiency | Up to 92% |
| Output Ripple | < 30mV |
| Switching Frequency | 65 kHz |
| Operating Temperature | -45°C to +85°C |
| Module Dimensions | 43 × 21 × 14 mm |
| Condition | New |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × LM2596S Step-Down Power Supply Module
Important Usage Notes
- This is a buck (step-down) module only — the input voltage must always be higher than the desired output voltage.
- For continuous output of up to 2A, the module can operate without an additional heatsink.
- For output current exceeding 2A or output power exceeding 10W during extended operation, attaching a heatsink is strongly recommended to maintain safe operating temperatures.
- Color may vary slightly from product images due to monitor and lighting differences. Allow ±1–2 cm for manual measurement variance.
Learn More About Power Electronics Safety
For guidance on safe handling of electrical components and low-voltage DC power supplies, visit the OSHA Electrical Safety Resource.
Frequently Asked Questions
Q: What is the LM2596S step-down power converter module used for?
A: The LM2596S DC-DC buck converter module is used to reduce a higher DC input voltage to a lower, adjustable DC output voltage. It is widely used in DIY electronics, Arduino and Raspberry Pi projects, robotics, battery charging circuits, LED drivers, and custom power supply builds where a stable, regulated voltage is needed.
Q: Do I need a heatsink with the LM2596S module?
A: For output currents of 2A or less, the module can operate continuously without a heatsink thanks to its dense through-hole PCB design. However, if you plan to draw more than 2A or operate at output power greater than 10W for extended periods, adding a heatsink is strongly recommended to prevent overheating and ensure long-term reliability.
Q: What is the input and output voltage range of this buck module?
A: This LM2596S module accepts an input voltage between 3.2V and 46V DC. The output voltage is fully adjustable from 1.25V to 35V DC via an onboard potentiometer. Remember, the input voltage must always be higher than the desired output voltage for the module to function correctly.
Q: How efficient is the LM2596S DC-DC converter?
A: The LM2596S step-down module achieves a maximum conversion efficiency of up to 92%, making it significantly more energy-efficient than linear voltage regulators. Its low ripple output (under 30mV) also helps ensure stable performance for sensitive electronic circuits.
