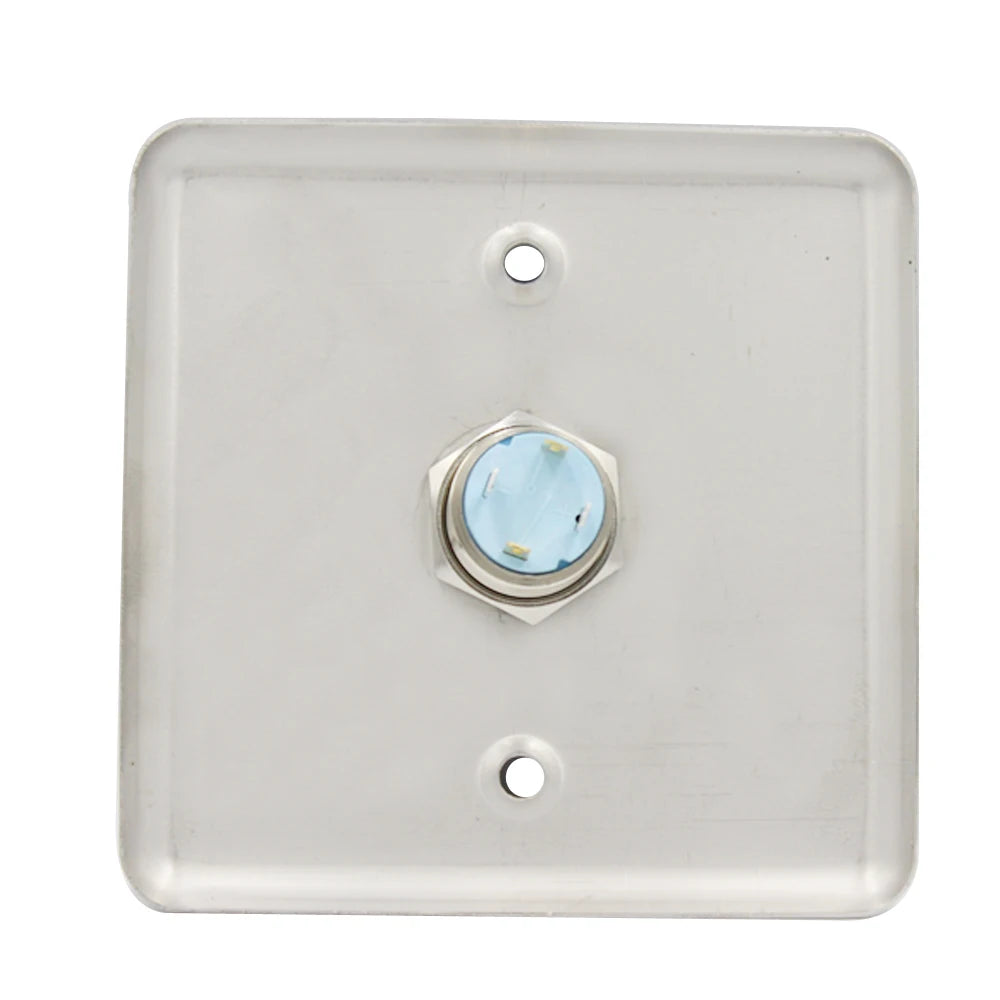

LED Backlit Stainless Steel Exit Button Push Switch

LED Backlight Stainless Steel Exit Button Push Switch Door Sensor Opener Release for Access Control Vue Default Title

LED Backlit Stainless Steel Exit Button Push Switch | Access Control

$13.99 $15.99

LED Backlit Stainless Steel Exit Button Push Switch – Access Control Door Release

Upgrade your access control system with this sleek, durable LED Backlit Stainless Steel Exit Button Push Switch (Model: CS10AL). Designed for commercial and residential door entry systems, this flush-mount exit button delivers reliable, effortless door release activation every time. Made in Mainland China.

Key Features

Stainless Steel Shell: Brushed silver finish that is sturdy, corrosion-resistant, and built to last in high-traffic environments.
LED Backlight: Built-in backlight ensures the button is easy to locate in low-light conditions.
Tested for Durability: Engineered to withstand over 50,000 continuous press cycles — ideal for busy entryways.
Wide Compatibility: Activates electric strikes, magnetic locks, and other electronic door locks via access control keypads. Works with most electronic access control systems and door phones with access control keypads.
Flush Mounting: Clean, minimal installation for a professional appearance on any wall or door frame.
Comfortable Operation: Smooth, satisfying tactile click for quick and easy use by all users.

Technical Specifications

Model: CS10AL
Current Rating: 3A, 36V DC
Contact Output: NC / COM
Operating Temperature: -10°C to +55°C (14°F to 131°F)
Operating Humidity: 0–95% Relative Humidity
Material: Stainless Steel
Mounting: Flush Mount
Country of Origin: Made in Mainland China

What's in the Box

1 × LED Backlit Stainless Steel Exit Button Push Switch (CS10AL)

Where to Use It

Perfect for offices, apartments, retail stores, warehouses, schools, and any facility using electronic access control. This exit button integrates seamlessly into your existing door security setup, giving occupants a safe and simple way to trigger door release from the inside.

For more information on physical access control and building security standards, visit the U.S. Cybersecurity & Infrastructure Security Agency or refer to electrical safety guidelines at OSHA's Electrical Safety resource.

Frequently Asked Questions

Q: What types of locks is this exit button push switch compatible with?

A: This LED backlit exit button is compatible with electric strike locks, magnetic locks, and most other electronic door locks. It also works with the majority of electronic access control keypads and door phones equipped with access control functionality.

Q: How is the LED backlit exit button installed?

A: The CS10AL exit button uses a flush-mount installation method. It mounts directly into a standard wall or door frame cutout for a clean, professional finish. Standard wiring connects to your existing access control system via the NC/COM contact output.

Q: Is this exit button suitable for outdoor use?

A: The stainless steel shell is durable and corrosion-resistant, making it well-suited for covered entryways. It operates within a temperature range of -10°C to +55°C and up to 95% relative humidity, so it handles varied environmental conditions well. For fully exposed outdoor installations, consider additional weatherproofing.
