LEEYONGIN Laser Safety Filter Windows – CE Certified Protection for Industrial & Scientific Applications
Designed for professionals working with high-powered laser systems, the LEEYONGIN Laser Safety Filter Windows provide reliable optical shielding across a broad spectrum of wavelengths — from UV (190nm) through visible and into near-infrared (up to 2000nm). Whether you're operating a cutting laser, engraving system, or scientific instrument, these precision-engineered filter windows help safeguard both equipment and operators from accidental beam exposure.
Made in Mainland China.
Why Laser Safety Filtering Matters
Even brief, accidental exposure to a direct or reflected laser beam can cause irreversible damage to optical systems and equipment — and to human eyes — depending on wavelength, output power, and exposure duration. A critical measure of a filter's protective capability is its Optical Density (OD), which indicates how many orders of magnitude the laser intensity is reduced. These windows are engineered to meet rigorous CE safety standards, giving you confidence in every installation.
Learn more about laser and radiation safety standards at the OSHA Laser Hazards resource page.

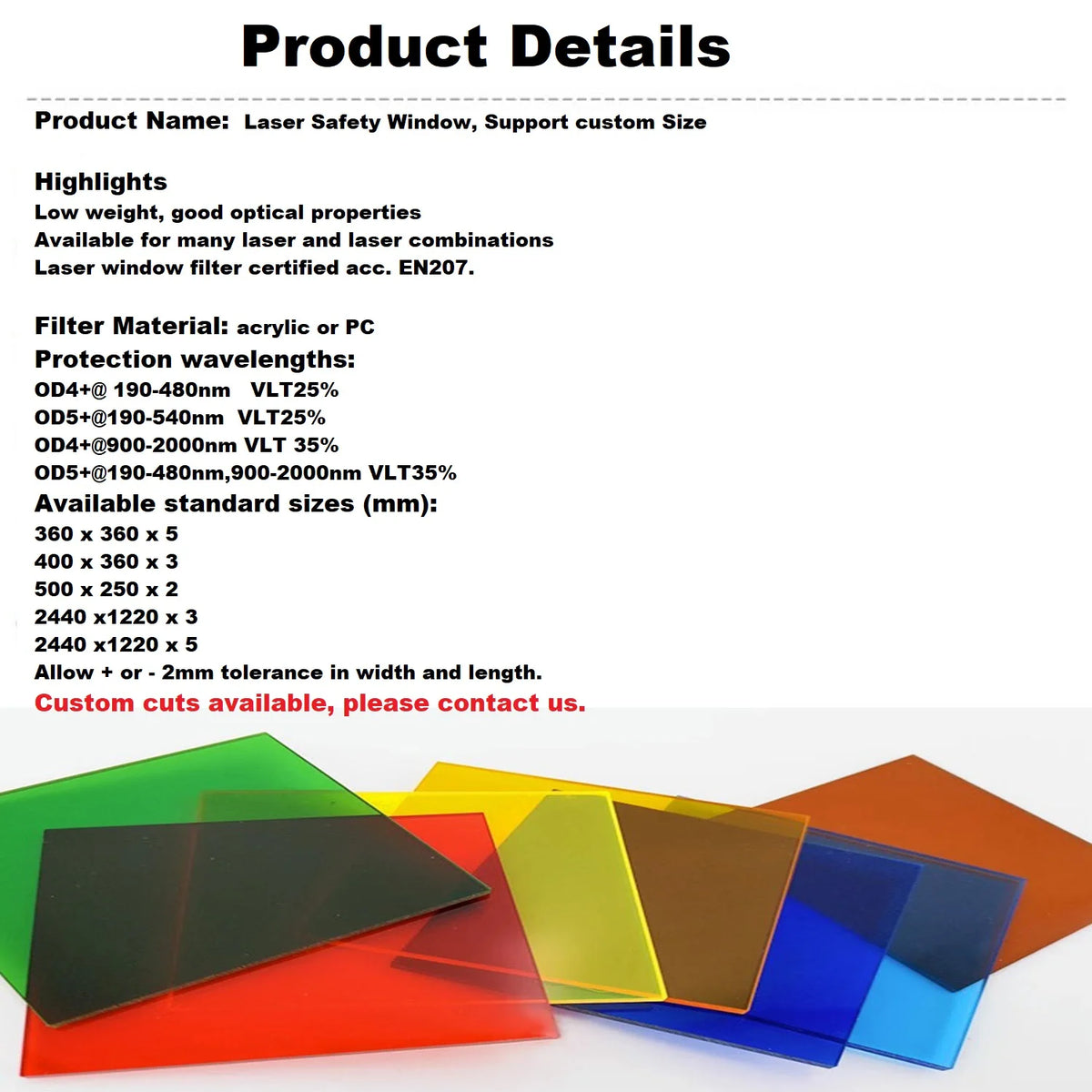

Available SKUs – Wavelength & Optical Specifications
| SKU | Protective Wavelengths | OD (Optical Density) | VLT (Visible Light Transmittance) | Size (mm) |
|---|---|---|---|---|
| S1 | 190–480nm | OD4+ | ≤25% | 90 × 90 × 3 |
| S2 | 190–540nm | OD5+ | ≤25% | 90 × 90 × 3 |
| S3 | 900–2000nm | OD4+ | ≤35% | 90 × 90 × 3 |
| S4 | 190–480nm & 900–2000nm | OD5+ | ≤35% | 90 × 90 × 3 |
| S5 | 190–540nm | OD5+ | ≤25% | 250 × 250 × 2 |
| S6 | 190–480nm & 900–2000nm | OD5+ | ≤35% | 250 × 250 × 2 |
Standard Large-Sized Window Options
- 250mm × 500mm × 2mm
- 360mm × 400mm × 3mm
- 360mm × 360mm × 3mm
- 360mm × 360mm × 5mm
- 400mm × 400mm × 3mm
Need a custom size? Contact us directly — we offer tailored dimensions to fit your specific installation requirements.
Key Features
- Broad-Spectrum Coverage: Shields against UV, visible, and near-IR laser wavelengths (190nm – 2000nm)
- High Optical Density: OD4+ to OD5+ ratings for robust beam attenuation
- CE Certified: Meets European safety standards for industrial laser protection
- Anti-UV & Radiation-Blocking Properties: Engineered for use in demanding industrial, scientific, and technical environments
- Multiple SKUs Available: Choose the right wavelength range for your specific laser system

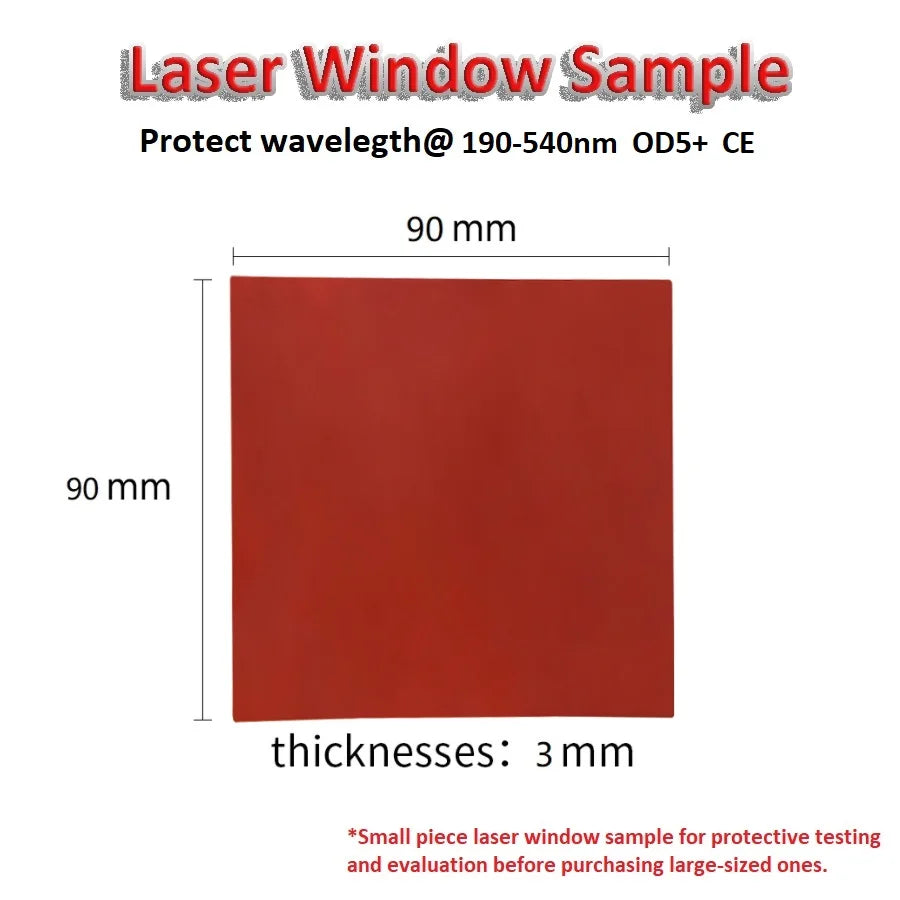

- Sample Option Available: Order a small 90×90mm sample first to test compatibility before investing in a full-size window
- Custom Sizing: Contact us for non-standard dimensions
Ideal Applications
- Laser cutting and engraving machines
- Industrial laser enclosures and safety guards
- Scientific research and laboratory laser setups
- UV and IR beam containment systems
- Optical instrument shielding
Specifications at a Glance
- Brand: LEEYONGIN
- Certification: CE
- High-Concern Chemicals: None
- Special Features: Anti-UV, radiation-blocking optical filtering
- Origin: Made in Mainland China
Not sure which wavelength window is right for your system? We recommend ordering a sample SKU (S1–S4, 90×90mm) for evaluation before committing to a large-sized unit. Contact us for expert guidance.
Frequently Asked Questions
Q: What does OD (Optical Density) mean for a laser safety filter window?
A: Optical Density (OD) indicates how effectively the filter window attenuates laser beam intensity. An OD of 4 reduces the transmitted laser power by a factor of 10,000 (10⁴), while an OD of 5 reduces it by a factor of 100,000 (10⁵). Higher OD values provide greater beam attenuation, making OD5+ windows suitable for higher-power laser systems.
Q: Can I use this laser safety filter window for both 1064nm and 532nm lasers?
A: Yes — select the appropriate SKU based on your laser's wavelength. For 532nm (green, visible), choose S2 (190–540nm) or S5/S6 for larger panels. For 1064nm (near-IR), choose S3 (900–2000nm) or S4/S6 for combined UV-IR coverage. If you're unsure, contact us with your laser specs and we'll recommend the correct filter.
Q: Is a sample available before I purchase a large-sized laser safety window?
A: Absolutely. We offer small 90×90×3mm sample pieces (SKUs S1–S4) specifically for testing and evaluation. This allows you to verify wavelength compatibility and optical performance before ordering a full-size or custom-dimension window.
Q: Are custom sizes available for industrial laser enclosures?
A: Yes. In addition to our standard sizes (ranging from 250×250mm up to 400×500mm), we offer custom-cut laser safety filter windows to fit your specific enclosure or system dimensions. Please contact us with your exact measurements and wavelength requirements.

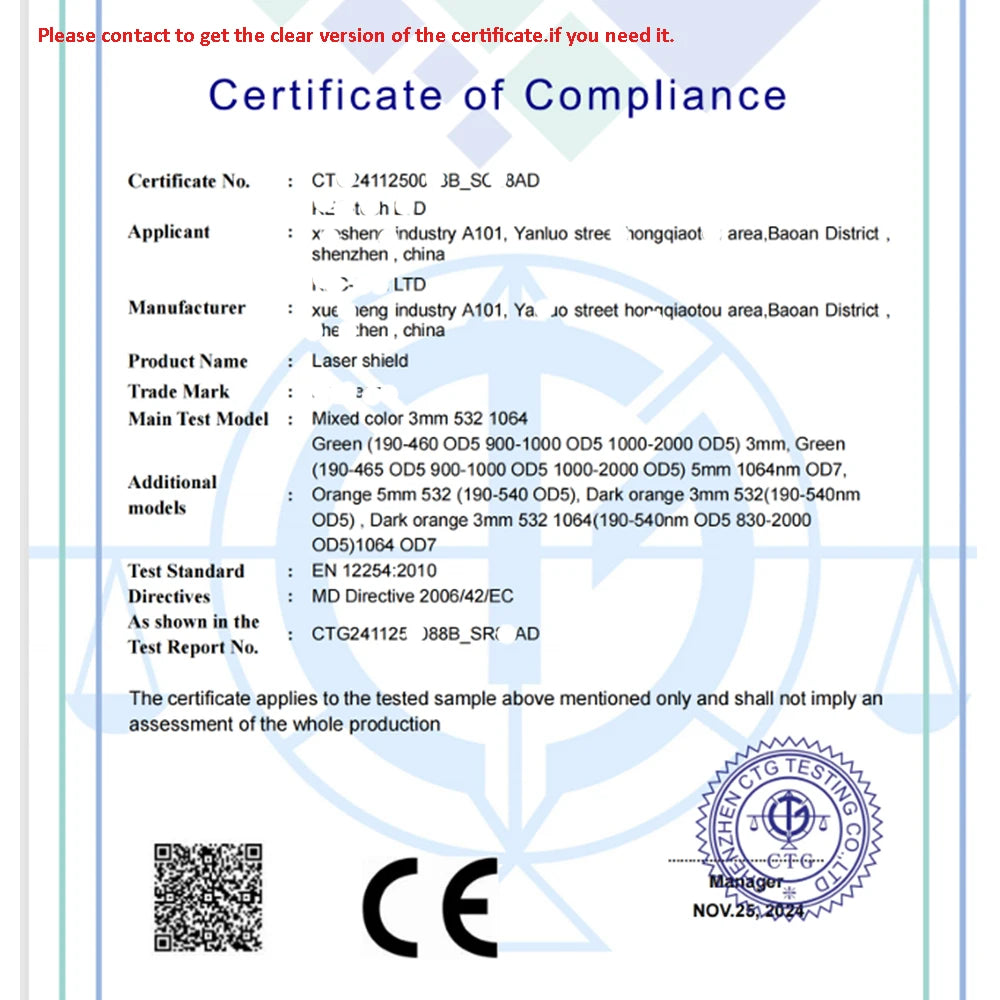

Q: What certifications do these laser safety windows carry?
A: These laser safety filter windows are CE certified, meeting European safety and quality standards for laser protective equipment used in industrial and technical environments.
