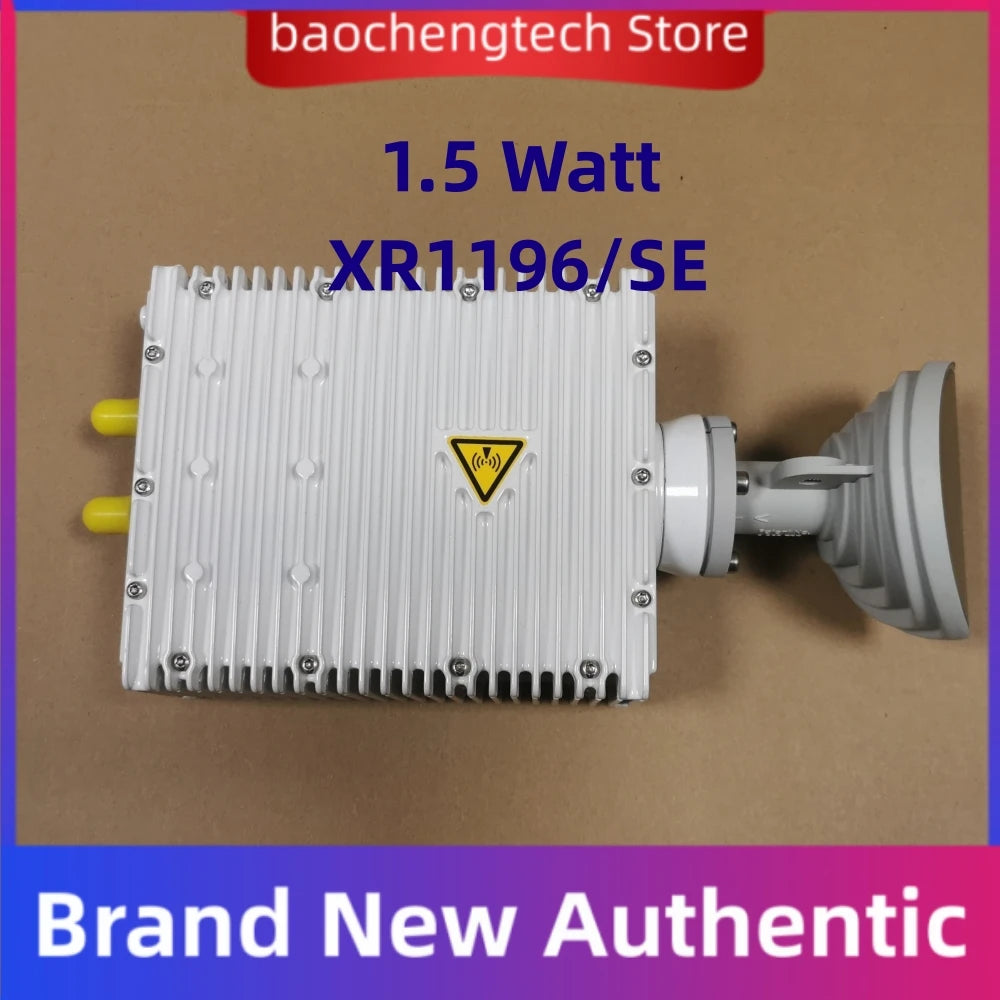

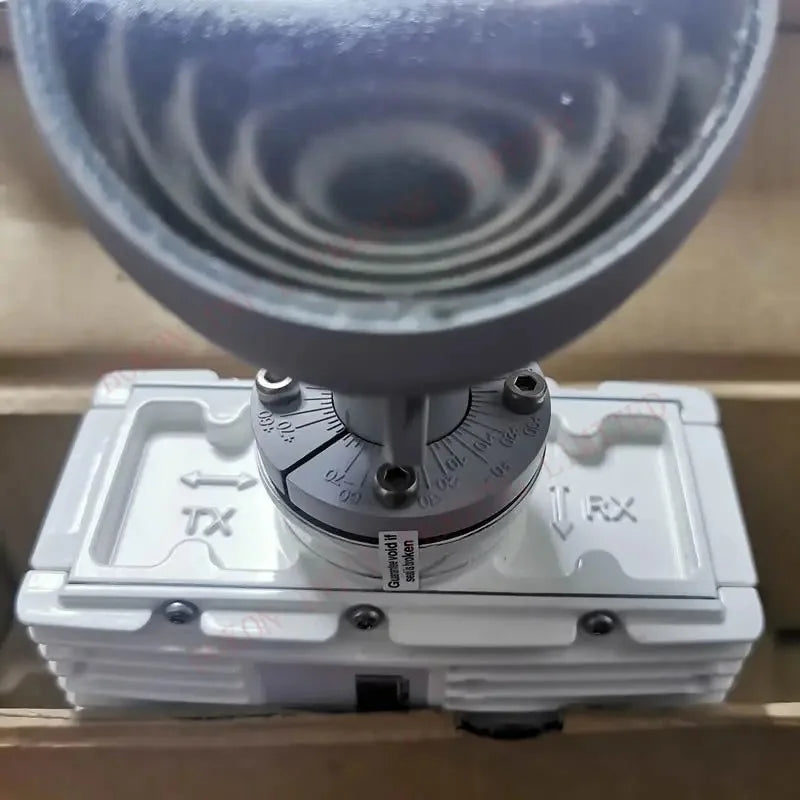

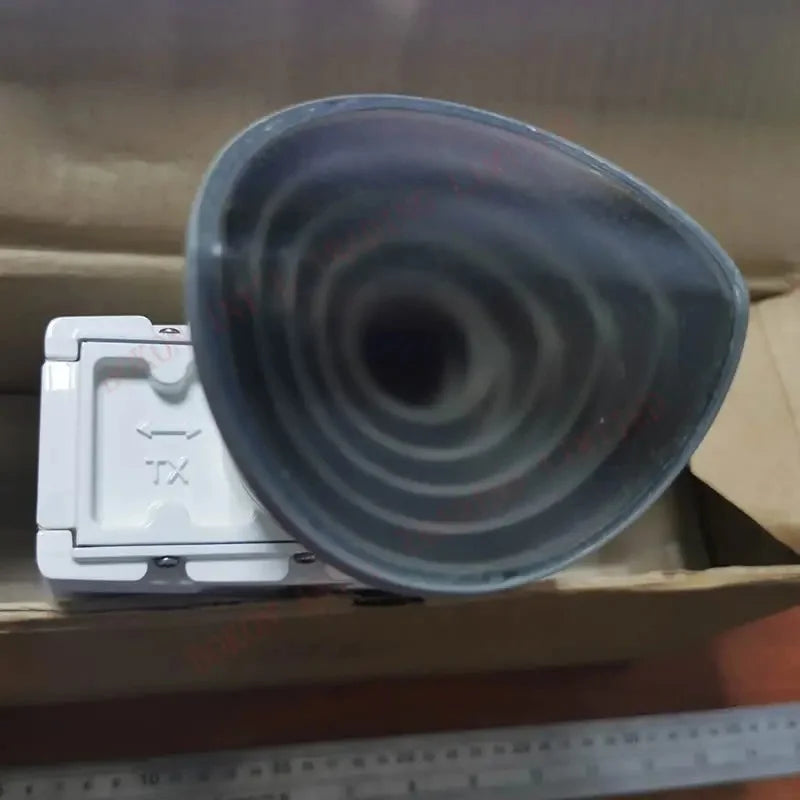

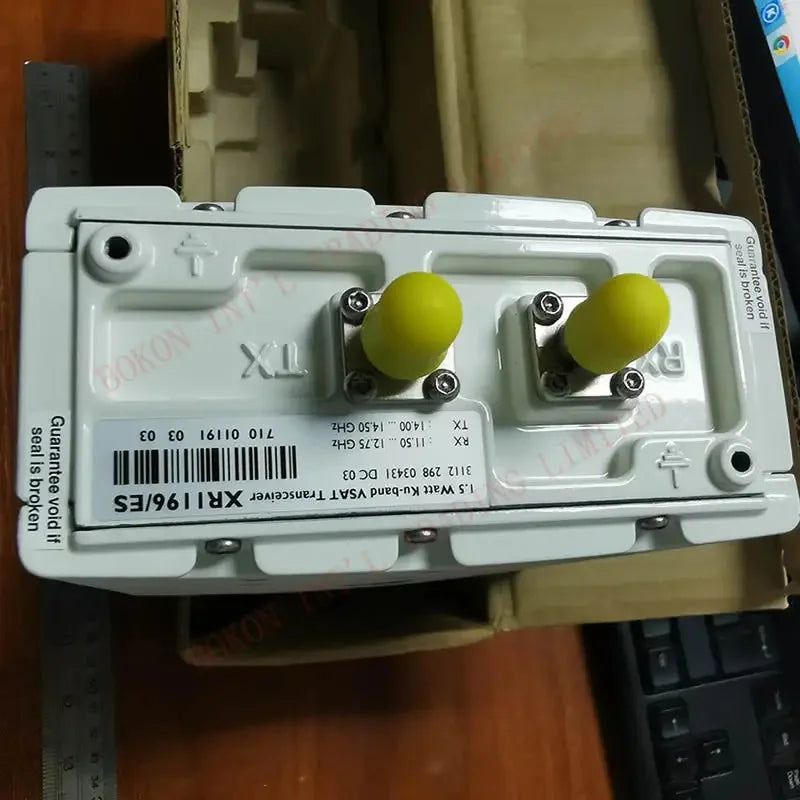

1.5 Watt Ku-Band VSAT Transceiver – XR1196 Series
The XR1196 1.5W Ku-Band VSAT Transceiver is a compact, high-performance satellite transceiver designed for VSAT (Very Small Aperture Terminal) communication systems. Operating on the Ku-band frequency range with a receive path of 11.50 to 12.75 GHz and a transmit path of 14.00 to 14.50 GHz, this unit delivers reliable two-way satellite connectivity for professional and DIY satellite installations. Compatible with Andrew and similar VSAT antenna systems.
⚠️ Important Notice: This product is sold as-is for experienced DIY installers and integrators. No technical support or installation service is included. Please ensure you have the necessary expertise before purchasing.
Key Features
- Output Power: 1.5 Watts (Ku-Band)
- Receive Frequency: 11.50 GHz – 12.75 GHz
- Transmit Frequency: 14.00 GHz – 14.50 GHz
- Band: Ku-Band VSAT
- Model: XR1196 / XR1196-ES
- Compatible With: Andrew and similar VSAT antenna systems
- Suitable for two-way broadband satellite communication
- Compact form factor for easy integration into existing VSAT setups
- Designed for professional satellite communication applications
Technical Specifications
| Model | XR1196 / XR1196-ES |
| Band | Ku-Band |
| TX Frequency | 14.00 – 14.50 GHz |
| RX Frequency | 11.50 – 12.75 GHz |
| Output Power | 1.5 Watts |
| Antenna Compatibility | Andrew / Standard VSAT |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × XR1196 1.5W Ku-Band VSAT Transceiver
Who Is This For?
This VSAT transceiver is ideal for satellite communication engineers, network integrators, and experienced DIY enthusiasts who need a reliable Ku-band RF transceiver for broadband satellite uplink and downlink applications. Whether you are upgrading an existing VSAT terminal or building a custom setup, the XR1196 offers professional-grade performance at an accessible price point.
For more information on satellite communication technology and spectrum use, visit the FCC or refer to technical guidance on RF engineering from NIST (National Institute of Standards and Technology).
Frequently Asked Questions
Q: What frequency bands does the XR1196 VSAT Transceiver operate on?
A: The XR1196 Ku-Band VSAT Transceiver operates on a receive (RX) frequency of 11.50 to 12.75 GHz and a transmit (TX) frequency of 14.00 to 14.50 GHz, which are standard Ku-band VSAT frequencies used for satellite broadband communication.
Q: Is the XR1196 compatible with Andrew VSAT antenna systems?
A: Yes, the XR1196 is listed as compatible with Andrew VSAT antenna systems, as well as other standard Ku-band VSAT setups. Always verify connector types and interface specifications before installation to ensure compatibility with your specific antenna.
Q: Does this transceiver come with technical support?
A: This unit is sold as a DIY product with no technical support or installation service included. It is intended for experienced satellite communication professionals and integrators who are familiar with VSAT system integration.
Q: What is the output power of this VSAT transceiver?
A: The XR1196 delivers 1.5 Watts of output power in the Ku-band, making it suitable for standard VSAT uplink applications requiring moderate transmit power.
