KR601E/M Waterproof RFID Proximity Card Reader — Wiegand 26/34
The KR601E/M RFID Card Reader is a compact, durable slave reader designed for professional door access control systems. Supporting both 125 kHz (EM/RFID) and 13.56 MHz (Mifare/NFC) card technologies, this reader delivers fast, reliable credential scanning in a sleek 86 × 86 mm form factor. Its IP65-rated weatherproof enclosure makes it suitable for indoor and outdoor installations alike.
⚠️ Please Note: This is a slave reader only and must be paired with a compatible master access control controller to function.
Model Variants:

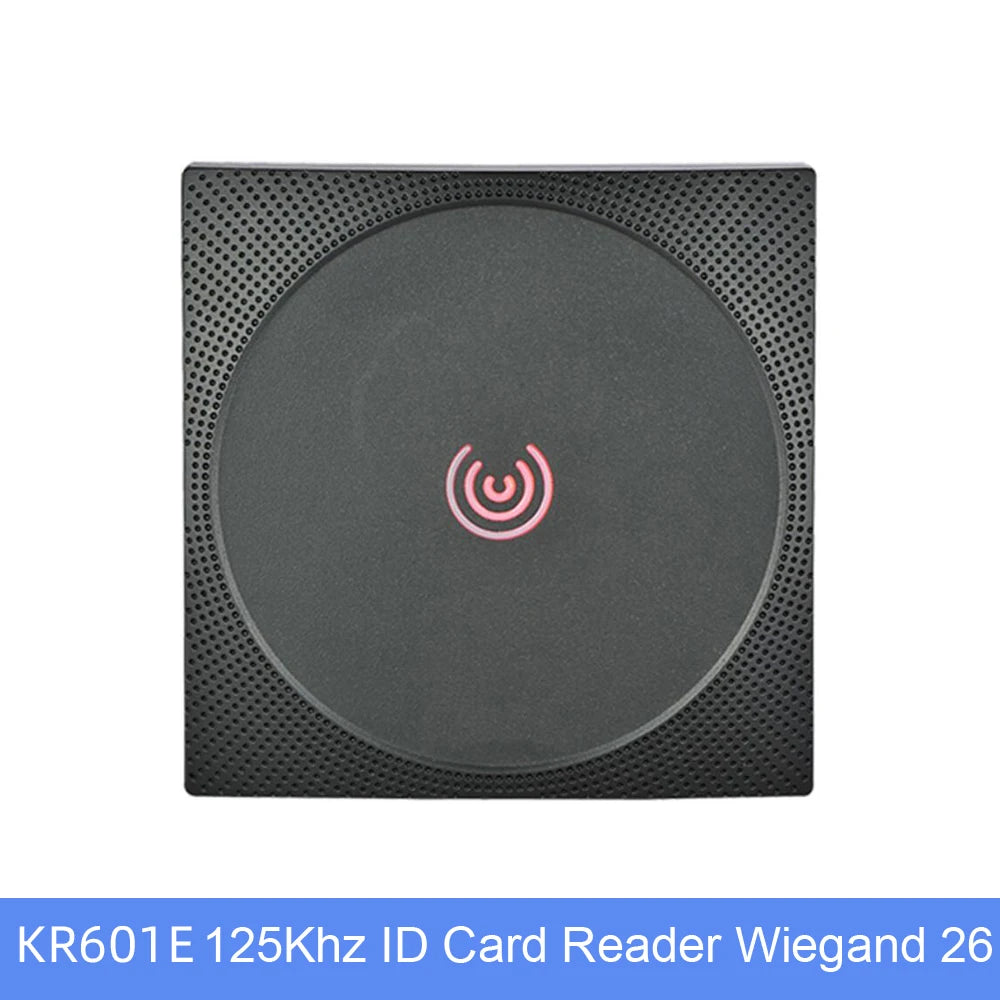

- KR601E — Wiegand 26-bit output | 125 kHz RFID
- KR601M — Wiegand 26/34-bit output | 13.56 MHz Mifare/NFC
Key Features
- ✅ Dual-frequency support: 125 kHz EM cards & 13.56 MHz Mifare/NFC cards
- ✅ Wiegand 26 & 34-bit output for broad controller compatibility
- ✅ IP65-rated enclosure — dust-tight and protected against water jets
- ✅ Ultra-fast reading response: ≤ 200 ms
- ✅ Built-in buzzer and dual-color LED indicators (Red & Green)
- ✅ External LED and buzzer control input ports
- ✅ Wide operating temperature range: -20°C to +65°C
- ✅ ABS + PC textured housing — robust and professional-looking
- ✅ Low power consumption: DC 12V / Max 70 mA
Technical Specifications
| Specification | Details |
|---|---|
| Card Frequency | 125 kHz (KR601E) / 13.56 MHz (KR601M) |
| Read Range | Up to 5 cm |
| Reading Time | ≤ 200 ms |
| Output Protocol | Wiegand 26-bit (KR601E) / Wiegand 26/34-bit (KR601M) |
| Power Supply | DC 12V / Max 70 mA |
| LED Indicators | Red & Green |
| Buzzer | Yes |

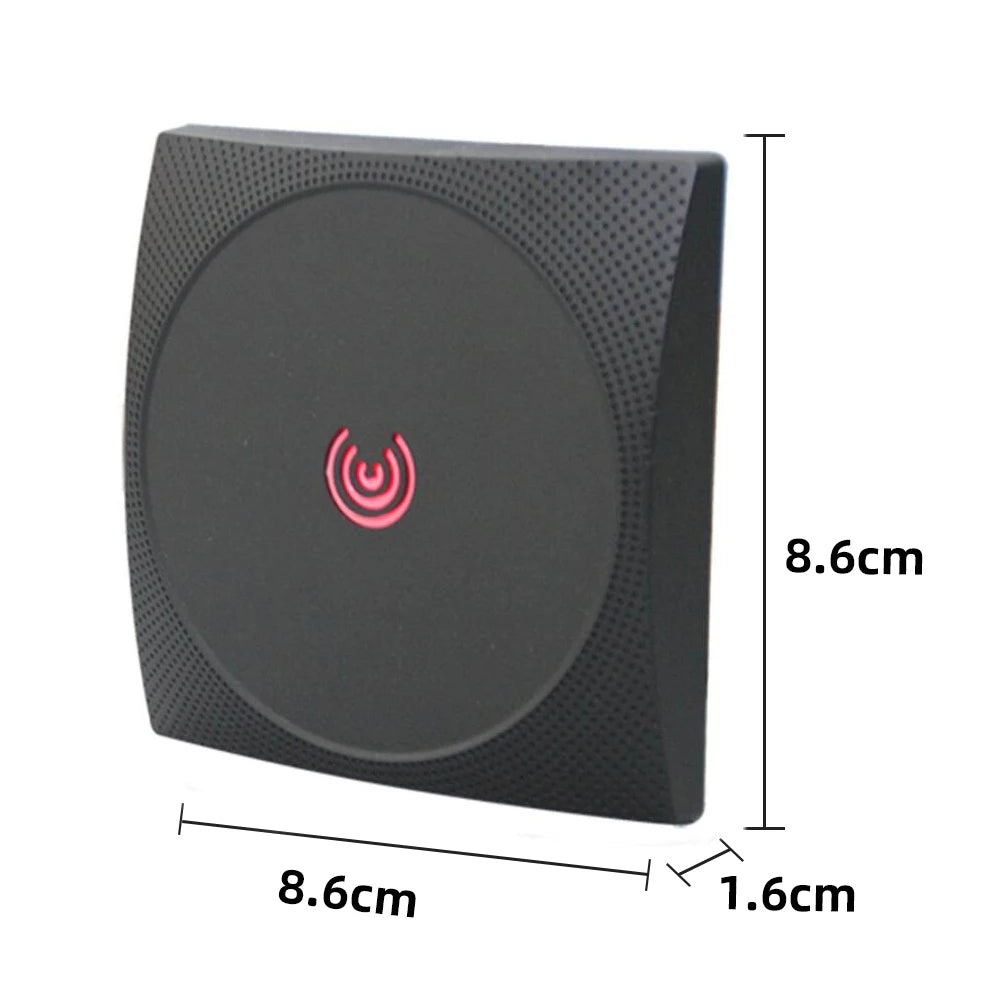

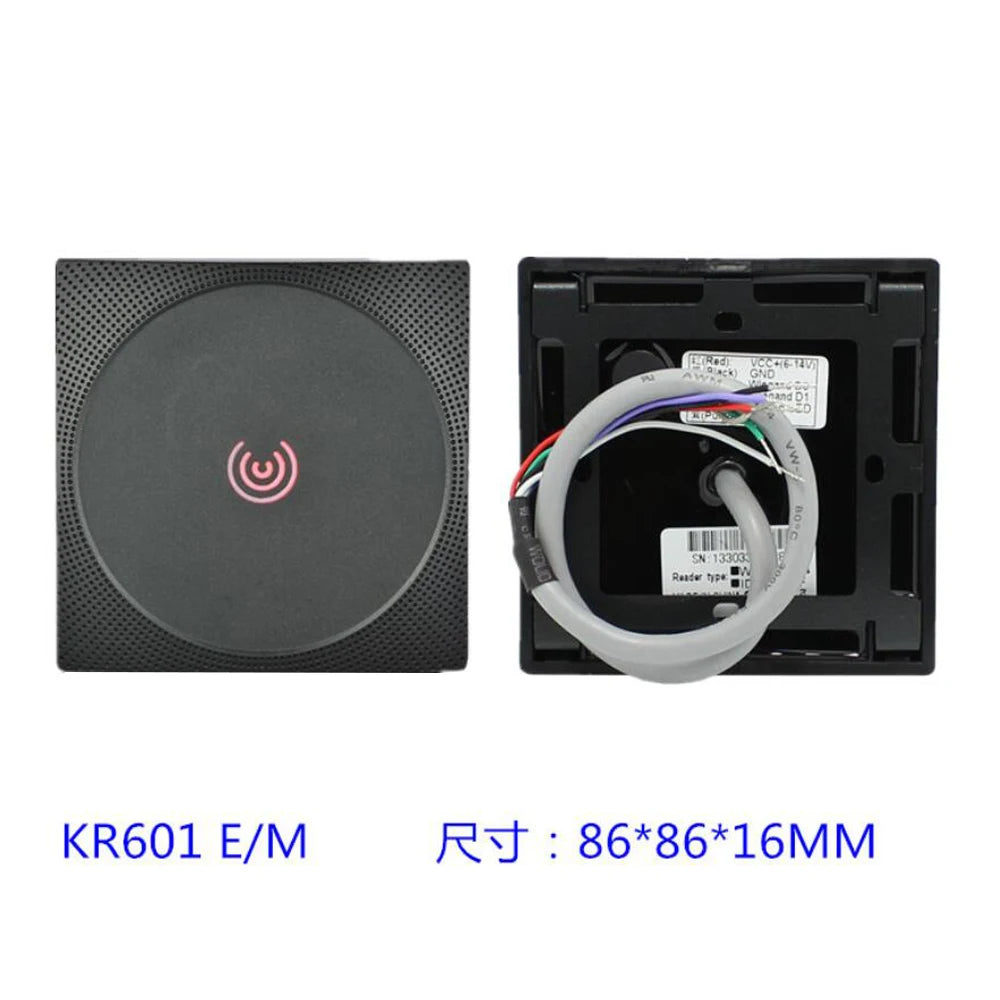

| Dimensions | 86 × 86 × 16 mm |
| Material | ABS + PC with texture |
| Operating Temperature | -20°C to +65°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| IP Rating | IP65 (weatherproof) |
| Color | Black |
| Country of Origin | Made in China |
Ideal Use Cases
- Office and commercial building door access control
- Residential security gate entry systems
- Parking lot and garage access management
- Warehouse and industrial facility entry points
- Any Wiegand-compatible access control infrastructure
What's in the Box?
- 1 × KR601E or KR601M RFID Card Reader (per selected variant)
- Installation hardware
For more information on electronic access control standards and security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the difference between the KR601E and KR601M RFID card readers?
A: The KR601E operates at 125 kHz and outputs a Wiegand 26-bit signal, making it compatible with standard EM-format proximity cards. The KR601M operates at 13.56 MHz, supports Mifare and NFC card standards, and outputs either Wiegand 26-bit or 34-bit signals for greater flexibility with modern access controllers.
Q: Can the KR601E/M work as a standalone access control unit?
A: No — the KR601E/M is a slave reader only. It must be connected to a compatible master access control controller that processes the Wiegand output data and manages door-locking hardware. It does not function independently.
Q: Is the KR601E/M suitable for outdoor installation?
A: Yes. The KR601E/M carries an IP65 weatherproof rating, meaning it is fully protected against dust ingress and water jets. This makes it well-suited for outdoor door entry points, gates, and exposed wall-mount locations across a wide temperature range of -20°C to +65°C.
Q: What power supply does the KR601E/M RFID reader require?
A: The reader requires a DC 12V power supply and draws a maximum of 70 mA, making it energy-efficient and easy to integrate into standard access control power distribution panels.
Q: What is the read range of the KR601E/M proximity card reader?
A: The KR601E/M can read compatible RFID and NFC cards at a distance of up to 5 cm (approximately 2 inches), with a fast reading response time of 200 ms or less for smooth and efficient entry flow.
