KM160F WiFi Wireless RV Battery Monitor Voltmeter Coulomb Meter
KM160F WiFi Wireless RV Battery Monitor Voltmeter Coulomb Meter
KM105F / KM160F WiFi Wireless RV Battery Monitor & Coulomb Meter
Take full control of your RV, solar, or off-grid electrical system with the KM160F WiFi Wireless Battery Monitor. Available in multiple current range models (KM105F, KM110F, KM140F, KM160F), this smart coulomb meter lets you track voltage, current, power, and battery capacity in real time — all from your smartphone, anywhere in the world via WiFi remote connection.
Key Features
- WiFi Remote Monitoring: Monitor your battery system from anywhere globally via WiFi — not limited to short-range Bluetooth only
- Multi-Model Range: Choose from 50A, 100A, 400A, or 600A current capacity to match your system's needs
- Wide Voltage Range: Measures 10–100V DC with 0.01V resolution
- Accurate Power Measurement: Up to 60KW power range (model dependent), with 0.0001W resolution
- Battery Capacity Display: 0%–100% state-of-charge display with amp-hour tracking (0–9999.9Ah)
- High Sampling Rate: 5 samples per second for responsive, real-time readings
- Shunt (Splitter) Sampling: Reliable shunt-based current measurement for precision accuracy
- Low Power Consumption: Only 0.9W monitor power draw
- Bluetooth + WiFi Dual Connectivity: Bluetooth range up to 10m; WiFi for global remote access
- Adjustable Sampling Intervals: 10s, 20s, 30s, 40s, 50s, 60s, or AUTO
- Made in Mainland China

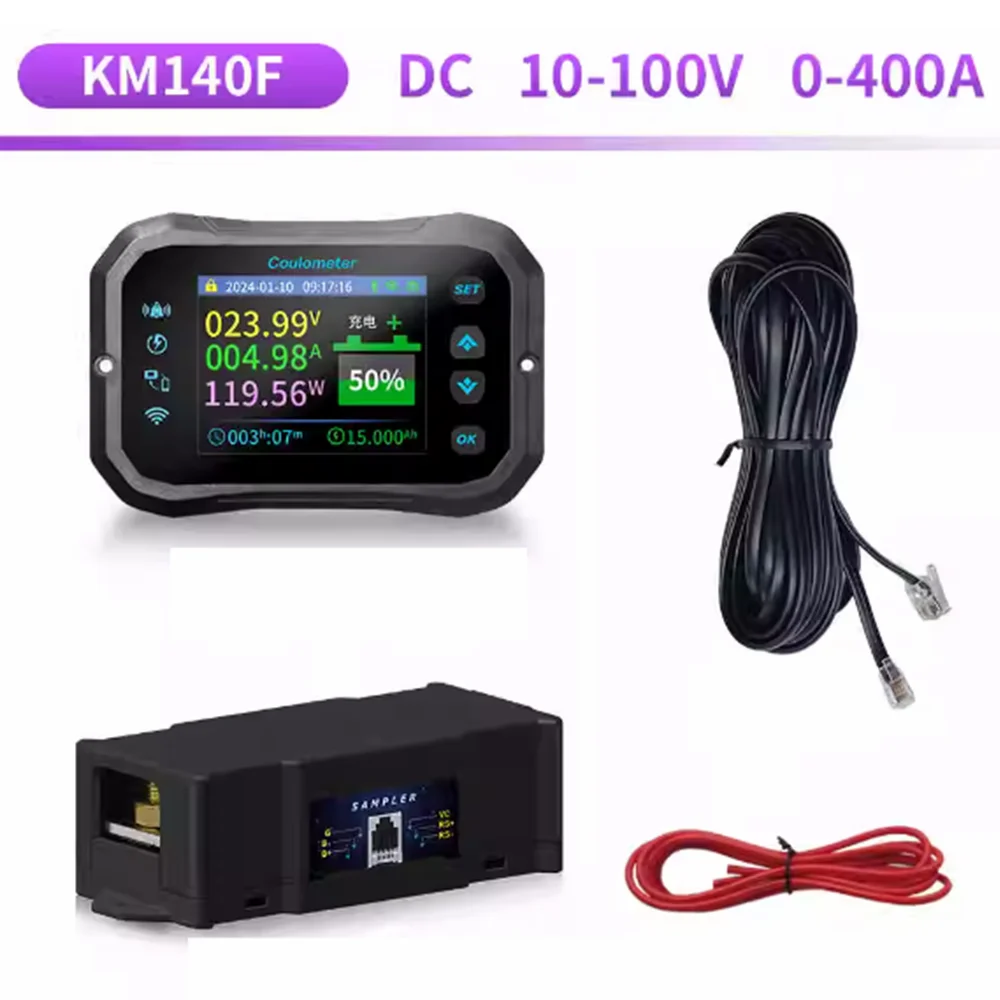

Model Specifications at a Glance
| Spec | KM105F | KM110F | KM140F | KM160F |
|---|---|---|---|---|
| Current Range | 0–50A | 0–100A | 0–400A | 0–600A |
| Power Range | 0–5KW | 0–10KW | 0–40KW | 0–60KW |
| Current Resolution | 0.001A | 0.001A | 0.001A | 0.01A |
| Voltage Range | 10–100V DC (all models) | |||
| Voltage Resolution | 0.01V (all models) | |||
| Amp-Hour Range | 0–9999.9Ah (all models) | |||

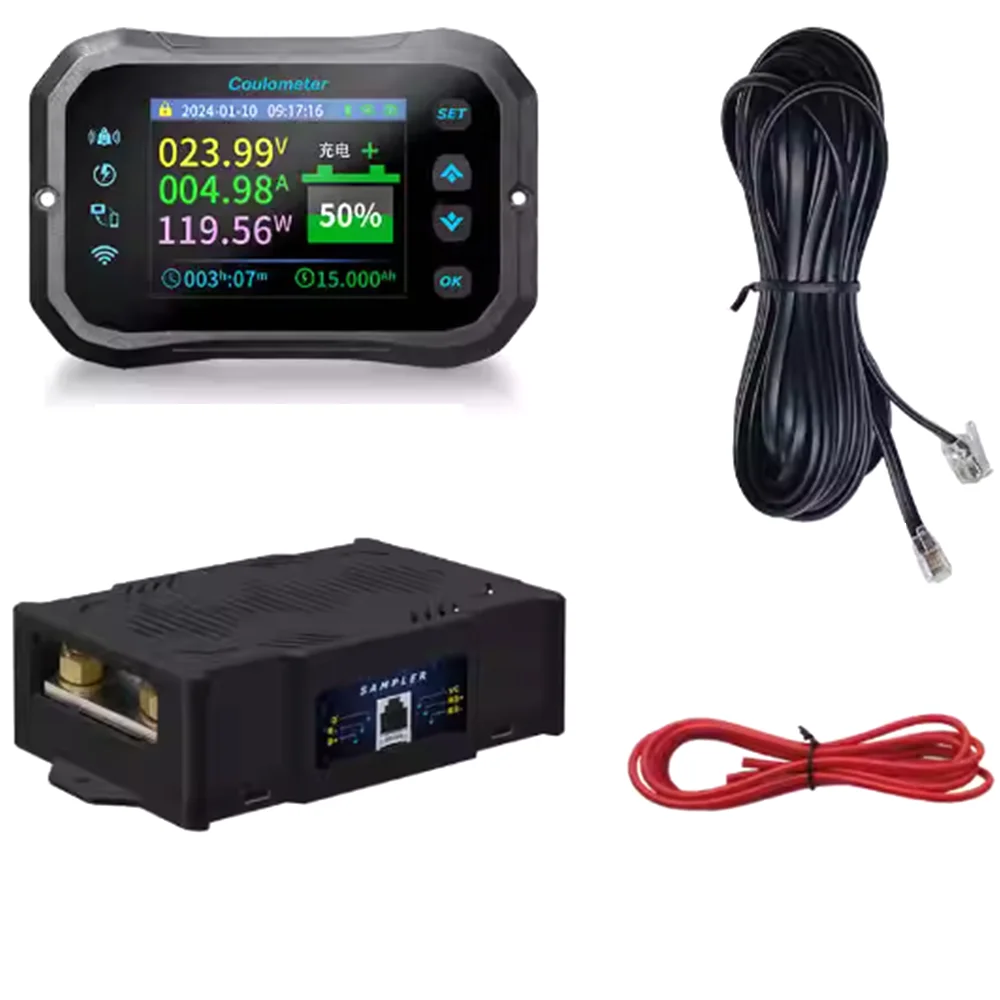

What's in the Box
- KM Series WiFi Battery Monitor Unit
- Current shunt (splitter) for sampling
- Note: Batteries not included
Ideal For
- RV and camper van battery monitoring
- Solar energy storage systems
- Marine and boat battery banks
- Off-grid and backup power setups
- Electric vehicle auxiliary battery management
For guidance on safe electrical monitoring in recreational vehicles and solar systems, visit the U.S. Department of Energy – Solar Energy resource page.
Frequently Asked Questions
Q: What is the difference between the KM105F and the KM160F WiFi battery monitor?
A: The main difference is the current measurement range. The KM105F handles up to 50A (0–5KW power), while the KM160F supports up to 600A (0–60KW power). Both share the same 10–100V voltage range and WiFi/Bluetooth connectivity. Choose based on the total current capacity of your battery or solar system.
Q: How does the WiFi remote monitoring work on the KM160F coulomb meter?
A: The KM160F connects to your home or RV WiFi network and links to a smartphone app. Once connected, you can view real-time voltage, current, power, battery percentage, and amp-hour data from anywhere in the world — not just within Bluetooth range. Bluetooth connection range is up to 10 meters for local monitoring.
Q: Is this voltmeter compatible with solar panel battery banks and lithium batteries?
A: Yes. The KM series supports any DC battery system within the 10–100V range, making it fully compatible with lead-acid, AGM, gel, and lithium (LiFePO4) battery banks commonly used in solar, RV, and marine setups.
Q: Does the KM160F WiFi coulomb meter require a constant power source to operate?
A: The monitor itself consumes only 0.9W of power during operation and runs on 5V DC. It is designed for self-contained installation and does not require batteries — it draws power directly from your electrical system. Batteries are not included.
