Kamoer DIP 24V Intelligent Peristaltic Pump | Food Grade Lab
Kamoer DIP 24V Intelligent Peristaltic Pump | Food Grade Lab

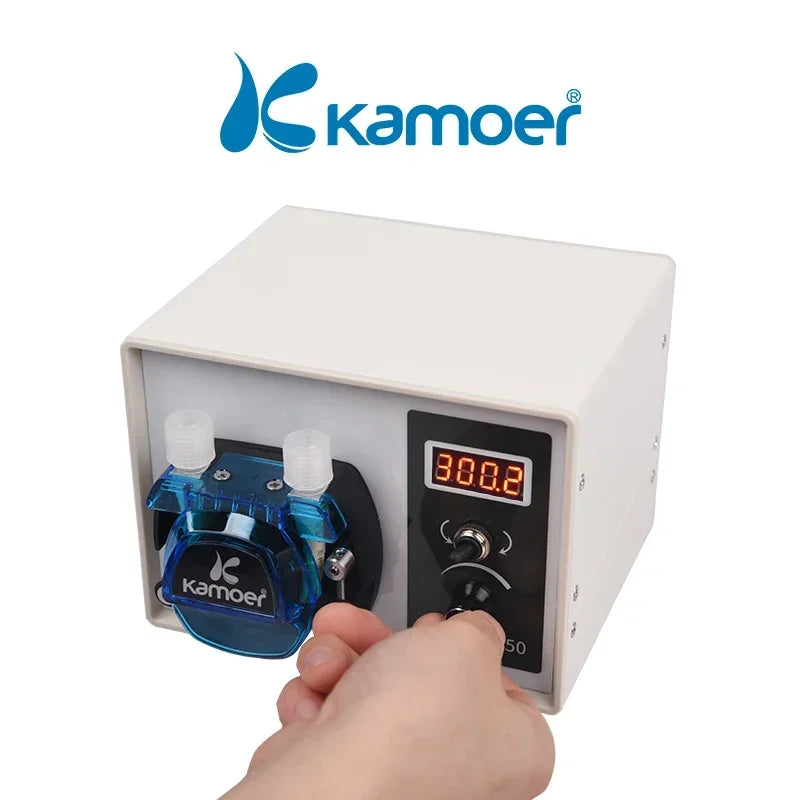

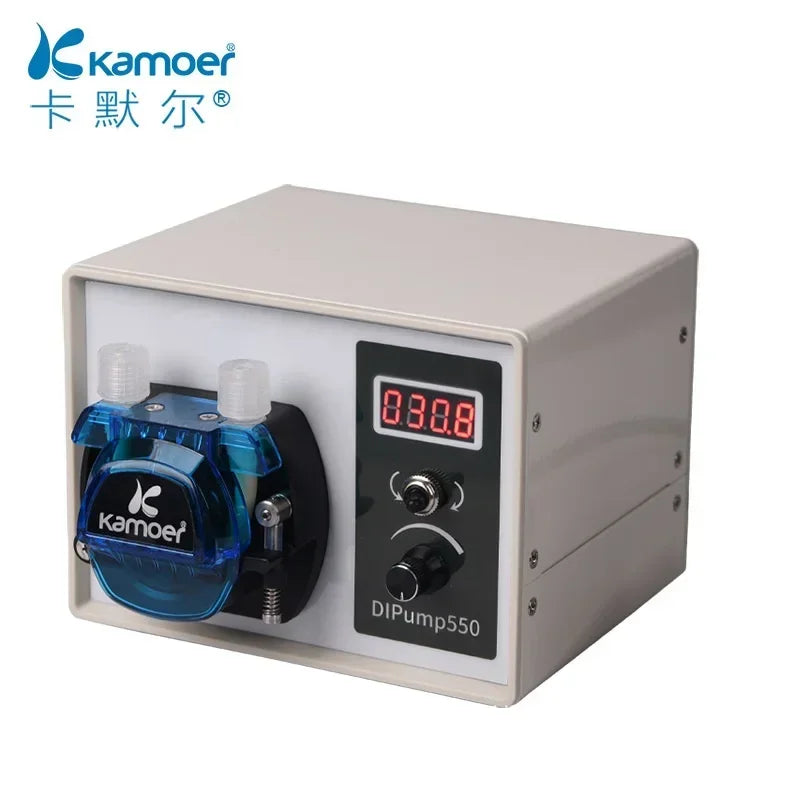

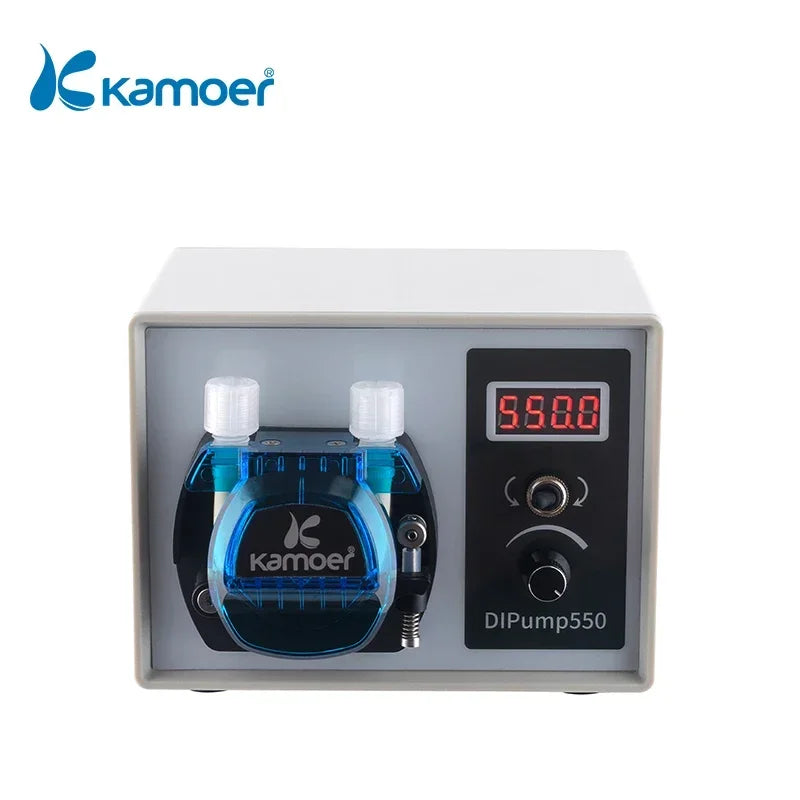

Kamoer DIP Intelligent 24V Peristaltic Pump — Precision Flow for Aquarium, Lab & Analytical Use
The Kamoer DIP Intelligent Peristaltic Pump is a professional-grade, food-safe circulating pump engineered for demanding applications — from aquarium dosing and laboratory fluid handling to industrial analytical systems. With a wide flow range of up to 670 ml/min and an ultra-precise speed resolution of 0.1 RPM, this pump delivers exceptional control and repeatability in every operation. Made in Mainland China.
6 Major Operating Functions
- Automatic Circulation — Set it and let the pump run timed cycles hands-free.
- Semi-Automatic Cycle — Trigger a single cycle with one command for flexible workflows.

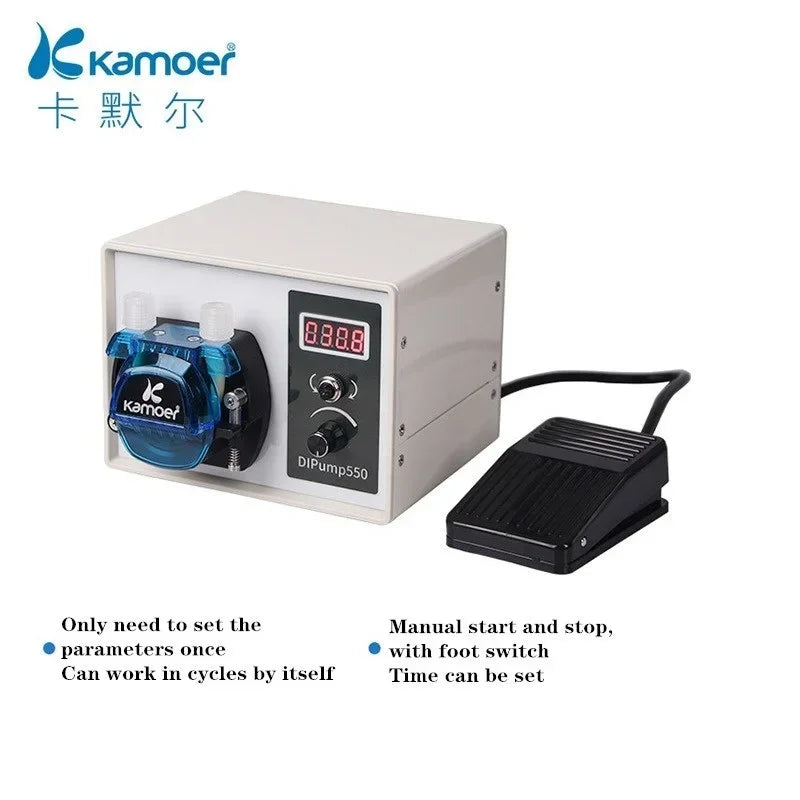

- Manual Start/Stop — Full operator control at any time via encoder or foot switch.
- Forward & Reverse Direction — Instantly switch flow direction for purging or backfill.
- Precision Speed Control — Dial in flow from 0.1 to 500 RPM with 0.1 RPM resolution.
- Parameter Memory — Settings are retained after power-off for fast restart.

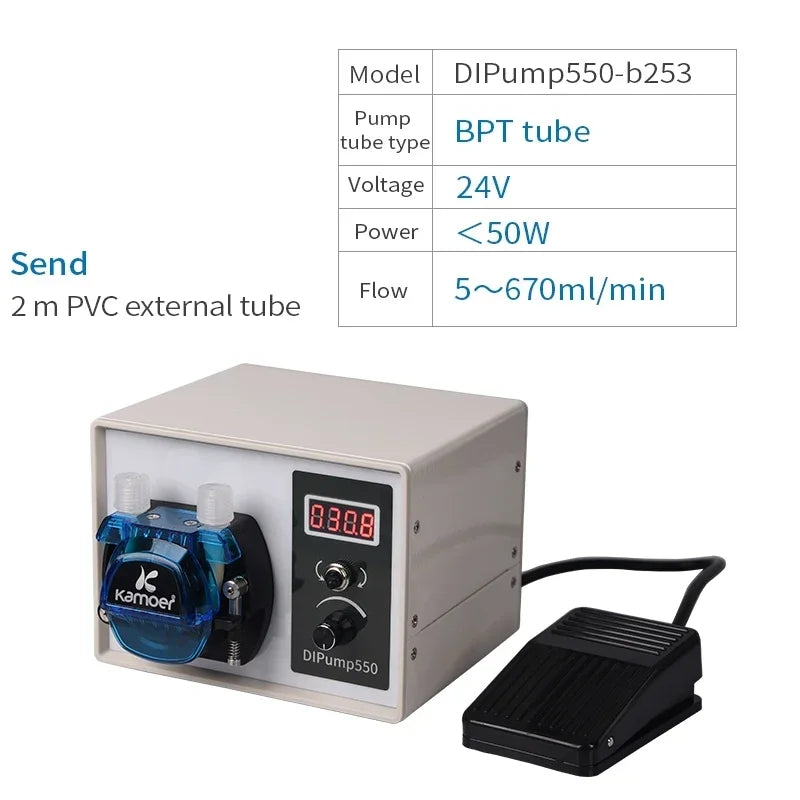

Technical Specifications
| Voltage | 24V DC |
| Power | Less than 50W |
| Max Current | 2A |
| Flow Range | ≤ 670 ml/min |
| Speed Range | 0.1 – 500 RPM |
| Speed Resolution | 0.1 RPM |
| Pump Tube Material | Silicone / BPT (food grade) |
| Working Temperature | -20°C to 60°C |
| Body Dimensions (L×W×H) | 150 × 162 × 117 mm (incl. pump head) |
| Display | LED 4-digit digital tube (speed & duration) |
| Power Supply | External power adapter |
| Multi-Machine Network | Up to 15 pumps interconnected |
| Control Methods | Encoder, toggle switch, external analog signal (4–20mA / 0–5V), RS485 communication, foot switch |
Who Is This Pump For?
This intelligent peristaltic pump is ideal for:
- Aquarium & reef systems — precise, consistent dosing of additives and nutrients
- Laboratory & analytical environments — repeatable fluid transfer with RS485 integration
- Food & beverage processing — food-grade silicone tubing keeps fluid contact safe and clean
- Industrial automation — chain up to 15 units via multi-machine interconnection for large-scale operations
What's in the Box
- 1 × Pump host unit
- 1 × Power cable
- 1 × Foot switch
For guidance on safe fluid handling equipment in laboratory settings, visit the OSHA Laboratory Safety resource page.
Frequently Asked Questions
Q: What types of fluids can the Kamoer DIP peristaltic pump handle?
A: The pump uses food-grade silicone or BPT tubing, making it suitable for water, nutrient solutions, reagents, and many non-corrosive fluids used in aquarium dosing, laboratory analysis, and food-grade circulating applications. Always verify chemical compatibility with the tubing material before use.
Q: Can the pump be controlled remotely or integrated into an automated system?
A: Yes. The Kamoer DIP pump supports RS485 communication control and external analog signal input (4–20mA or 0–5V), making it fully compatible with PLCs, automation controllers, and multi-machine networks of up to 15 pumps simultaneously.
Q: Does the pump remember my settings after a power outage?
A: Yes. The parameter memory function retains your speed, direction, and cycle settings even after the pump is powered off, so you can resume operation immediately without reprogramming.
Q: What is the minimum and maximum flow rate of this peristaltic pump?
A: The pump's flow rate is determined by its speed range of 0.1 to 500 RPM with a resolution of 0.1 RPM, delivering flows up to 670 ml/min. Very low RPM settings allow for precise micro-dosing applications in lab and aquarium environments.
