KAK Soft Close Gas Spring Door Closer 30–60KG | 110° Hold
KAK Soft Close Gas Spring Door Closer 30–60KG | 110° Hold
KAK Automatic Soft-Close Overhead Door Closer – Gas Spring Design
Upgrade any interior or exterior door with the KAK Overhead Gas Spring Door Closer (Model KAK-LD001). Crafted from aviation-grade aluminum alloy, this compact yet powerful closer automatically and quietly shuts your door every time — no slamming, no noise, no fuss. Whether it's a bedroom, wooden, metal, or fire-rated door, this versatile hardware fits them all.
Made in Mainland China.
Key Features
- Soft, Silent Closing Action – The gas spring mechanism slows the door to a gentle, near-silent close, eliminating disruptive slamming.
- Adjustable Closing Speed – Fine-tune the closing speed to suit your preference. (Note: do not over-tighten the speed screw or the door may not fully close.)
- 110° Positioning Hold – Holds the door open at any angle from 80° to 110°, giving you hands-free convenience when moving items through.
- Aviation Aluminum Alloy Construction – Lightweight yet durable; built to withstand daily use on a wide range of door types.
- Universal Fit – Compatible with door widths of 500–900 mm and door thickness up to 70 mm.

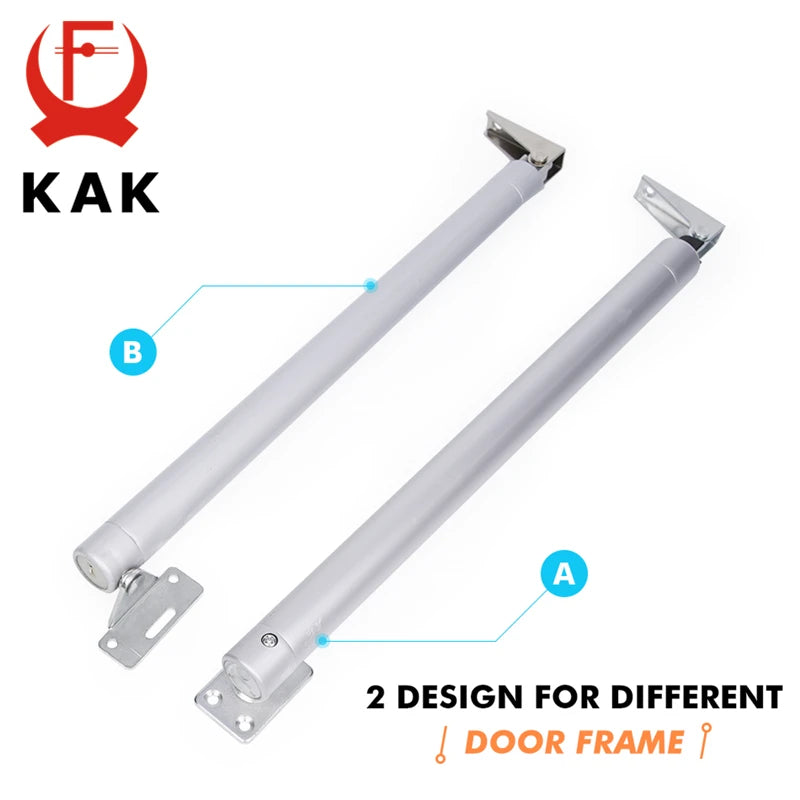

- Two Installation Types (A & B) – Type A is for doors and frames that are NOT flush (install on the hinge side, base 10 cm from frame). Type B is for doors and frames that ARE flush (install on front or closing side, base 10 cm from frame).
- Easy Installation – All mounting accessories included; no specialist tools required.
Specifications
| Brand | KAK |
| Model | KAK-LD001 |
| Material | Aviation Aluminum Alloy |
| Bearing Weight | 15–30 KG (Small) / Up to 60 KG (Large) |
| Positioning Angle | 80°–110° |
| Door Width Range | 500–900 mm |
| Max Door Thickness | 70 mm |
| Applications | Bedroom, wooden, metal, fire-proof, and window doors |
| Origin | Mainland China |
| Package | 1 × Door Closer with Accessories |

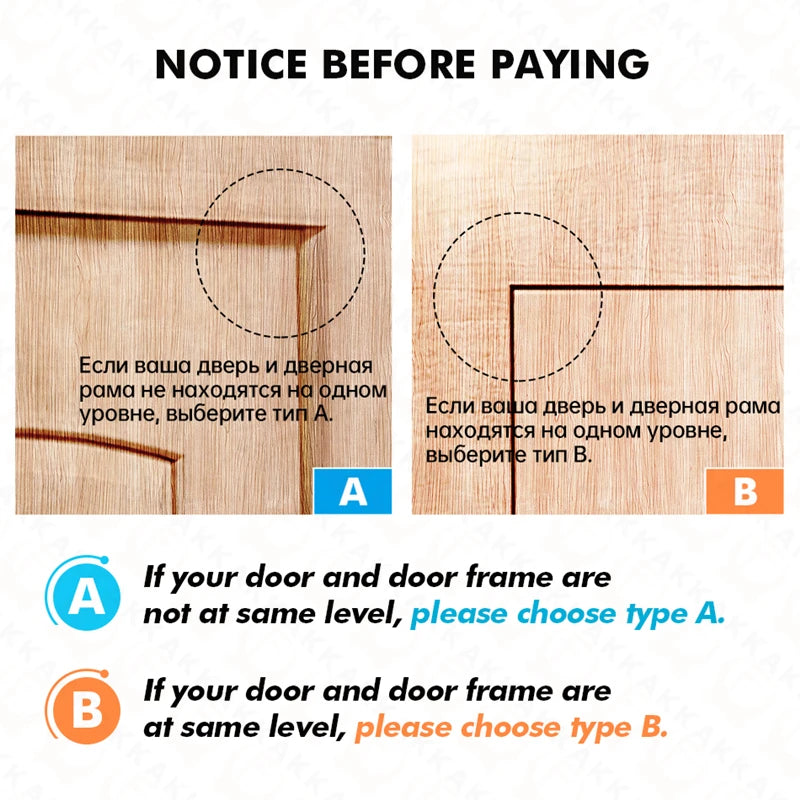

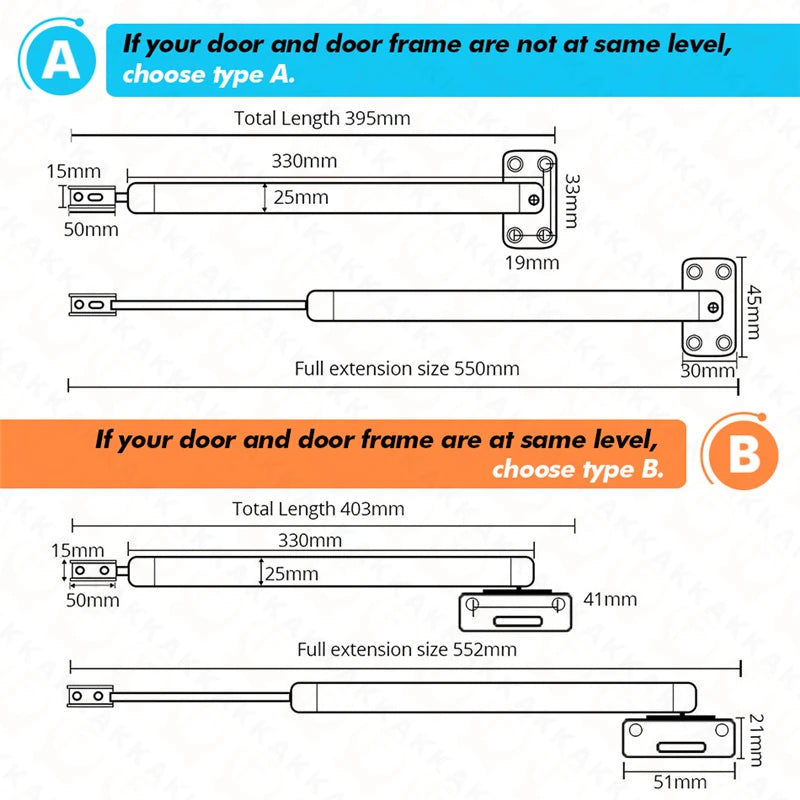

How to Choose the Right Type
Type A: Select this if your door and door frame are not at the same level (recessed frame). Install on the same side as the door hinges, with the base positioned 10 cm from the door frame.

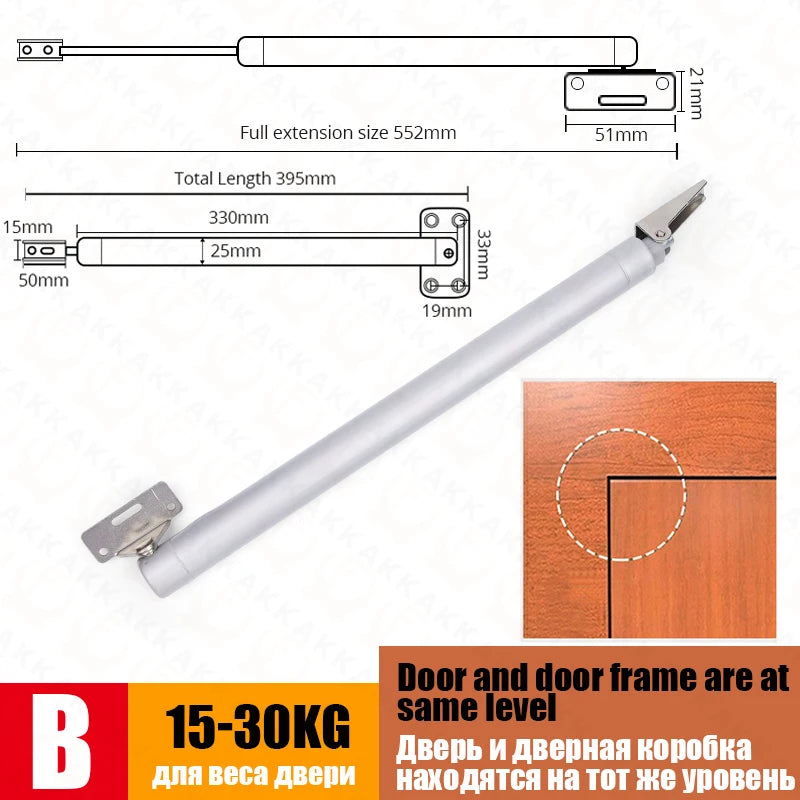

Type B: Select this if your door and door frame are at the same level (flush frame). Can be installed on either the front side or the closing side of the door, with the base 10 cm from the door frame.
Installation Tips
- Identify whether your door is Type A or Type B (see above).
- Mark and pre-drill mounting holes on the door and frame.
- Attach the closer body and arm bracket using the supplied screws.

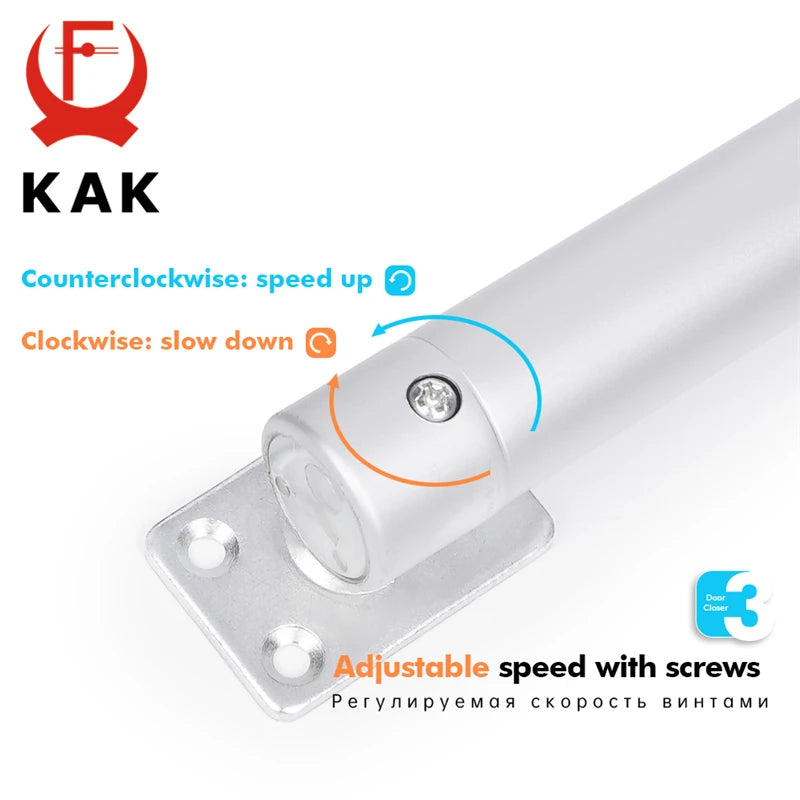

- Adjust the speed screw to your preferred closing speed — turn clockwise to slow, counter-clockwise to speed up. Do not tighten fully or the mechanism will not function correctly.
For general hardware installation safety guidelines, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of doors are compatible with the KAK gas spring door closer?
A: The KAK door closer is compatible with bedroom doors, wooden doors, metal doors, fire-rated doors, and window doors. It fits door widths of 500–900 mm and door thicknesses up to 70 mm, making it suitable for most standard residential and light commercial doors.
Q: What is the difference between Type A and Type B installation?
A: Type A is designed for doors where the door and door frame are NOT at the same level — install it on the hinge side with the base 10 cm from the frame. Type B is for doors and frames that ARE flush — it can be installed on either the front or closing side of the door, also with the base 10 cm from the frame.
Q: How do I adjust the closing speed of the KAK door closer?
A: The KAK gas spring door closer features an adjustable speed screw. Turn it clockwise to slow the closing speed, or counter-clockwise to increase it. Important: do not tighten the speed screw completely, as this will prevent the door from closing fully.
Q: What weight capacity does this door closer support?
A: The small size supports doors weighing 15–30 KG, while the larger capacity variant supports doors up to 60 KG. Choose the appropriate size based on the weight of your door.
Q: Is the KAK door closer noisy during operation?
A: No. The gas spring design ensures a near-silent, smooth closing action. It effectively prevents door slamming without producing any disruptive noise, making it ideal for bedrooms and shared living spaces.
