Asia-Teco K3/K3F IP67 Waterproof Smart Standalone Access Controller
Take full control of who enters your property with the Asia-Teco K3/K3F Smart Access Controller. This IP67-rated waterproof RFID reader combines Bluetooth connectivity, fingerprint recognition, RFID card, PIN code, and remote APP management into one sleek, zinc-alloy unit — fully compatible with Amazon Alexa and Google Home for seamless smart-home integration. Made in Mainland China.
Key Features

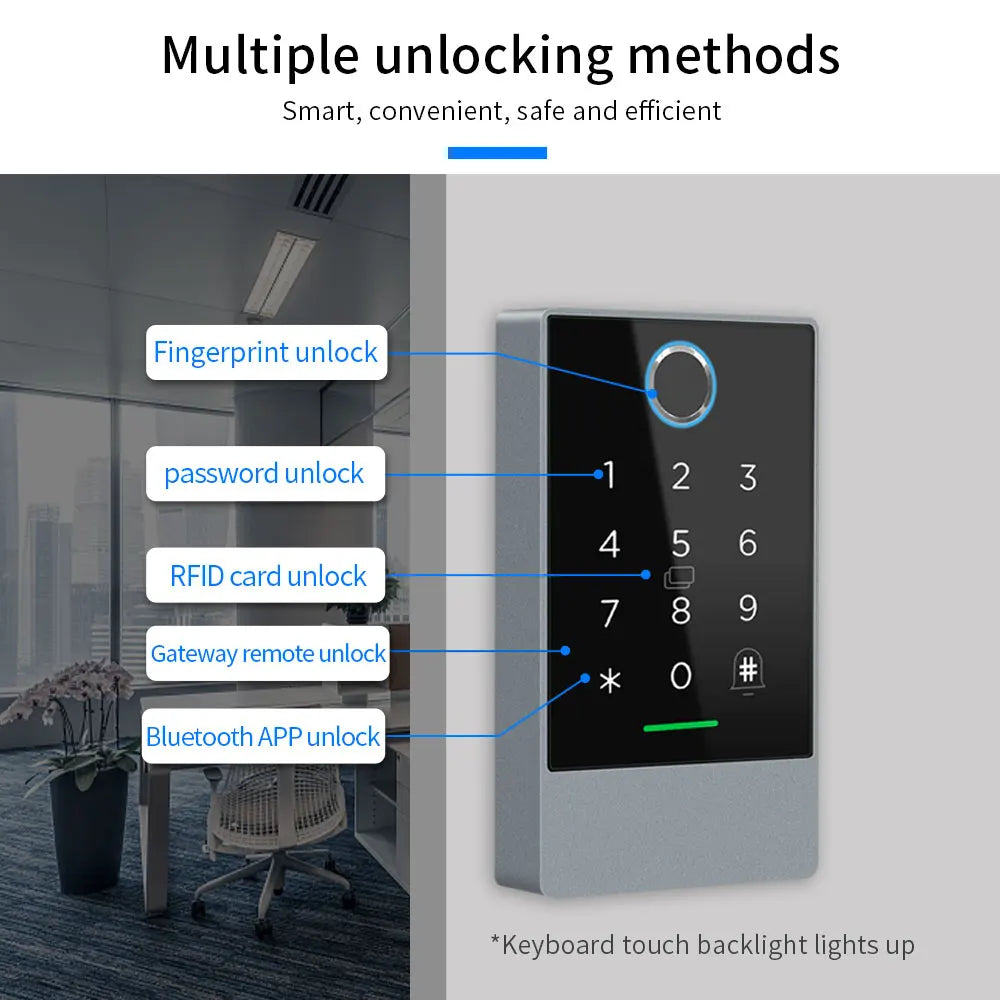

- 4-in-1 Unlock Methods: Smartphone app (TTLock), fingerprint, PIN code, or RFID card — use any combination for maximum flexibility.
- IP67 Waterproof & Weatherproof: Rated IP67 for full dust protection and temporary water submersion — ideal for outdoor gates, garages, and commercial entrances.
- Massive User Capacity: Supports up to 20,000 users and 10,000 RFID cards with 100 stored fingerprints.

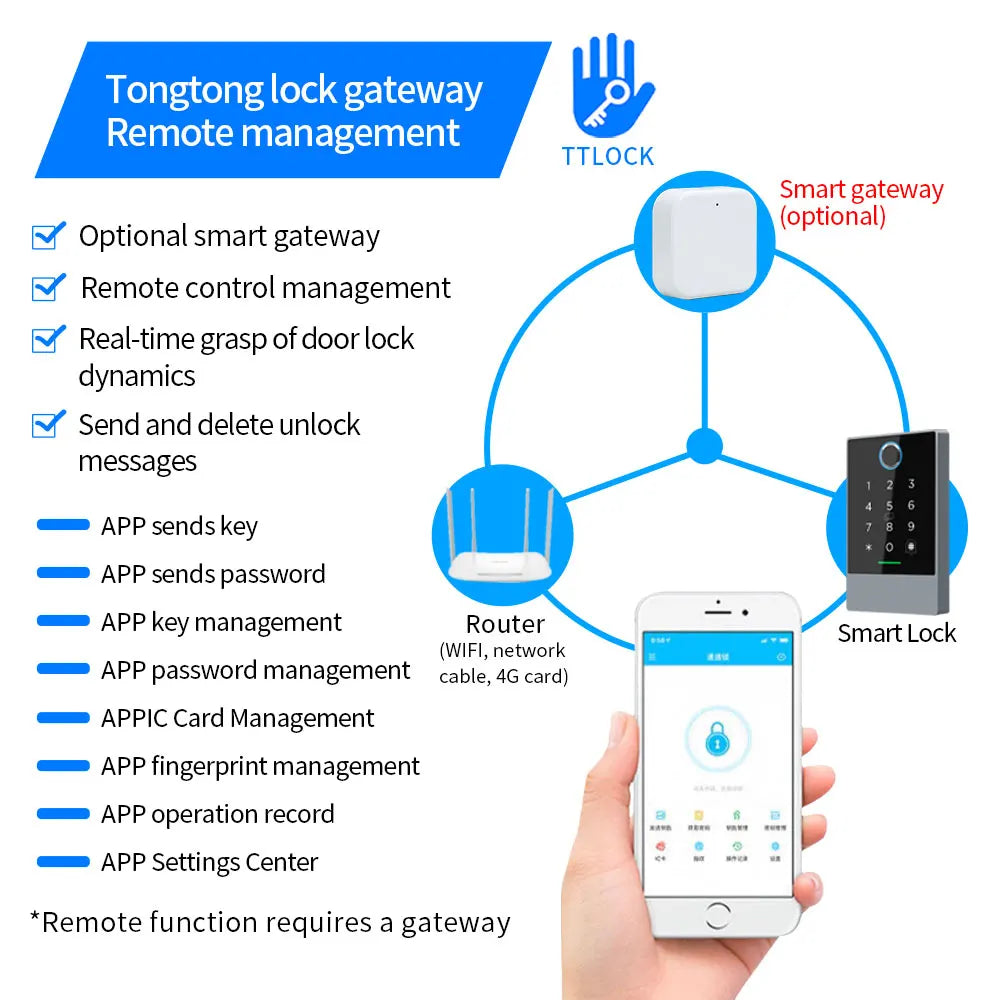

- Time-Limited & Remote Access: Generate time-restricted passcodes and eKeys directly from the TTLock app. Add or remove users remotely at any time.
- Cloud-Backed Data Storage: All access logs and attendance records are stored securely in the cloud and accessible remotely from your phone.
- Share eKeys with Authorization Levels: Share digital keys with different permission tiers — perfect for offices, rental properties, or shared facilities.
- Anti-Tamper Keypad Lock: Keypad locks for 5 minutes after 5 consecutive incorrect PIN attempts.
- Pseudo Passcode Support: Enter random digits before your real passcode to prevent onlookers from identifying your code.
- Auto-Lock: Automatically re-locks within 5 seconds of an unlock event.
- Real-Time Push Notifications: Administrators receive instant notifications when the door is accessed via app.
- Voice Control: Works with Amazon Alexa and Google Home for hands-free operation.
- Backlit Touch Keypad: Easy to use in low-light conditions.
- Multi-System Management: One TTLock app manages multiple access controllers simultaneously.
Technical Specifications

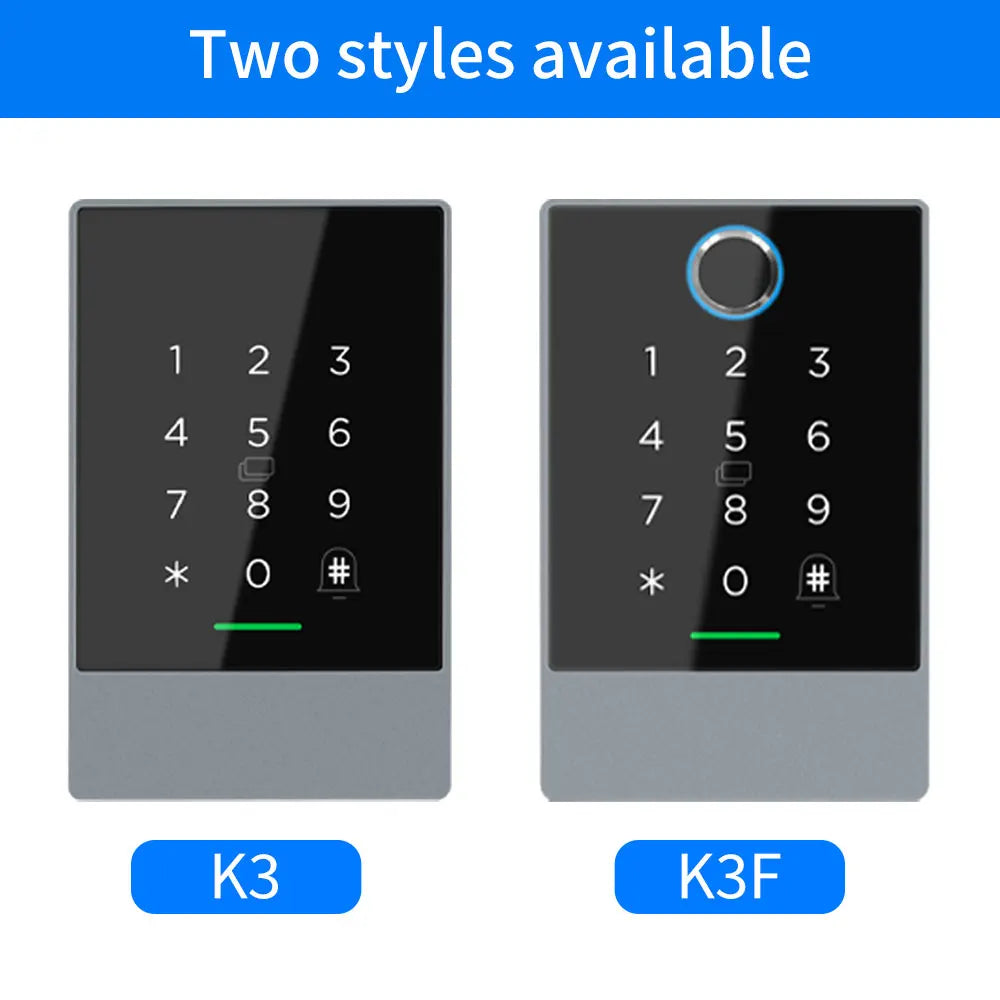

| Model | K3 / K3F |

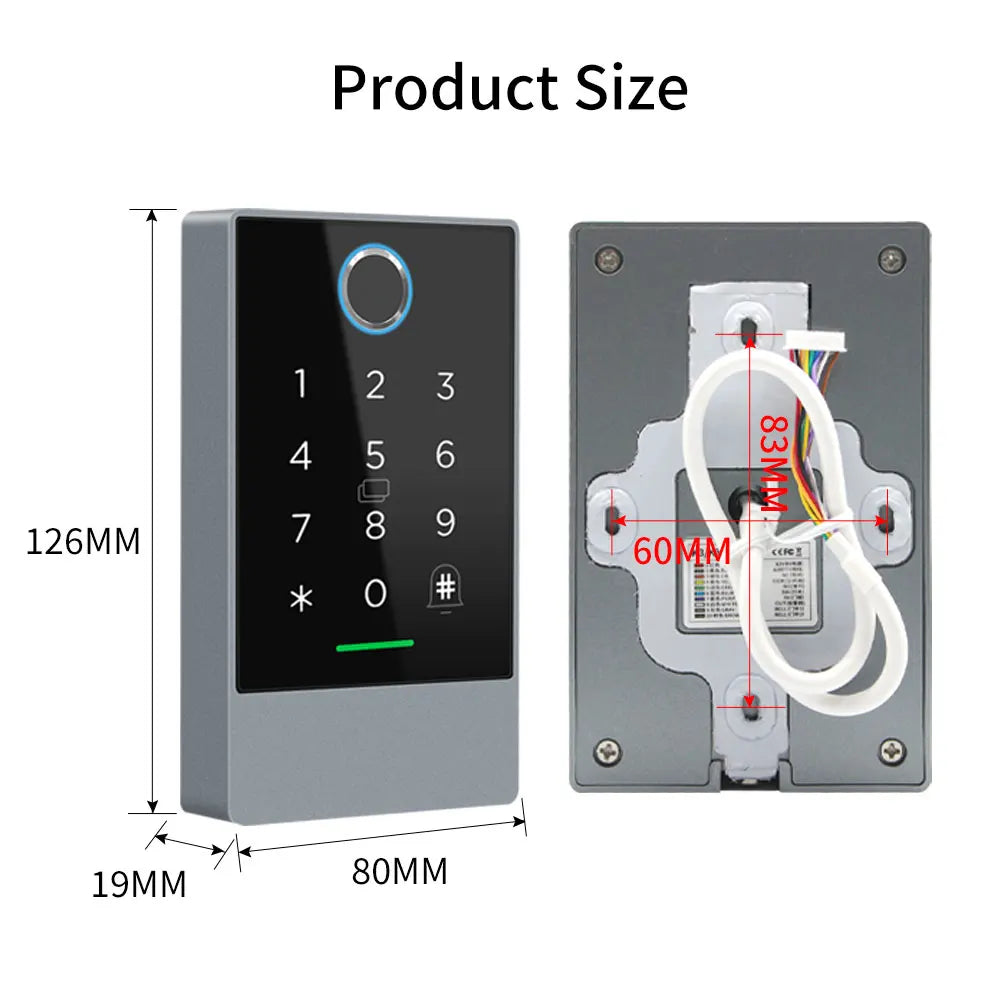

| Dimensions | 125mm × 79mm × 15.55mm |
| Material | Zinc alloy body & acrylic keypad |
| Power Supply | DC 10–24V |
| Working Current | <100mA |
| Bluetooth Version | Bluetooth 4.1 |
| RFID Frequency | 13.56 MHz |
| Reading Distance | 0–10 cm |
| Waterproof Rating | IP67 |
| User Capacity | 20,000 users |
| Card Capacity | 10,000 RFID cards |
| Fingerprint Capacity | 100 fingerprints |
| Passcode Capacity | Unlimited |
| Security Mode | Fail Safe with Signal |
| Output Ports | NO / NC / COM |
| App Compatibility | Android 4.3+ / iOS 7.0+ |
| Smart Home | Amazon Alexa, Google Home |
| Country of Origin | Made in Mainland China |
What's in the Box?
Package includes the access controller/reader only. If you require magnetic lock kits or additional hardware, please contact us prior to purchase.
Authoritative Resource
For guidance on electronic access control standards and best practices for physical security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the Asia-Teco K3/K3F access controller suitable for outdoor installation?
A: Yes. The K3/K3F is rated IP67 waterproof, meaning it is fully protected against dust and can withstand temporary immersion in water. This makes it well-suited for outdoor gates, garage doors, and exterior commercial entrances exposed to rain and humidity.
Q: How many users can the TTLock K3/K3F smart access controller support?
A: The controller supports up to 20,000 total users, 10,000 RFID cards, and 100 stored fingerprints. Passcode capacity is unlimited, making it highly scalable for offices, apartment buildings, and large facilities.
Q: Can I grant temporary or time-limited access to guests using the TTLock app?
A: Absolutely. Through the TTLock app, you can generate time-restricted eKeys and PIN codes that expire automatically — ideal for short-term rentals, delivery personnel, or temporary contractors. Users and credentials can be added or removed remotely at any time.
Q: Does the K3/K3F work with Amazon Alexa and Google Home?
A: Yes. The K3/K3F is compatible with both Amazon Alexa and Google Home, allowing you to control and monitor access using voice commands as part of your existing smart home setup.
Q: Does the package include a magnetic lock or other installation hardware?
A: The package includes the access controller/reader unit only. Magnetic lock kits and additional wiring accessories are available separately — please contact us if you need help sourcing compatible hardware.
