K2F Waterproof Bluetooth Fingerprint Keypad Door Lock – TTLOCK
K2F Waterproof Bluetooth Fingerprint Keypad Door Lock – TTLOCK
K2F Waterproof Bluetooth Fingerprint Access Control Keypad – TTLOCK App Compatible

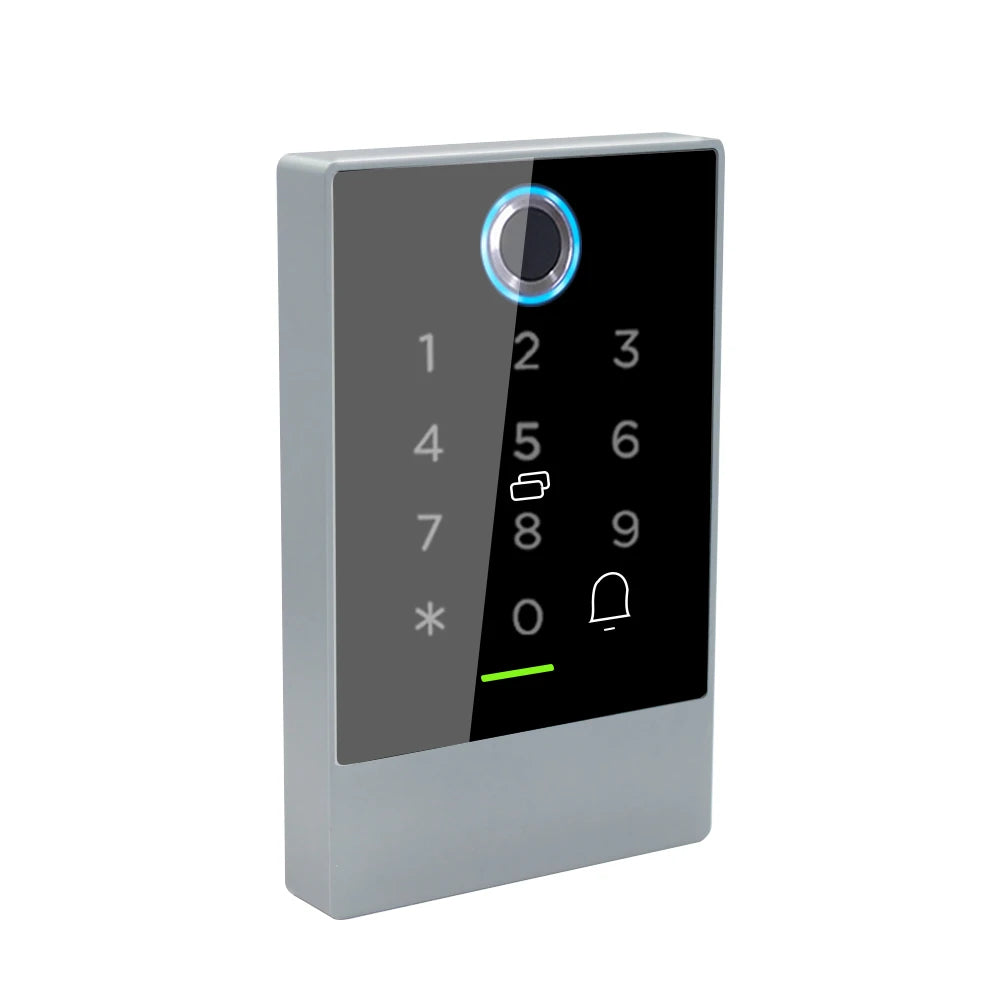

Take full control of your entryway with the Asia-Teco K2F Smart Access Control Keypad. This IP66-rated, weatherproof reader combines fingerprint scanning, 13.56 MHz RFID card access, keypad passcode entry, and Bluetooth smartphone control into one sleek aluminum and tempered glass unit — all managed through the intuitive TTLOCK app.
Whether you're securing an office, commercial facility, rental property, or home, the K2F delivers enterprise-grade access management without the complexity. Store up to 20,000 RFID cards and 100 fingerprints, create time-limited passwords, and share electronic keys remotely — all from your smartphone. Made in Mainland China.
Key Features

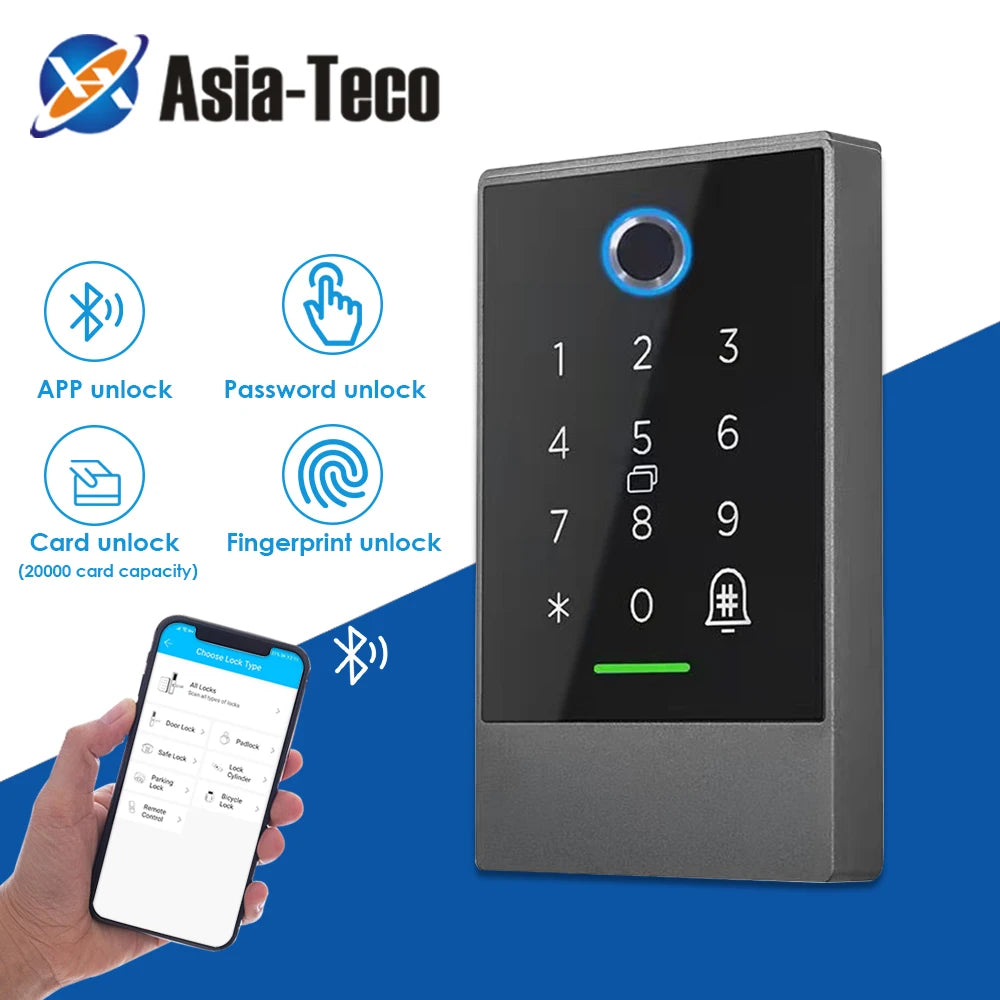

- 4-in-1 Unlocking: Unlock via TTLOCK app (Bluetooth), RFID card (13.56 MHz), PIN passcode, or fingerprint — about 1.5-second response time.
- IP66 Waterproof: Fully weatherproof casing rated for outdoor and exposed indoor installation in rain, dust, and humidity.
- App-Based Management: Generate, schedule, and revoke time-limited passcodes remotely. Add or remove users without being on-site.
- Cloud Data Storage: All access logs and user records are stored securely in the cloud for remote monitoring and attendance tracking.
- eKey Sharing: Distribute electronic keys via the TTLOCK app with tiered authorization levels for administrators, managers, and guests.
- Anti-Tamper Keypad Lock: After 5 incorrect passcode entries, the keypad automatically locks for 5 minutes.
- Pseudo Passcode Function: Enter any extra digits before your real code — the lock opens only when the correct ending sequence is detected, protecting against shoulder-surfing.
- Auto-Lock: Automatically secures the door within 5 seconds of each unlock event.
- Real-Time Push Notifications: Administrators receive instant alerts whenever the lock is accessed or reset.
- Multi-System Management: One TTLOCK app controls multiple access points or locations simultaneously.
- Sciener Web System Compatible: Supports full web-based management for larger deployments.
- Large Capacity: Supports up to 20,000 RFID cards and 100 fingerprint records.
Technical Specifications
| Model | K2F |
| Material | Aluminum Alloy / Tempered Glass |
| Dimensions | 125 mm × 79 mm × 15.5 mm |
| Card Frequency | 13.56 MHz RFID |
| Card Capacity | 20,000 |
| Fingerprint Capacity | 100 |
| Communication | Bluetooth 4.1 |
| Power Supply | DC 12V |
| Unlocking Time | ~1.5 seconds |
| Security Mode | Fail Secure |
| Waterproof Rating | IP66 |
| App | TTLOCK (iOS & Android) |
| Origin | Made in Mainland China |
TTLOCK App — Download & Setup
Search "TTLOCK" in the Apple App Store or Google Play Store to download the free management app. Once paired via Bluetooth, you can manage all access permissions, review entry logs, and distribute keys from anywhere with an internet connection.
For guidance on best practices for electronic access control systems, visit the U.S. Cybersecurity & Infrastructure Security Agency. For general smart home device security recommendations, see the NIST Cybersecurity resources.
Frequently Asked Questions
Q: What RFID card types are compatible with the K2F access control keypad?
A: The K2F operates on the 13.56 MHz RFID frequency, which is compatible with standard ISO 14443 Type A/B cards, including widely used formats such as Mifare Classic, Mifare DESFire, and similar 13.56 MHz smart cards. It does NOT support older 125 kHz EM cards.
Q: Does the K2F work without a smartphone or internet connection?
A: Yes. You can unlock the K2F using a registered RFID card, fingerprint, or saved PIN passcode at any time — no smartphone or internet connection is required for these methods. The TTLOCK app and cloud features enhance management capabilities but are not required for basic day-to-day access.
Q: How many users can I add to the K2F system?
A: The K2F supports up to 20,000 RFID card users and 100 fingerprint records. Passcode and eKey users are managed through the TTLOCK cloud platform, allowing flexible user management for offices, apartments, and commercial facilities.
Q: Is the K2F suitable for outdoor installation?
A: Absolutely. The K2F carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust ingress. Its aluminum alloy and tempered glass construction makes it well-suited for gate entrances, outdoor doors, covered exteriors, and similar environments.
Q: What power supply does the K2F require?

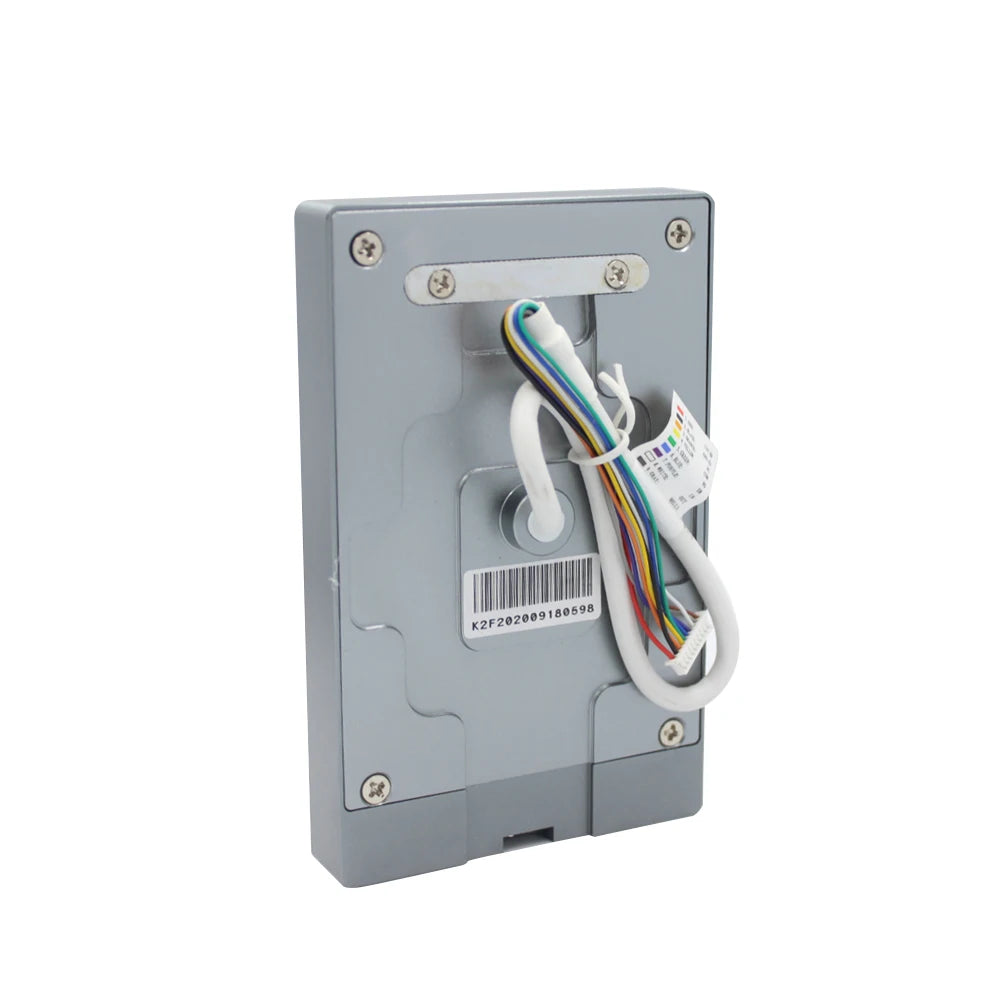

A: The K2F is powered by a DC 12V supply. It is typically wired directly to a power source as part of an access control installation, often alongside an electric strike or magnetic lock. Please refer to the included wiring diagram for installation details.
