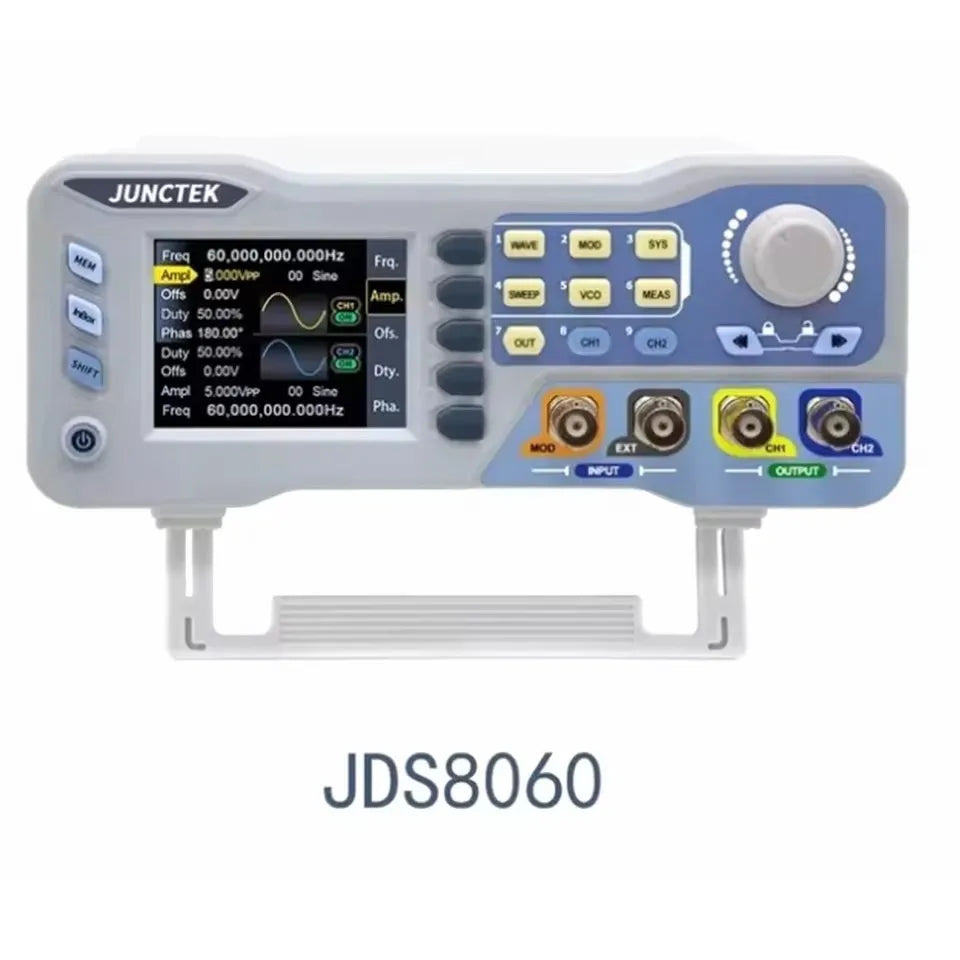

JDS8060 / JDS8080 Programmable Dual Channel DDS Function Signal Generator
Unlock professional-grade waveform generation with the JDS8060 / JDS8080 Programmable Dual Channel DDS Function Signal Generator. Whether you're an electronics engineer, educator, technician, or hobbyist, this feature-rich instrument delivers exceptional precision, versatility, and convenience — all in a compact form factor. Made in Mainland China.

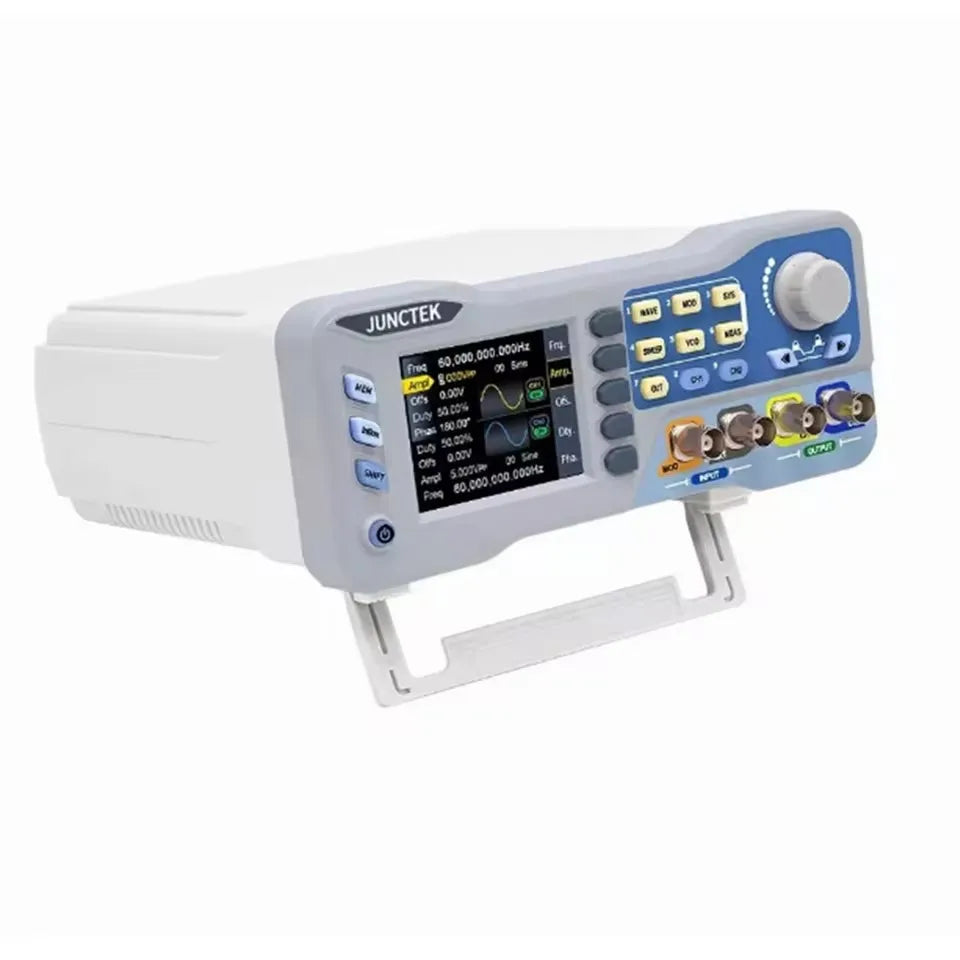

Why Choose the JDS8060 / JDS8080?
- Dual Independent Channels: Both channels can simultaneously output identical or completely different waveforms. All parameters are independently adjustable, with a continuously tunable phase difference of 0°–359.99° between channels.
- Ultra-High Sampling Rate: At 275 MSa/s, the generator captures more waveform data per unit time, producing exceptionally accurate and smooth waveform representations.
- 14-Bit Vertical Resolution: Delivers incredibly fine waveform detail, giving you a level of precision that lower-resolution generators simply can't match.
- Wide Sine Wave Frequency Range: JDS8060 outputs 1 nHz–60 MHz; JDS8080 extends up to 80 MHz — covering an enormous range of applications.
- Rich Waveform Library: Choose from sine, square, pulse, triangle, rising/falling ramp, CMOS, DC level, half/full wave, positive step, inverse staircase, exponential rise/fall, Lorentz pulse, multisonic, random noise, trapezoidal pulse, Sinker pulse, plus 160 built-in arbitrary waveforms and support for 99 user-defined custom waveforms.
- Comprehensive Modulation Modes: Supports AM, FM, PM, ASK, FSK, PSK, and PWM modulation for advanced signal testing and communication simulation.
- VCO (Voltage-Controlled Oscillator) Function: Control output frequency, amplitude, and duty cycle via an external analog voltage signal — ideal for industrial debugging workflows.
- Flexible Sweep Modes: Sweep frequency, amplitude, or duty cycle in either linear or logarithmic mode to analyze system response efficiently.
- Burst / Trigger Modes: Manual burst, CH2 burst, external AC/DC burst triggering for precise pulse train generation.
- Precise Pulse Control: Pulse width range 0.020 µs–4 s; pulse period range 0.02 µs–40 s. Digitally adjust pulse width and cycle time with no jitter output.
- Built-in Frequency Counter & Measurement: Measure frequency, positive/negative pulse width, period, and duty cycle. Counter range: 0–4,294,967,295.
Bluetooth App & PC Software Control

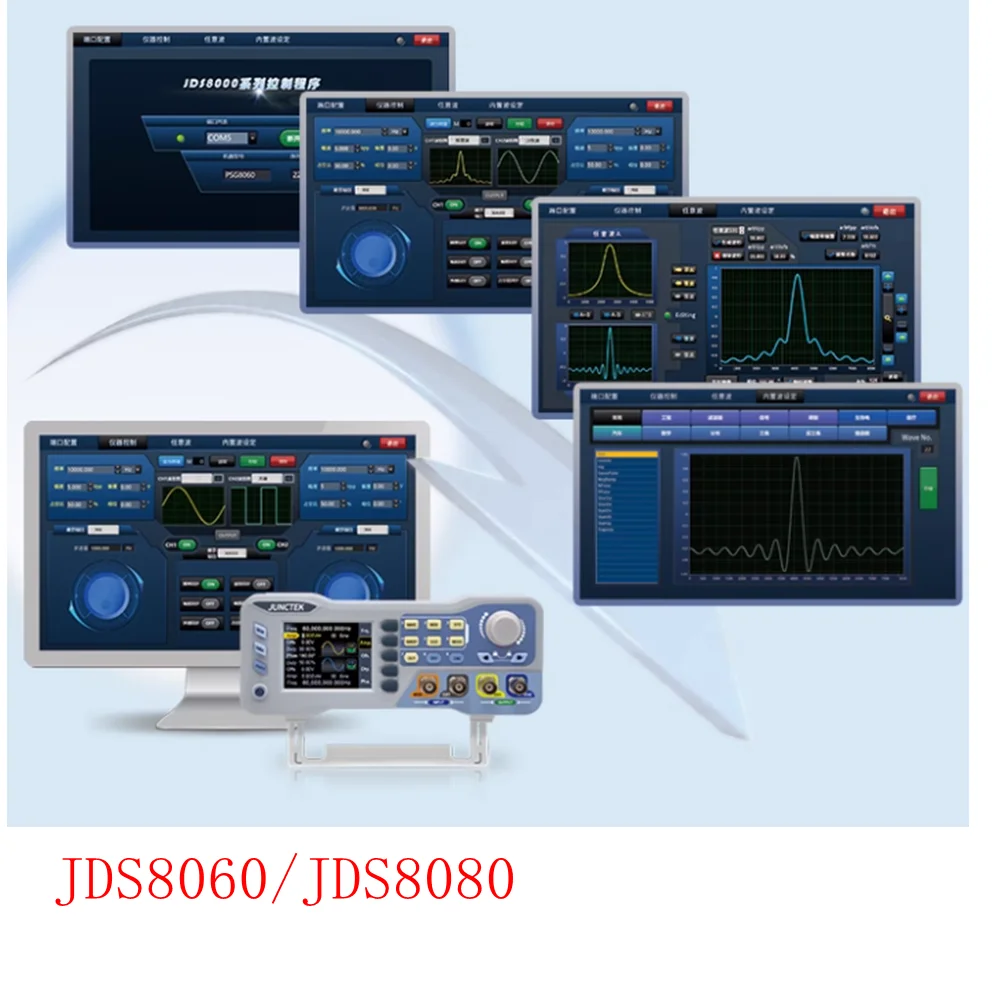

Connect via Bluetooth to the companion mobile app to monitor all parameters and configure every function remotely. Draw arbitrary waveforms on your PC using free included software; import/export arbitrary waveform CSV data via the mobile app. Free PC software and communication protocol are included, enabling secondary development via standard communication protocols.
Key Specifications at a Glance

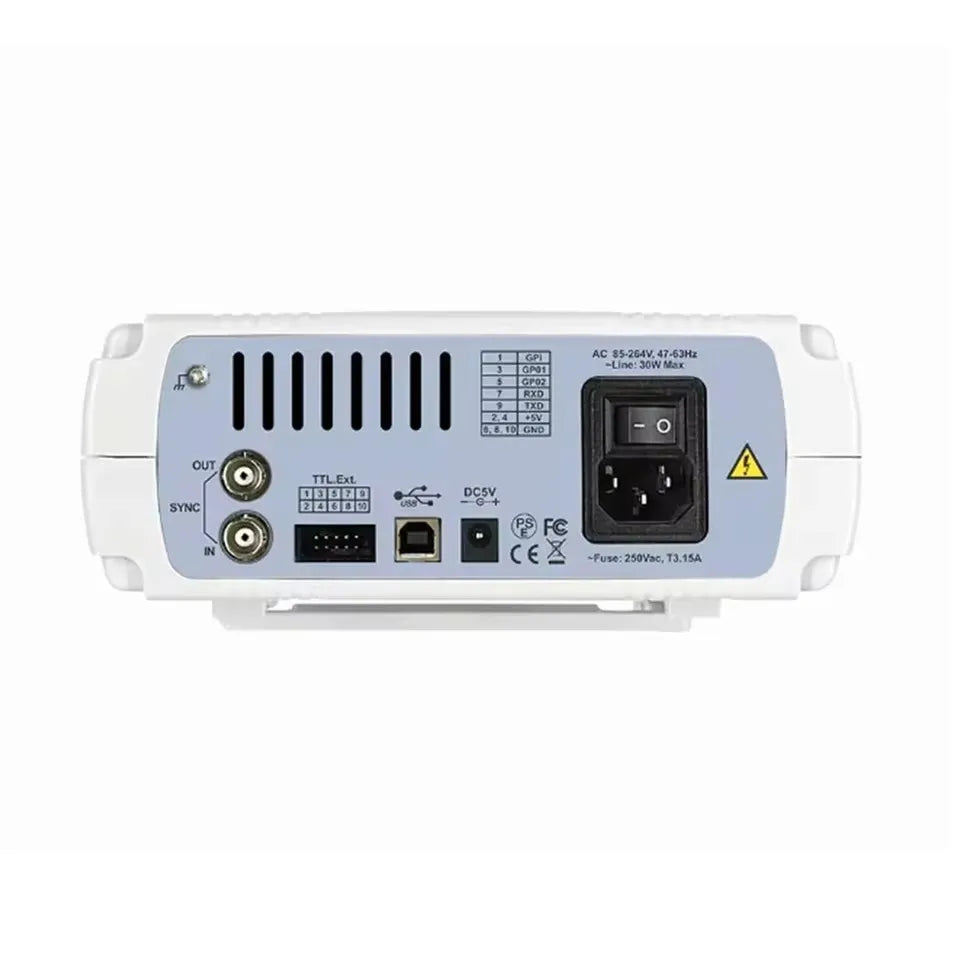

| Parameter | JDS8060 | JDS8080 |
|---|---|---|
| Channels | 2 (Independent) | |
| Sine Wave Frequency | 1 nHz – 60 MHz | 1 nHz – 80 MHz |
| Square / Triangle Wave | 1 nHz – 15 MHz | |
| Sampling Rate | 275 MSa/s | |
| Waveform Depth | 8,192 points/channel | |
| Vertical Resolution | 14 bits | |
| Frequency Resolution | 1 nHz | |
| Rise/Fall Time | ≤20 nS | ≤10 nS |
| Amplitude Range (<1 MHz) | 2 mVpp – 25 Vpp | |
| Amplitude Resolution | 1 mVpp | |
| Amplitude Stability | ±1% ±1 mVpp (@1 kHz, >10 mVpp) | |
| Offset Range | −9.99 V to +12.00 V (resolution: 0.01 V) | |
| Phase Adjustment | 0° – 359.99° (resolution: 0.01°) | |
| Output Impedance | 50 Ω (typical) | |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM | |
| Power Input | DC 12V | |

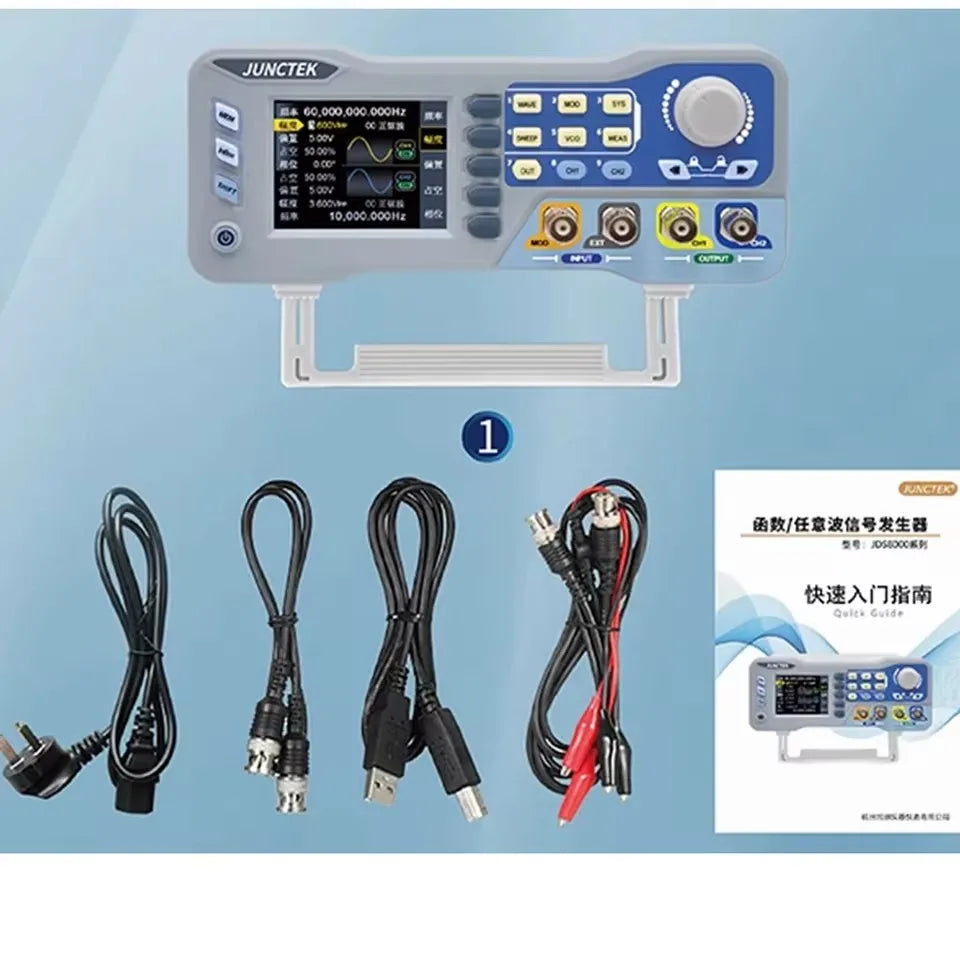

What's in the Box
- Signal Generator (JDS8060 or JDS8080)
- Power Cable
- BNC Male Plug Test Lead
- USB Data Cable
- BNC to Alligator Clips Test Lead
- Quick Start Guide
Applications
The JDS8060/8080 is widely used across electronics engineering, automotive diagnostics & vehicle maintenance, education & mathematics teaching, industrial equipment debugging, and research & development environments. The 160 built-in arbitrary waveforms streamline complex waveform tasks across all these fields.
For more information on electronic test equipment standards and best practices, visit the National Institute of Standards and Technology (NIST) — Electronics.
Frequently Asked Questions
Q: What is the difference between the JDS8060 and the JDS8080 signal generator?
A: The primary difference is the maximum sine wave frequency output. The JDS8060 covers 1 nHz to 60 MHz, while the JDS8080 extends that range to 1 nHz to 80 MHz. The JDS8080 also features a faster rise/fall time of ≤10 nS compared to ≤20 nS on the JDS8060. Both models share the same dual-channel architecture, 275 MSa/s sampling rate, 14-bit vertical resolution, and full feature set.
Q: Can I control the JDS8060/8080 from my smartphone or computer?
A: Yes. The generator supports Bluetooth connectivity to a companion mobile app, allowing you to view all parameters and configure every function remotely. Free PC software is also included, letting you draw arbitrary waveforms on your computer and import/export waveform CSV data. A standard communication protocol is provided for secondary development and automation.
Q: How many waveform types does the JDS8060/8080 support?
A: The generator includes over 20 standard waveform types (sine, square, triangle, pulse, ramp, CMOS, noise, and more), 160 built-in arbitrary waveforms, and storage for 99 user-defined custom waveforms per channel — giving you exceptional flexibility for virtually any signal generation task.
Q: What modulation modes are available on the JDS8060/8080?
A: The generator supports seven modulation types: AM (Amplitude Modulation), FM (Frequency Modulation), PM (Phase Modulation), ASK (Amplitude Shift Keying), FSK (Frequency Shift Keying), PSK (Phase Shift Keying), and PWM (Pulse Width Modulation), making it suitable for communications testing and advanced signal research.
Q: What power supply does the JDS8060/8080 require?
A: The unit operates on a DC 12V power supply. A power cable is included in the box. Batteries are not required or included.
