JD-10 Industrial IR Thermometer Gun -50°C~800°C Laser Temp Gun

JD-10 Industrial Infrared Thermometer Gun | -50°C to 800°C Non-Contact Laser Temperature Measurement

The L.AOL.AU JD-10 Industrial Infrared Thermometer Gun is a high-performance, non-contact temperature measurement tool engineered for both industrial and everyday household use. Powered by a precision infrared sensor with a lightning-fast 0.5-second response time, this laser thermometer delivers dependable surface readings across a wide range of scenarios — from factory floors and automotive workshops to kitchens, BBQ grills, HVAC systems, and crafting projects.

Made in Mainland China and certified to CE and RoHS standards, the JD-10 combines industrial-grade durability with intuitive, user-friendly operation.

Key Features & Advantages

• Wide Measurement Range: -50°C to 800°C (-58°F to 1472°F) — handles everything from frozen surfaces to extreme industrial heat.
• High Accuracy (±2°C): Ensures dependable, repeatable readings for precision tasks and quality control.
• Fast 0.5-Second Response: Real-time monitoring of rapidly changing surface temperatures.
• Adjustable Emissivity (0.1–0.99): Calibrate for metals, plastics, ceramics, and other surfaces to eliminate infrared interference and maximize accuracy.
• High/Low Temperature Alarm: Set custom thresholds; visual (flashing display) and audible (beep) alerts notify you instantly when readings exceed safe or optimal limits.
• Data Hold Function: Press and hold the trigger for live readings; release to freeze and lock the last measurement on screen for easy recording.
• °C/°F Unit Conversion: Switch between Celsius and Fahrenheit at the press of a button.
• Multi-Laser Point Option: The upgrade model features 13 laser points outlining the exact measurement area for superior precision on uneven or small surfaces.
• Battery Indicator: On-screen undervoltage reminder ensures you never run out of power unexpectedly.

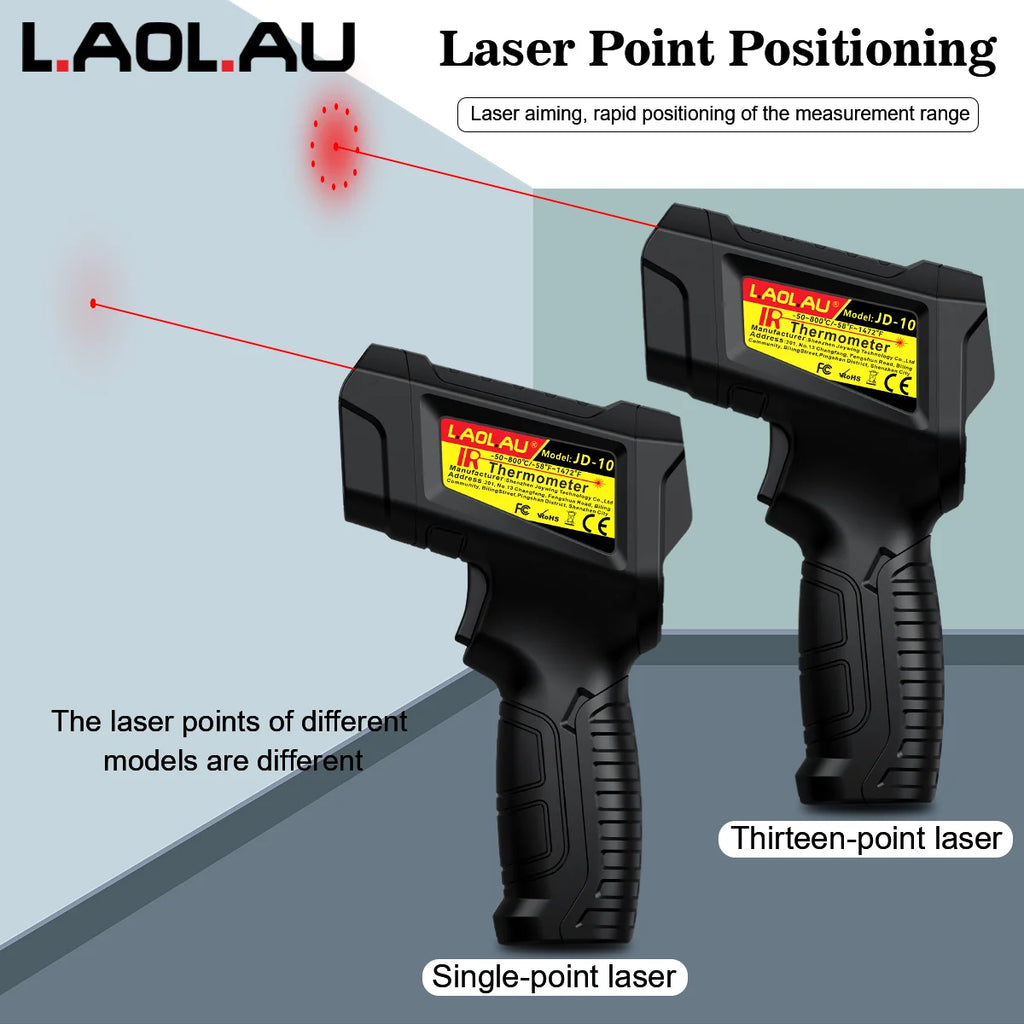

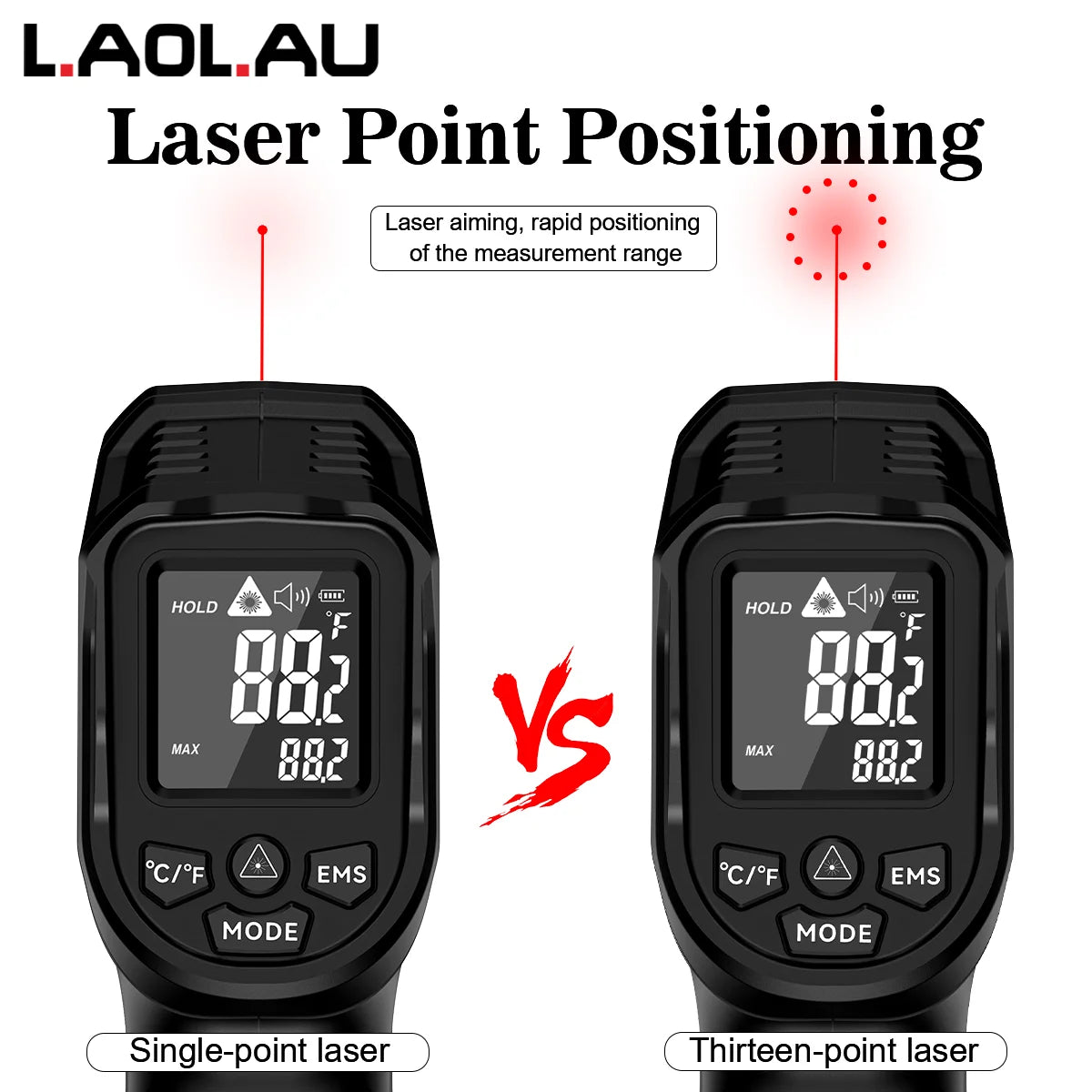

Single vs. Multi-Laser Point Models

Single-laser models use one point to indicate the center of the measurement area — great for general use. Multi-laser (13-point) models project a ring of laser dots to clearly outline the entire detection area, reducing background interference and improving accuracy on small targets or uneven surfaces. Choose the model that fits your precision needs.

Distance-to-Spot Ratio (D:S)

The D:S ratio defines the relationship between the distance from the thermometer to the target and the diameter of the measured spot. The farther away the gun is held, the larger the measurement area. For best accuracy, position the thermometer so the laser spot covers only the intended surface — refer to the D:S diagram in the product images for guidance.

Technical Specifications

• Measurement Range: -50°C ~ 800°C (-58°F ~ 1472°F)
• Accuracy: ±2% (above 100°C) / ±2°C (at or below 100°C)
• Response Time: 0.5 seconds
• Emissivity: Adjustable 0.1 – 0.99 (default 0.95)
• Resolution: 0.1°C
• Display: Digital LCD, under 1.9 inches
• Function Modes: Maximum / Minimum / High Alarm (HAL) / Low Alarm (LAL)
• Operating Temperature: 0°C – 50°C (32°F – 122°F)
• Storage Temperature: -20°C – 50°C (-4°F – 122°F)
• Relative Humidity: 10–95% RH (non-condensing)
• Power: 2 × 1.5V AAA batteries (not included) — up to 12 hours continuous use
• Certifications: CE, RoHS
• Country of Origin: Made in Mainland China

Function Keys

1. °C/°F: Celsius / Fahrenheit unit conversion
2. EMS: Emissivity setting (default 0.95)
3. MODE: Function selection (MAX / MIN / HAL / LAL)
4. LASER KEY: Activate/deactivate laser pointer

Battery Installation

1. Open the battery compartment and insert 2 × 1.5V AAA batteries, observing correct polarity (+/-).
2. If storing the device for an extended period, remove the batteries or turn off the battery switch to preserve life.
3. When the battery icon appears on screen, replace batteries promptly to maintain measurement accuracy.

Common Use Cases

• ⚡ Power & Energy monitoring
• 🏭 Manufacturing & Machinery maintenance
• 🚗 Automotive diagnostics & engine checks
• 🍖 BBQ, cooking & food processing
• 🏠 HVAC, home insulation & electrical inspections
• 🧴 Crafting (soap-making, chocolate tempering)
• 🐾 Pet environment monitoring

⚠ Laser Safety Notice

Never aim the laser beam at eyes, people, or animals. The laser is a sighting aid only — always follow safe laser handling practices.

Packing List

• Standard Model: 1 × Single-laser thermometer + 1 × User manual

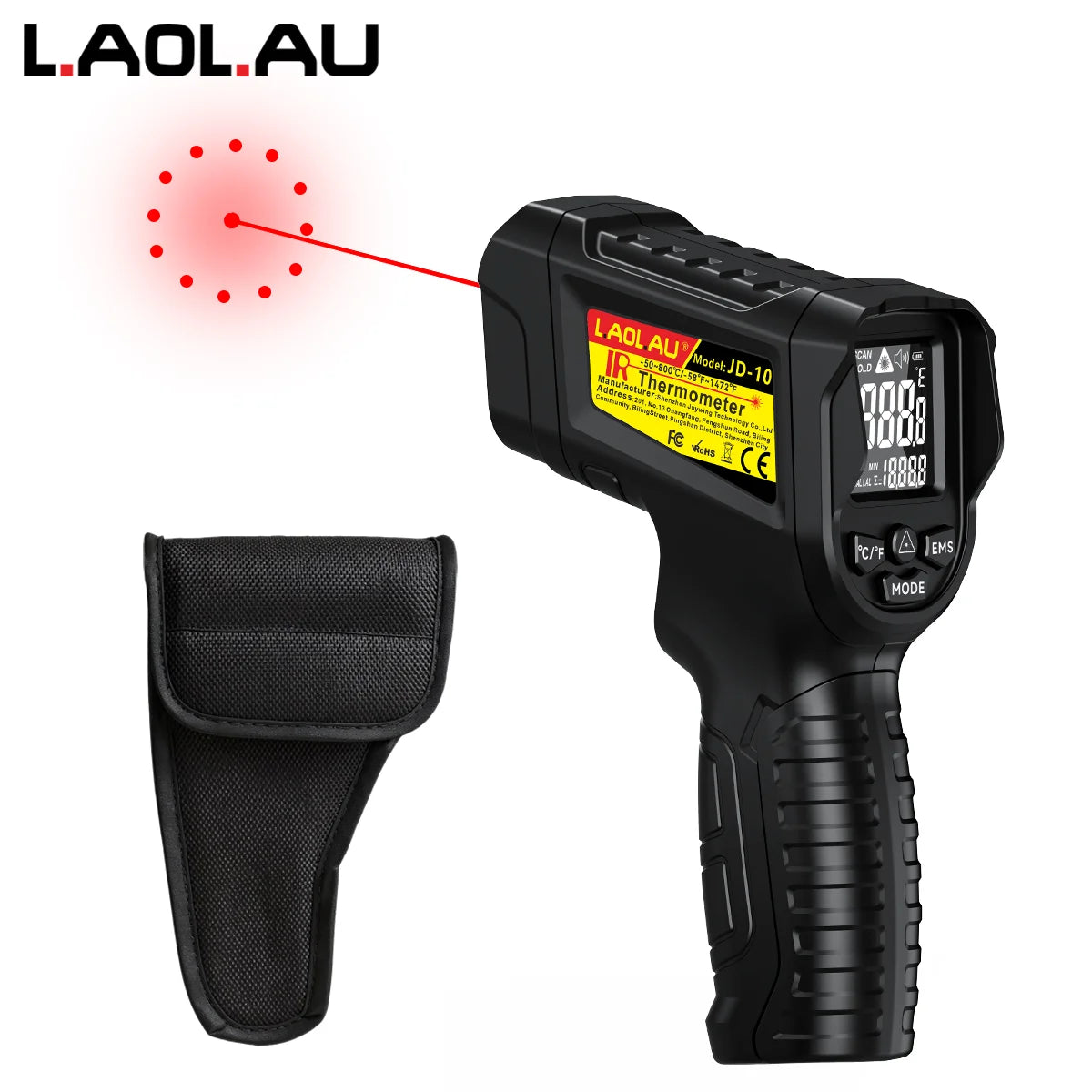

• Upgrade Model: 1 × Multi-laser thermometer + 1 × Carry bag + 1 × User manual

For more information on safe use of laser-equipped measurement tools in industrial environments, visit the OSHA Laser Hazards resource page.

Frequently Asked Questions

Q: What temperature range does the JD-10 infrared thermometer gun cover?

A: The JD-10 laser thermometer measures surface temperatures from -50°C to 800°C (-58°F to 1472°F), making it suitable for everything from frozen food storage checks to high-heat industrial equipment monitoring.

Q: What is adjustable emissivity and why does it matter on the JD-10 IR thermometer?

A: Emissivity (adjustable from 0.1 to 0.99) is a measure of how efficiently a surface radiates infrared energy. Different materials — metals, plastics, ceramics — have different emissivity values. By adjusting the setting on the JD-10, you ensure accurate, surface-specific temperature readings rather than relying on a fixed default that may introduce errors.

Q: How does the high/low temperature alarm work on the JD-10?

A: You can set custom upper (HAL) and lower (LAL) temperature thresholds via the MODE button. When a reading exceeds your preset limits, the display flashes and an audible beep sounds immediately, allowing for fast response in temperature-sensitive processes or safety monitoring.

Q: Do batteries come included with the JD-10 thermometer gun?

A: No — the JD-10 requires 2 × 1.5V AAA batteries, which are not included. When installed, the batteries support approximately 12 hours of continuous use. An on-screen battery indicator alerts you when replacement is needed.

Q: What is the difference between the Standard and Upgrade models of the JD-10?

A: The Standard model features a single laser point to indicate the center of the measurement area. The Upgrade model uses 13 laser points to outline the full measurement circle, providing a clearer visual of the detection zone and improved accuracy — especially useful for smaller targets or irregular surfaces.
