JCSMARTS Hotel RFID Card Lock – Secure, Smart & Slim-Door Ready

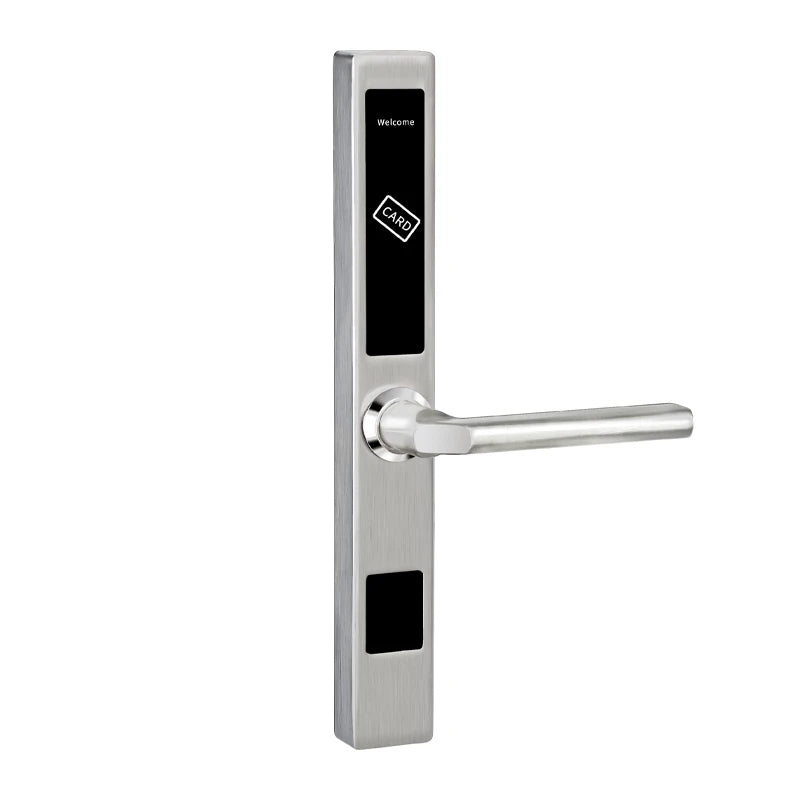

Upgrade your hotel, apartment, office, or villa with the JCSMARTS JCEU08 RFID Card Door Lock — a professional-grade electronic lock engineered for slim wooden doors (38–60 mm thick). Built from polished stainless steel with zero exposed rivets or plastic parts on the face, this lock delivers a sleek, tamper-resistant appearance alongside robust, hierarchical access control.
Unlock via RF card tap or traditional mechanical key. The built-in clock controls card validity windows, and all unlock records (up to 255 entries) are stored securely — even during a power-off event. With a rated lifespan of 15,000 unlock cycles and a 3-year warranty, this lock is built for high-traffic commercial environments.
Made in Mainland China.
Key Advantages
- 🔒 USA-Standard 5-Bolt Tongue Structure Lock Core — hierarchical management for layered access levels
- 🤫 Triple Mute Lock Body — near-silent operation, ideal for guest comfort
- ✨ Clean Stainless Steel Face — no artificial rivets or plastic parts on the lock face
- 📡 Anti-Interference Circuit Board — built-in error correction for reliable card reads
- 💧 Damp-Proof & Dust-Proof Circuit — factory pre-treated for long-term durability
- 🔋 Low Voltage Warning — alerts you before batteries run out
- ⚡ Anti-Static Protection — guards sensitive electronics from static discharge
- 📋 Stores Last 255 Unlock Records — full audit trail for security management
- ↔️ Reversible Handle Direction — easily switch left/right or inside/outside yourself, no technician needed
- 📏 Fits Door Thickness 38–60 mm — perfectly sized for slim hotel and apartment doors
Complete Hotel IC Card Lock System
This lock is designed to integrate into a full hotel key card management ecosystem. Here's what a complete system includes:
Essential Components
- Management Software — supports English and Thai; Win32 Dynamic Library available for third-party software integration. Functions include check-in, room extension, room exchange, check-out, lost card reporting, and full reporting/query tools.
- Card Encoder — required to issue guest room cards; supports multiple simultaneous encoders for multi-desk receptions.
- Handset PDA (optional but recommended) — pre-load room data from PC, then install locks one by one. Also syncs lock time, reads door-opening records, and upgrades lock firmware.
- RF Cards — T5577 or M1 cards (sold separately); default white card; custom printing with logo/hotel branding available.
Optional Add-Ons
- Energy Saving Switch — activates room electricity only when a valid card is inserted.
- Public Door Access Reader — allows guest room cards to open shared entrance gates.
- Elevator Controller — requires card swipe to activate elevator floors for enhanced security.
Multistage Key Card Hierarchy
Issue and manage multiple card levels: Management Card, Building Card, Floor Card, Cleaning Card, and Guest Room Card — all from one software interface.
Specifications
| Model | JCEU08 |
| Brand | JCSMARTS |
| Material | Stainless Steel (Polished) |
| Color | Silver / Gold |

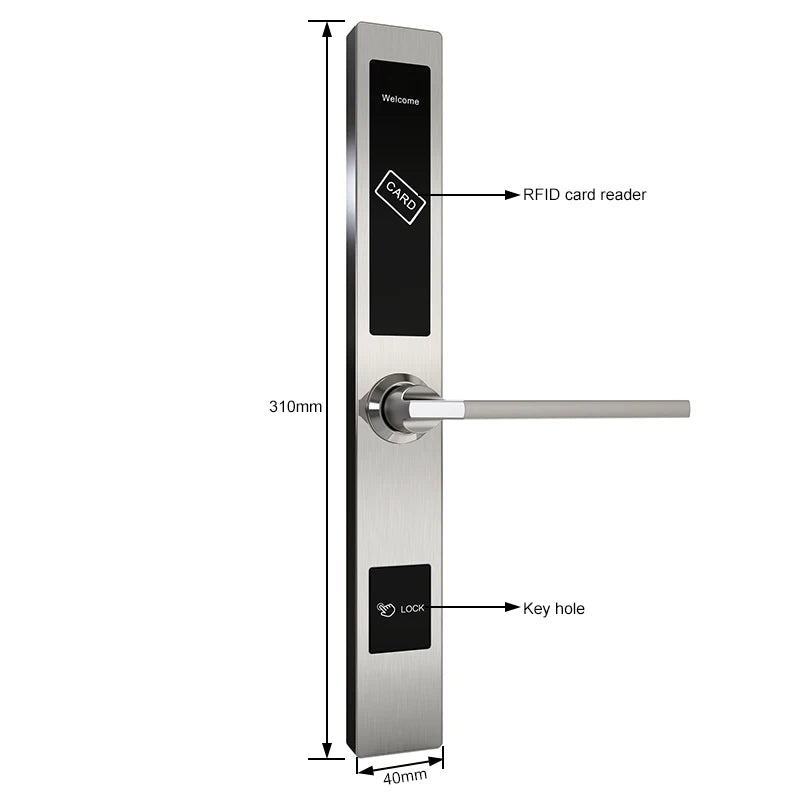

| Unlock Methods | RF Card, Mechanical Key |
| Compatible Cards | T5577, ID Card |
| Card Read Distance | ≤ 3 cm |
| Fit Door Thickness | 38–60 mm |
| Suitable Door Type | Wooden Door |
| Open Direction | Reversible (Left/Right, Inside/Outside) |
| Power Supply | 6V — 4× AA Dry Batteries |
| Working Voltage | 6V |
| Working Current | 5–40 mA |
| Standby Current | < 25 μA |
| Static Power Consumption | < 30 μA |
| Dynamic Power Consumption | < 150 μA |
| Working Temperature | -20°C to 70°C |
| Unlock Record Storage | Last 255 records |
| Rated Unlock Cycles | 15,000 times |
| Certification | CE Certified |
| Warranty | 3 Years |
| Origin | Mainland China |
Before You Order — Important Notes

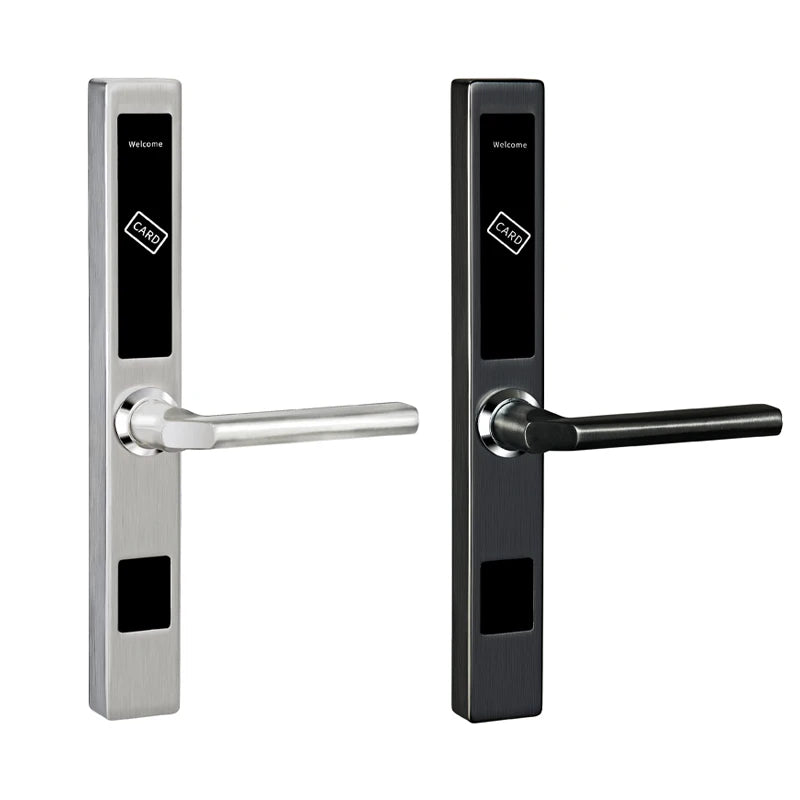

- Please confirm your preferred lock color: Silver, Copper, or Black.
- Confirm your door's opening direction (see product images for reference diagrams).
- If your door already has existing drill holes, contact us first to verify size compatibility before purchasing.
- RF Cards are NOT included in the standard package — they must be ordered separately.
Learn More About Access Control Security Standards
For guidance on electronic lock security and best practices in commercial access control, visit the National Institute of Standards and Technology (NIST) – Cybersecurity Resources.
Frequently Asked Questions
Q: What door types and thicknesses is the JCSMARTS RFID card lock compatible with?
A: This RFID hotel lock is designed for wooden doors with a thickness between 38 mm and 60 mm, making it ideal for slim hotel room doors, apartment doors, and office doors. It is not recommended for metal or glass doors without additional consultation.
Q: Can I change the handle direction myself after installation?
A: Yes! The JCEU08 features a reversible handle design that you can adjust yourself — left or right, inside or outside — without needing a professional technician. This makes it very flexible for various door configurations.
Q: What happens to the lock data if the batteries run out?
A: The JCSMARTS RFID lock is designed to retain all stored lock information and access records even when power is completely off. Additionally, a low voltage warning alerts you before the batteries are fully depleted so you can replace them in time.
Q: Does the lock support a full hotel management software system?
A: Yes. This lock is compatible with a complete hotel IC card lock management system that supports check-in, check-out, room extension, lost card reporting, multi-level card issuance (management, floor, cleaning, and guest cards), and full data reporting. The software currently supports English and Thai languages, with more languages in development.
Q: Are RF cards included with the lock?
A: No — RF cards (T5577 or ID cards) are not included in the standard lock package and must be purchased separately. Custom printed cards featuring your hotel logo or branding are available upon request.
