JCSMARTS Keyless Electronic Cabinet & Drawer Lock — Password, RFID Card, or Both
Upgrade your security with the JCSMARTS JCEM2116 Electronic Furniture Lock — a versatile, keyless solution for cabinets, drawers, gym lockers, wardrobes, storage boxes, and more. Unlock with a PIN code, an RFID card, or a combination of both for double-layer access control. Made in Mainland China.
Why Choose This Electronic Lock?

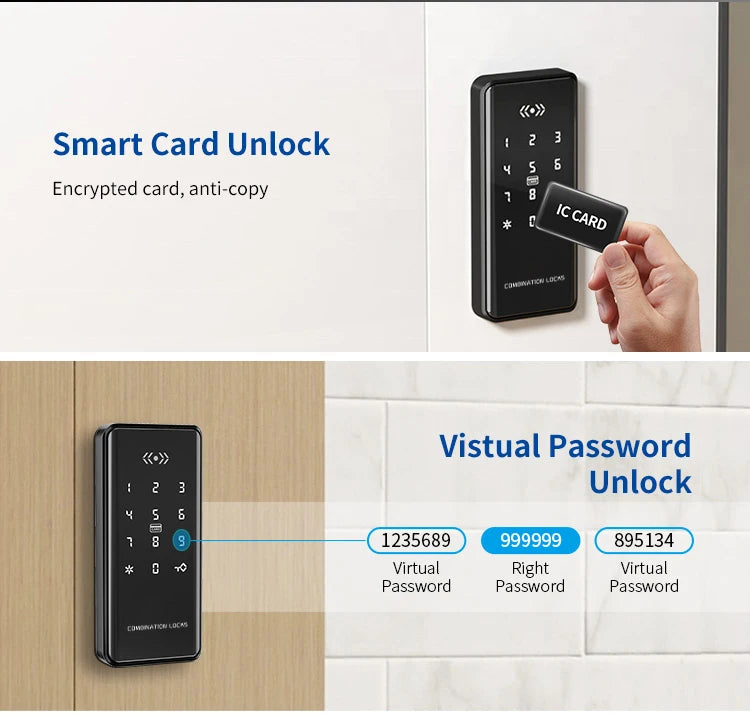

- 3-in-1 Unlock Methods: Use a password (4–15 digits), an EM4100 ID card, or password + card together for enhanced security.
- Private & Public Modes: Switch between private mode (personal use) and public mode (shared spaces like gyms, libraries, or offices) with ease.

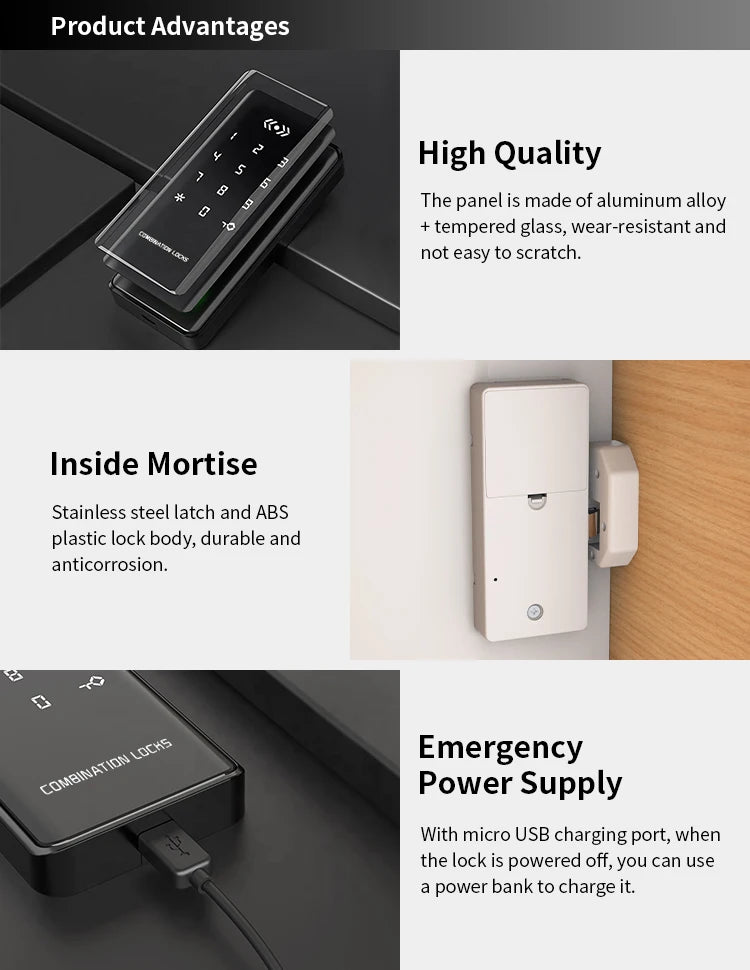

- Durable Construction: Zinc alloy panel resists wear and scratches; stainless steel latch and ABS plastic lock body provide long-lasting, corrosion-resistant performance.
- Emergency Micro-USB Charging: If batteries run low, simply connect a power bank via the built-in micro USB port to regain access instantly.
- Low Power Alert: Built-in low voltage alarm (4.8V) warns you before the battery dies, so you're never caught off guard.
- Large User Capacity: Supports up to 200 card users and 200 password users — ideal for businesses, schools, and shared facilities.
- Child Safety: Helps prevent young children from freely opening drawers and cabinet doors, adding an extra layer of household safety.
- Wide Application: Perfect for home cabinets, office drawers, gym lockers, sauna clubs, swimming facilities, libraries, supermarkets, and factories.
- OEM/ODM Available: Custom production available to meet your specific requirements.
Specifications
| Brand | JCSMARTS |
| Model | JCEM2116 |
| Colors | Silver, Black |
| Power Supply | 4 × AA Batteries |
| Unlock Methods | Password, RFID Card, Password + Card |
| Working Modes | Private Mode, Public Mode |
| Card Type | EM4100 ID Card |
| Card Users | Up to 200 |
| Password Users | Up to 200 |
| Password Digits | 4–15 digits |
| Operating Temperature | -30°C to 80°C |
| Antistatic | >15,000V |
| Static Power Consumption | <5μA |
| Dynamic Power Consumption | ~200mA |
| Low Voltage Alarm | 4.8V |
| Relative Humidity | <95% |
| Installation | Drilling installation |
| Warranty | 3 Years |
| Origin | Made in Mainland China |
What's in the Box

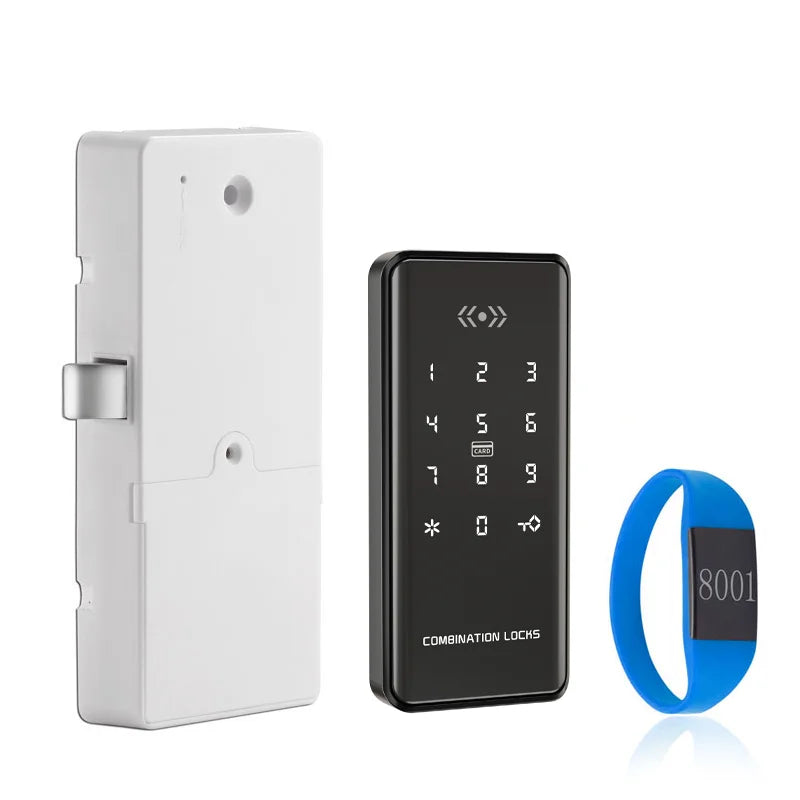

- 1 × Electronic Lock Unit
- 1 × Master Card
- Installation Hardware & Instructions
Installation Guide
Installation is straightforward: drill a hole through the furniture panel for the cable, then drill two small holes to secure the lock body. No complex wiring required. For double-door cabinets, secure one door before locking.
For general guidance on evaluating security products for home and business use, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What unlock methods does the JCSMARTS JCEM2116 electronic cabinet lock support?
A: This digital cabinet lock supports three unlock methods: PIN code (4–15 digits), EM4100 RFID card, or a combined password + card authentication for maximum access security. You can choose the method that best suits your needs.
Q: What is the difference between private mode and public mode on this keyless drawer lock?
A: In private mode, the lock is assigned to a single user — ideal for personal home cabinets or office drawers. In public mode, the lock can be used by multiple users and reset between sessions, making it perfect for gym lockers, library storage, or shared office furniture.
Q: What happens if the batteries run out — will I be locked out?
A: No. The lock features a built-in micro USB charging port. Simply connect a standard power bank to the port to supply emergency power and unlock the cabinet. The low voltage alarm at 4.8V also gives you advance warning to replace the 4 × AA batteries before they fully deplete.
Q: Is this electronic RFID lock suitable for gym lockers and commercial use?
A: Absolutely. The lock supports up to 200 card users and 200 password users simultaneously, and its public working mode makes it well-suited for gyms, sauna clubs, swimming facilities, libraries, supermarkets, offices, and factories. The zinc alloy panel and stainless steel latch ensure it stands up to high-traffic environments.
Q: Does this lock require professional installation?
A: No professional installation is needed. You simply drill a hole for the cable and two small mounting holes to fix the lock — no complex wiring is required. Full installation instructions are included in the package.
