JCSMARTS 433MHz Bluetooth Hotel Lock Gateway – 100m Range
JCSMARTS 433MHz Bluetooth Hotel Lock Gateway – 100m Range

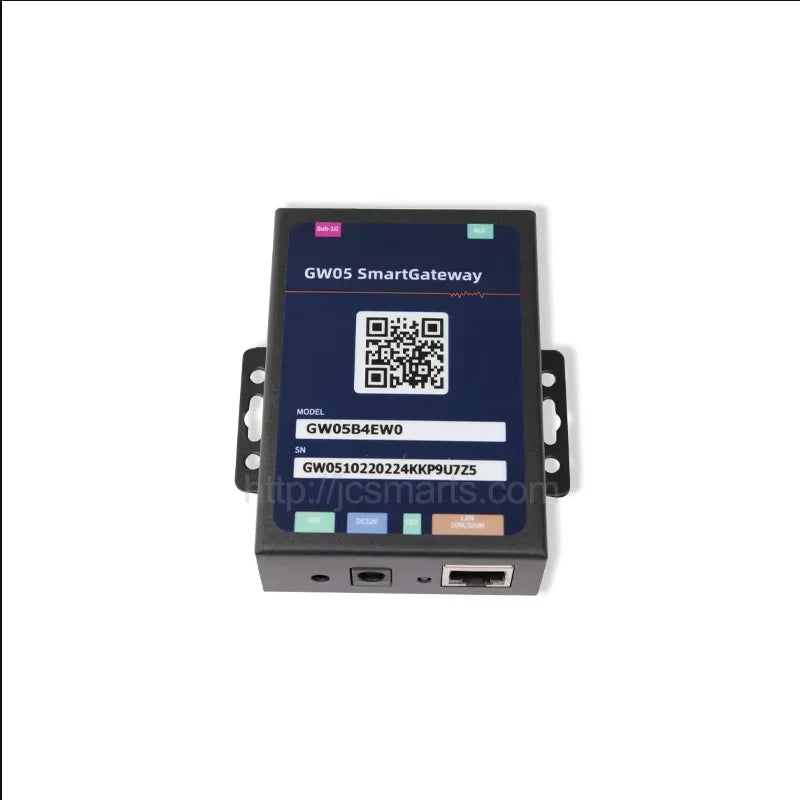

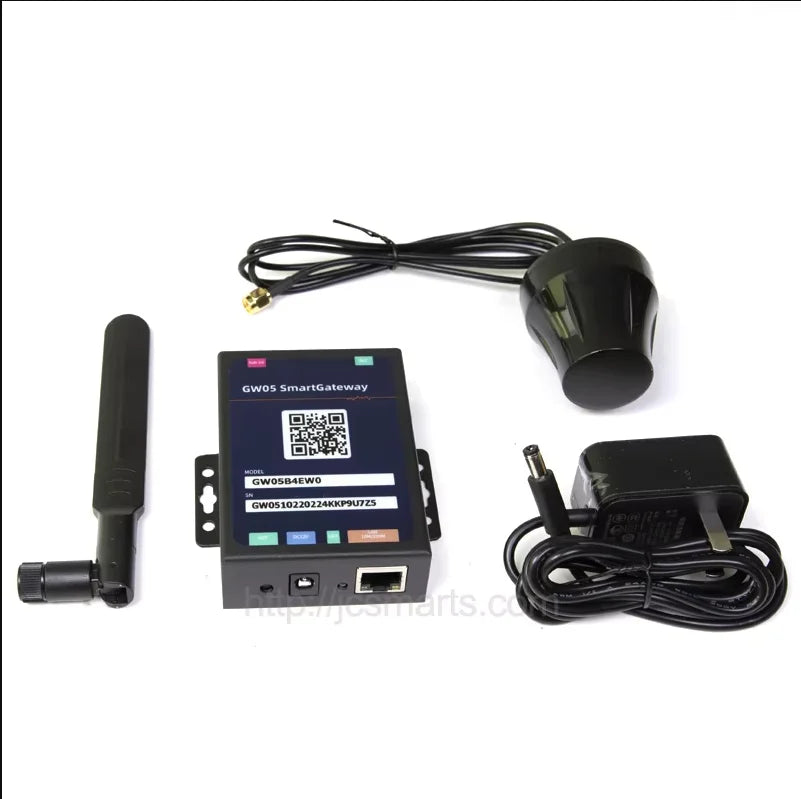

JCSMARTS 433MHz Wireless Bluetooth Gateway — Smarter Hotel Lock Management
Take full control of your hotel's door lock network with the JCSMARTS 433MHz Wireless Bluetooth Gateway. Designed to integrate seamlessly with online Bluetooth hotel lock systems, this gateway bridges your smart locks to your property management software — giving your team real-time visibility and remote control from any PC on the network. Made in Mainland China.
What the Gateway Unlocks for Your Property
Adding this gateway to your hotel lock system expands your management capabilities significantly:
- ✅ Remote unlock records — check all door access history from your PC at any time
- ✅ Remote room check-out — check out any room type directly from the management software
- ✅ Remote lock time adjustment — fine-tune auto-lock timing without visiting each door
- ✅ Lost card reporting & sync — instantly report a lost key card and push the update to the lock
- ✅ Remote data upload — sync all lock data to your server automatically
- ✅ Battery/power status monitoring — receive real-time power level updates for every connected lock
- ✅ Passage mode control — set any lock to passage mode remotely for high-traffic periods
- ✅ Abnormal alert upload — get notified of irregular lock activity automatically
- ✅ Energy-saving switch sync — control and monitor the in-room energy saver remotely
Technical Specifications
| Wireless Protocols | Bluetooth + 433MHz RF |
| 433MHz Frequency Range | 432.5 – 435.5 MHz |
| 433MHz Channels | 12 |
| Wireless Range | Up to 100m (open, unobstructed) |
| Max Downlink Devices | 32 locks per gateway |
| Uplink Connection | RJ45 LAN (Ethernet) |
| DHCP Support | Yes |
| Wi-Fi | Optional |
| Dimensions | 100 × 84 × 27 mm (antenna excluded) |
| Recommended Lock Count | 10–15 locks per gateway (optimal performance) |
| BLE Version | Available (lower cost, different enclosure) |
| Brand | JCSMARTS |
| Origin | Made in Mainland China |
Why Choose an Online Hotel Lock System?
- Secure data storage — all guest information is saved on your server, keeping sensitive records safe and accessible.
- Offline resilience — if your internet connection drops, staff can still issue key cards via software. All actions queue locally and sync to the server the moment connectivity is restored.
- Energy management — remotely power off in-room energy savers from the management console, reducing utility costs.
- Instant remote access — once a guest checks in, their assigned lock can be remotely unlocked directly from management software — no front-desk visits needed.
For more on network device security and best practices in connected systems, visit the NIST Cybersecurity resource center.
Frequently Asked Questions
Q: How many hotel door locks can one 433MHz Bluetooth gateway support?
A: The JCSMARTS 433MHz Bluetooth gateway supports a maximum of 32 downlink devices (locks), though optimal performance is achieved with 10–15 locks per gateway for the most responsive real-time management.
Q: Does the gateway work if the hotel's internet connection goes down?
A: Yes. The online hotel lock system is designed with offline resilience — hotel staff can continue to issue key cards via the management software during an internet outage. All actions are saved locally and automatically synced to the server once the connection is restored.
Q: What is the wireless range of this Bluetooth hotel lock gateway?
A: The gateway offers a wireless range of up to 100 meters in open, unobstructed conditions. Range may be reduced through walls and other physical barriers, so placement near the center of your lock cluster is recommended.
Q: How does the gateway connect to the hotel's network?
A: The gateway uses a standard RJ45 LAN (Ethernet) interface for its uplink connection and supports DHCP for easy network configuration. An optional Wi-Fi module is also available for installations where wired Ethernet is not convenient.
