IP68 Waterproof RJ45 Female Panel Mount Socket – M20 & M23 Dual Size
Keep your network connections secure and reliable in even the harshest environments. This IP68-rated waterproof RJ45 female panel mount socket features an 8-core shielded design with dual M20/M23 thread compatibility, making it ideal for industrial, outdoor, and commercial network installations. Made in Mainland China.
Key Features
- IP68 Waterproof & Dustproof: Fully sealed to prevent moisture and dust ingress — perfect for outdoor enclosures, control panels, and exposed network runs.
- 8-Core Shielded Design: Supports Cat5e/Cat6 Ethernet signals with full shielding to minimize electromagnetic interference and maintain signal integrity.
- Dual Thread Size – M20 & M23: Versatile panel mount threading accommodates a wide range of enclosure cutout sizes, reducing the need for adapters.
- Durable Nylon Housing: Fire-resistant and flame-retardant nylon shell withstands mechanical stress, UV exposure, and temperature fluctuations.

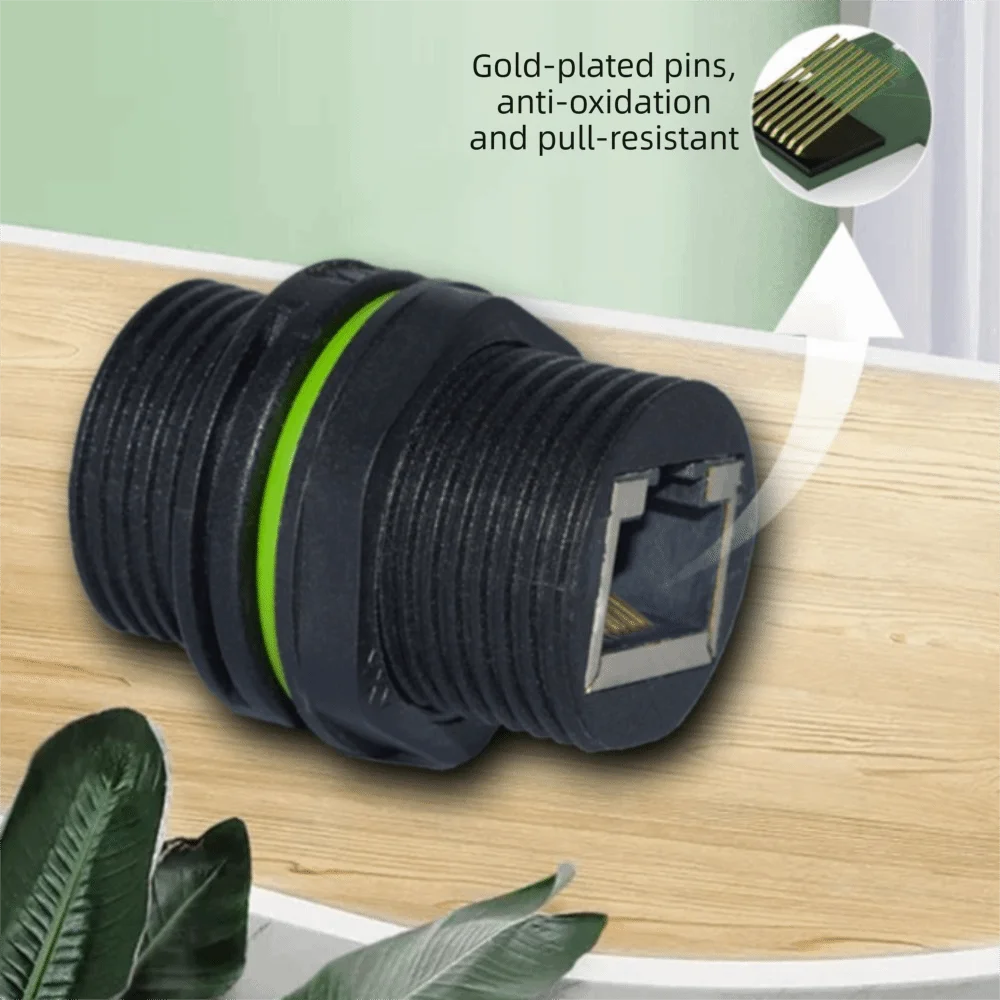

- Gold-Plated Contacts: Internal pins are gold-plated for stable, corrosion-resistant contact and fast, reliable data transmission.
- Protective Dust Cap: Included waterproof cover seals the port when not in use, extending connector service life.
- Easy Panel Installation: Simply mount to your panel, tighten the locking nut, and plug in your Ethernet cable — no soldering or special tools required.
- Low Voltage Rated: Suitable for systems operating below 50V AC or 75V DC (24V typical), meeting EU LVD requirements.
Specifications
- Connector Type: RJ45 Female (8P8C)
- IP Rating: IP68
- Thread Sizes: M20 / M23
- Core Count: 8 Core, Shielded
- Material: Nylon (fire-resistant)
- Color: Black

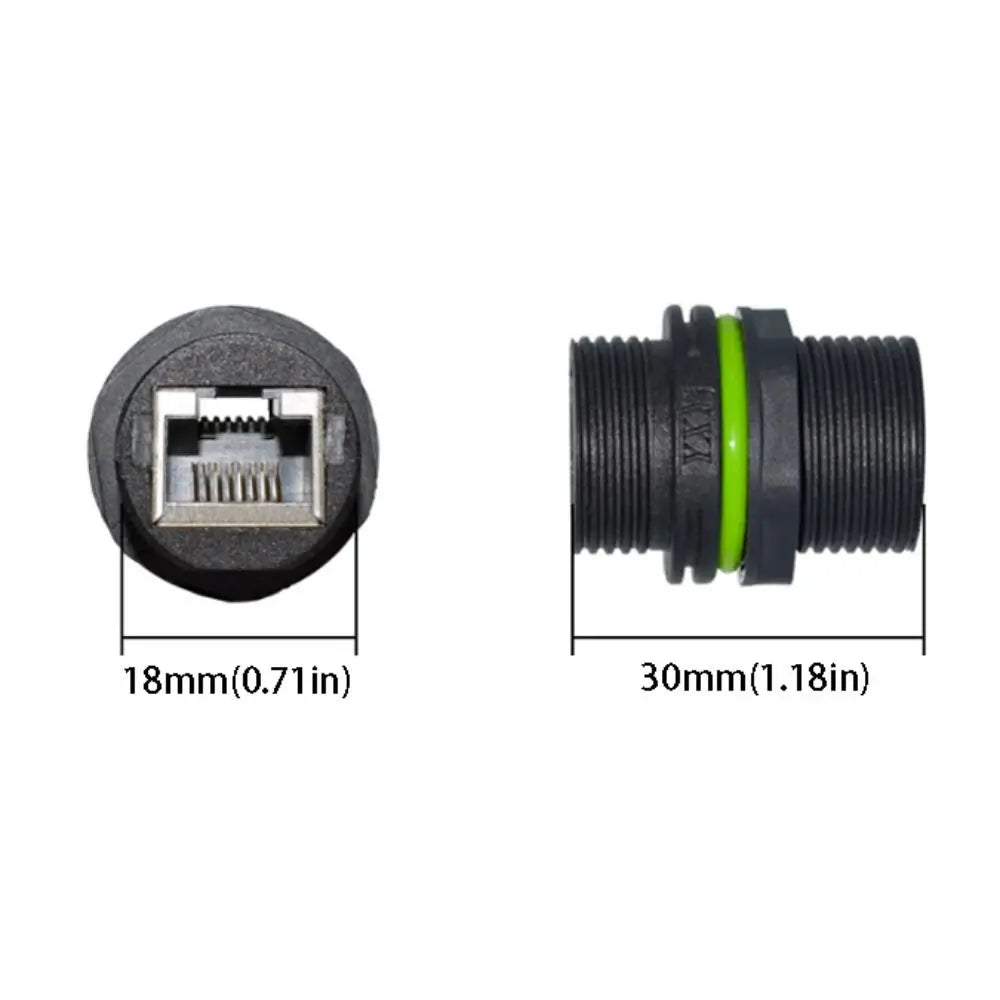

- Dimensions: 30 × 18 mm (1.18 × 0.71 in)
- Weight: 23 g
- Voltage: 24V (Below 50V AC / 75V DC)
- Country of Origin: Made in Mainland China
Package Includes
- 1 × IP68 Waterproof RJ45 Female Panel Mount Socket
Common Applications
- Outdoor network enclosures and junction boxes
- Industrial control panels and automation systems
- Security camera and PoE network installations
- Marine and transportation network wiring
- Printer, radio, and communication control systems
For guidance on electrical safety standards and low-voltage wiring best practices, visit OSHA Electrical Safety.
Frequently Asked Questions
Q: What is the IP68 rating on this RJ45 waterproof connector?
A: An IP68 rating means the connector is fully protected against dust ingress and can withstand continuous submersion in water beyond 1 metre depth (per manufacturer specification). This makes it suitable for outdoor, underground, and marine network installations where exposure to moisture is a concern.
Q: What cable types are compatible with this IP68 RJ45 panel mount socket?
A: This shielded 8-core RJ45 female socket is compatible with Cat5e and Cat6 Ethernet cables, supporting standard network and PoE (Power over Ethernet) applications. The dual M20/M23 thread sizing also ensures a secure fit across a range of panel thicknesses and enclosure types.
Q: Does this connector require any special tools to install?
A: No special tools are required. Simply drill or use an existing panel cutout of the appropriate size, insert the connector, tighten the locking nut by hand or with a spanner, and plug in your Ethernet cable. Plug-and-play installation makes it straightforward for both professionals and DIY users.
Q: Is this RJ45 waterproof socket suitable for outdoor use?
A: Yes. The IP68 waterproof rating, flame-retardant nylon housing, gold-plated internal contacts, and included protective dust cap all make this connector well-suited for permanent outdoor installations including security systems, outdoor Wi-Fi access points, garden lighting networks, and industrial automation panels.
