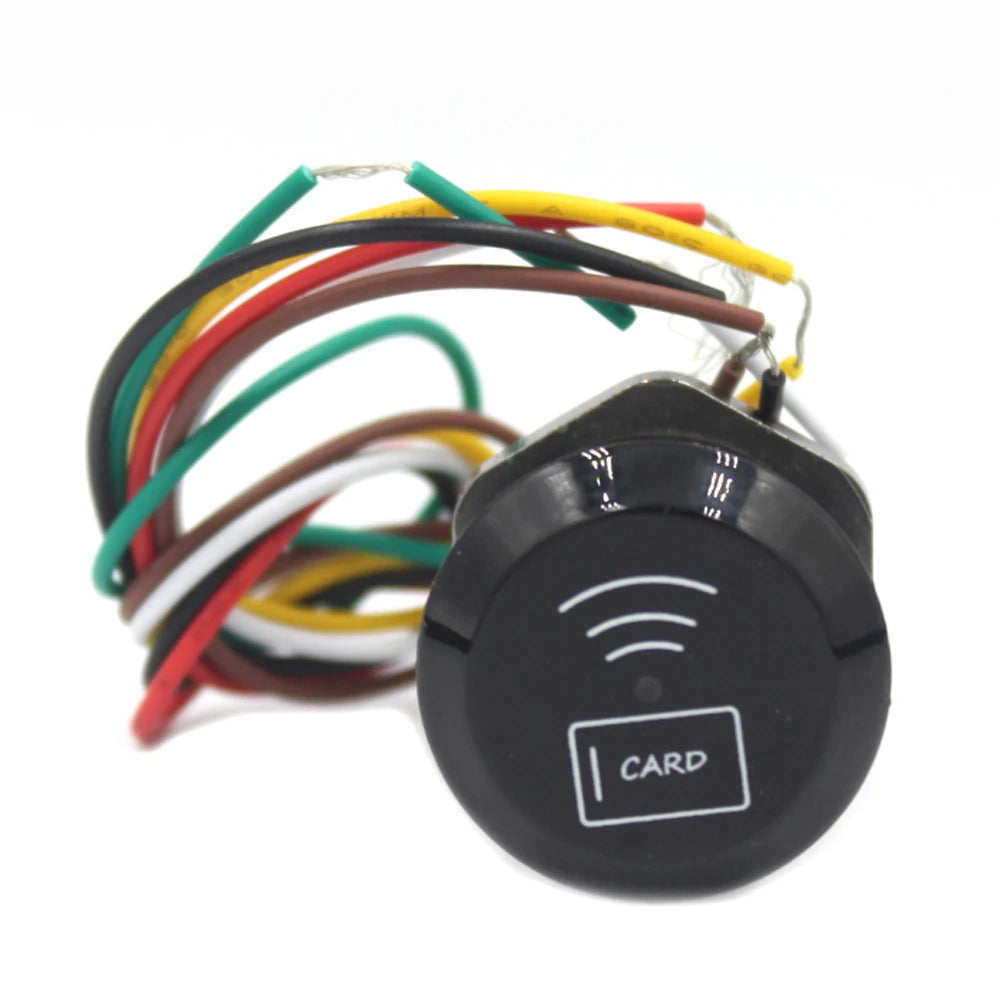

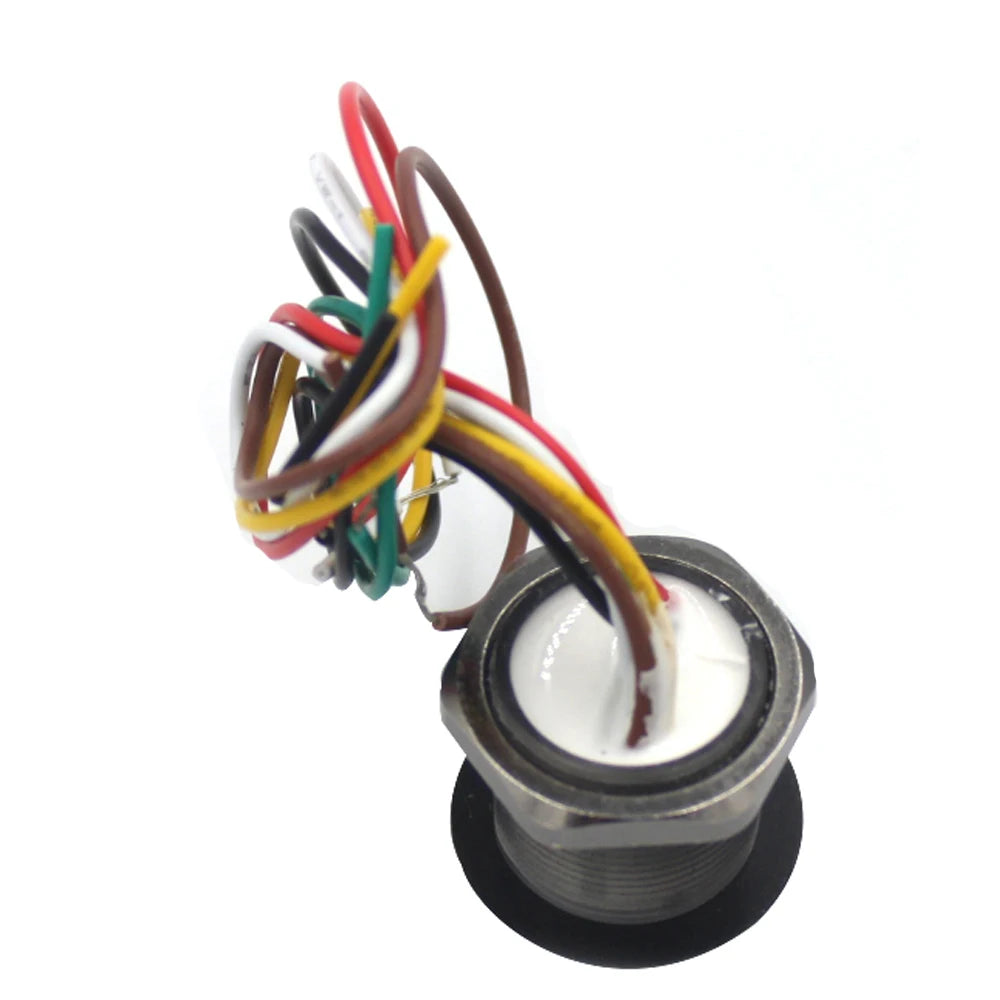

IP68 Waterproof Mini RFID Proximity Reader — Wiegand 26/34 | 125KHz & 13.56MHz
Upgrade your access control system with this compact, high-performance RFID Proximity Reader from Asia-Teco. Supporting both 125KHz EM/ID cards and 13.56MHz MIFARE cards, this dual-frequency reader delivers reliable, fast card detection in a rugged, weather-resistant housing. With an IP68 waterproof rating and a wide operating voltage of 9–15V DC, it's built for demanding indoor and outdoor installations alike.
Key Features

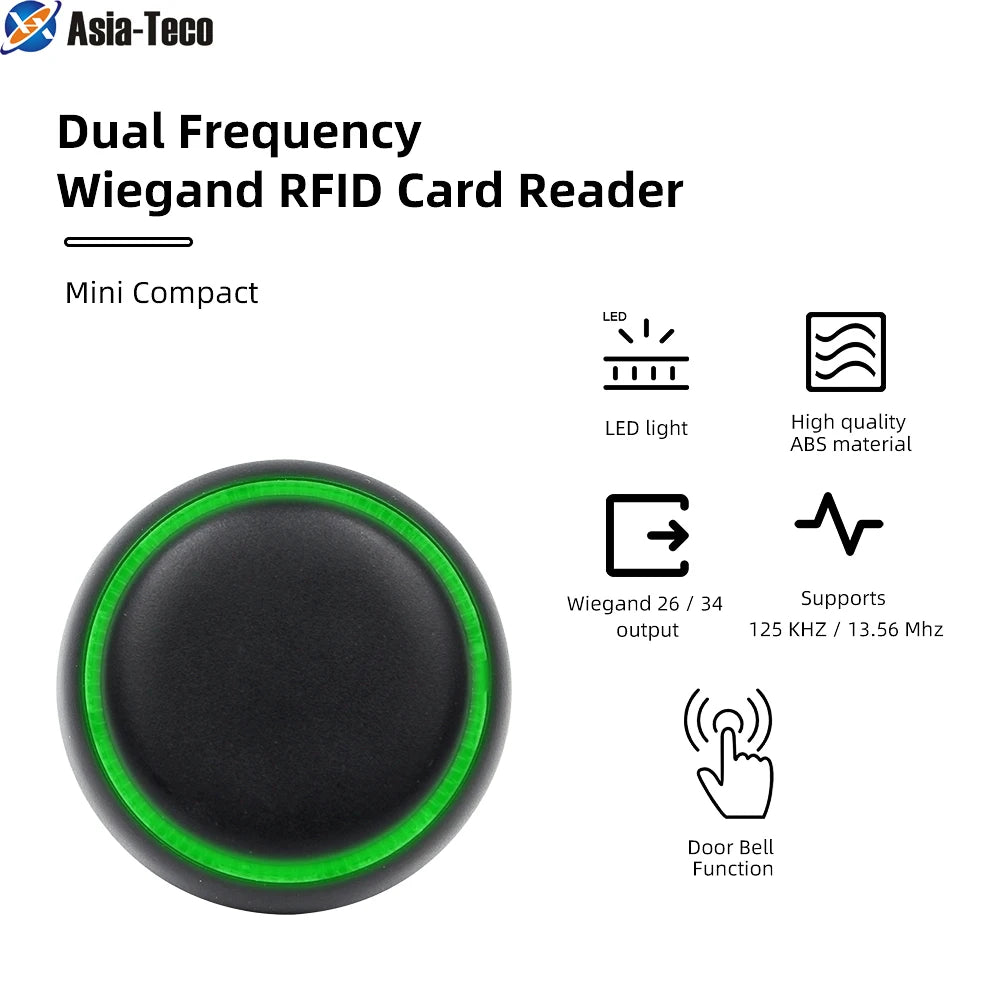

- Dual Frequency Support: Compatible with 125KHz EM/EM-compatible RFID cards and 13.56MHz MIFARE (MF) cards — one reader, two card types.

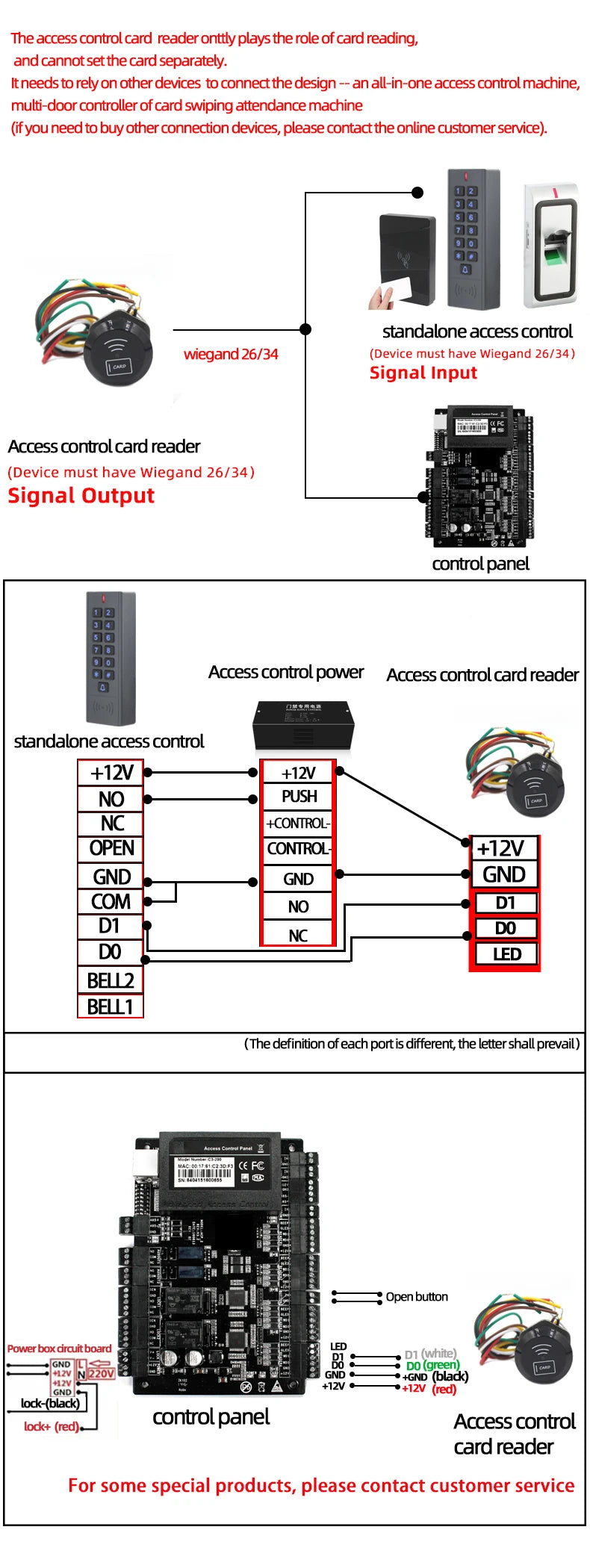

- Wiegand 26/34 Output: Seamlessly integrates with virtually any standard access control panel or controller using Wiegand 26 or Wiegand 34 protocol.
- IP68 Waterproof & Weatherproof: Fully sealed against dust and water immersion — ideal for outdoor gates, parking barriers, building entrances, and industrial environments.
- Wide Voltage Range: Operates on 9–15V DC, making it compatible with most access control power supplies without additional regulators.
- Ultra-Compact Design: Measures just 2.5 × 2 cm — discreet and easy to install in tight spaces, embedded panels, or flush-mount enclosures.
- Fail-Safe Security Mode: Engineered with Fail Safe security mode for reliable access control integrity.
- Fast Card Read: Instantly reads the card ID number upon presentation — no contact required.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SCR02 / SCR03 |
| Supported Card Types | EM ID Card, EM-Compatible RFID Card, MIFARE 13.56MHz |
| Frequencies | 125KHz & 13.56MHz |
| Output Protocol | Wiegand 26 / Wiegand 34 |
| Operating Voltage | 9–15V DC |
| IP Rating | IP68 (Waterproof & Dustproof) |
| Security Mode | Fail Safe |
| Dimensions | 2.5 × 2 cm |
| Brand | Asia-Teco |
| Country of Origin | Made in China |
Ideal Use Cases
- Commercial and residential building entry systems
- Parking lot barriers and gate controllers
- Industrial access control panels
- Outdoor kiosks and embedded reader applications
- Turnstile and time-attendance systems
For more information on physical access control and security best practices, visit the NIST Guidelines on Access Control System Evaluation.
Frequently Asked Questions
Q: What card types are compatible with this RFID proximity reader?
A: This reader supports both 125KHz EM/ID cards (including EM-compatible RFID cards) and 13.56MHz MIFARE cards, giving you flexibility to use it with a wide range of standard access control credentials.
Q: What does the IP68 rating mean for this RFID reader?
A: An IP68 rating means the reader is fully protected against dust ingress and can withstand continuous submersion in water. This makes it highly suitable for outdoor installations exposed to rain, humidity, or dusty environments.
Q: Is this reader compatible with my existing access control panel?
A: Yes — this reader outputs data via the industry-standard Wiegand 26 and Wiegand 34 protocols, which are supported by the vast majority of access control panels and controllers on the market today.
Q: What is the operating voltage required for this reader?
A: The reader operates on a wide voltage range of 9V to 15V DC, making it compatible with standard access control power supplies without requiring additional voltage regulation hardware.
Q: How compact is this RFID reader and where can I install it?
A: The reader measures just 2.5 × 2 cm, making it one of the smallest RFID readers available. It can be embedded into door frames, control panels, turnstiles, or any flush-mount enclosure where space is limited.
