IP68 Waterproof RFID Access Control Reader WG26/34 EM Mifare
IP68 Waterproof RFID Access Control Reader WG26/34 EM Mifare
IP68 Waterproof RFID Access Control Reader – WG26/34 | EM/Mifare Cards

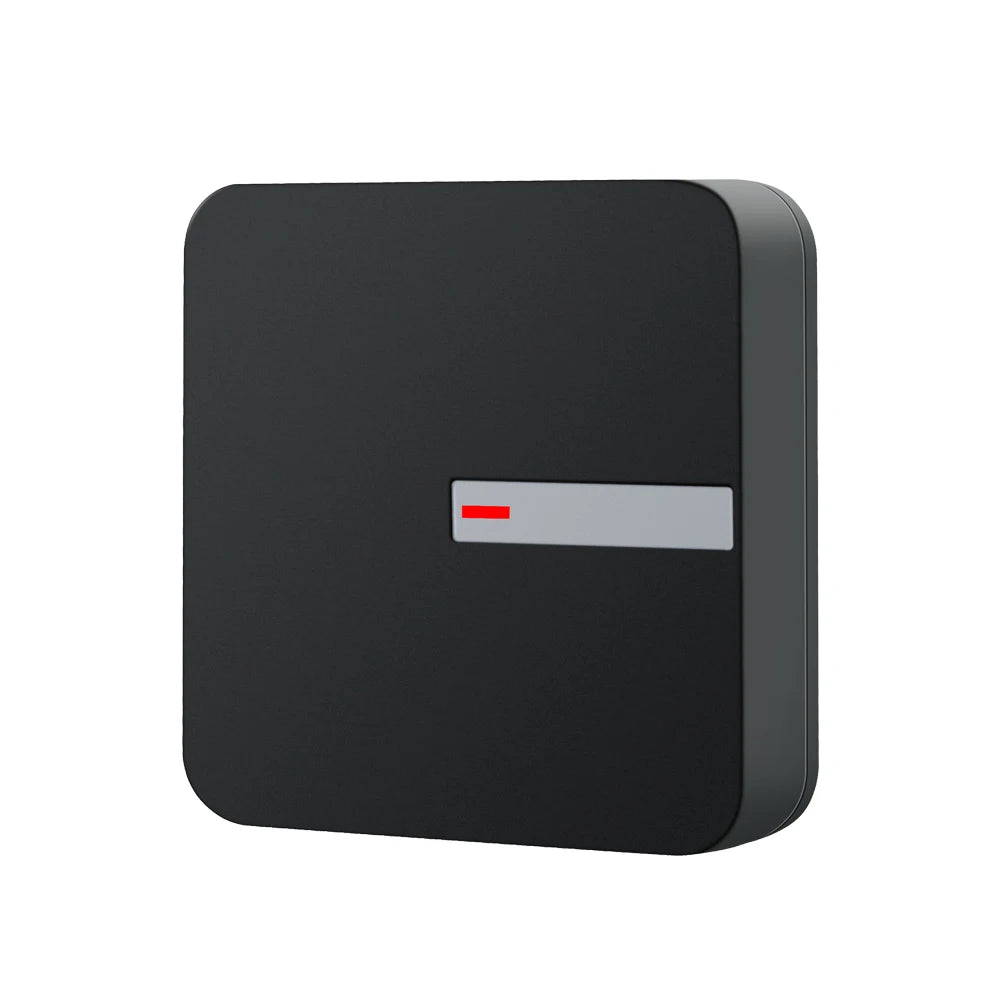

Keep your property secure in any weather with this professional-grade IP68 Waterproof RFID Access Control Reader by LUCKING DOOR. Designed for both indoor and outdoor installation, this compact reader supports EM and Mifare (IC/ID) card protocols and outputs data via the industry-standard Wiegand WG26/34 interface — making it fully compatible with most access control systems on the market. Made in Mainland China.
Key Features
- IP68 Waterproof Rating — Fully protected against dust and sustained water submersion; ideal for gates, doors, and outdoor entrances
- Dual-Protocol Support — Compatible with both EM (125kHz) and Mifare (13.56MHz) cards and key fobs
- Wiegand WG26/34 Output — Switchable via gray wire; integrates seamlessly with standard access control panels
- Ultra-Fast Card Read Speed — Response time under 0.1 seconds from card tap to door signal
- Very Low Power Consumption — Standby current ≤30mA, keeping operating costs minimal
- Wide Operating Temperature — Rated from -45°C to 60°C, suitable for harsh environments
- Compact & Durable Design — Sturdy plastic housing at just 86×86×22mm for clean, unobtrusive mounting
Technical Specifications
| Card Type | EM / Mifare (IC/ID) |
| Operating Voltage | 9–12V DC |
| Read Range | 3–8 cm |
| Quiescent Current | ≤30mA |
| Output Format | WG26 / WG34 (switchable) |
| Waterproof Rating | IP68 |
| Operating Temperature | -45°C ~ 60°C |
| Operating Humidity | 10% – 90% RH |
| Dimensions | 86 × 86 × 22 mm |
| Housing Material | Plastic |
| Brand | LUCKING DOOR |
| Model | R3-EM / UP004-MF |
| Country of Origin | Made in Mainland China |
Wiring Guide

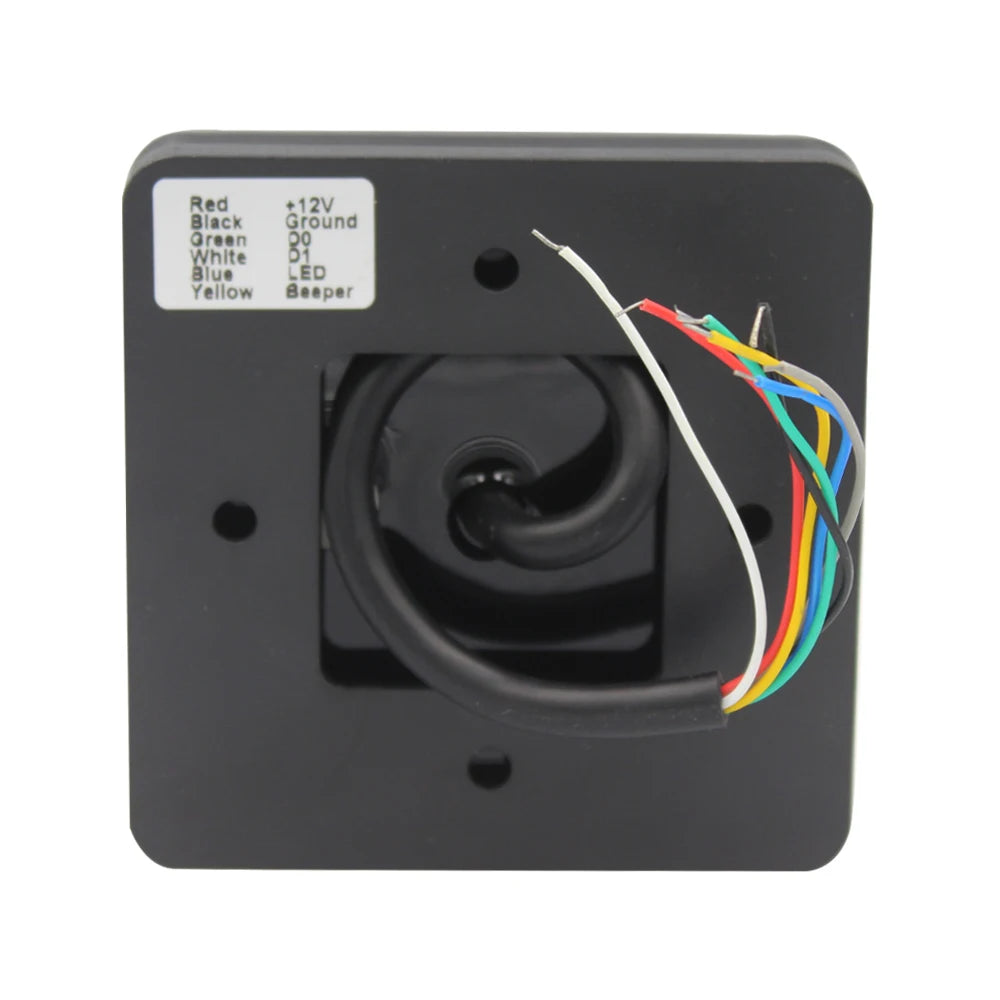

| Wire No. | Function | Color | Description |
|---|---|---|---|
| 1 | LED | Blue | Connect to controller LED |
| 2 | Beeper | Yellow | Connect to controller beeper |
| 3 | D0 | Green | Wiegand output line D0 |
| 4 | D1 | White | Wiegand output line D1 |
| 5 | +12V | Red | Power supply +12V |
| 6 | GND | Black | Power supply ground (–12V) |
| 7 | WG26/34 | Gray | WG26/34 protocol switching |
What's in the Box
- 1× RFID Access Control Reader (Model R3)
- 1× User Manual
- 2× Rubber Plugs (Φ6mm × 30mm)
- 2× Self-Tapping Screws (Φ4mm × 28mm)
Important: Please read the user manual carefully before installation. Verify all package contents upon receipt — contact the supplier if any items are missing.
For guidance on electronic security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What card types are compatible with this RFID access control reader?
A: This reader supports both EM (125kHz) and Mifare (13.56MHz) cards and fobs — commonly labeled as IC or ID cards. This dual-protocol compatibility makes it highly versatile for most existing access control setups.
Q: Is this RFID reader truly suitable for outdoor use in all weather conditions?
A: Yes. The reader carries an IP68 waterproof rating, meaning it is fully protected against dust ingress and can withstand prolonged exposure to water. Its operating temperature range of -45°C to 60°C makes it suitable for extreme climates as well.
Q: How do I switch between WG26 and WG34 output formats?
A: Switching between Wiegand WG26 and WG34 output is handled via the gray wire (Wire No. 7). Connect or configure it according to the instructions in the included user manual to select your preferred output protocol.
Q: What voltage is required to power this access control reader?
A: The reader operates on 9–12V DC power. Connect the red wire (+12V) and black wire (GND) to your power supply accordingly. Most standard access control power supplies are compatible.
Q: What is the typical card read range for this RFID reader?
A: The effective read range is approximately 3–8 cm, depending on the card type and environmental conditions. This close-range design ensures accurate, intentional reads at access points.
