IP68 Waterproof RFID Access Control Reader with Backlit Keypad

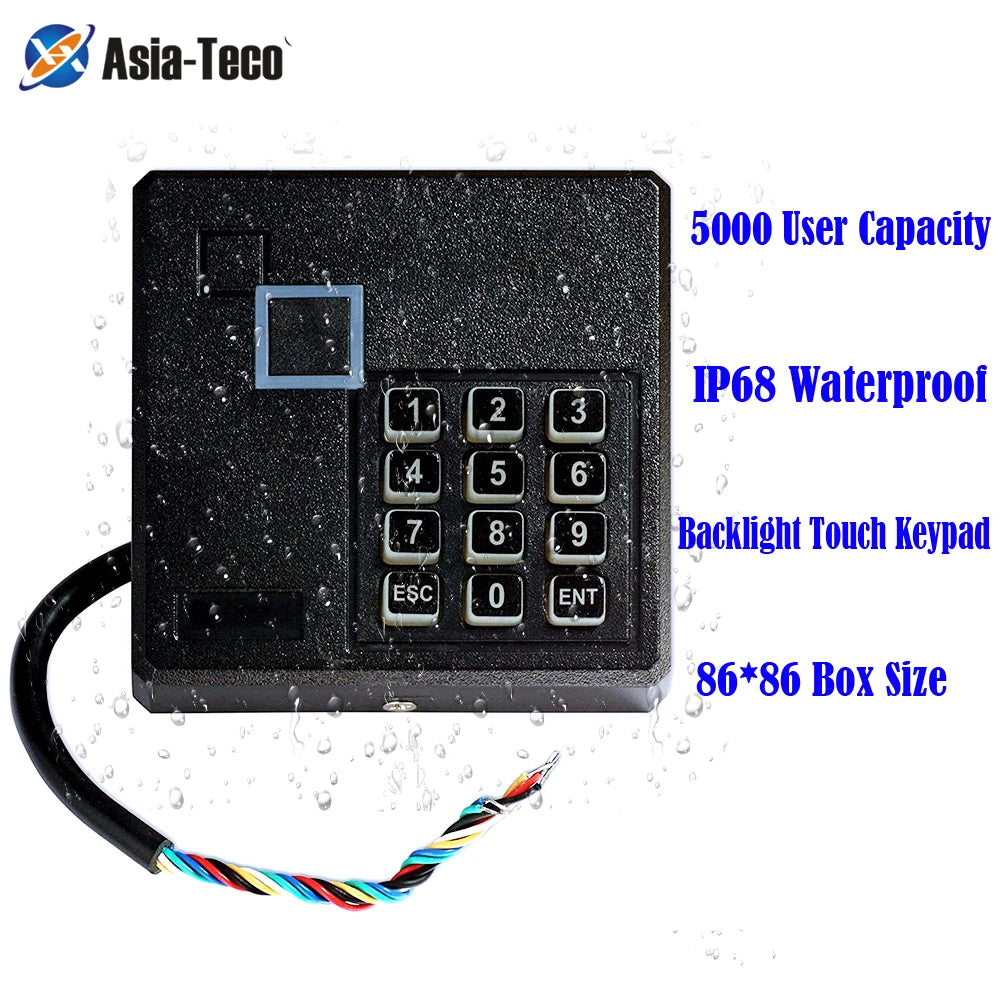

Upgrade your property's entry security with the Asia-Teco D2-1 Standalone RFID Access Control Reader. Designed for demanding environments, this robust unit combines a 125kHz/13.56MHz RFID card reader with a backlit silicone PIN keypad, giving you flexible, reliable entry control for homes, offices, residential communities, and commercial buildings.
Key Features
- IP68 Waterproof Rating: Fully sealed against dust and continuous water immersion — ideal for outdoor gates, doors, and entryways exposed to the elements.

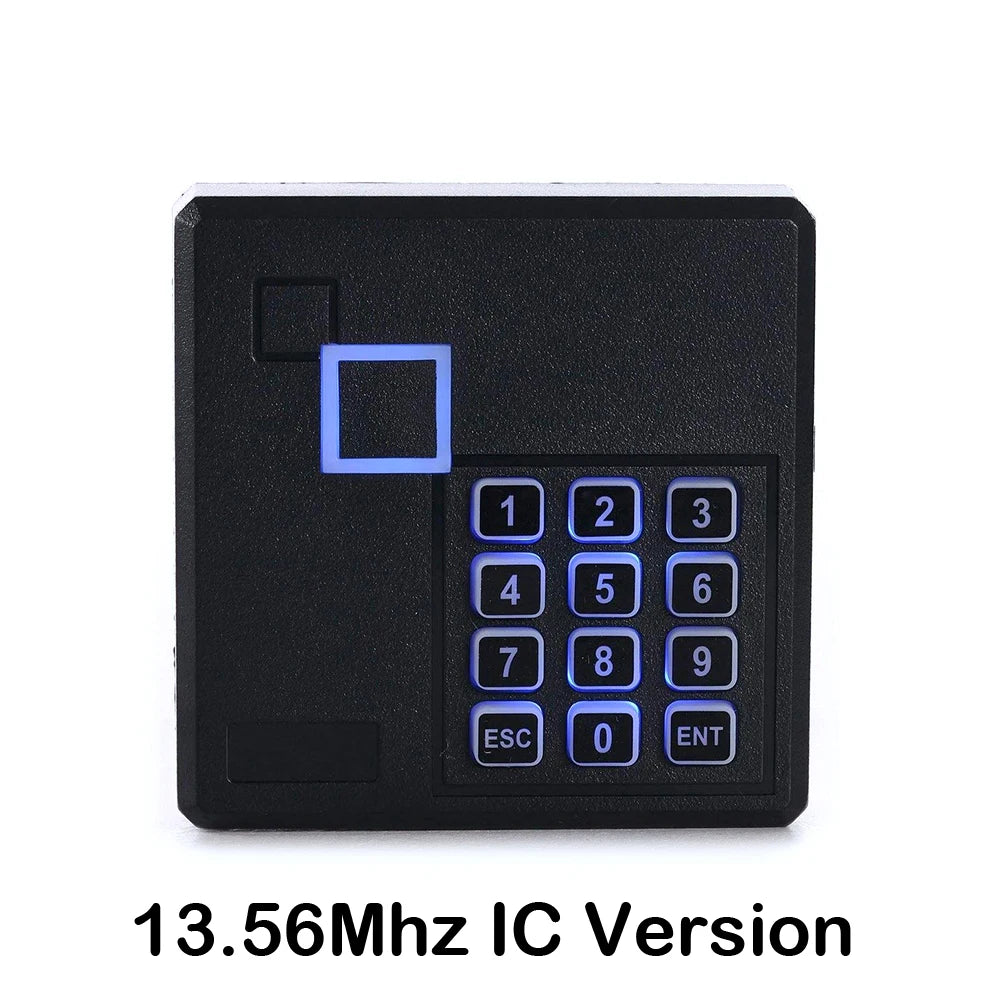

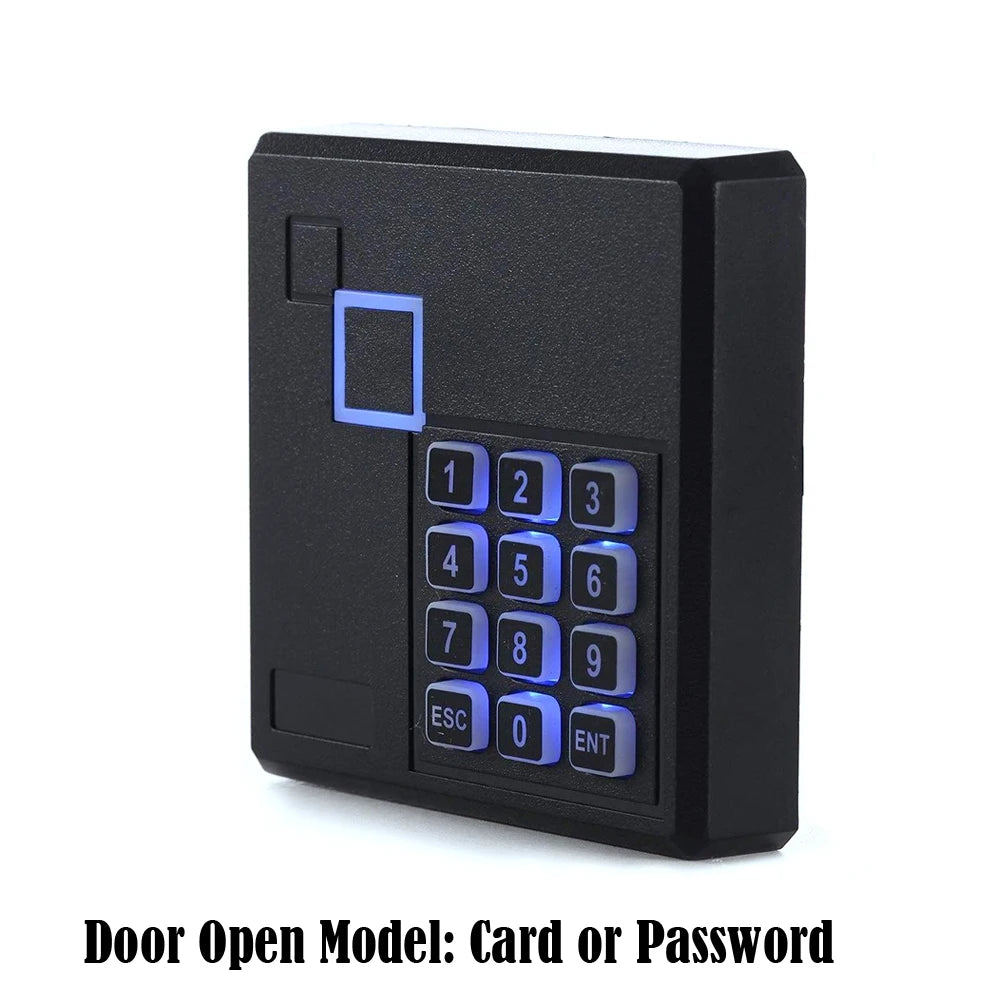

- Dual Access Modes: Grant entry via 125kHz EM or 13.56MHz MF proximity cards or a personal PIN code — no card required for code-only users.

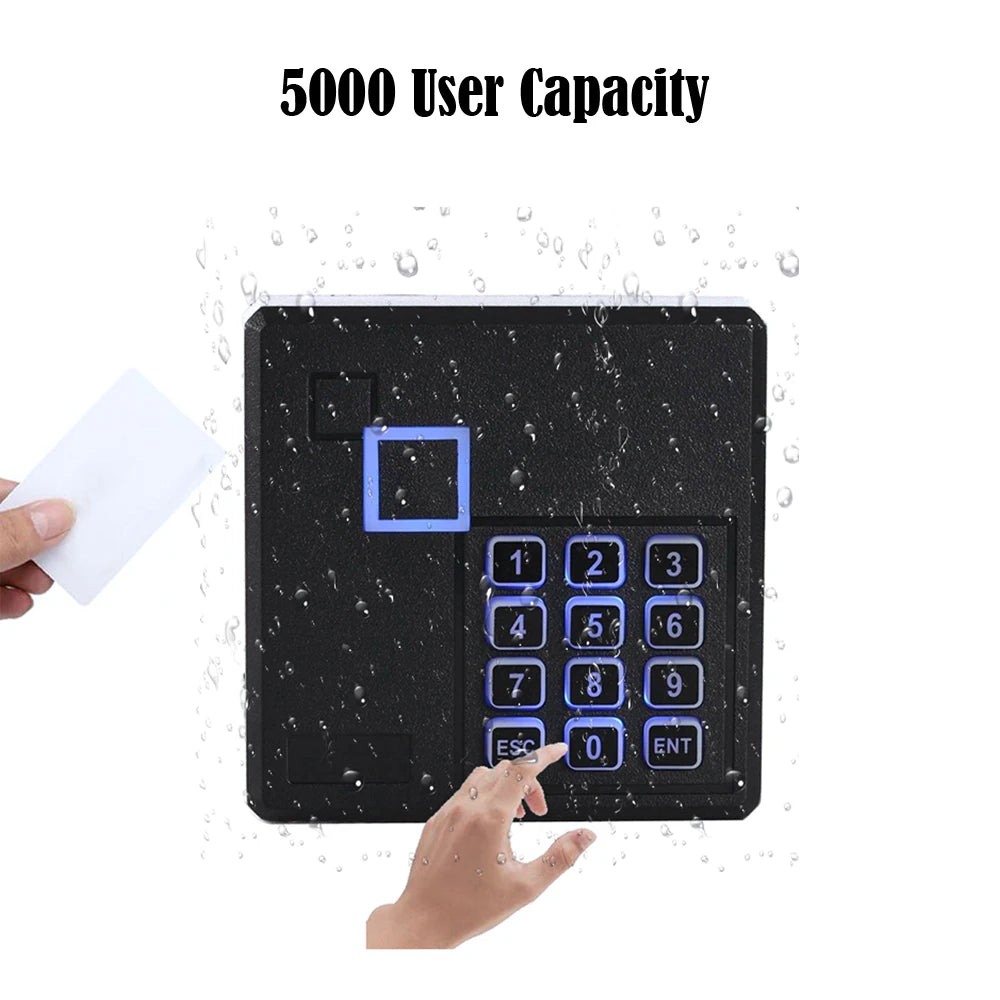

- 5,000 User Capacity: Manage up to 5,000 registered users — perfect for medium to large residential complexes or commercial facilities.
- Backlit Silicone Keypad: High-visibility backlighting ensures easy, error-free operation in low-light and nighttime conditions.
- Ultra-Fast Card Recognition: Card search and verification completed in under 0.1 seconds for smooth, uninterrupted entry flow.
- Ultra-Low Power Consumption: Standby current under 30mA — energy efficient and cost-effective for 24/7 operation.
- User-Configurable PIN Codes: Individual users can update their own access codes independently, reducing administrative overhead.

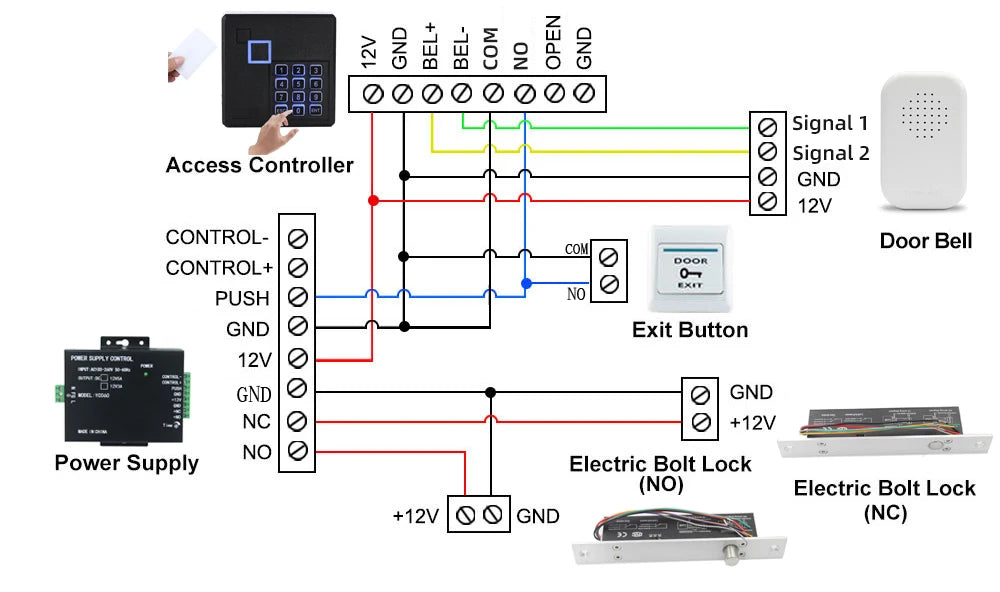

- Doorbell Interface: Built-in support for an external wired doorbell — no extra controller needed.
- NO/NC/COM Relay Output: Compatible with electric strikes, magnetic locks, and automatic gate controllers across virtually all standard configurations.
- STC Microprocessor Core: High-grade embedded processor delivers strong anti-interference performance, high reliability, and consistent operation in busy RF environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Asia-Teco |
| Model | D2-1 |
| RFID Frequency | 125kHz / 13.56MHz |
| User Capacity | 5,000 Users |
| Waterproof Rating | IP68 |
| Keypad Type | Silicone Backlit |
| Access Modes | RFID Card, PIN Code |
| Relay Output | NO / NC / COM |
| Standby Current | < 30mA |
| Card Read Speed | < 0.1 seconds |
| Country of Origin | Made in China |
What's in the Box?
- 1 × Asia-Teco D2-1 RFID Access Control Reader/Keypad

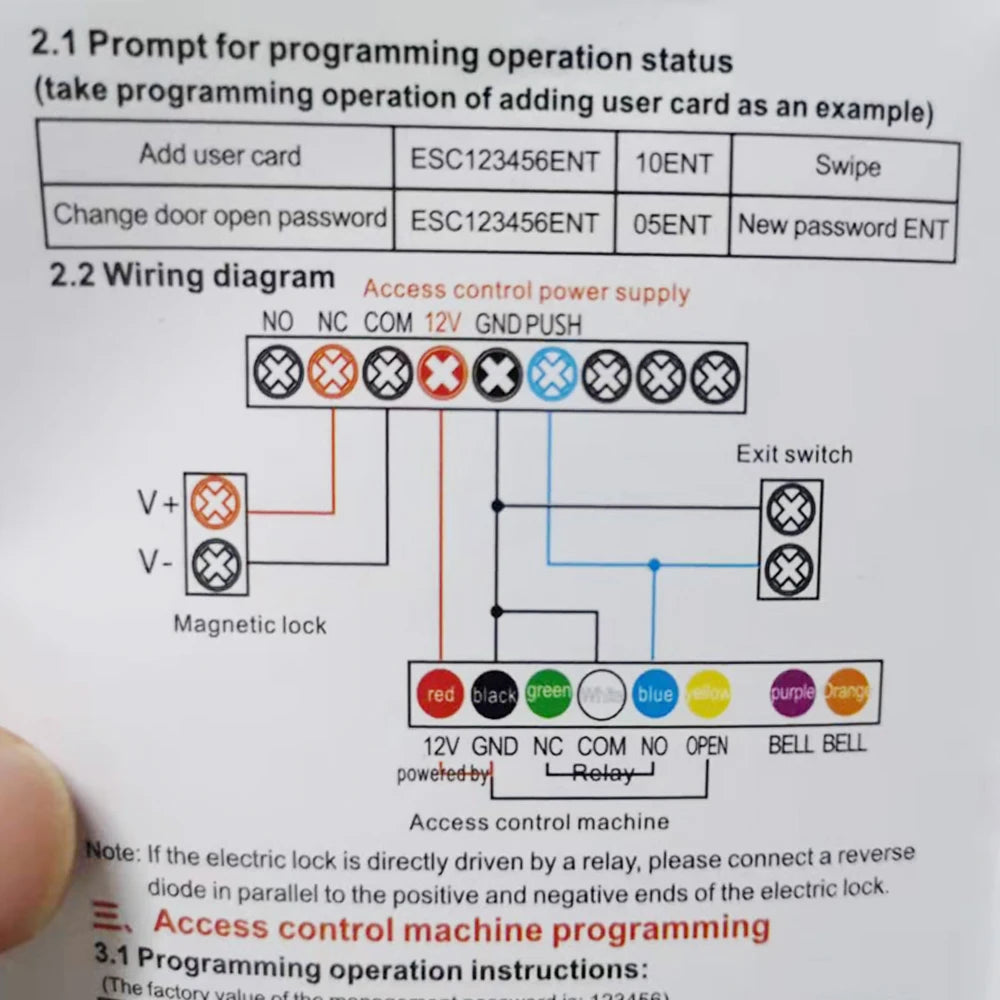

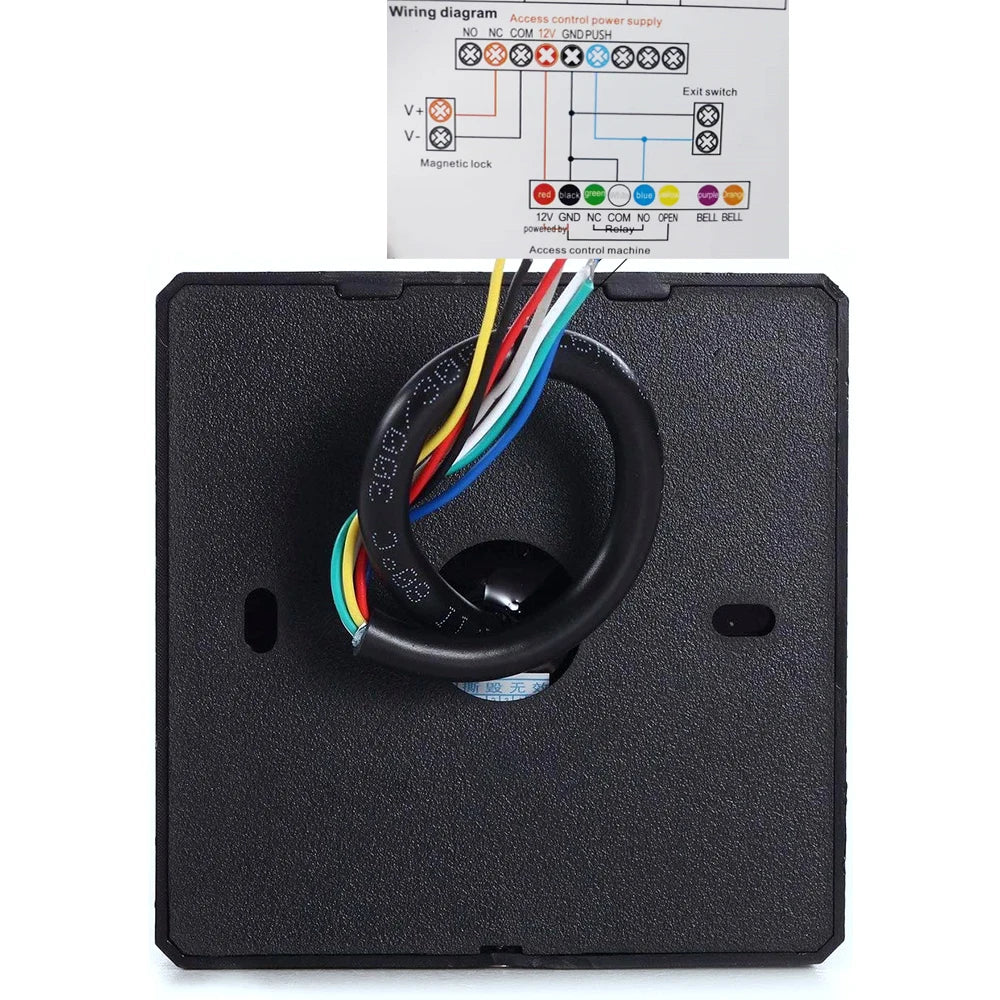

- Wiring diagram (included)
Ideal Applications
This access control reader is perfectly suited for apartment buildings, gated communities, office entrances, warehouses, schools, and any location requiring controlled, auditable entry — indoors or outdoors.
For more information on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the Asia-Teco D2-1 RFID access control reader suitable for outdoor installation?
A: Yes. The unit carries an IP68 waterproof rating, meaning it is fully protected against dust ingress and sustained water immersion, making it ideal for outdoor gates, building entrances, and exposed mounting locations in all weather conditions.
Q: What types of access cards are compatible with this RFID keypad reader?
A: The D2-1 supports both 125kHz EM proximity cards and 13.56MHz MF (Mifare) smart cards. It also operates in PIN-code-only mode, so users can gain entry without carrying a card at all.
Q: How many users can be registered on the Asia-Teco D2-1 access control system?
A: The system supports up to 5,000 individual users, each assignable a unique card, PIN, or both — making it suitable for large residential complexes, commercial office buildings, and multi-tenant facilities.
Q: What lock types can be connected to this access control reader?
A: The D2-1 features a standard NO/NC/COM relay output, which is compatible with the vast majority of electric strike locks, magnetic (maglocks), and automatic gate/door controllers. Always verify your lock's power and relay requirements before installation.
Q: Can users change their own PIN codes?
A: Yes. The system allows individual users to update their own PIN codes without administrator intervention, simplifying ongoing access management and improving convenience.
